- Load per castor250kg per castor
- Wheel diameter125mm
- Overall height155mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Brake
- Acts on both the wheel and the swivel head
- Wheel Diameter
- 125mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon (red)
- Tread Width
- 30mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 155mm
- Load Capacity
- 250kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

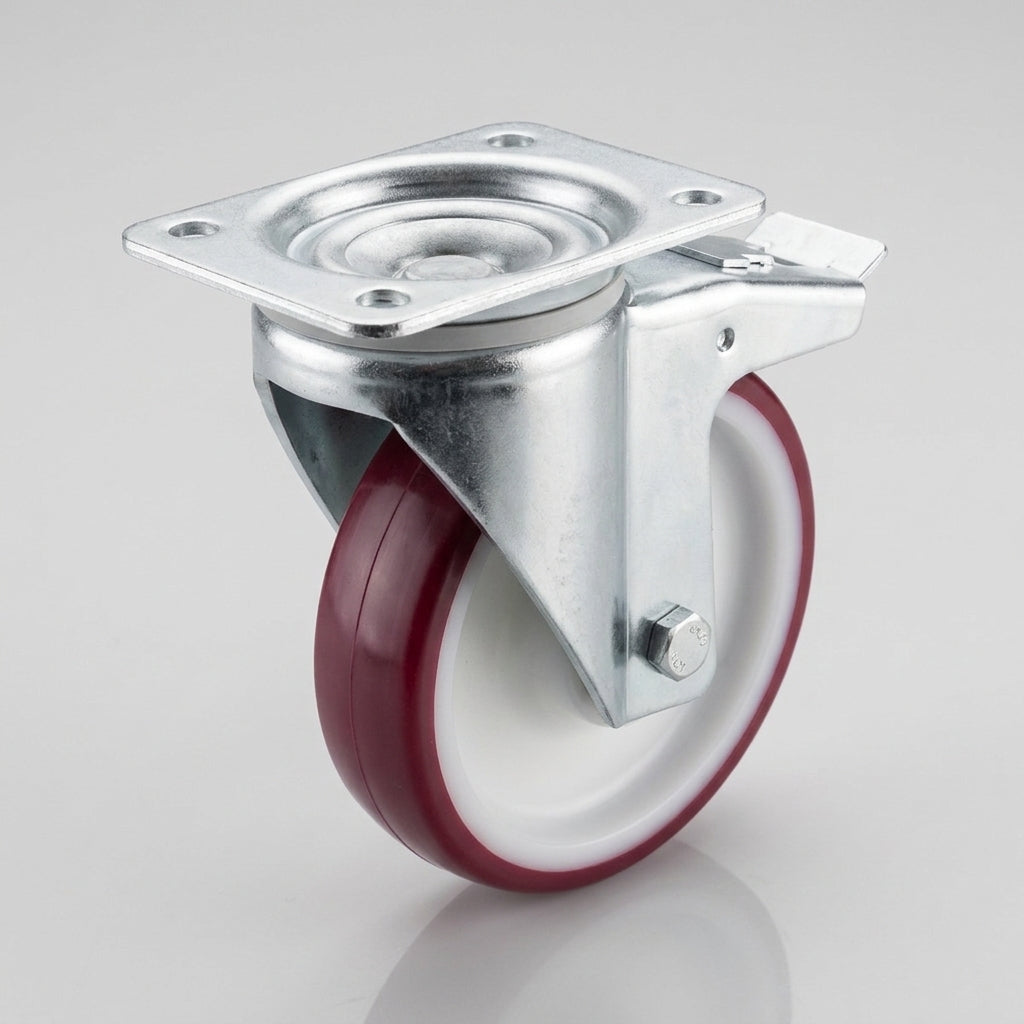

Red Polyurethane Braked Castors
Built for industrial applications where load handling and manoeuvrability matter, this 125mm braked swivel castor pairs a maroon-red polyurethane wheel with a brake that locks both the wheel and the swivel head, giving stability when stationary. Rated at 250kg per castor, it suits warehouse trolleys, industrial carts and equipment stands.
The D60 tread hardness gives a firm tread suited to smooth surfaces, and the roller bearing ensures efficient rotation. This heavy-duty top plate castor fixes with a 105 x 85mm plate for secure attachment to flat surfaces, has a 123mm swivel radius, stands 155mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Brake on wheel and swivel head for stability when stationary.
- ✓ Red polyurethane on nylon wheel with a firm tread for smooth surfaces.
- ✓ 250kg load capacity per castor for heavy-duty use.
- ✓ Roller bearing for efficient rotation.
- ✓ 125mm wheel with 30mm tread and D60 tread hardness.
- ✓ 105 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This braked top plate castor suits equipment that needs to move easily and then stay put:
- ✓ Warehouse trolleys: mobility and stability for transporting goods.
- ✓ Industrial carts: handling heavy loads in manufacturing settings.
- ✓ Equipment stands: secure positioning and movement for machinery.
Frequently Asked Questions
What does the brake lock?
The brake acts on both the wheel and the swivel head, so the castor holds its position once the brake is applied.
How much weight can this castor carry?
Each castor is rated for 250kg.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 123mm and the total castor height is 155mm.
What is the wheel made of?
A 125mm maroon-red polyurethane tread on a nylon centre, 30mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
