- Load per castor300kg per castor
- Wheel diameter125mm
- Overall height165mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 125mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon (red)
- Tread Width
- 40mm
- Tyre Hardness
- 95 Shore A
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 165mm
- Load Capacity
- 300kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

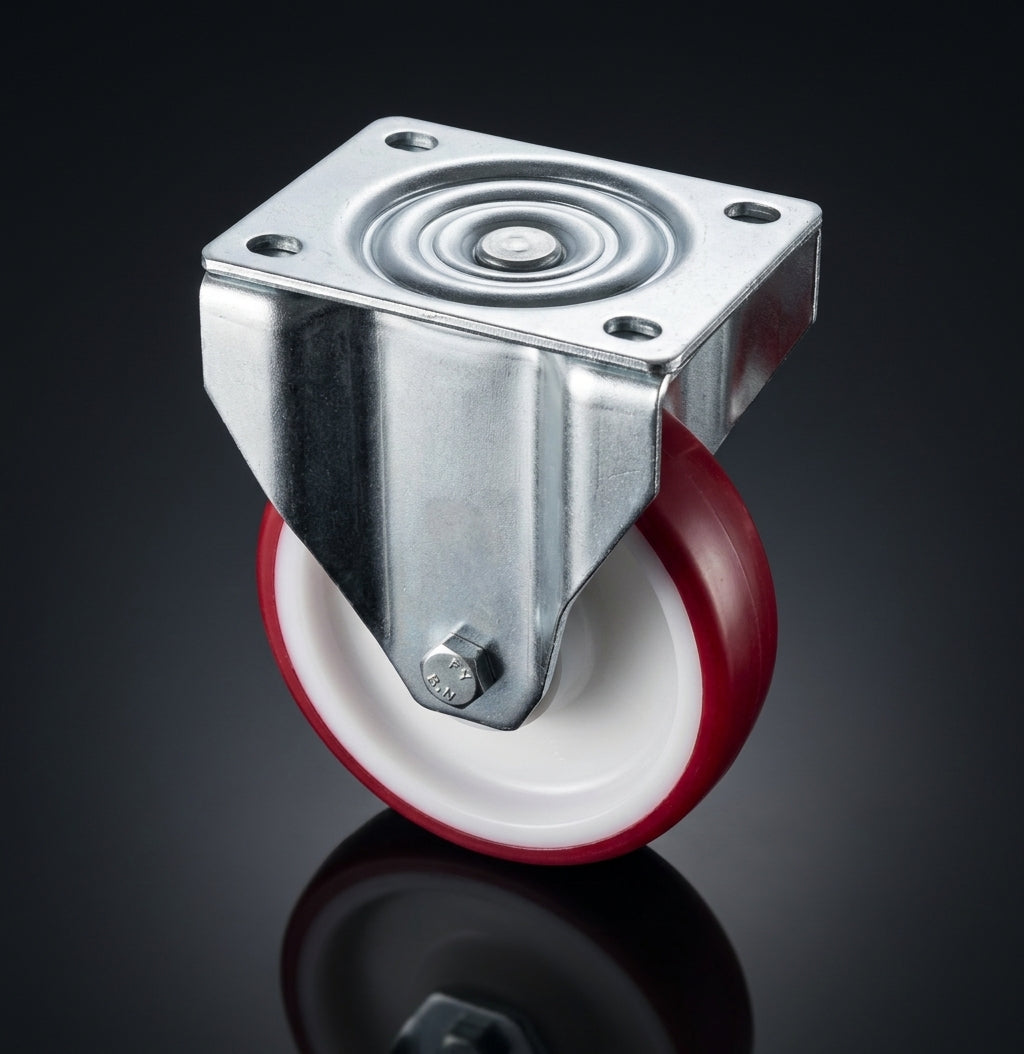

Red Polyurethane Fixed Castors

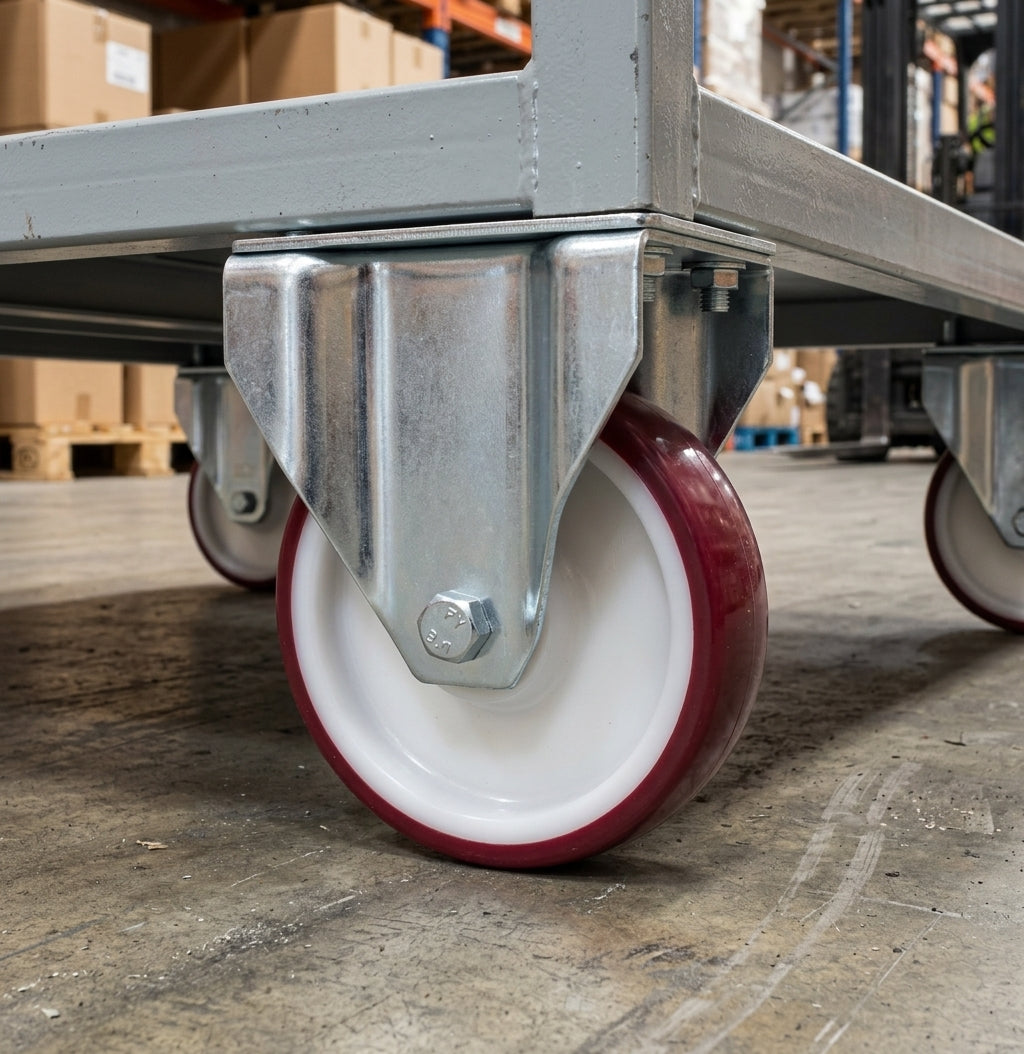

Built for heavy-duty industrial use, this 125mm fixed castor pairs a maroon-red polyurethane wheel on a nylon core with a large 140 x 110mm top plate. Rated at 300kg per castor, it gives smooth, controlled straight-line movement for warehouse trolleys, industrial carts, machinery bases and workbenches.
The 95 Shore A tread is firm and well suited to hard floors, and the roller bearing gives smooth, controlled rolling. This fixed top plate castor bolts securely to a flat surface with a 140 x 110mm plate, stands 165mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ Red polyurethane on nylon wheel for smooth, hard floors.
- ✓ 300kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth, controlled movement.
- ✓ 125mm wheel with 40mm tread and 95 Shore A tread hardness.
- ✓ Large 140 x 110mm top plate with four 10mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that needs steady, straight-line movement:
- ✓ Warehouse trolleys: transporting heavy loads across smooth floors.
- ✓ Industrial carts: stable movement for equipment in manufacturing.
- ✓ Machinery bases: supporting heavy machinery that needs repositioning.
- ✓ Workbenches: mobility for workstations in workshops.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 125mm red polyurethane wheel.
How much weight can this castor carry?
Each castor is rated for 300kg.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 165mm.
What is the wheel made of?
A 125mm maroon-red polyurethane tread on a nylon centre, 40mm wide with 95 Shore A hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
