- Load per castor300kg per castor
- Wheel diameter125mm
- Overall height165mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Brake
- None
- Wheel Diameter
- 125mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon (red)
- Tread Width
- 40mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 118mm
- Total Castor Height
- 165mm
- Load Capacity
- 300kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

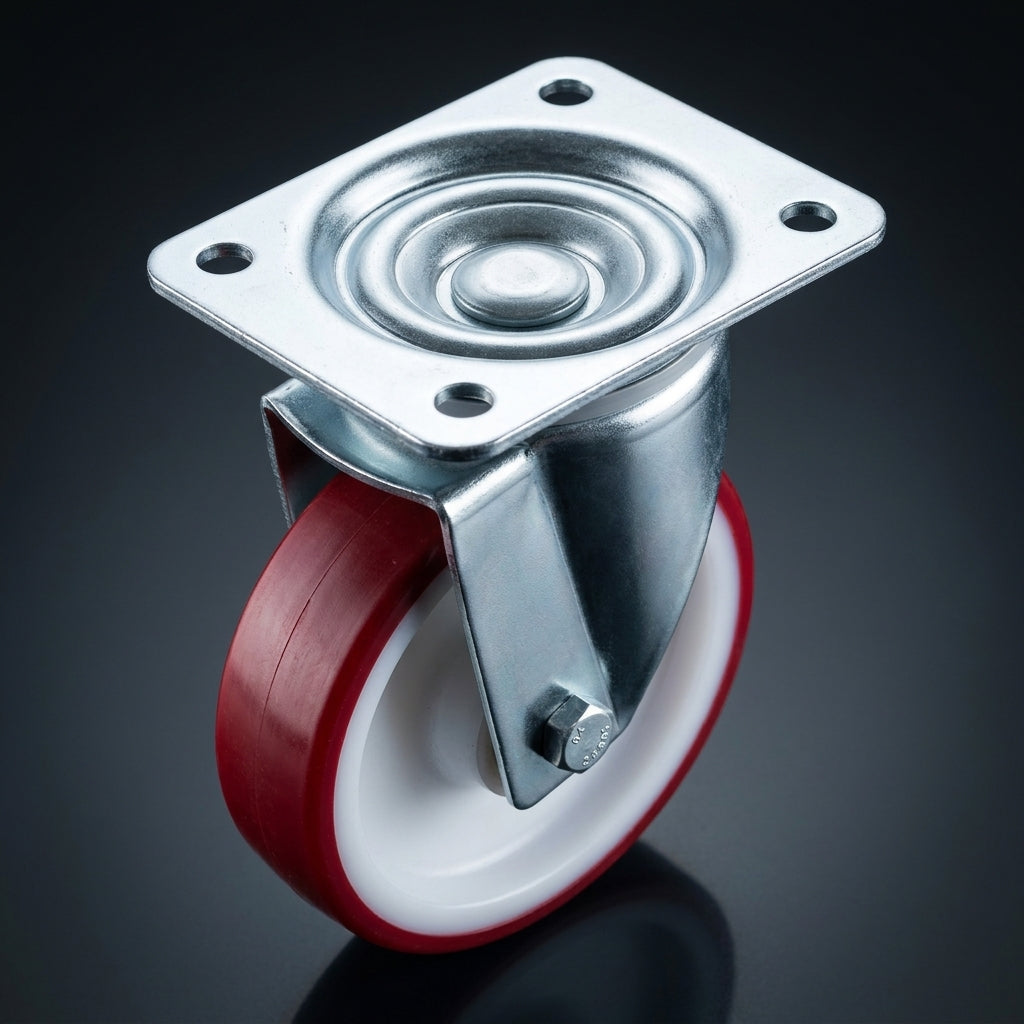

Red Polyurethane Swivel Castors
Featuring a maroon-red polyurethane wheel on a nylon core, this 125mm swivel castor is built for smooth, quiet operation and easy changes of direction. Its large 140 x 110mm top plate and 300kg rating per castor make it well suited to industrial trolleys, warehouse carts, material handling equipment and workshop benches.
The polyurethane on nylon wheel offers a balance of strength and quiet operation, with a D60 tread hardness and a roller bearing for smooth rotation. This top plate swivel castor fixes to flat surfaces with a 140 x 110mm plate, has a 118mm swivel radius, stands 165mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Swivel head for easy manoeuvrability.
- ✓ Red polyurethane on nylon wheel for strength and quiet operation.
- ✓ 300kg load capacity per castor for industrial use.
- ✓ Roller bearing for smooth rotation.
- ✓ 125mm wheel with 40mm tread and D60 tread hardness.
- ✓ Large 140 x 110mm top plate with four 10mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.

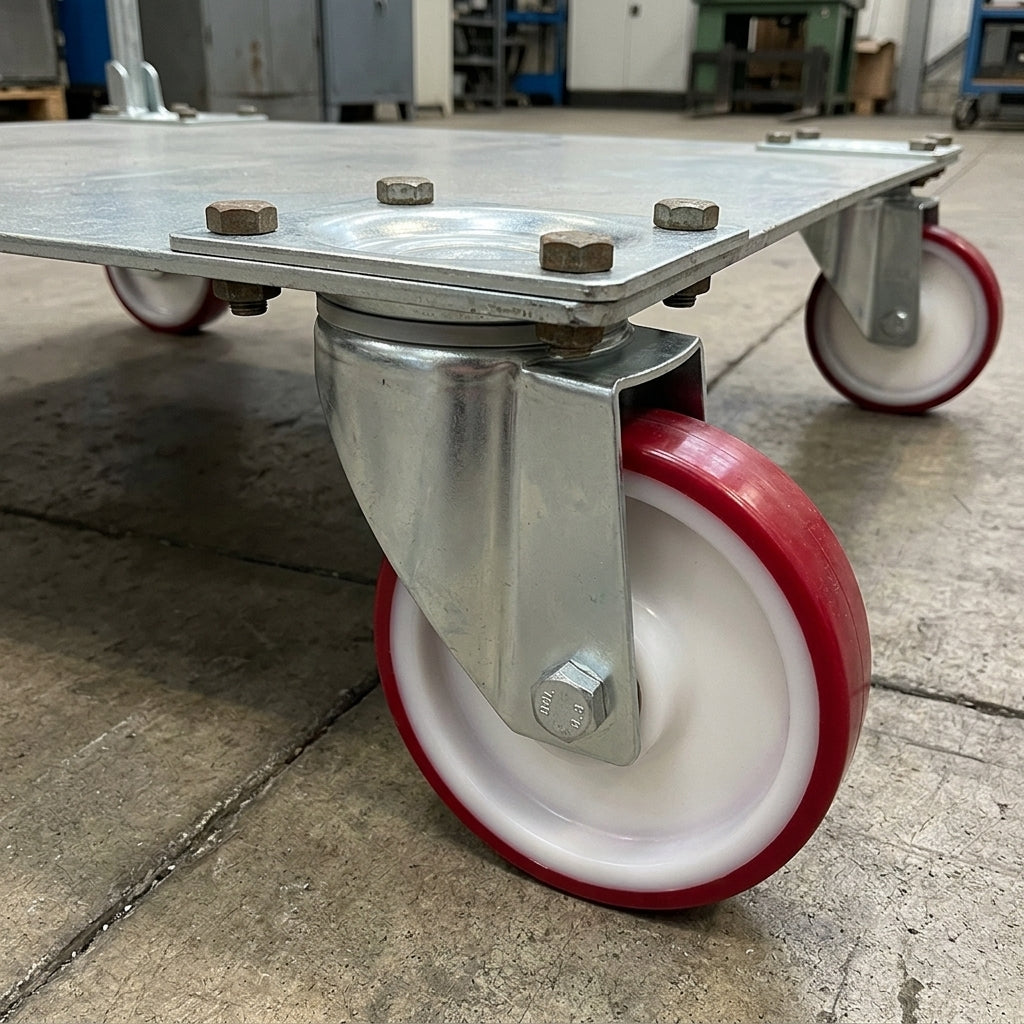

Where It Works Best
This swivel top plate castor suits equipment that needs to move and turn easily:
- ✓ Industrial trolleys: smooth movement and directional flexibility.
- ✓ Warehouse carts: transporting heavy loads with ease.
- ✓ Material handling equipment: suitable for a range of handling tasks.
- ✓ Workshop benches: mobility and easy repositioning.
Frequently Asked Questions
Does this castor have a brake?
No. This is a free-swivelling castor without a brake. A braked version with the same 125mm red polyurethane wheel is also available.
How much weight can this castor carry?
Each castor is rated for 300kg.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 118mm and the total castor height is 165mm.
What is the wheel made of?
A 125mm maroon-red polyurethane tread on a nylon centre, 40mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
