- Load per castor250kg per castor
- Wheel diameter125mm
- Overall height155mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 125mm
- Wheel Type
- Polyurethane
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon (red)
- Tread Width
- 30mm
- Tyre Hardness
- D60
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 101 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 155mm
- Load Capacity
- 250kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

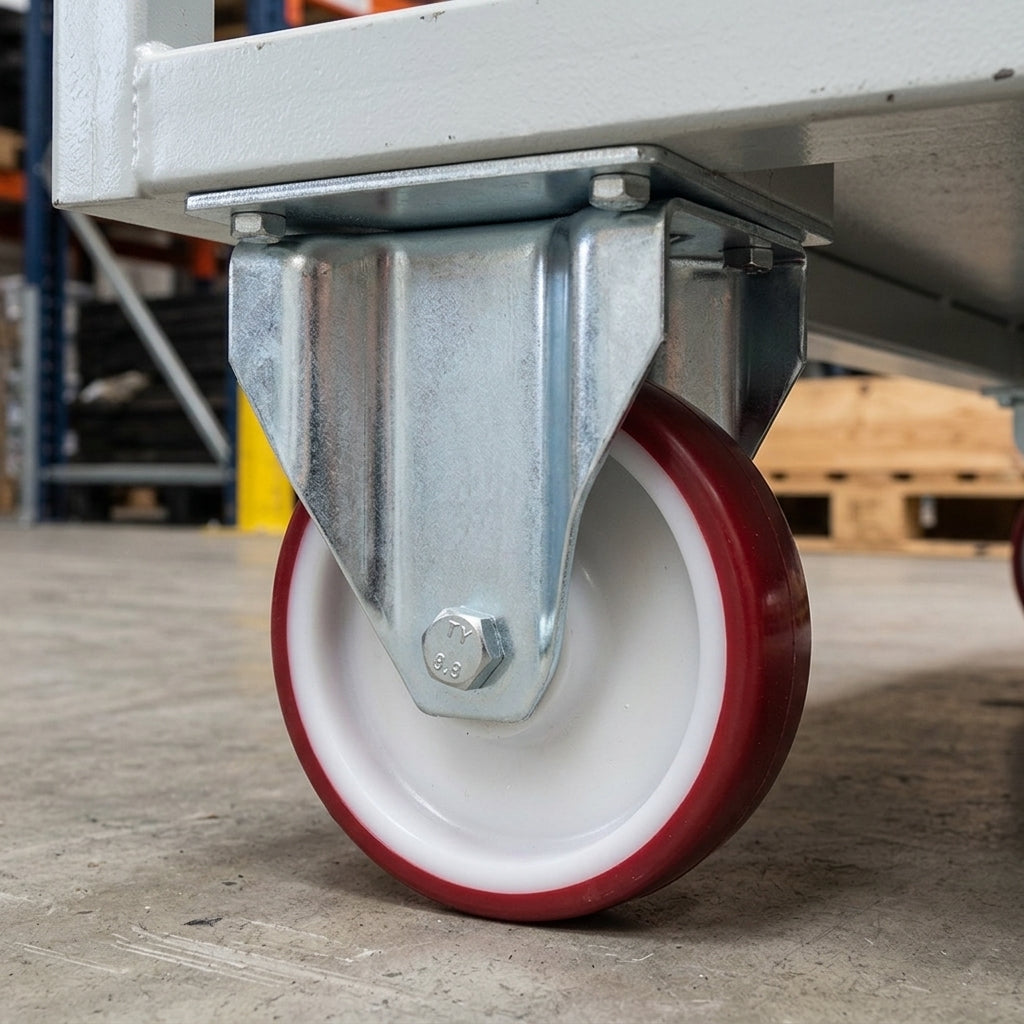

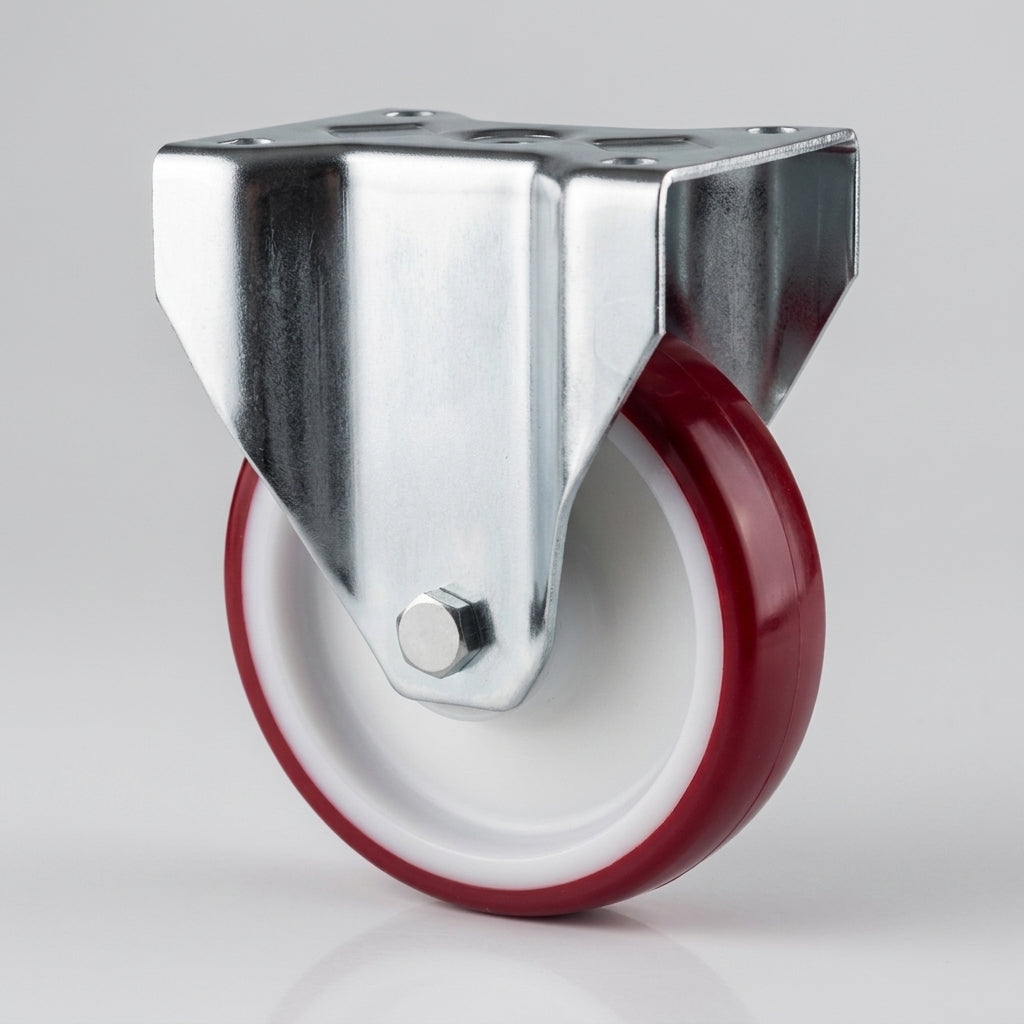

Red Polyurethane Fixed Castors
Fitted to industrial equipment for directional stability, this fixed castor has a 125mm maroon-red polyurethane wheel on a nylon core. It supports up to 250kg per castor and keeps the wheel aligned in one direction of travel, suiting warehouse trolleys, industrial machinery, material handling carts and production line equipment.
The D60 tread hardness balances load-bearing capacity with floor contact, and the roller bearing reduces friction for smooth operation. This fixed top plate castor bolts securely to a flat surface with a 101 x 85mm plate, stands 155mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ Red polyurethane on nylon wheel for smooth, hard floors.
- ✓ 250kg load capacity per castor for industrial use.
- ✓ Roller bearing for reduced friction and smooth operation.
- ✓ 125mm wheel with 30mm tread and D60 tread hardness.
- ✓ 101 x 85mm top plate with four 8mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that needs steady, straight-line movement:
- ✓ Warehouse trolleys: stable movement for transporting goods.
- ✓ Industrial machinery: keeping equipment moving in a fixed direction.
- ✓ Material handling carts: supporting heavy loads with ease.
- ✓ Production line equipment: consistent alignment and movement.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 125mm red polyurethane wheel.
How much weight can this castor carry?
Each castor is rated for 250kg.
How is the castor fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 155mm.
What is the wheel made of?
A 125mm maroon-red polyurethane tread on a nylon centre, 30mm wide with D60 hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
