- Load per castor150kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Blue
- Non-Marking
- Yes
- Tread Width
- 36mm
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor *
- Top Plate Size
- 99 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +60°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height108mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -40°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

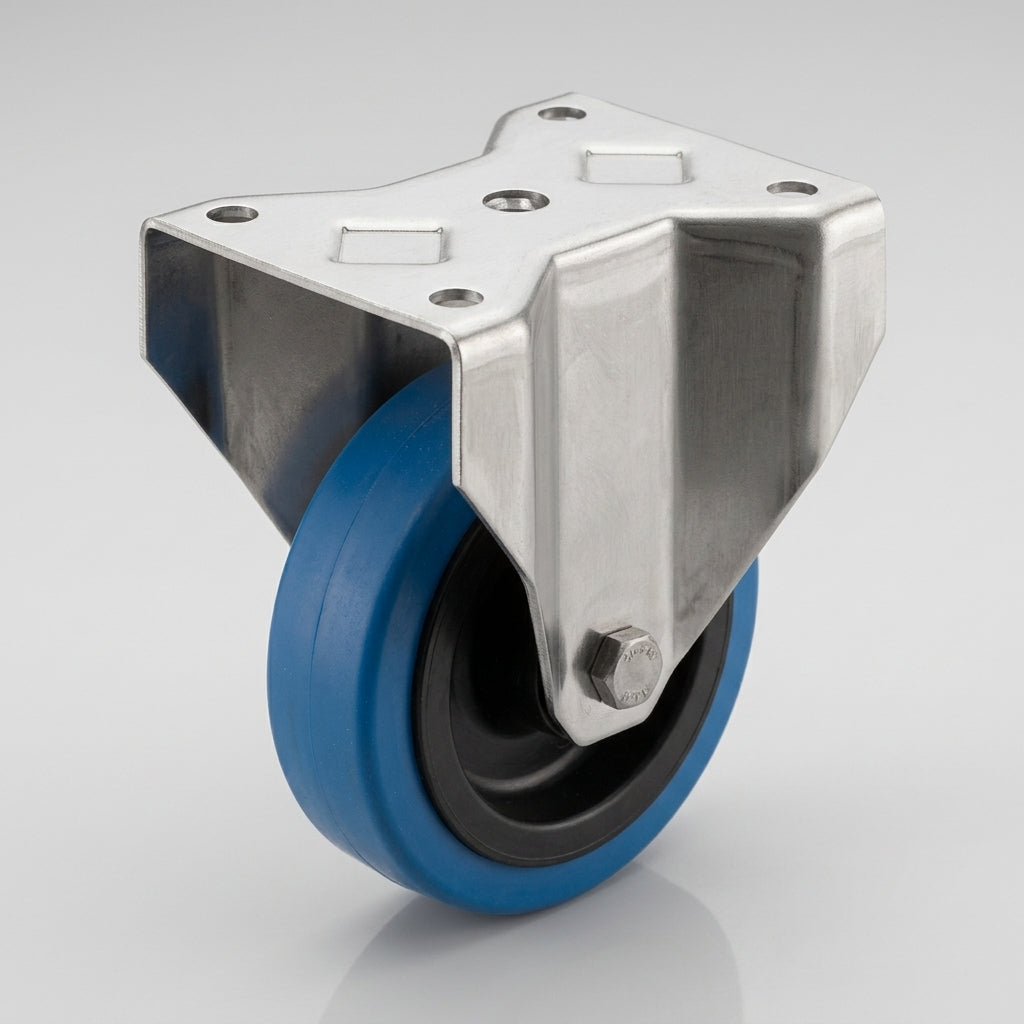

Stainless Steel Fixed Castor
This 80mm stainless steel fixed castor runs on a blue non-marking rubber wheel, carrying up to 150kg per castor. It is made for hospital equipment, food service trolleys, retail displays and laboratory carts where floors must stay clean and unmarked.
The rigid stainless bracket keeps equipment tracking in a straight line. The rubber tread is mounted on a polypropylene centre, a roller bearing keeps rotation smooth, and the 99 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. It works from -40°C to +60°C.
Why Choose This Castor
- ✓ Stainless steel bracket for washdown and hygienic areas
- ✓ Blue non-marking rubber wheel that protects indoor floors
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ Roller bearing for smooth rotation
- ✓ 150kg load capacity per castor with a 36mm tread
- ✓ Works from -40°C to +60°C
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital equipment where floor cleanliness is critical
- ✓ Food service trolleys that need non-marking wheels
- ✓ Retail display fixtures that need stable, non-marking mobility
- ✓ Laboratory carts in controlled environments
Need a different size? See our stainless steel castor range.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
Will the wheel mark my floors?
No. The blue rubber tread is non-marking, so it suits hospital, retail and laboratory floors.
How much weight can it carry?
Each castor is rated at 150kg. A set of four is best used for loads up to around 450kg, allowing for uneven floors.
How is it fitted?
The 99 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
Can it be used in cold rooms?
Yes. It is rated from -40°C to +60°C, so it works in chillers and freezers.
How tall is the castor?
The total castor height is 108mm.
