- Load per castor150kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Top Plate Castor
- Brake
- Locks wheel and swivel head
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Blue
- Non-Marking
- Yes
- Tread Width
- 36mm
- Tread Hardness
- A70
- Bearing Type
- Roller
- Load Capacity
- 150kg per castor *
- Top Plate Size
- 105 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 120mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +60°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height108mm
- Swivel radius120mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -40°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

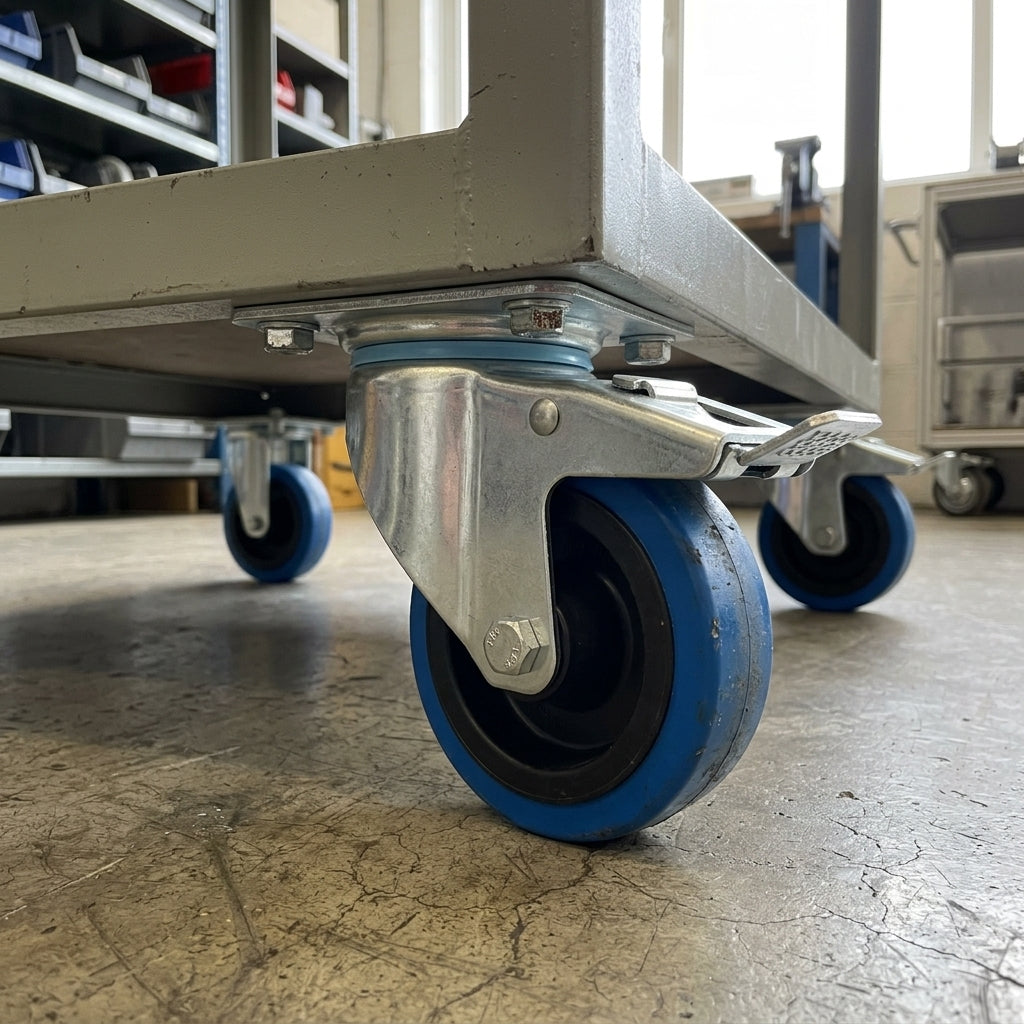

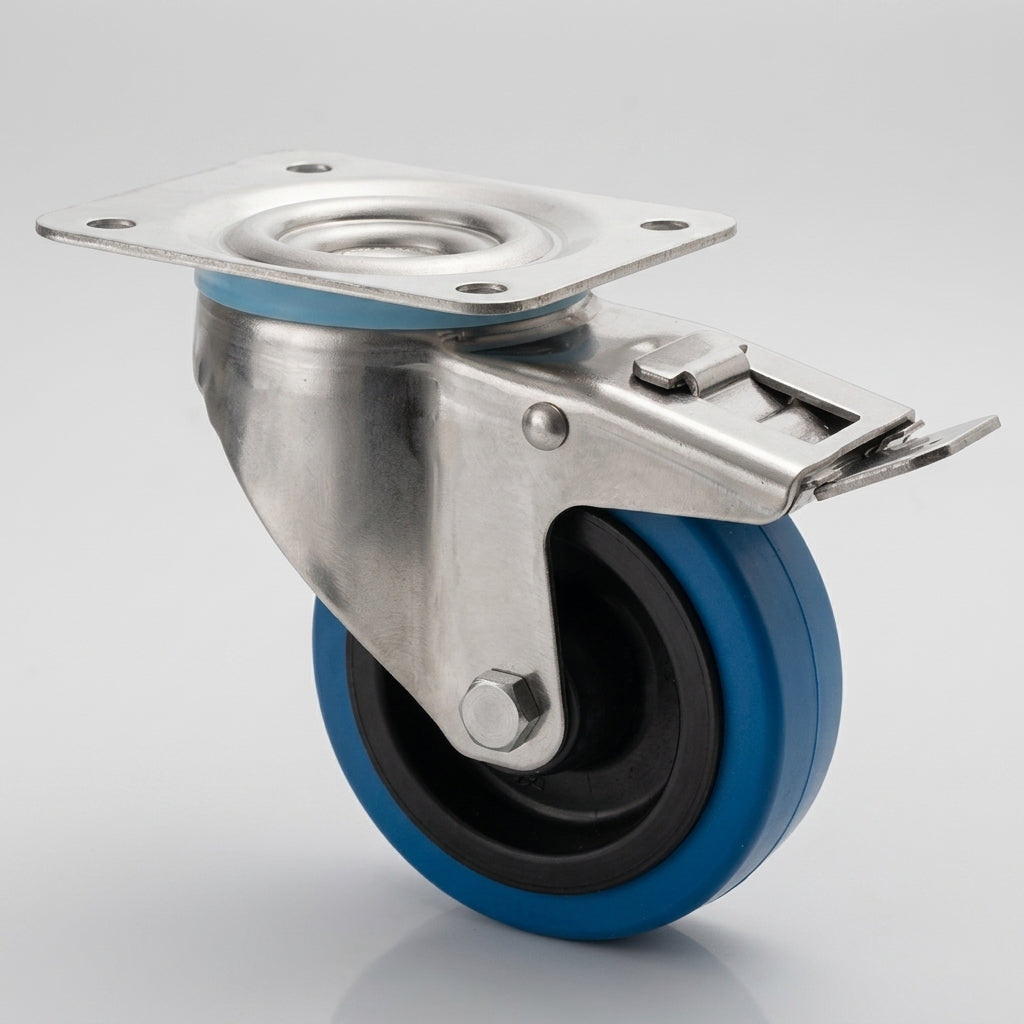

Stainless Steel Braked Castor
This 80mm stainless steel braked swivel castor runs on a blue non-marking rubber wheel, carrying up to 150kg per castor. It is made for hospital equipment, retail displays, food service carts and laboratory apparatus that must stay put once positioned.
The foot brake locks both the wheel and the swivel head for controlled positioning. The rubber tread on a polypropylene centre has a soft A70 grip, a roller bearing keeps rotation smooth, and the 105 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. It works from -40°C to +60°C.
Why Choose This Castor
- ✓ Brake locks both the wheel and the swivel head
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ Blue non-marking rubber wheel that protects indoor floors
- ✓ Soft A70 tread for good grip and quiet running
- ✓ Roller bearing for smooth rotation
- ✓ 150kg load capacity per castor
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital equipment where non-marking wheels are essential
- ✓ Retail displays that need stability and easy repositioning
- ✓ Food service carts in catering settings
- ✓ Laboratory equipment that needs precise positioning
Need a different size? See our stainless steel braked castor range.
Frequently Asked Questions
What does the brake lock?
The foot brake locks both the wheel and the swivel head, so the castor can neither roll nor turn once applied.
Will the wheel mark my floors?
No. The blue rubber tread is non-marking, so it suits hospital, retail and laboratory floors.
How much weight can it carry?
Each castor is rated at 150kg. A set of four is best used for loads up to around 450kg, allowing for uneven floors.
How is it fitted?
The 105 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
Can it be used in cold rooms?
Yes. It is rated from -40°C to +60°C, so it works in chillers and freezers.
How tall is the castor?
The total castor height is 108mm and it needs 120mm of clearance to swivel freely.
