- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height107mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- 316 Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 30mm
- Bearing Type
- Plain
- Load Capacity
- 100kg per castor *
- Top Plate Size
- 100 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 9mm
- Swivel Radius
- 52mm
- Total Castor Height
- 107mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height107mm
- Swivel radius52mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

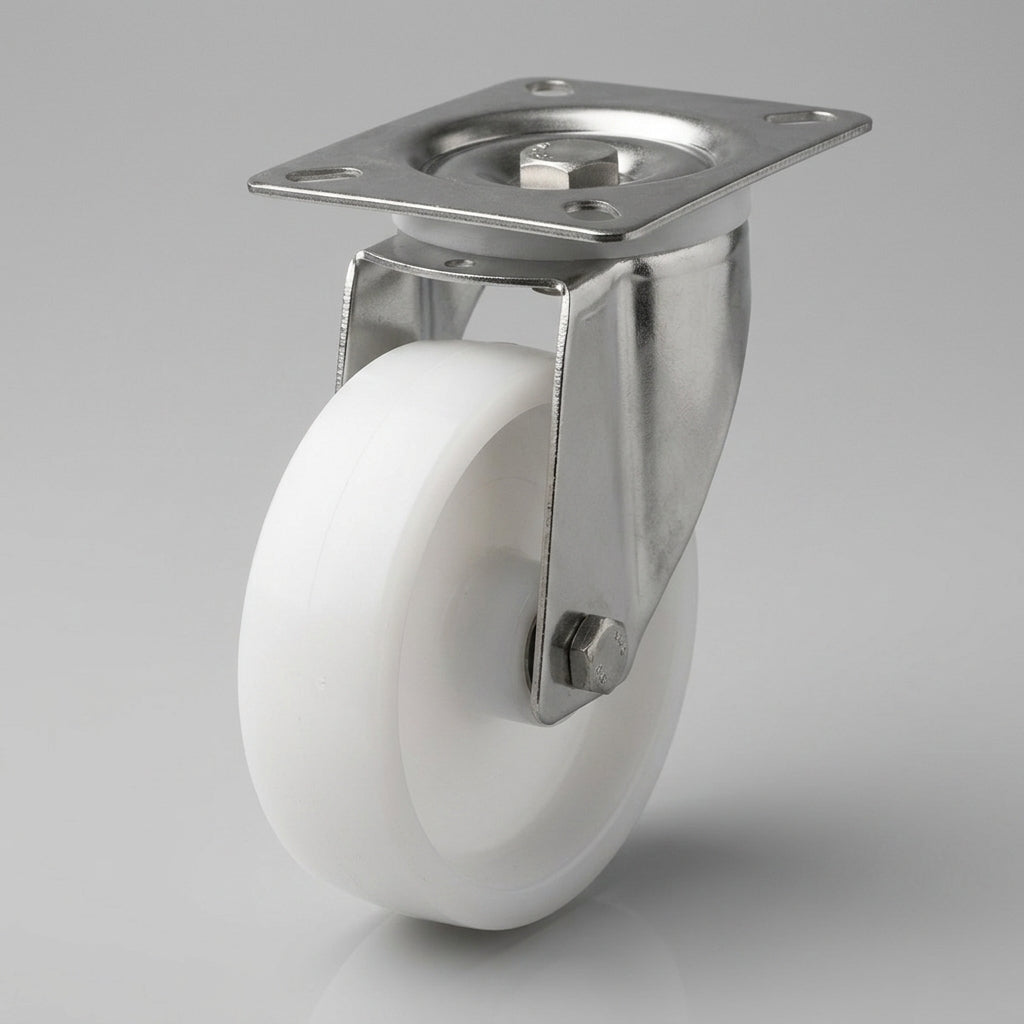

316 Stainless Steel Nylon Wheel Castor

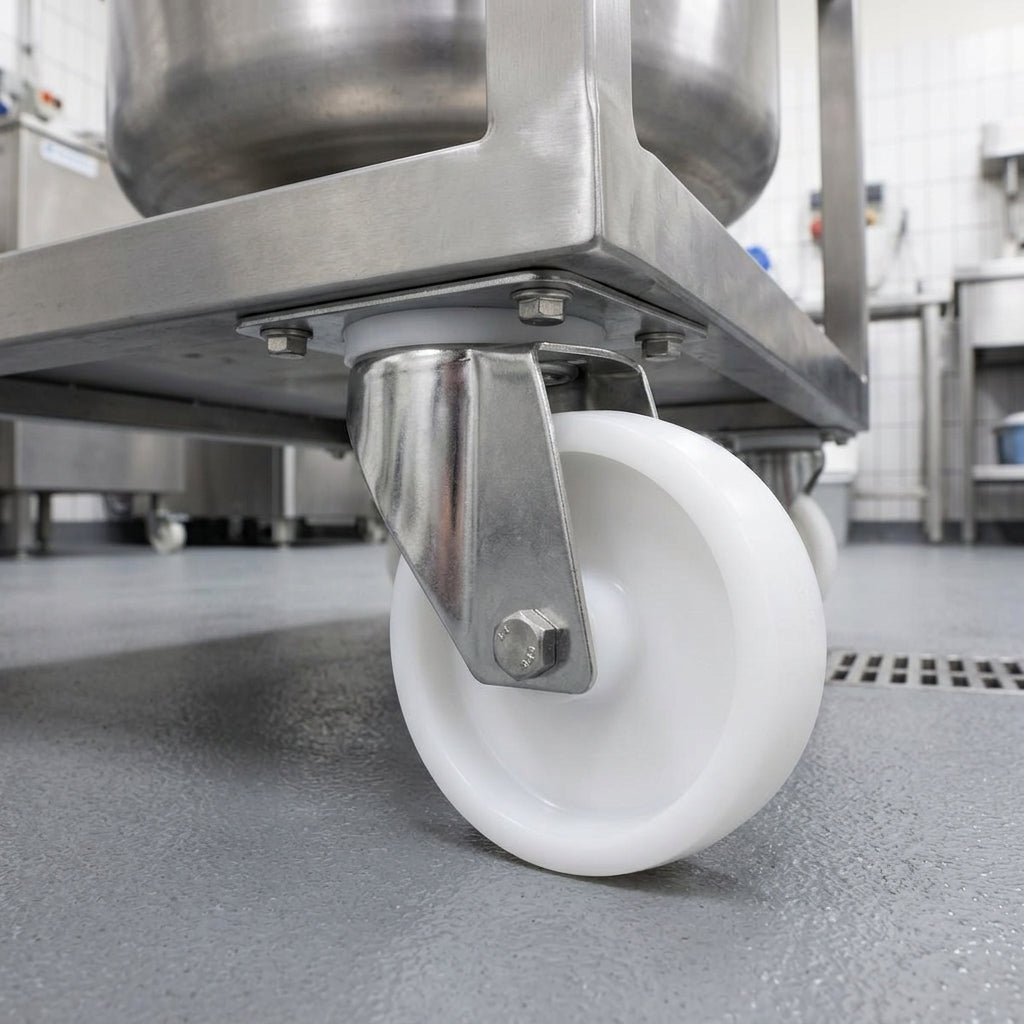

This 80mm 316 stainless steel swivel castor runs on a white nylon wheel, carrying up to 100kg per castor. It is made for food processing equipment, medical carts, laboratory equipment and marine environments where corrosion resistance is crucial.
The swivel head turns freely for smooth changes of direction, the plain bearing keeps maintenance simple, and the 100 x 85mm top plate with four 9mm holes gives a secure fit to flat surfaces. It works from -40°C to +80°C, so it suits a wide range of conditions.
Why Choose This Castor
- ✓ 316 stainless steel for strong corrosion resistance
- ✓ White nylon wheel with a 30mm tread
- ✓ 100kg load capacity per castor
- ✓ Wide -40°C to +80°C temperature range
- ✓ Swivel head for smooth changes of direction
- ✓ 100 x 85mm top plate with four 9mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food processing equipment where hygiene and corrosion resistance are important
- ✓ Medical carts that need manoeuvrability and stability
- ✓ Laboratory equipment where chemical resistance is required
- ✓ Marine environments exposed to saltwater
Frequently Asked Questions
Why choose 316 stainless steel?
316 stainless steel is known for its corrosion resistance, so this castor suits hygienic, chemical and saltwater environments.
How much weight can it carry?
Each castor is rated at 100kg. A set of four is best used for loads up to around 300kg, allowing for uneven floors.
How is it fitted?
The 100 x 85mm top plate has four 9mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
What temperatures can it be used in?
The castor is suited to temperatures from -40°C to +80°C.
How tall is the castor?
The total castor height is 107mm and it needs 52mm of clearance to swivel freely.
