- Load per castor100kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 34mm
- Tread Hardness
- Shore D75
- Bearing Type
- Plain
- Load Capacity
- 100kg per castor
- Fixing
- 4 Bolt Hole Top Plate
- Plate Size
- 99 x 85mm
- Plate Hole Centres
- 80 x 60mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

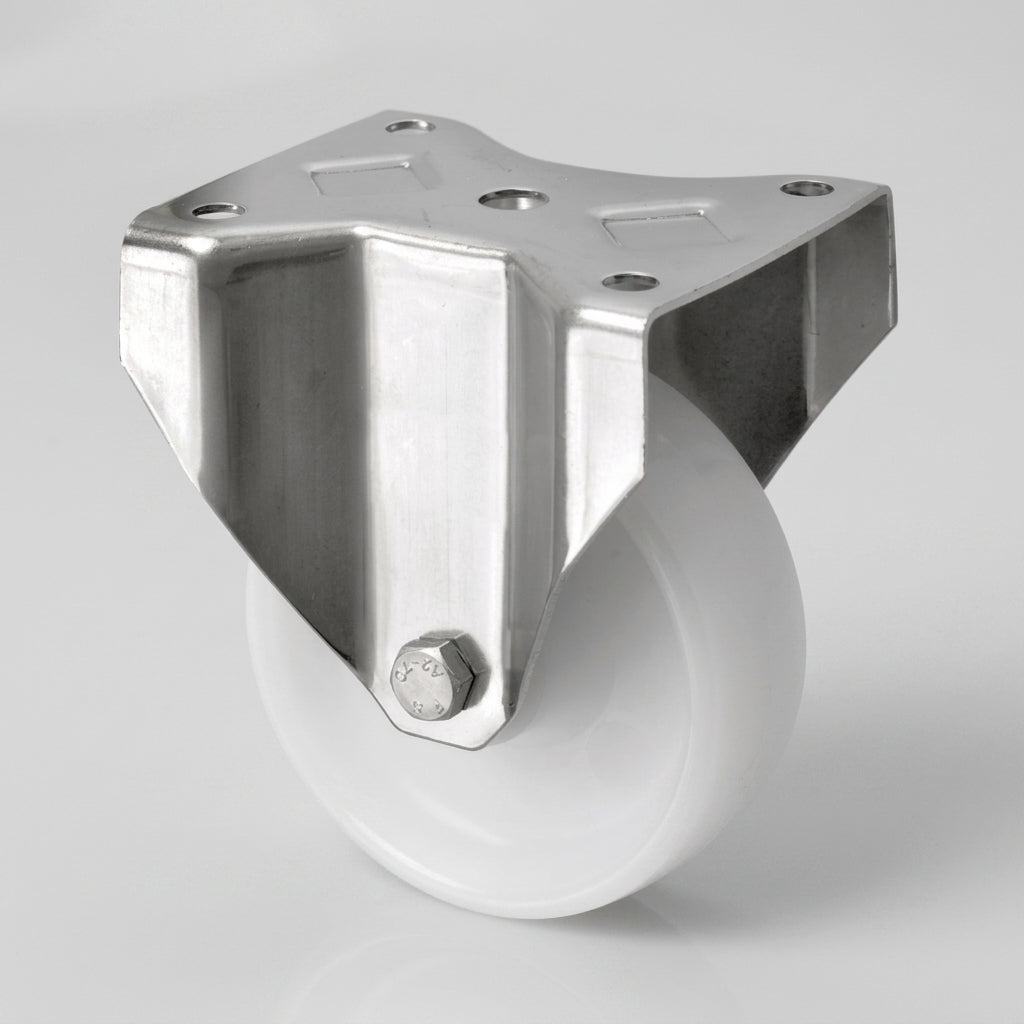

Stainless Steel Fixed Castor

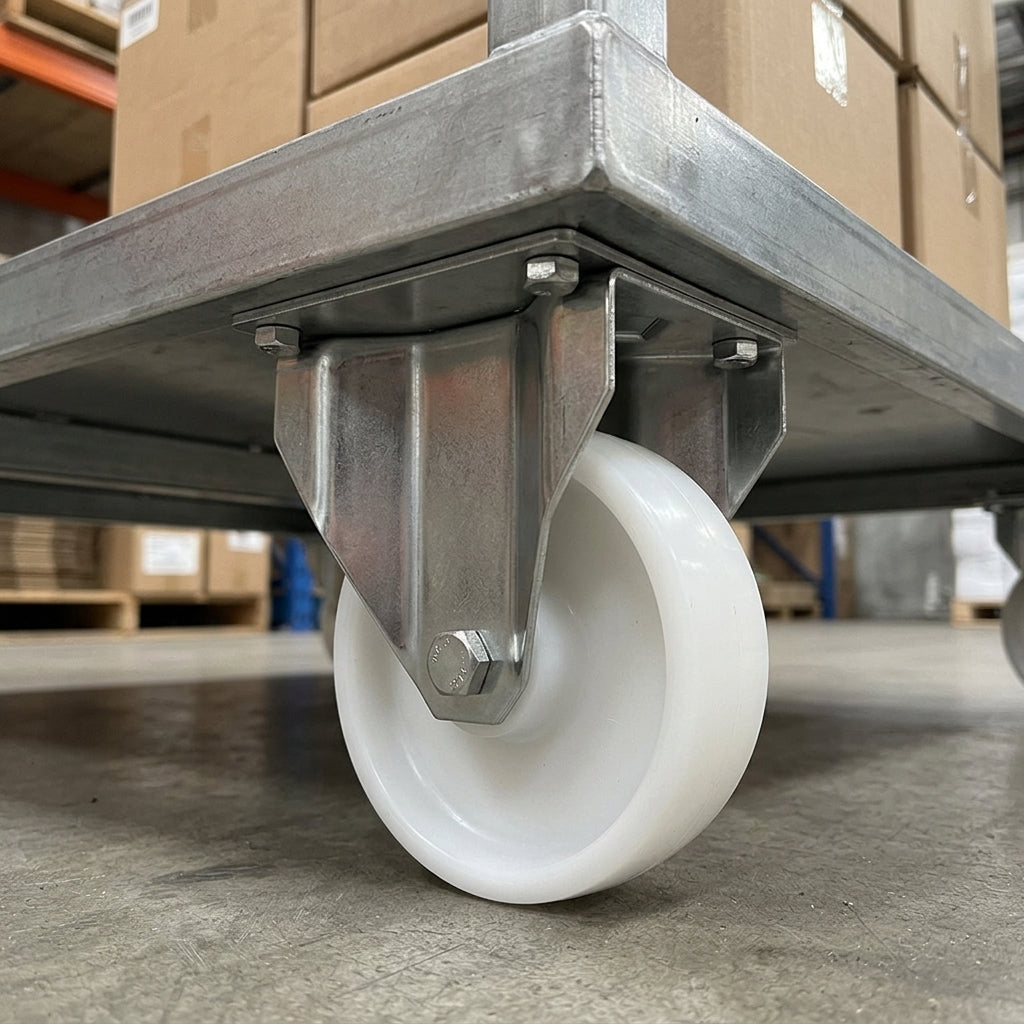

This 80mm stainless steel fixed castor runs on a tough white nylon wheel and carries up to 100kg per castor. It is made for food manufacturing, catering and warehouse trolleys where hygiene and easy cleaning matter.
The stainless steel housing stands up to frequent washdowns, and the 99 x 85mm top plate bolts securely to the underside of your equipment. The one-piece fixed bracket keeps the wheel tracking straight, the hard D75 nylon wheel rolls easily on a plain bearing, and the castor works from -40°C to +80°C. Pair it with matching swivel castors for steering.
Why Choose This Castor
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ 100kg load capacity per castor
- ✓ Hard white nylon wheel that rolls easily under load
- ✓ Fixed bracket for straight, stable tracking
- ✓ Wide -40°C to +80°C temperature range
- ✓ 99 x 85mm top plate with four 8mm holes
* Load capacity is per castor on a level surface. Check the plate size and hole centres suit your equipment before fitting.
Where It Works Best
- ✓ Food manufacturing: moving equipment and materials in food processing areas.
- ✓ Hospitality: kitchen and catering trolleys that need regular cleaning.
- ✓ Warehousing: trolleys and carts moving goods around the site.
Frequently Asked Questions
What is the wheel made of?
A hard white nylon wheel (Shore D75) running on a plain bearing. It rolls easily and resists water and most cleaning products.
How much weight can it carry?
Each castor is rated at 100kg. Add up the castors fitted to your equipment to work out the total load.
How is it fitted?
It has a 99 x 85mm top plate with four 8mm holes on 80 x 60mm centres, bolted to the underside of your equipment.
Does this castor swivel?
No. This is a fixed castor, so it keeps a straight line of travel. Fit it with matching swivel castors when you need to steer.
What temperatures is it suitable for?
The castor is rated for use from -40°C to +80°C, so it suits cold stores, food production and normal indoor areas.
How tall is the castor?
The total castor height is 108mm, from the floor to the top of the plate.
