- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon
- Tread Width
- 30mm
- Tread Hardness
- 60 Shore D
- Bearing Type
- Roller Bearing
- Load Capacity
- 100kg per castor *
- Bolt Hole Size
- 12mm
- Swivel Radius
- 85mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height108mm
- Swivel radius85mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

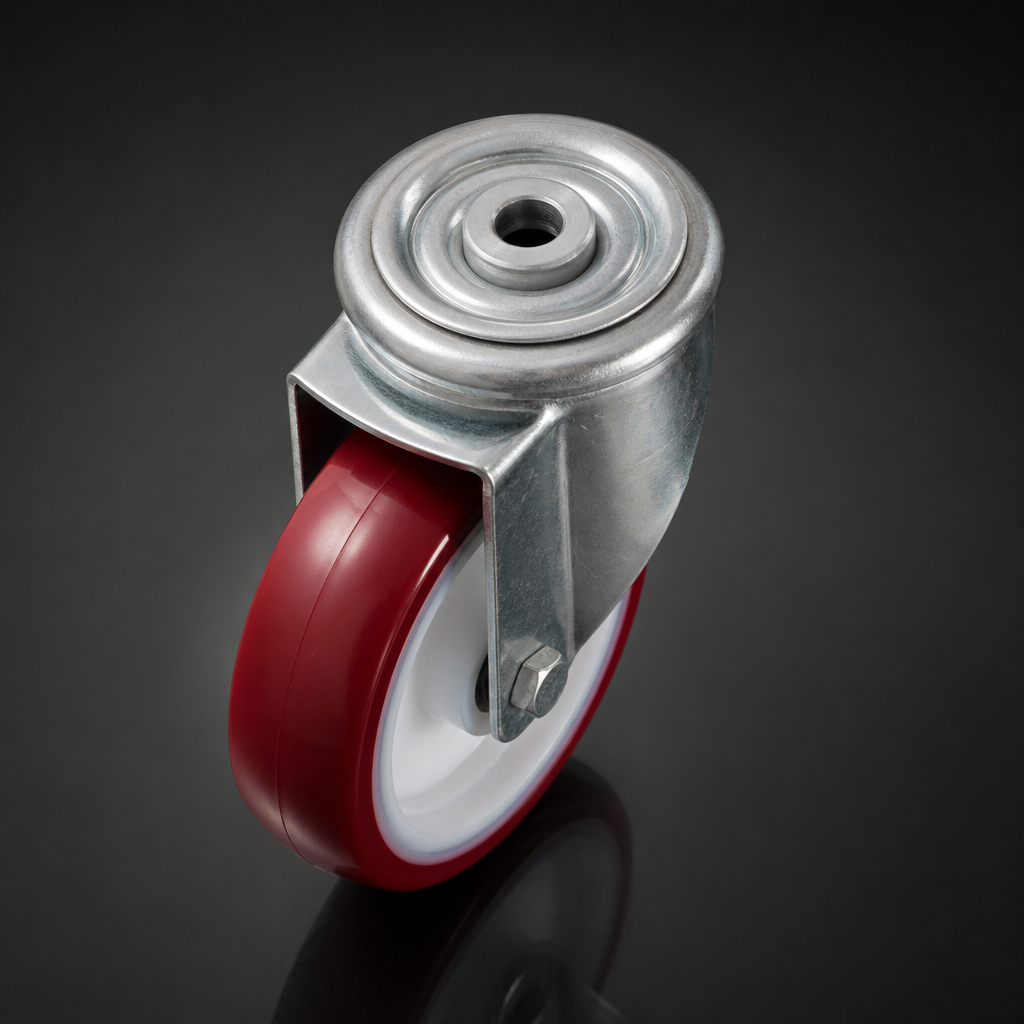

Bolt Hole Stainless Steel Castors

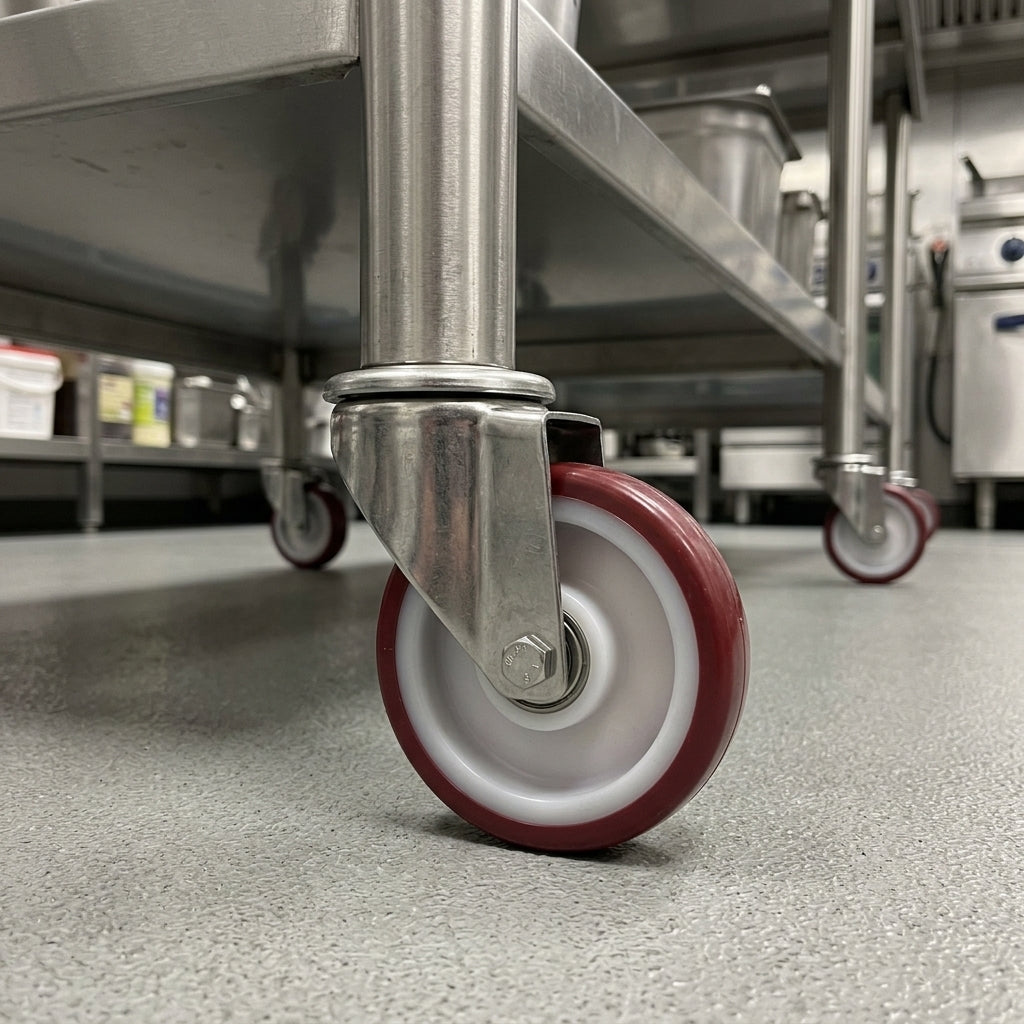

This 80mm stainless steel swivel castor has a maroon polyurethane wheel, suited to places like food manufacturing. The 60 Shore D tread balances firmness and flexibility, and the castor carries 100kg.
It works from -40°C to +80°C, a roller bearing keeps rotation smooth, and it fits through a single 12mm bolt hole in the centre of the swivel head.
Why Choose This Castor
- ✓ Maroon polyurethane tread on a nylon centre, 30mm wide and 60 Shore D.
- ✓ Stainless steel housing for food processing areas.
- ✓ Roller bearing for smooth rotation.
- ✓ Wide temperature range from -40°C to +80°C.
- ✓ Single 12mm bolt hole in the centre of the swivel head.
- ✓ 100kg load capacity per castor.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment: trolleys and carts in food processing areas.
- ✓ Laboratory carts: carts used in controlled environments.
- ✓ Hospital equipment: mobile devices in healthcare settings.
Frequently Asked Questions
Does this castor have a brake?
No. This is a swivel castor without a brake, so it can change direction freely.
How much weight can a set of four carry?
Each castor is rated for 100kg. Planning on three castors carrying the load, a set of four suits about 300kg.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head.
What temperatures can it handle?
It works from -40°C to +80°C.
How much space does it need to swivel?
The swivel radius is 85mm and the total castor height is 108mm.
Where can I use this castor?
It suits food manufacturing equipment, laboratory carts and hospital equipment.
