- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Braked Swivel Bolt Hole Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Maroon
- Tread Width
- 30mm
- Tread Hardness
- 60 Shore D
- Bearing Type
- Roller Bearing
- Load Capacity
- 100kg per castor *
- Brake
- Locks wheel and swivel head
- Bolt Hole Size
- 12mm
- Swivel Radius
- 85mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +80°C
Will it fit?
- Bolt hole12mm
- Overall height108mm
- Swivel radius85mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

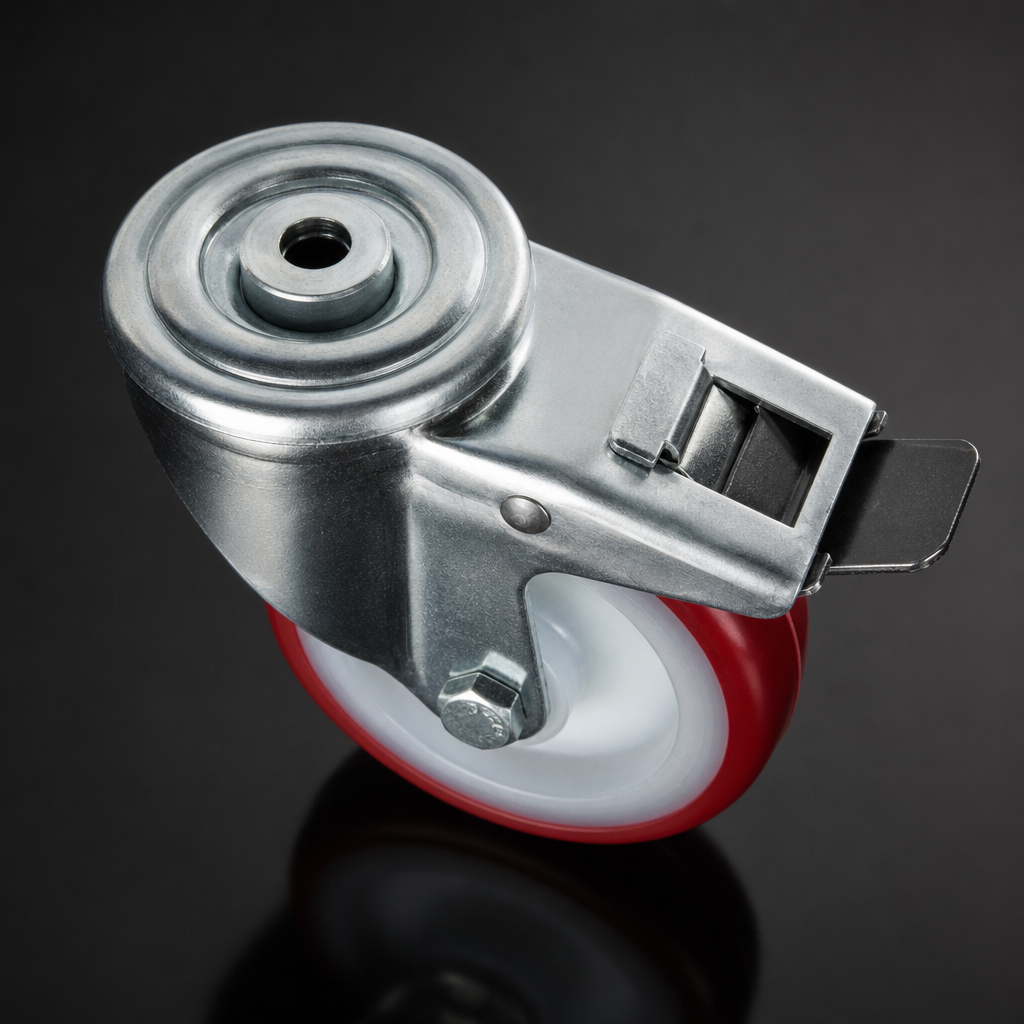

Bolt Hole Stainless Steel Castors
This 80mm stainless steel braked castor has a maroon polyurethane wheel on a nylon core, made for food manufacturing equipment. Its brake acts on both the wheel and the swivel head for stability when stationary, and it carries 100kg per castor.
The 60 Shore D tread balances grip and durability, a roller bearing keeps it running smoothly, it works from -40°C to +80°C, and it fits through a single 12mm bolt hole.
Why Choose This Castor
- ✓ Brake locks the wheel and swivel head for a stable stop.
- ✓ Maroon polyurethane tread on a nylon centre, 30mm wide and 60 Shore D.
- ✓ Stainless steel housing for food manufacturing.
- ✓ Roller bearing for smooth operation.
- ✓ Single 12mm bolt hole in the centre of the swivel head.
- ✓ 100kg load capacity per castor.
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

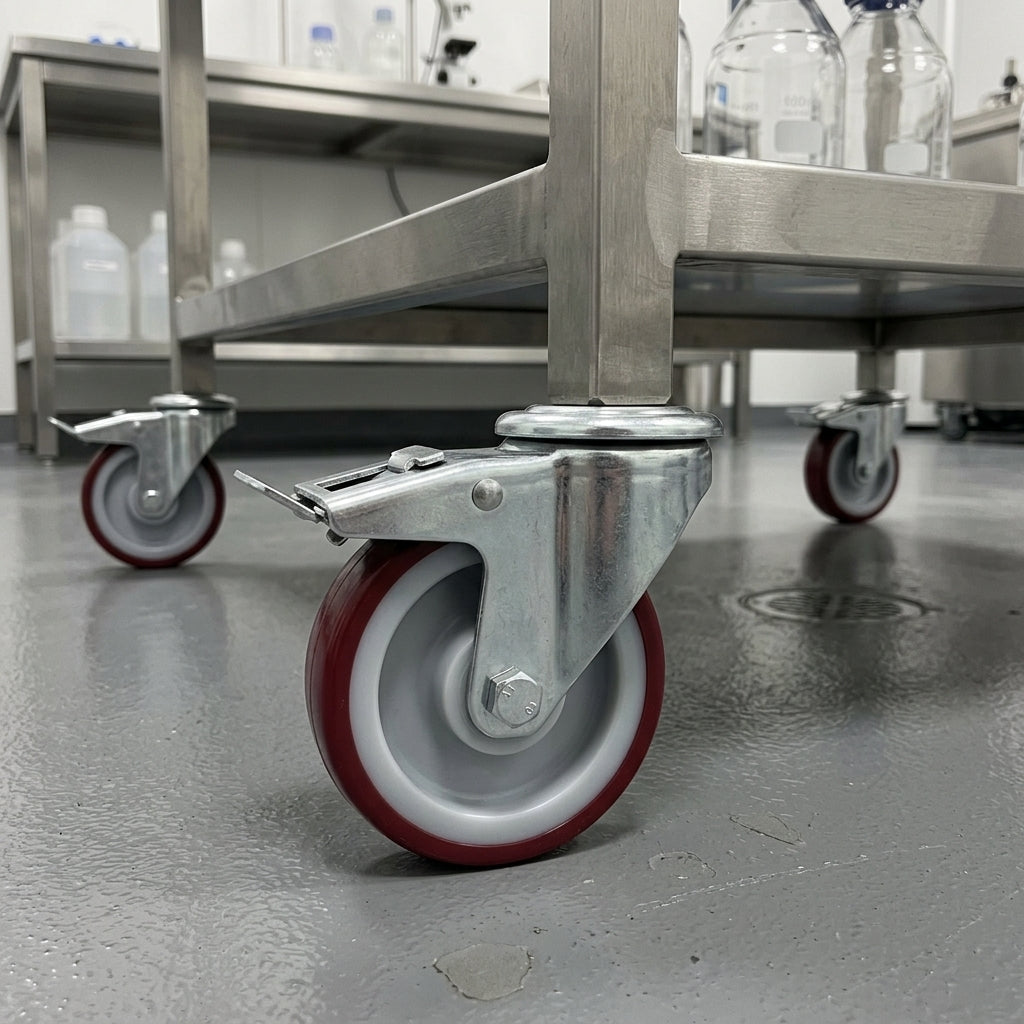

- ✓ Food manufacturing equipment: where hygiene and temperature control are critical.
- ✓ Processing trolleys: mobility and stability on production lines.
- ✓ Storage racks: easy movement and secure positioning.
Frequently Asked Questions
What does the brake lock?
The brake acts on both the wheel and the swivel head, so the castor neither rolls nor turns while it is on.
How much weight can a set of four carry?
Each castor is rated for 100kg. Planning on three castors carrying the load, a set of four suits about 300kg.
How is the castor fitted?
It fits with a single bolt through the 12mm hole in the centre of the swivel head.
What temperatures can it handle?
It works from -40°C to +80°C.
How much space does it need to swivel?
The swivel radius is 85mm and the total castor height is 108mm.
Where can I use this castor?
It suits food manufacturing equipment, processing trolleys and storage racks.
