- Load per castor60kg per castor
- Wheel diameter80mm
- Overall height106mm
- WheelRubber on pressed steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Swivel Castor with Directional Brake
- Housing
- Pressed steel
- Wheel Diameter
- 80mm
- Wheel Material
- Rubber on pressed steel
- Wheel Colour
- Grey
- Tread Width
- 25mm
- Hardness of Tread
- 85 shore A
- Bearing Type
- Ball journal
- Brake
- Directional brake
- Load Capacity
- 60kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 100 x 85mm
- Plate Hole Centres
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 106mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Grey Rubber Castors

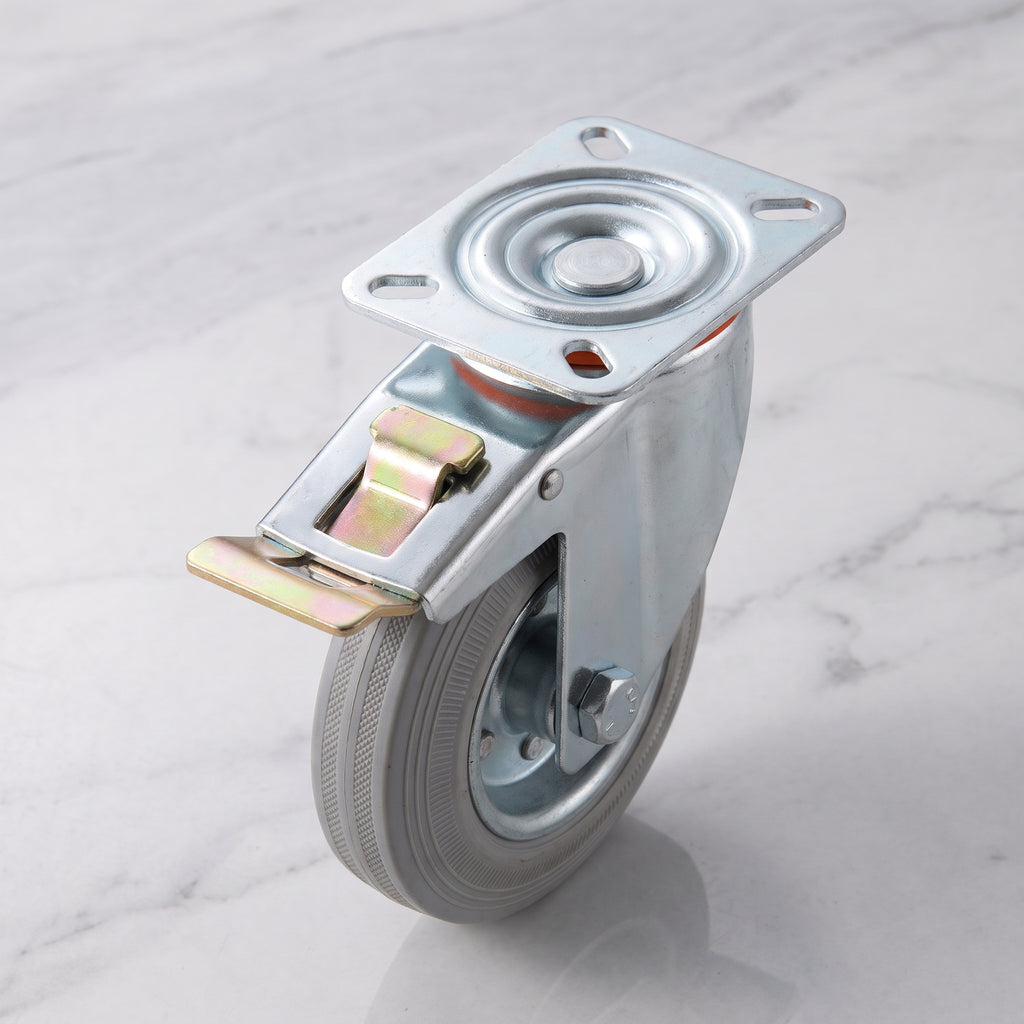

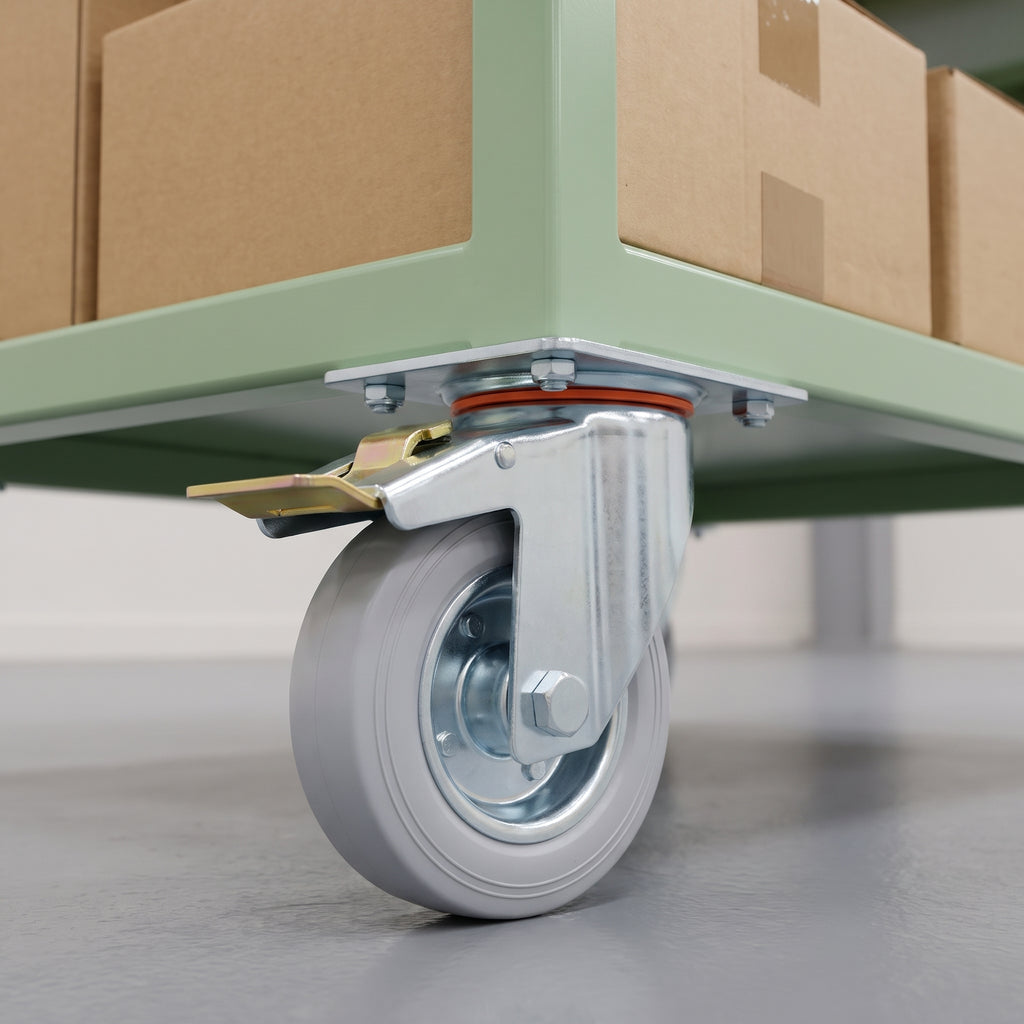

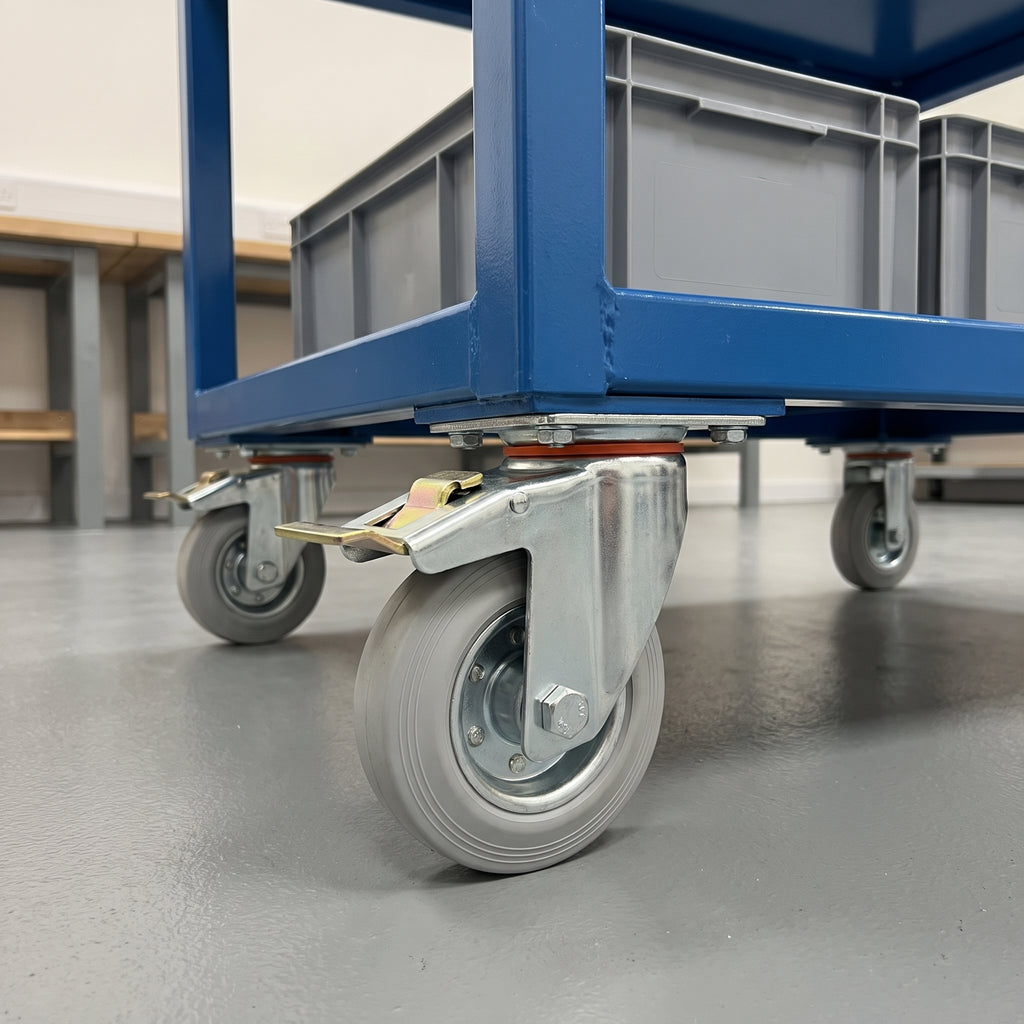

Steer easily through tight spaces and hold your load in place when you stop. This 80mm pressed steel swivel castor pairs a grey rubber tyre on a pressed steel centre with a directional brake, so trolleys, carts and mobile units move freely and stay put when parked. The ball journal bearing gives a smooth swivel action, and each castor is rated for 60kg.
The grey rubber tread (85 shore A) gives a good balance of grip and wear, rolling smoothly and helping protect floors. The castor fixes to your equipment with a 100 x 85mm top plate with 8mm holes on 60/80mm centres, and stands 106mm tall overall. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ Directional brake for secure positioning when your equipment is parked.
- ✓ Swivel castor easy manoeuvring in tight spaces.
- ✓ Grey rubber wheel 80mm rubber on pressed steel wheel with a 25mm tread.
- ✓ 85 shore A tread balances grip and wear resistance.
- ✓ Ball journal bearing for a smooth swivel action.
- ✓ 60kg load capacity per castor for light duty equipment.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 80mm braked swivel castor suits:
- ✓ Industrial equipment: machinery and trolleys of many kinds.
- ✓ Warehouse settings: moving goods and materials efficiently.
- ✓ Retail displays: movable display units that are easy to reposition.
- ✓ Domestic use: home storage carts and furniture that need to move.
Frequently Asked Questions
What does the brake lock?
The directional brake is applied with the foot pedal to hold the castor in position, so your trolley or cart stays where you park it.
How much weight can this castor carry?
Each castor is rated for 60kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 100 x 85mm top plate with 8mm holes on 60/80mm centres, bolted to the underside of your equipment.
What is the wheel made of?
An 80mm grey rubber tyre (85 shore A) on a pressed steel centre with a 25mm tread, running on a ball journal bearing.
How tall is the castor?
The castor is 106mm tall overall, from the floor to the top of the plate.
