- Load per castor50kg per castor *
- Wheel diameter80mm
- Overall height109mm
- WheelThermoplastic Rubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Bracket
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- Thermoplastic Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 22mm
- Tread Hardness
- A85
- Bearing Type
- Plain Bearing
- Load Capacity
- 50kg per castor *
- Top Plate Size
- 65 x 54mm
- Bolt Hole Centres
- 50 x 36mm
- Bolt Hole Diameter
- 6mm
- Total Castor Height
- 109mm
- Temperature Range
- -20°C to +60°C
Will it fit?
- Bolt hole50 x 36mm
- Overall height109mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

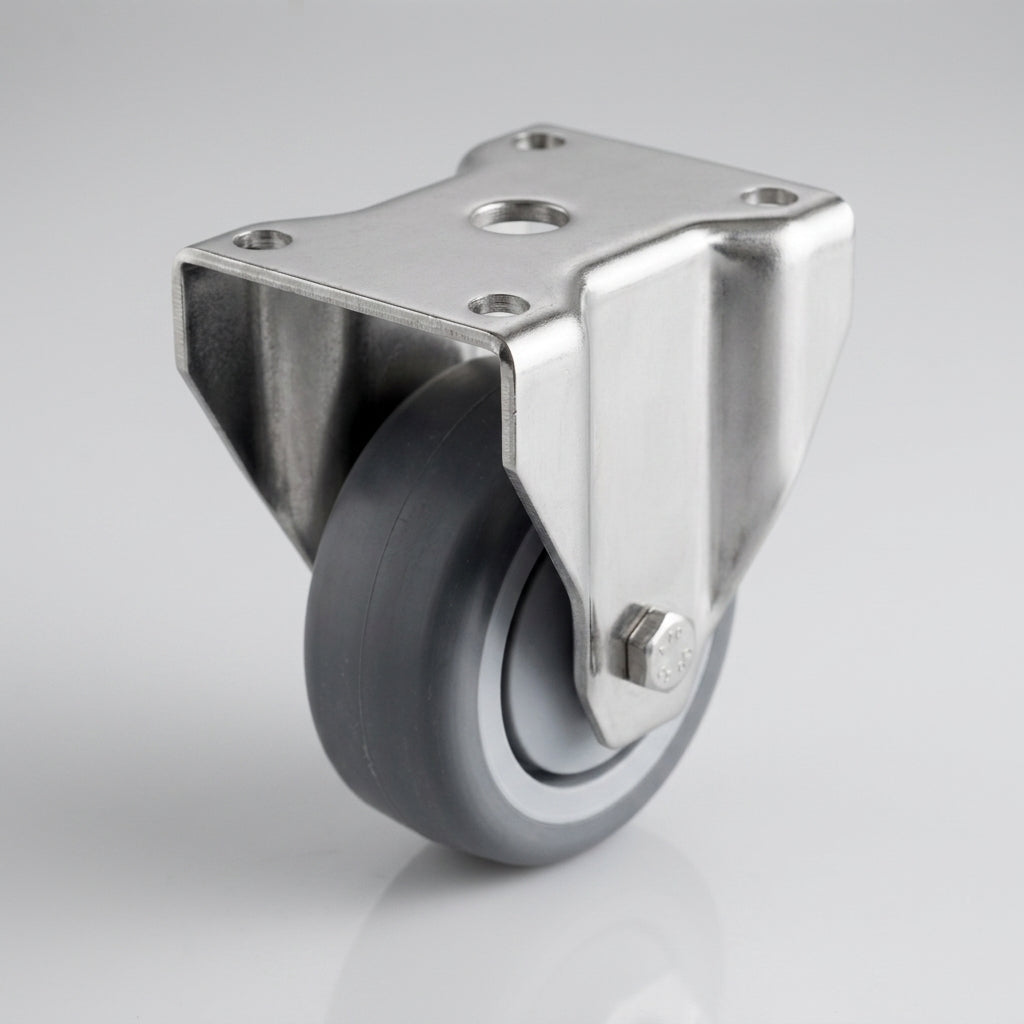

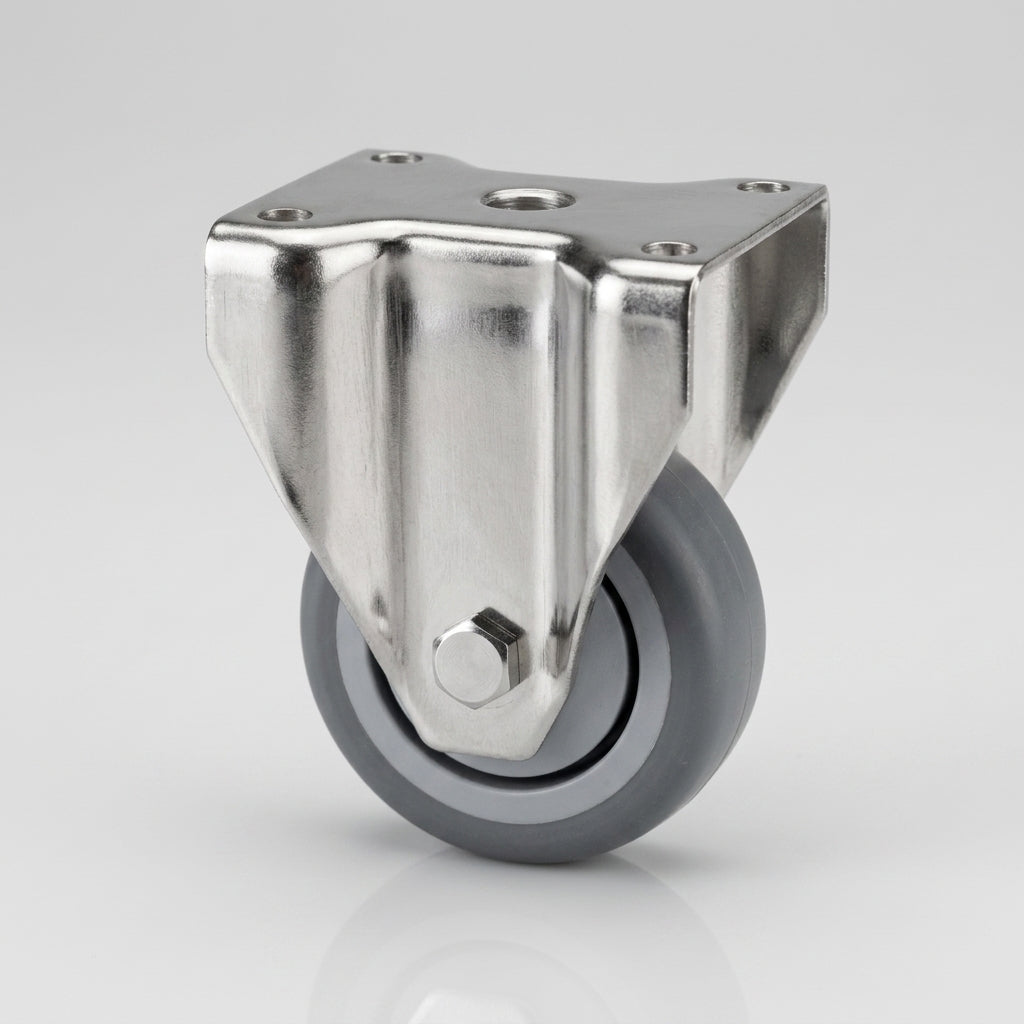

Stainless Steel Rubber Wheel Castor

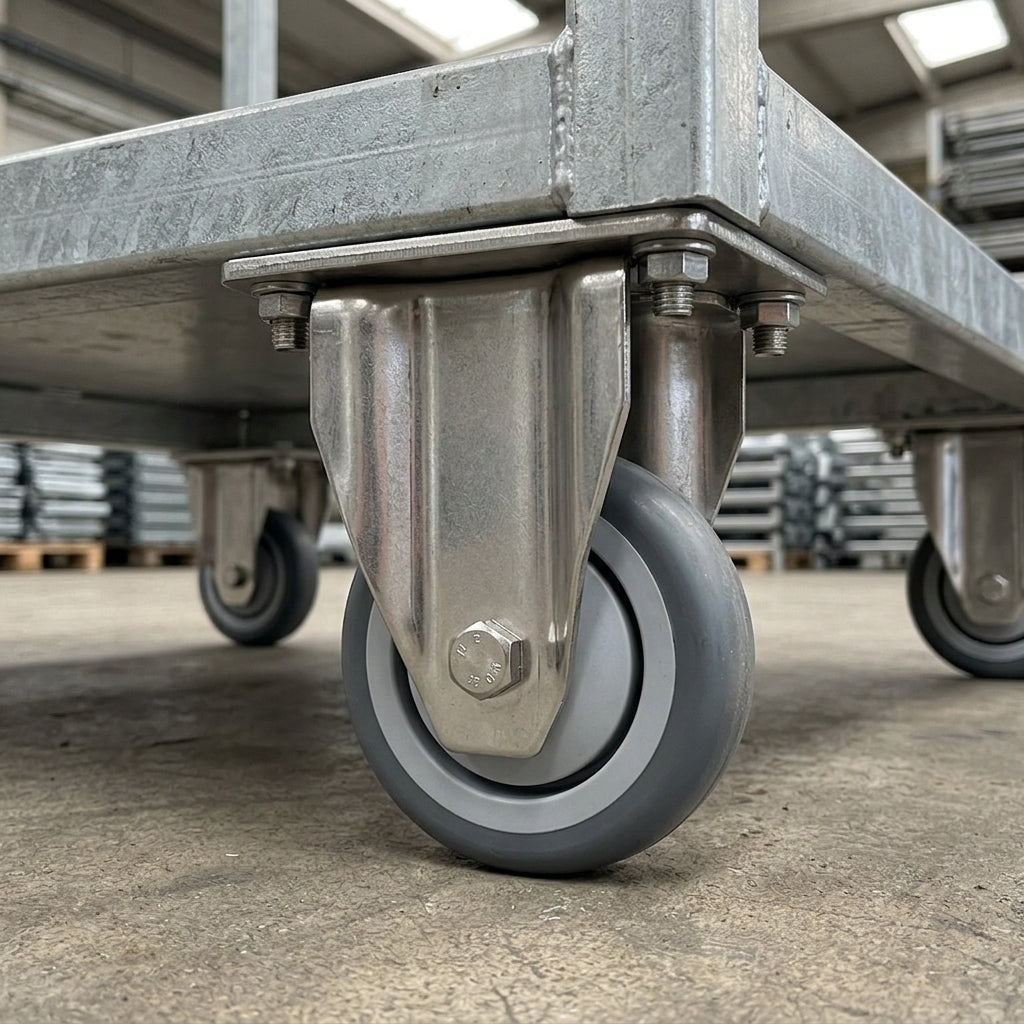

This 80mm stainless steel fixed castor runs on a grey thermoplastic rubber tread over a polypropylene centre, carrying up to 50kg per castor. It is made for hospital beds, medical trolleys, laboratory carts and medical devices that need stable, straight-line movement.
The rigid stainless steel bracket keeps equipment running straight and suits clean and damp areas. The A85 rubber tread rolls quietly on smooth floors, the plain bearing keeps maintenance simple, and the compact 65 x 54mm top plate with four 6mm holes bolts neatly to light equipment.
Why Choose This Castor
- ✓ Fixed (rigid) design for straight, controlled travel
- ✓ Stainless steel bracket for clean and damp areas
- ✓ Grey thermoplastic rubber tread for quiet rolling
- ✓ 50kg load capacity per castor
- ✓ Compact 109mm total height
- ✓ 65 x 54mm top plate with four 6mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Hospital beds and medical trolleys that need stable movement
- ✓ Laboratory carts that need controlled mobility
- ✓ Medical devices that need precise positioning
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
Will this castor mark my floor?
The grey thermoplastic rubber tread is a soft A85 rubber that rolls quietly and is kind to smooth hard floors.
How much weight can it carry?
Each castor is rated at 50kg. A set of four is best used for loads up to around 150kg, allowing for uneven floors.
How is it fitted?
The 65 x 54mm top plate has four 6mm holes on 50 x 36mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 109mm.
