- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 35mm
- Tread Hardness
- D85
- Bearing Type
- Plain
- Load Capacity
- 100kg per castor *
- Top Plate Size
- 105 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Swivel Radius
- 75mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +280°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height108mm
- Swivel radius75mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +280°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

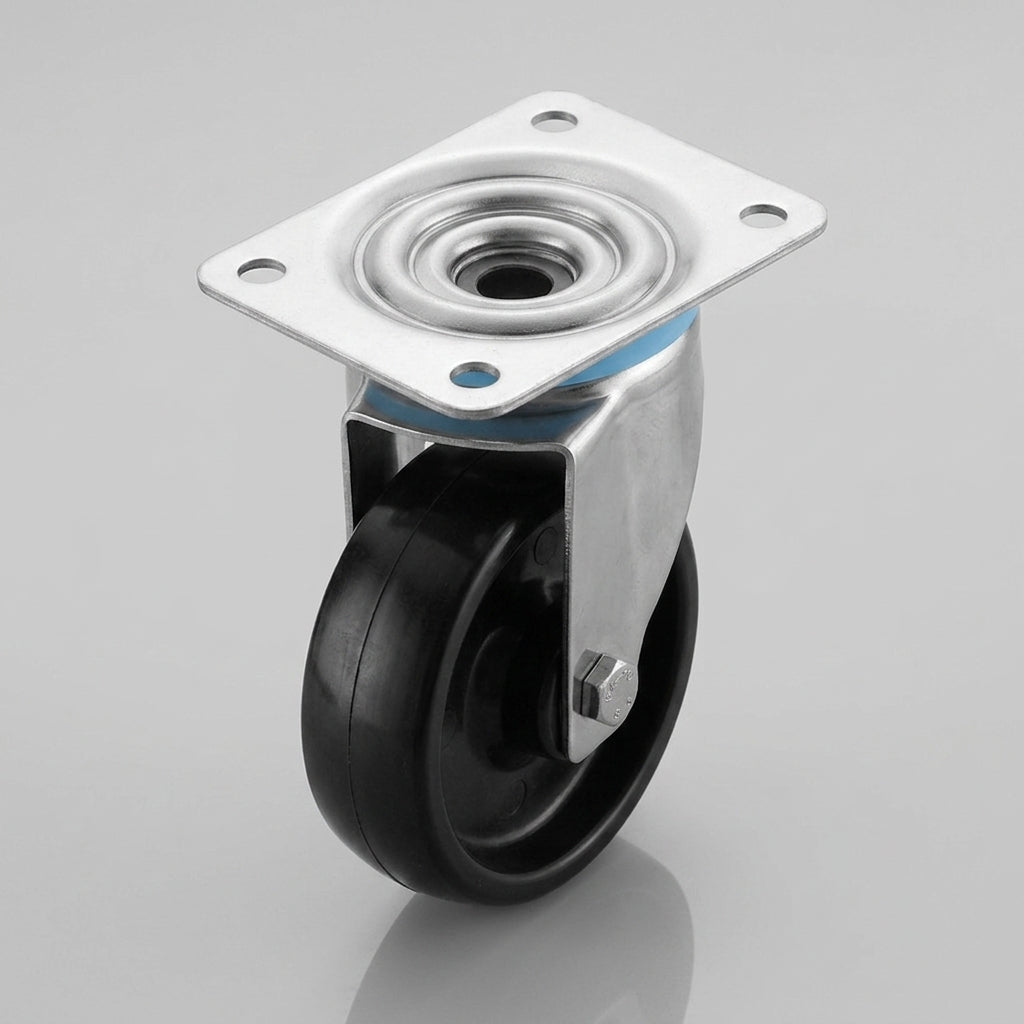

Stainless Steel High Temperature Castor
This 80mm stainless steel swivel castor runs on a black high temperature phenolic wheel that works from -40°C to +280°C, carrying up to 100kg per castor. It is made for food manufacturing, bakery equipment and industrial ovens, where ordinary wheel materials can fail in the heat.
The stainless steel housing gives a reliable base for the phenolic wheel in demanding conditions, and the plain bearing keeps operation simple with low maintenance. A 105 x 85mm top plate with four 8mm holes bolts securely to your equipment, and the hard D85 tread rolls easily on smooth floors.
Why Choose This Castor
- ✓ Works from -40°C to +280°C for ovens, bakeries and hot areas
- ✓ Stainless steel housing for food production and washdown areas
- ✓ 100kg load capacity per castor
- ✓ Hard black phenolic wheel with a 35mm tread
- ✓ Plain bearing for simple, low maintenance running
- ✓ Compact 105 x 85mm top plate and 75mm swivel radius
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

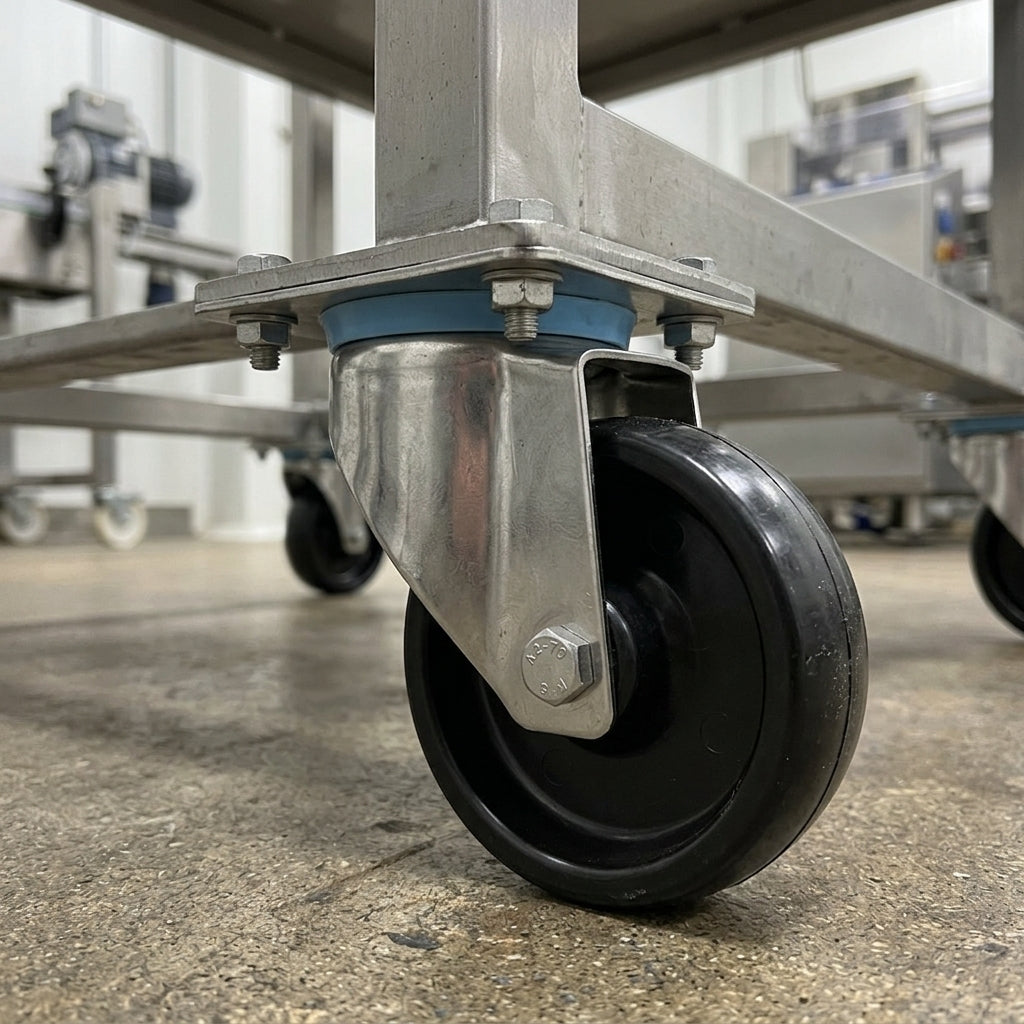

- ✓ Food manufacturing areas with high temperature exposure
- ✓ Bakery equipment, ovens and other heat-intensive applications
- ✓ Industrial ovens and equipment running at elevated temperatures
Need a different size? See our high temperature castor range.
Frequently Asked Questions
What temperatures can this castor handle?
The phenolic wheel works from -40°C up to +280°C, so it suits oven trolleys, bakery equipment and hot work areas.
How much weight can it carry?
Each castor is rated at 100kg. A set of four is best used for loads up to around 300kg, allowing for uneven floors.
How is it fitted?
The 105 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
Is it suitable for food production areas?
Yes. The stainless steel housing and heat resistant wheel make it a practical choice for food manufacturing and bakery settings.
How tall is the castor?
The total castor height is 108mm and it needs 75mm of clearance to swivel freely.
