- Load per castor100kg per castor *
- Wheel diameter80mm
- Overall height108mm
- WheelHigh Temperature Phenolic
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Housing
- Stainless Steel
- Wheel Diameter
- 80mm
- Wheel Material
- High Temperature Phenolic
- Wheel Colour
- Black
- Tread Width
- 35mm
- Tread Hardness
- D85
- Bearing Type
- Plain
- Load Capacity
- 100kg per castor *
- Top Plate Size
- 99 x 85mm
- Bolt Hole Centres
- 80 x 60mm
- Bolt Hole Diameter
- 8mm
- Total Castor Height
- 108mm
- Temperature Range
- -40°C to +280°C
Will it fit?
- Bolt hole80 x 60mm
- Overall height108mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Phenolic wheel · working temperature -40°C to +280°C
- High load capacity
- Handles heat, e.g. oven and bakery trolleys
- Easy to push
- Hard tread is noisy on rough floors
Details & FAQs

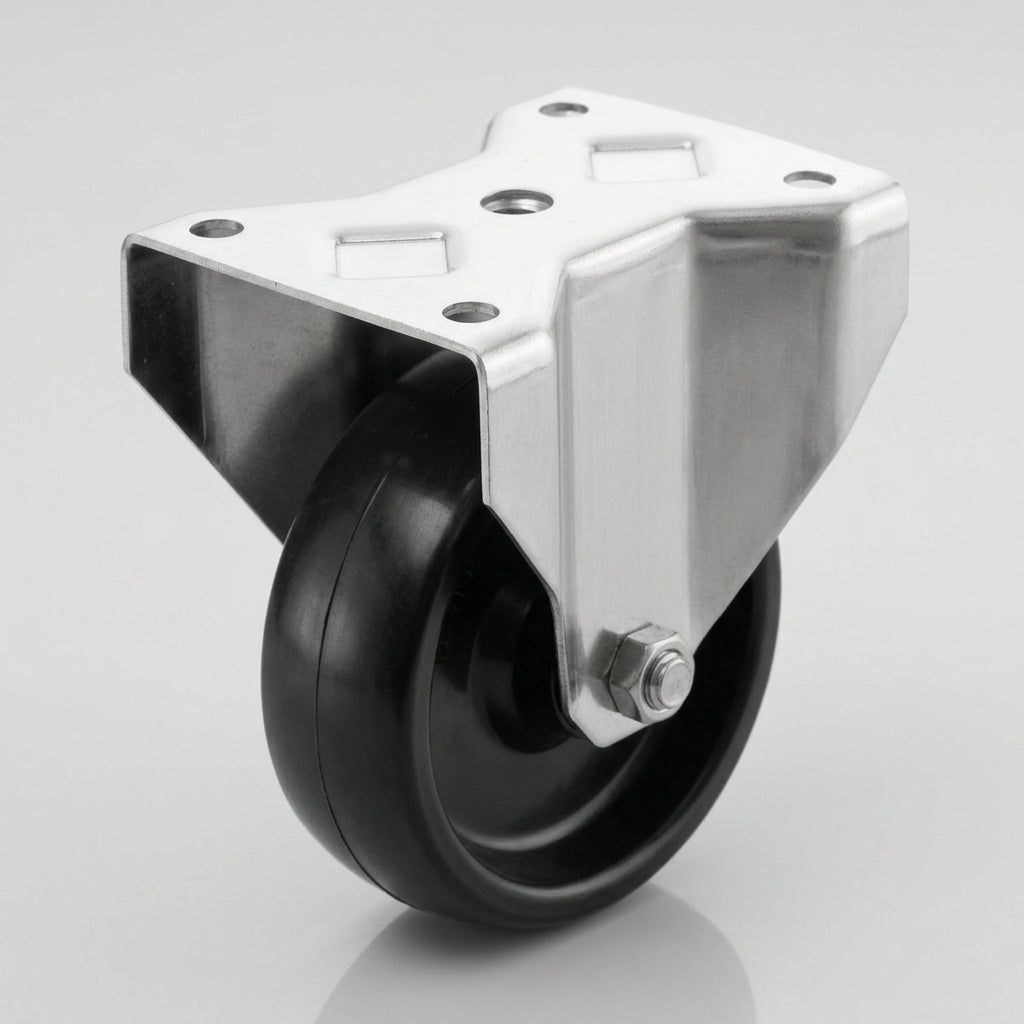

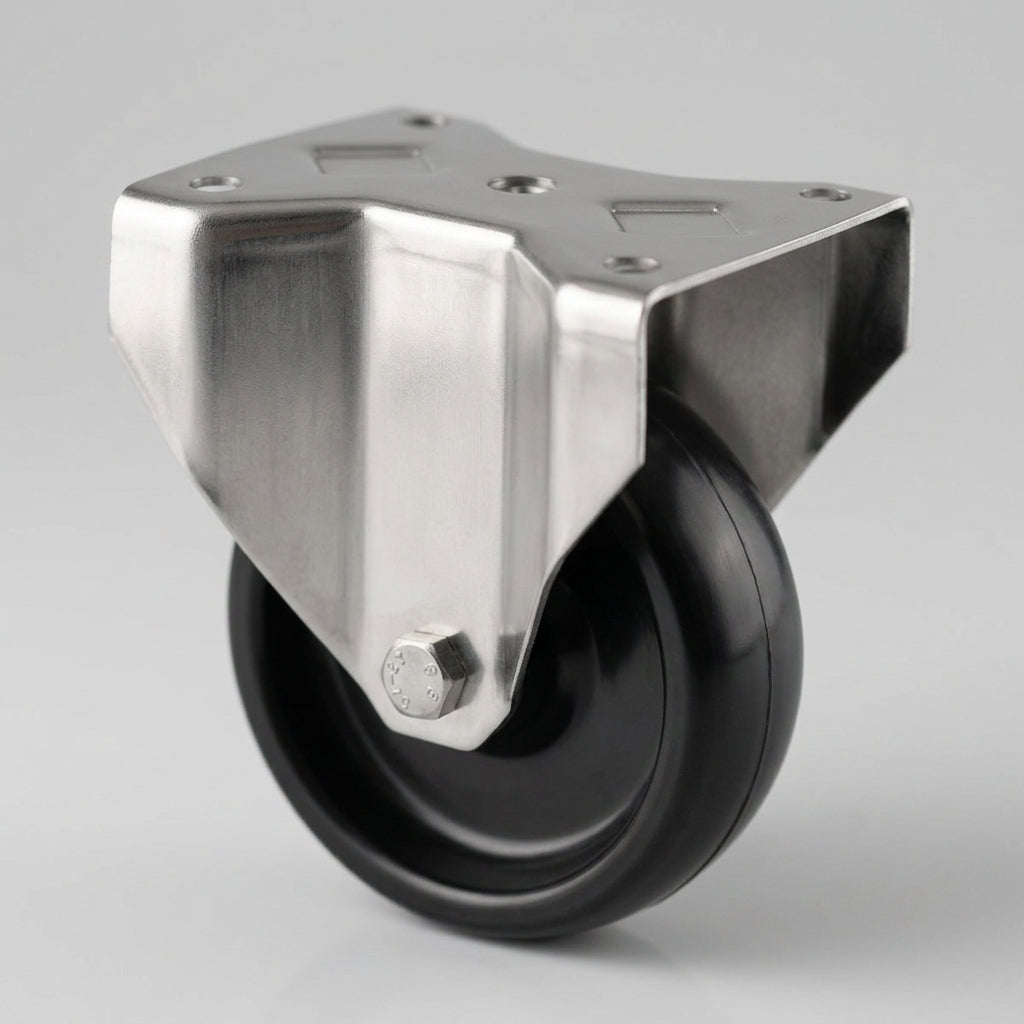

Stainless Steel High Temperature Castor

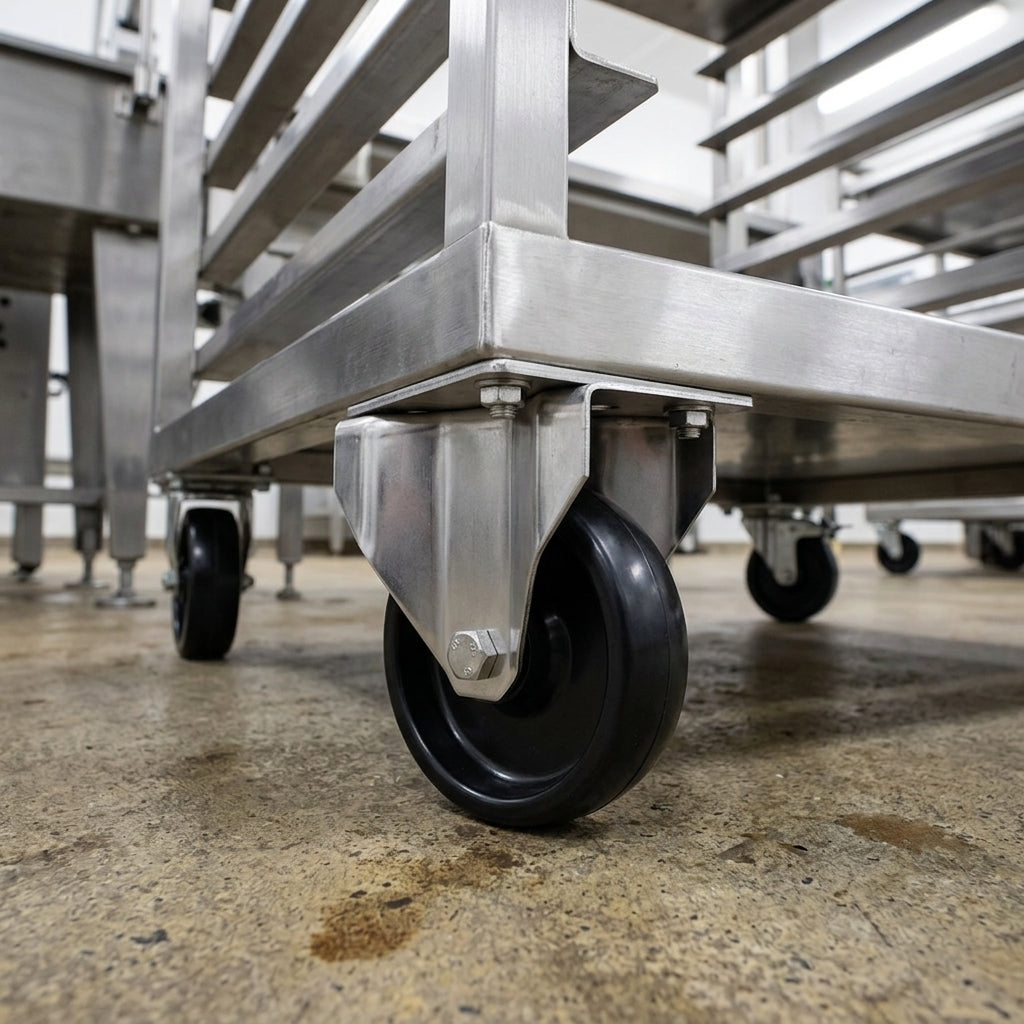

This 80mm stainless steel fixed castor runs on a black high temperature phenolic wheel that works from -40°C to +280°C, carrying up to 100kg per castor. It is made for food manufacturing equipment, bakery machinery and oven equipment where wheels are exposed to heat.
The stainless steel housing stands up to regular cleaning and damp conditions, and the 99 x 85mm top plate with four 8mm holes bolts securely to flat surfaces. The one-piece fixed bracket keeps the wheel tracking straight, and the hard D85 phenolic tread rolls easily on smooth floors on a plain bearing. Pair it with matching swivel castors for steering.
Why Choose This Castor
- ✓ Works from -40°C to +280°C for ovens, bakeries and hot areas
- ✓ Stainless steel housing for washdown and hygienic areas
- ✓ 100kg load capacity per castor
- ✓ Hard black phenolic wheel with a 35mm tread
- ✓ Fixed bracket for straight, stable tracking
- ✓ 99 x 85mm top plate with four 8mm holes
* Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best
- ✓ Food manufacturing equipment exposed to high temperatures
- ✓ Bakery machinery working within the rated temperature range
- ✓ Oven equipment in high-temperature environments
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed (rigid) castor that only rolls forwards and backwards. Pair it with matching swivel castors so your trolley can steer.
What temperatures can this castor handle?
The phenolic wheel works from -40°C up to +280°C, so it suits oven racks, bakery trolleys and hot work areas.
How much weight can it carry?
Each castor is rated at 100kg. A set of four is best used for loads up to around 300kg, allowing for uneven floors.
How is it fitted?
The 99 x 85mm top plate has four 8mm holes on 80 x 60mm centres. Bolt it flat to the underside of your trolley or equipment.
How tall is the castor?
The total castor height is 108mm, from the floor to the top of the plate.
