- Load per castor100kg per castor
- Wheel diameter80mm
- Overall height108mm
- WheelElectro conductive polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 80mm
- Wheel Type
- Polyurethane tread
- Wheel Material
- Electro conductive polyurethane
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Tyre Hardness
- 95 Shore A
- Bearing Type
- Ball Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80 x 60mm
- Hole Diameter
- 8mm
- Swivel Radius
- 84mm
- Total Castor Height
- 108mm
- Load Capacity
- 100kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

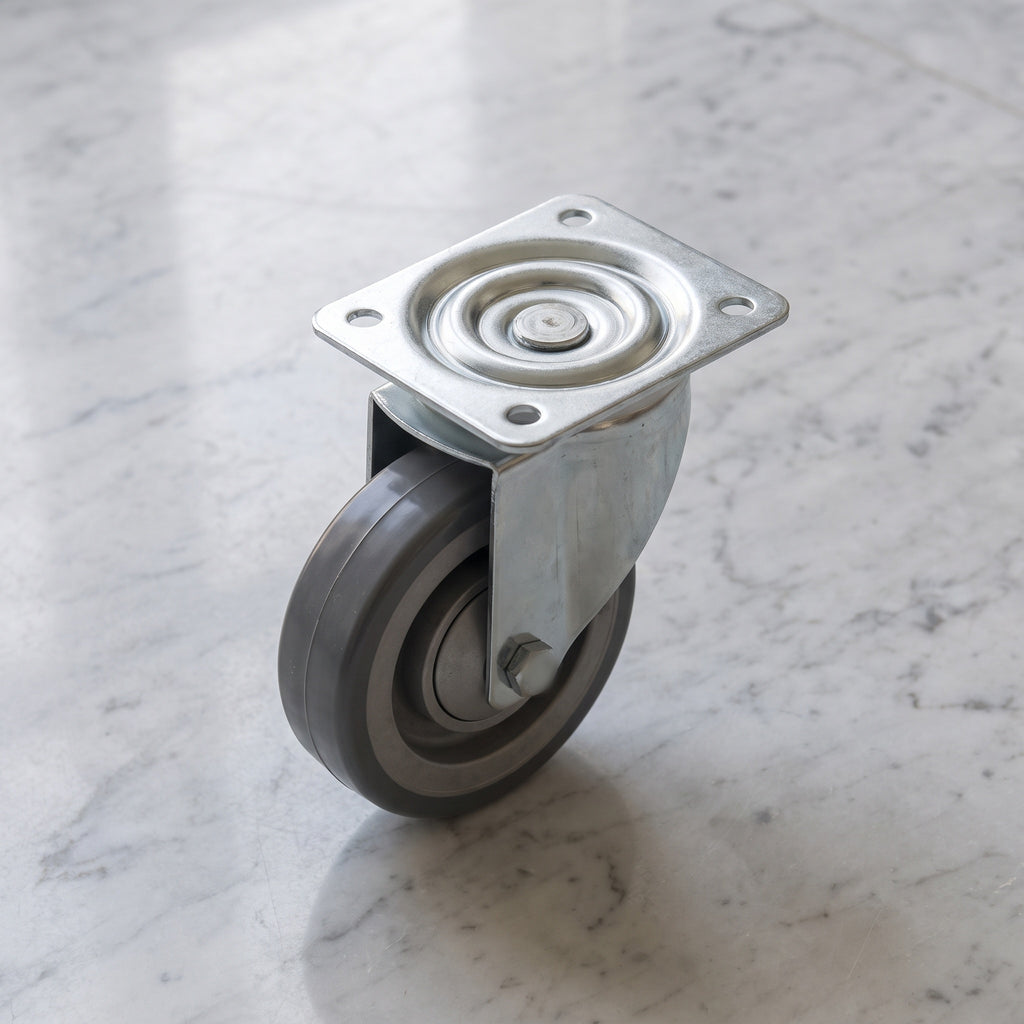

Electro Conductive Swivel Castors
Made with a grey electro conductive polyurethane wheel, this 80mm swivel castor helps carry static electricity away from your equipment to the floor. It has a load capacity of 100kg per castor, and the swivel head turns freely for easy steering. It suits electronics production, laboratories and medical equipment.
The 95 Shore A polyurethane tread runs on a ball bearing for smooth swivelling and rolling. This top plate castor fixes with a 105 x 85mm plate, has an 84mm swivel radius and stands 108mm tall.
Why Choose This Castor
- ✓ Electro conductive wheel that helps prevent static build-up.
- ✓ Full swivel head for easy steering in tight spaces.
- ✓ Grey polyurethane tread with 95 Shore A hardness for firm, controlled movement.
- ✓ 100kg load capacity per castor.
- ✓ Ball bearing for smooth, easy rolling.
- ✓ 80mm wheel with 30mm tread for steady support.
- ✓ 105 x 85mm top plate with four 8mm holes.
* Load capacity is per castor on a smooth, level floor. For static control to work, the floor should also be conductive. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This electro conductive swivel castor suits areas where static needs to be controlled:

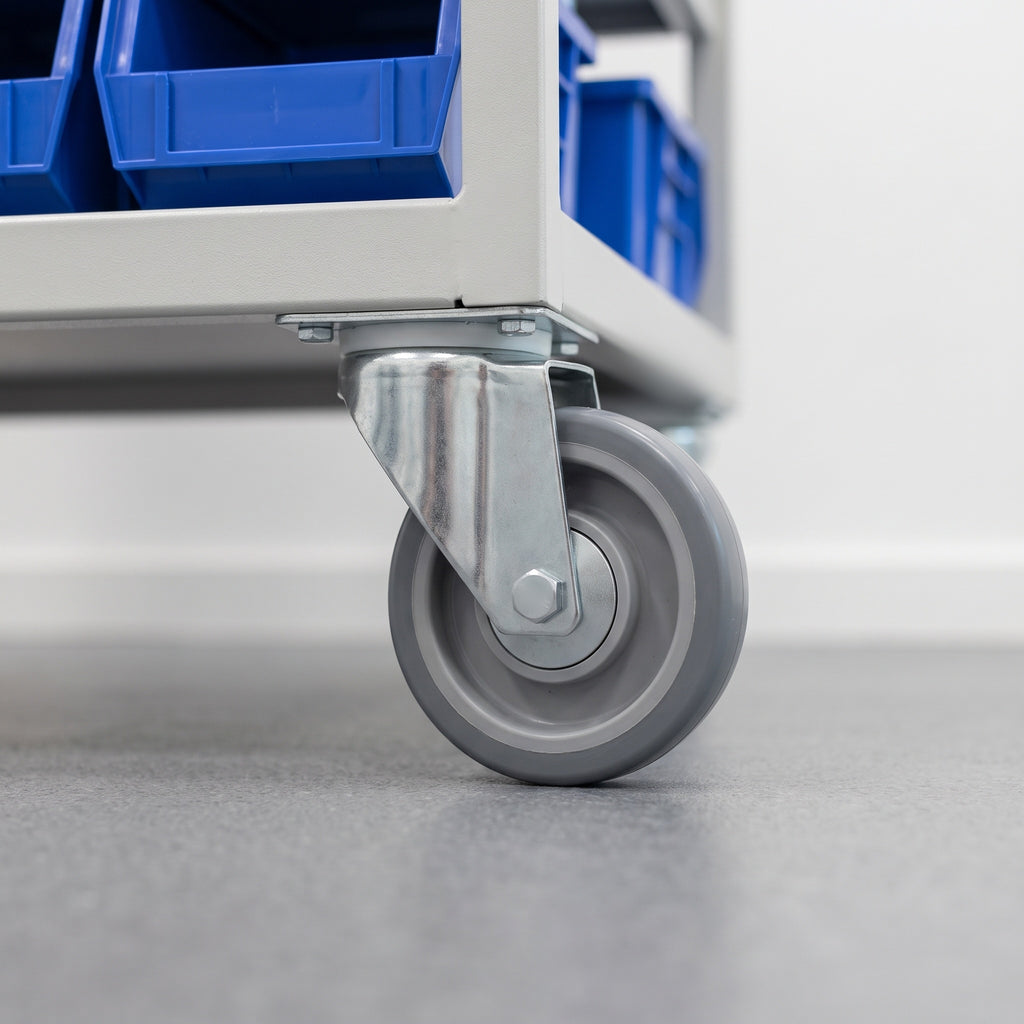

- ✓ Electronics production: used on trolleys and carts to stop static build-up.
- ✓ Laboratory equipment: fitted to equipment that needs electro conductive castors.
- ✓ Medical equipment: used on carts and stands in areas sensitive to static.
Frequently Asked Questions
What does electro conductive mean?
The wheel lets static electricity pass through it to the floor, so charge does not build up on your trolley or equipment. This helps protect sensitive electronic parts.
Does this castor have a brake?
No, this is a swivel castor without a brake. It is often used together with matching 80mm electro conductive braked castors on the same trolley.
How much weight can this castor carry?
Each castor is rated for 100kg.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 84mm and the total castor height is 108mm.
What temperatures can this castor handle?
The castor is suitable for use from -40°C to +80°C.
