Description

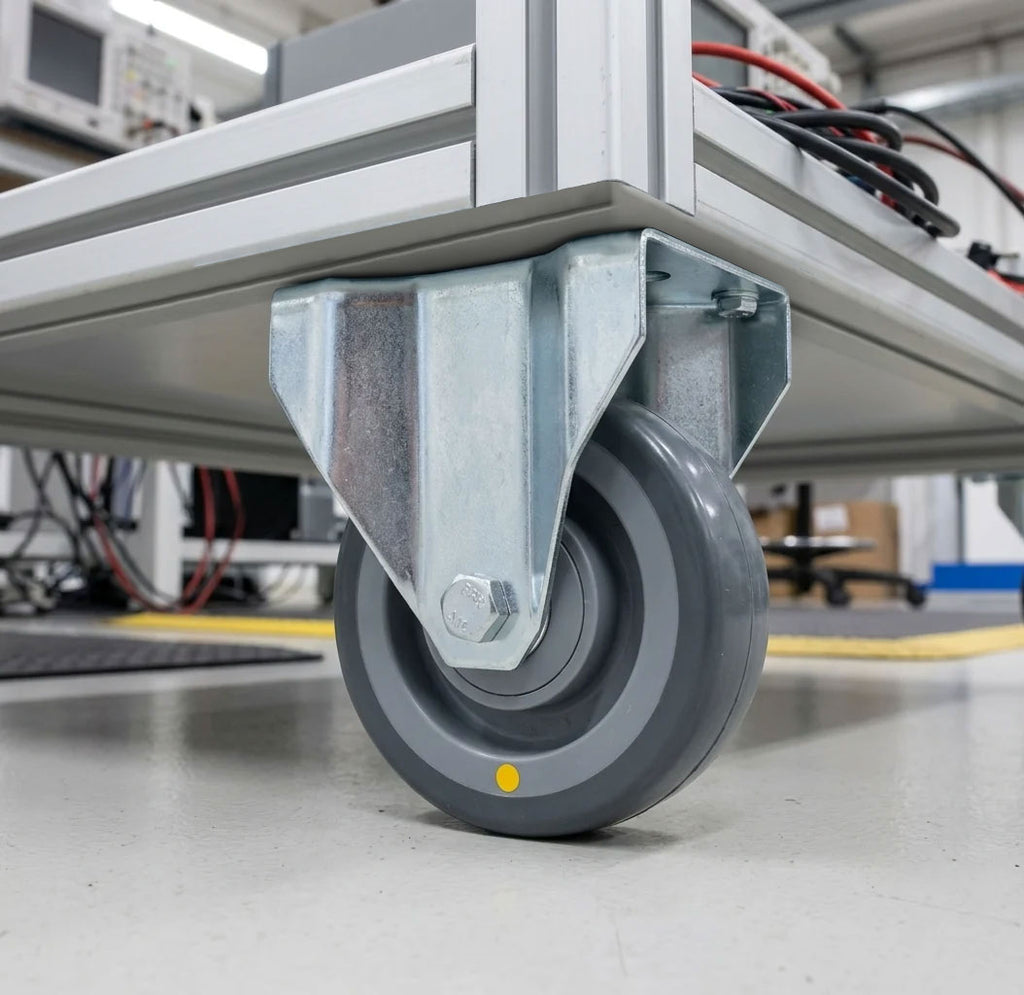

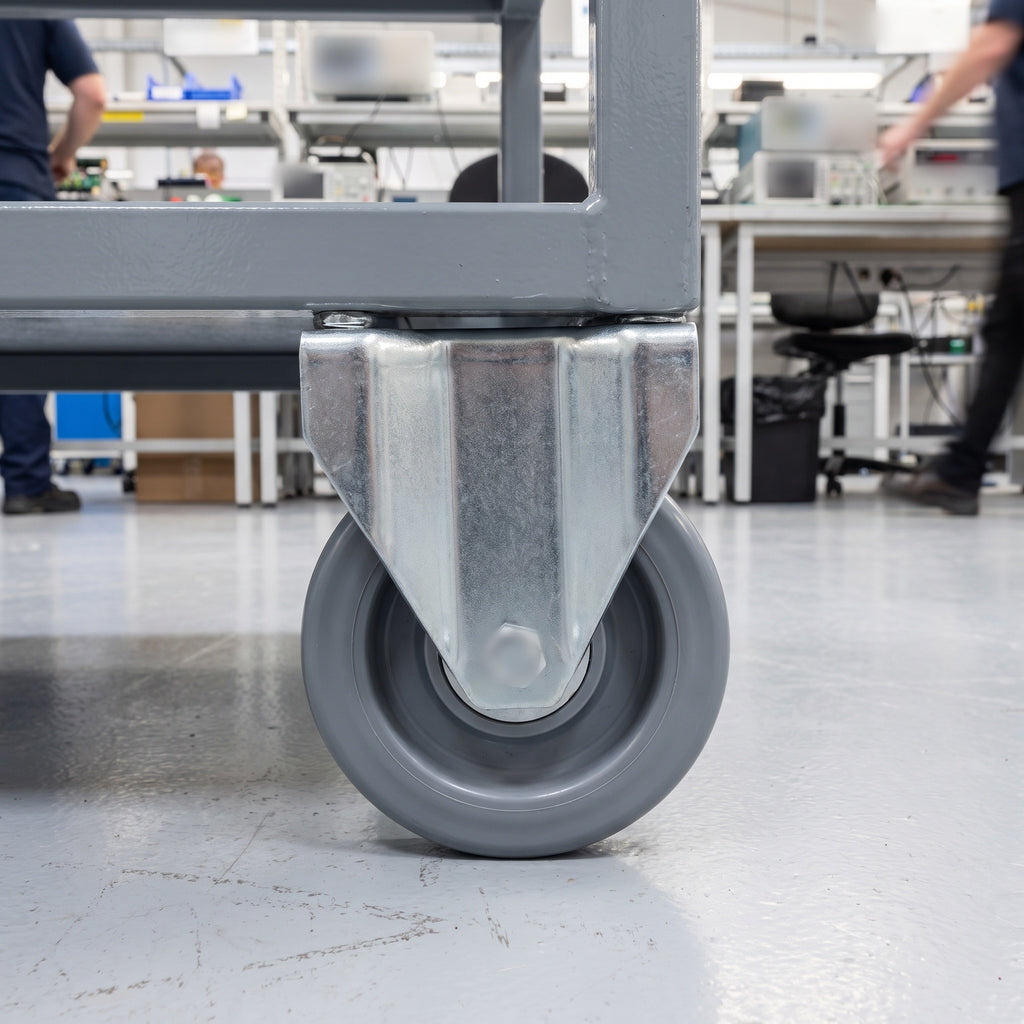

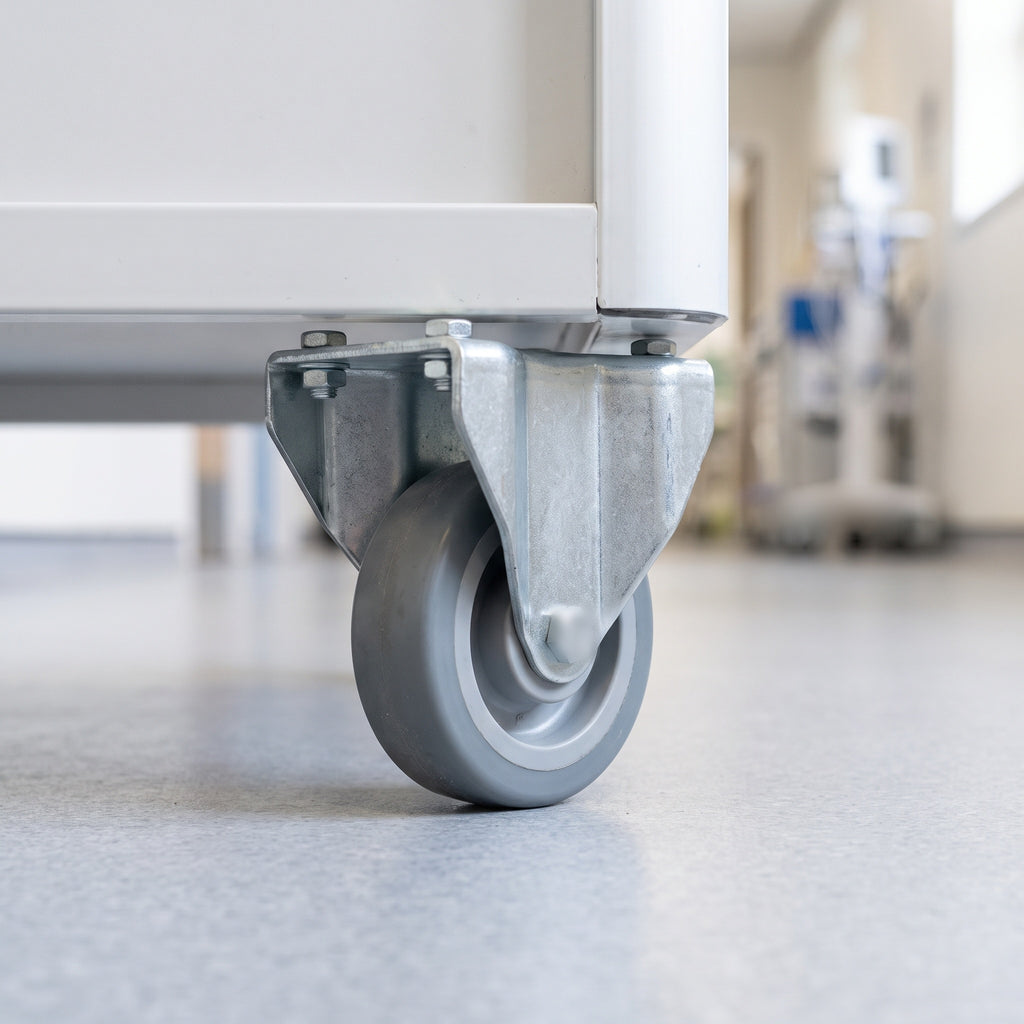

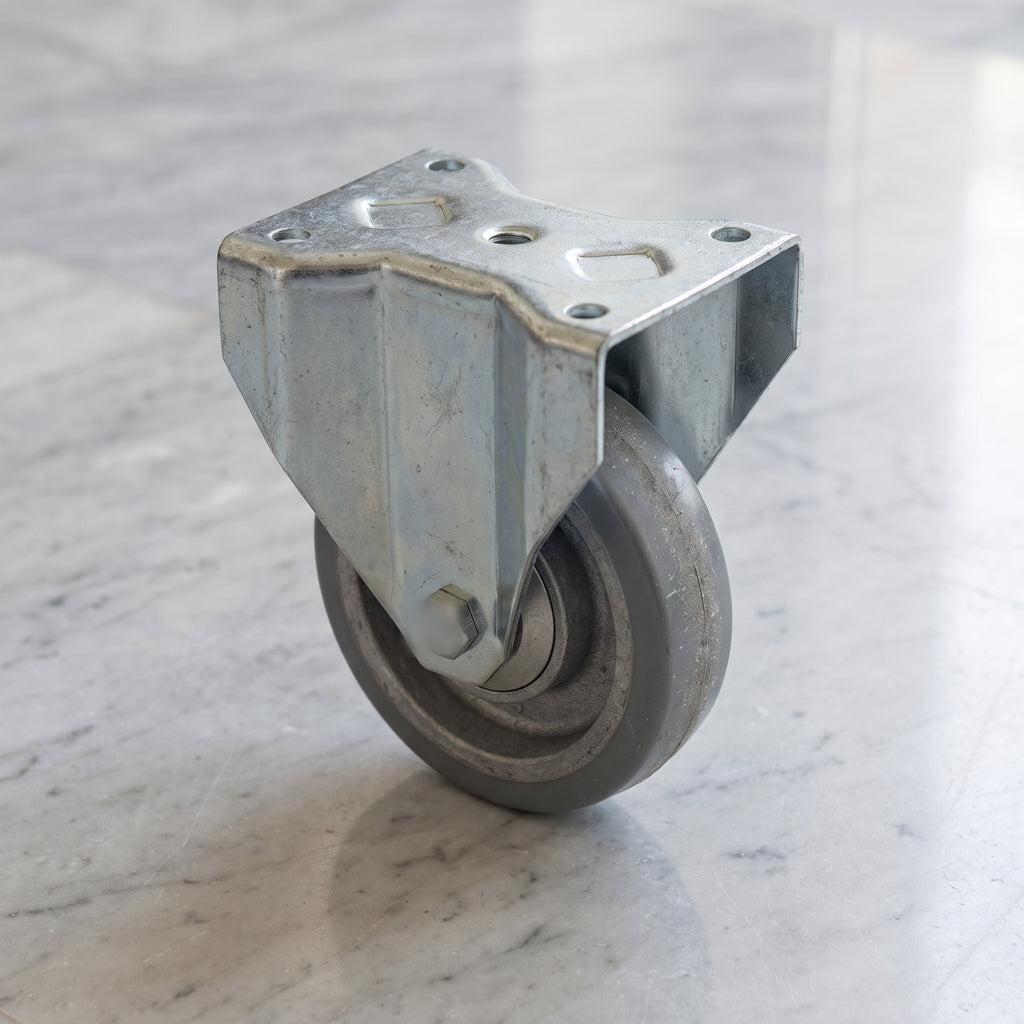

80mm Electro Conductive Fixed Castor with Polyurethane Wheel
This high-performance electro conductive fixed castor features an 80mm polyurethane wheel, specifically designed for environments where static electricity is a concern. With a robust load capacity of 100kg per wheel, it is ideal for applications in laboratories, electronics manufacturing, and data centres, ensuring safe and efficient mobility of sensitive equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Load Capacity | 100 kg |
| Tread Width (mm) | 30 |
| Temperature Range | -40°C to +80°C |
| Hardness of Tread | 95 shore A |
| Max Load Capacity of 4 Castors | 300 kg |
| Plate Length (mm) | 105 |
| Plate Width (mm) | 85 |
| Plate Hole Centres Length (mm) | 80 |
| Plate Hole Centres Width (mm) | 60 |
| Plate Hole Diameter | 8 |
| Total Castor Height | 108 |
| Wheel Colour | Grey |
| Wheel Diameter (mm) | 80 |
| Wheel Material | Electrically Conductive Polyurethane |
Applications
This electro conductive castor is perfect for:
- Laboratory Equipment: Essential for handling sensitive materials without the risk of static discharge.
- Electronics Manufacturing: Ideal for moving equipment that requires electro-conductive properties.
- Data Centres: Used on trolleys to prevent static build-up that can damage electronic components.
Frequently Asked Questions
- What is the load capacity of this castor? The load capacity is 100kg per wheel.
- What is the temperature range for this castor? It can operate in temperatures ranging from -40°C to +80°C.
- What type of bearing does it use? It features a ball bearing for smooth rotation.
- What is the hardness of the tread? The tread hardness is 95 shore A, indicating a firm wheel.
- Can this castor be used on sensitive electronic equipment? Yes, it is designed specifically for electro-conductive applications to prevent static build-up.
- What is the diameter of the wheel? The wheel diameter is 80mm.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
