- Load per castor317kg per castor *
- Wheel diameter102mm (4")
- Overall height143mm
- WheelErgonomic Polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Kingpinless Swivel Castor, Extended Lead
- Fixing
- Top Plate
- Wheel Diameter
- 102mm (4")
- Wheel Material
- Ergonomic Polyurethane
- Wheel Colour
- Orange
- Tread Hardness
- 87 Shore A
- Tread Width
- 50mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 317kg per castor *
- Plate Size
- 114 x 102mm
- Plate Hole Centres
- 92 x 75mm and 75 x 67mm
- Plate Hole Diameter
- 10mm
- Swivel Radius
- 108mm
- Total Castor Height
- 143mm
- Temperature Range
- -20°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +80°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Ergonomic Castors

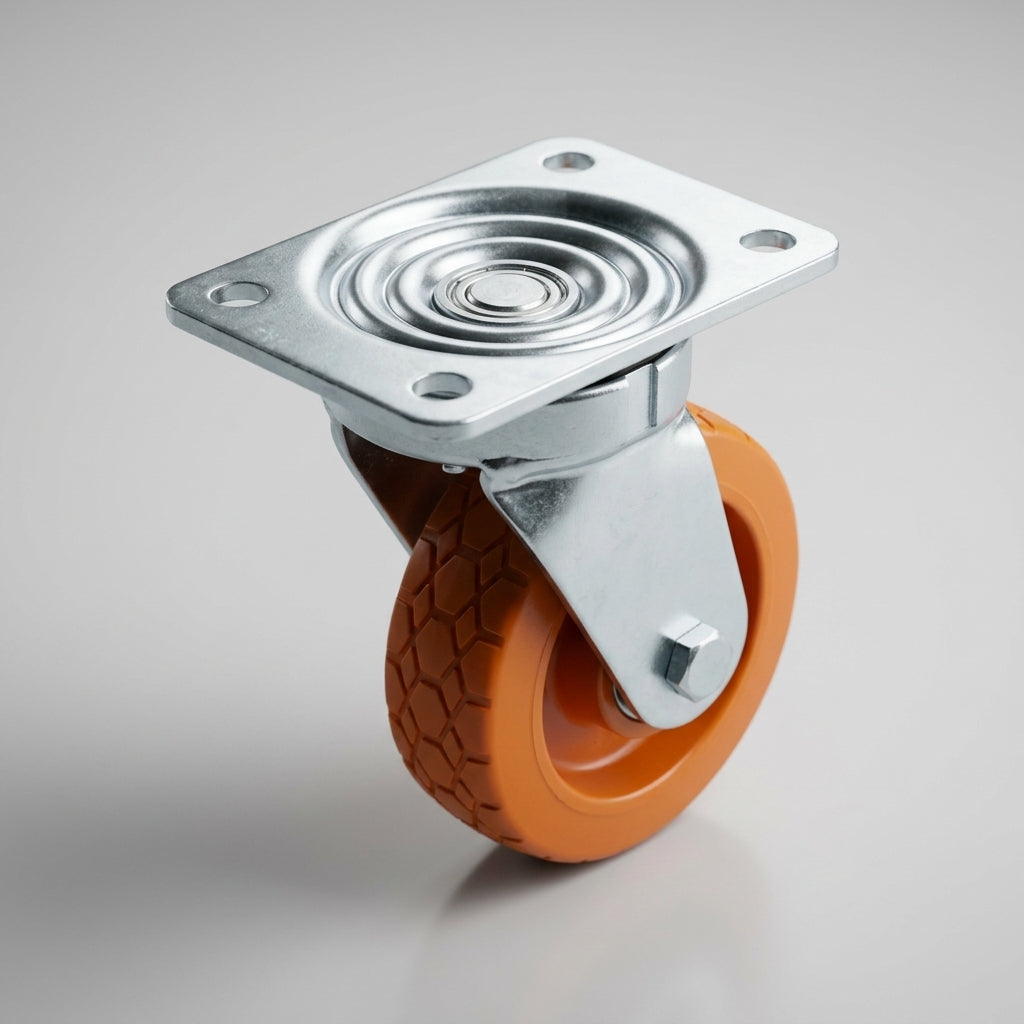

This compact 100mm (4") kingpinless swivel castor pairs an orange ergonomic polyurethane wheel with an extended lead, carrying 317kg per castor. It makes loaded trolleys and carts easier to start, steer and stop.
The kingpinless swivel head has no central kingpin to loosen or wear, so it keeps turning smoothly under heavy, repeated use. The 87 Shore A tread gives a softer contact patch for quiet running on hard floors, and the ball journal bearing reduces friction. At just 143mm tall it suits low trolleys, and it bolts on through a 114 x 102mm top plate with two hole patterns.
Why Choose This Castor
- ✓ Ergonomic polyurethane wheel with a softer 87A tread for less push force on hard floors.
- ✓ Kingpinless swivel head with no kingpin to loosen or wear.
- ✓ Extended lead for quick line-up and stable steering.
- ✓ 317kg per castor in a compact 143mm height.
- ✓ Ball journal bearing that reduces friction.
- ✓ Dual hole pattern top plate (92 x 75mm or 75 x 67mm) for easy replacement.
* Load capacity is per castor. For a set of four, plan on three castors carrying the load on uneven floors, so about 951kg.
Where It Works Best

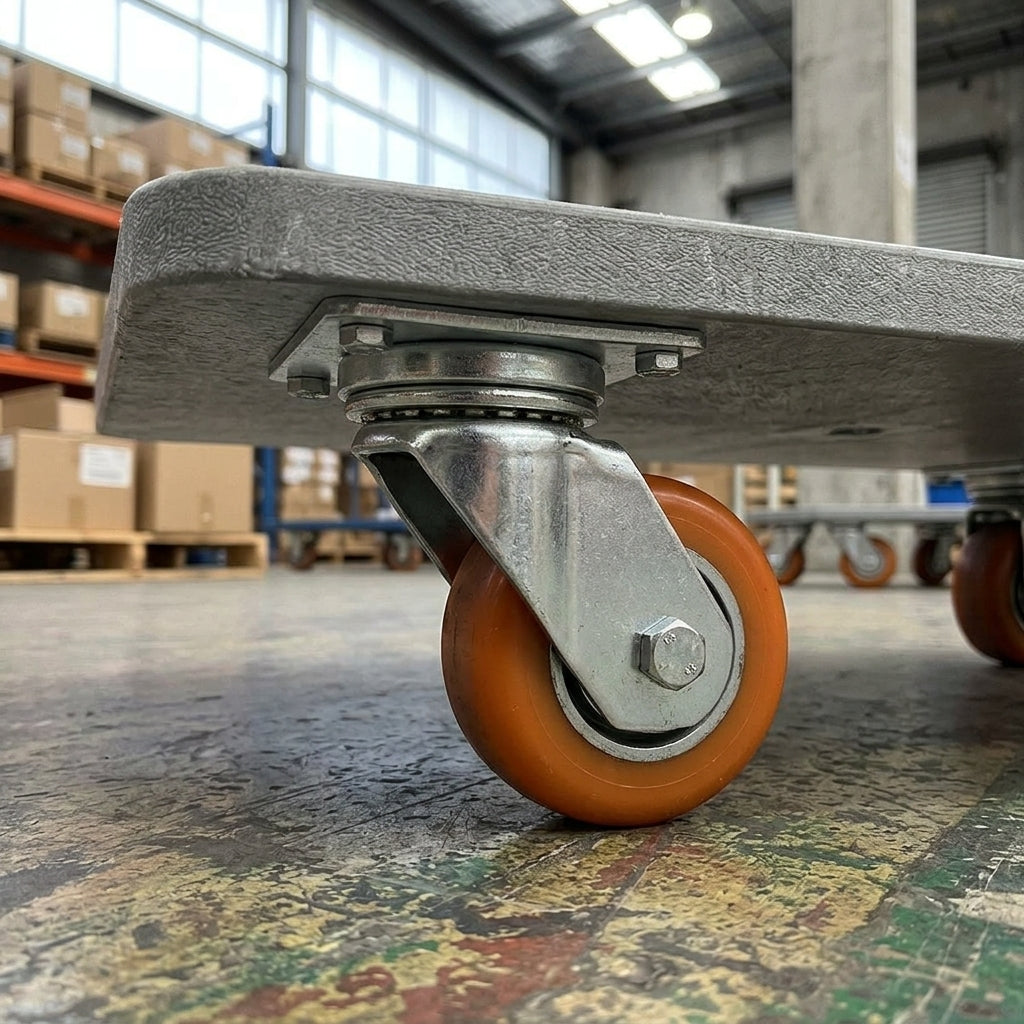

- ✓ Warehouse trolleys: better manoeuvrability and load handling.
- ✓ Industrial carts: equipment that changes direction often.
- ✓ Material handling equipment: stable, smooth movement in busy work areas.
- ✓ Tow lines: low tow train carts and tugger trolleys.
- ✓ Hospitals: medical carts and equipment that must move quietly.
Frequently Asked Questions
What makes this castor ergonomic?
The soft 87 Shore A polyurethane tread spreads the load over a larger contact patch, and the ball journal bearing reduces friction. Together they cut the force needed to start and push a loaded trolley, which helps reduce strain for staff.
What is a kingpinless castor?
A kingpinless castor has no central kingpin bolt holding the swivel head together. The load runs through a solid raceway instead, so there is nothing to loosen or wear, making it very strong under heavy loads and impacts.
What does the extended lead do?
The extended lead sets the wheel further back from the swivel centre (108mm swivel radius). The castor swings round and lines up quickly when you change direction, giving better tracking and control, especially on towed carts.
How do I fit this castor?
Bolt the 114 x 102mm top plate to a flat, solid steel base through its four 10mm holes. The plate suits either a 92 x 75mm or a 75 x 67mm hole pattern, so it can often replace an existing castor without drilling new holes.
Which floors is it suitable for?
The soft polyurethane tread suits smooth concrete, resin, vinyl and tiled floors. It runs quieter than nylon or cast iron and does not mark most floors.
How tall is the castor?
The total castor height is 143mm, from the floor to the top of the plate.
