100mm Braked Heavy Duty Castor - 250kg Load Capacity

Heavy-duty castor designed for industrial use.

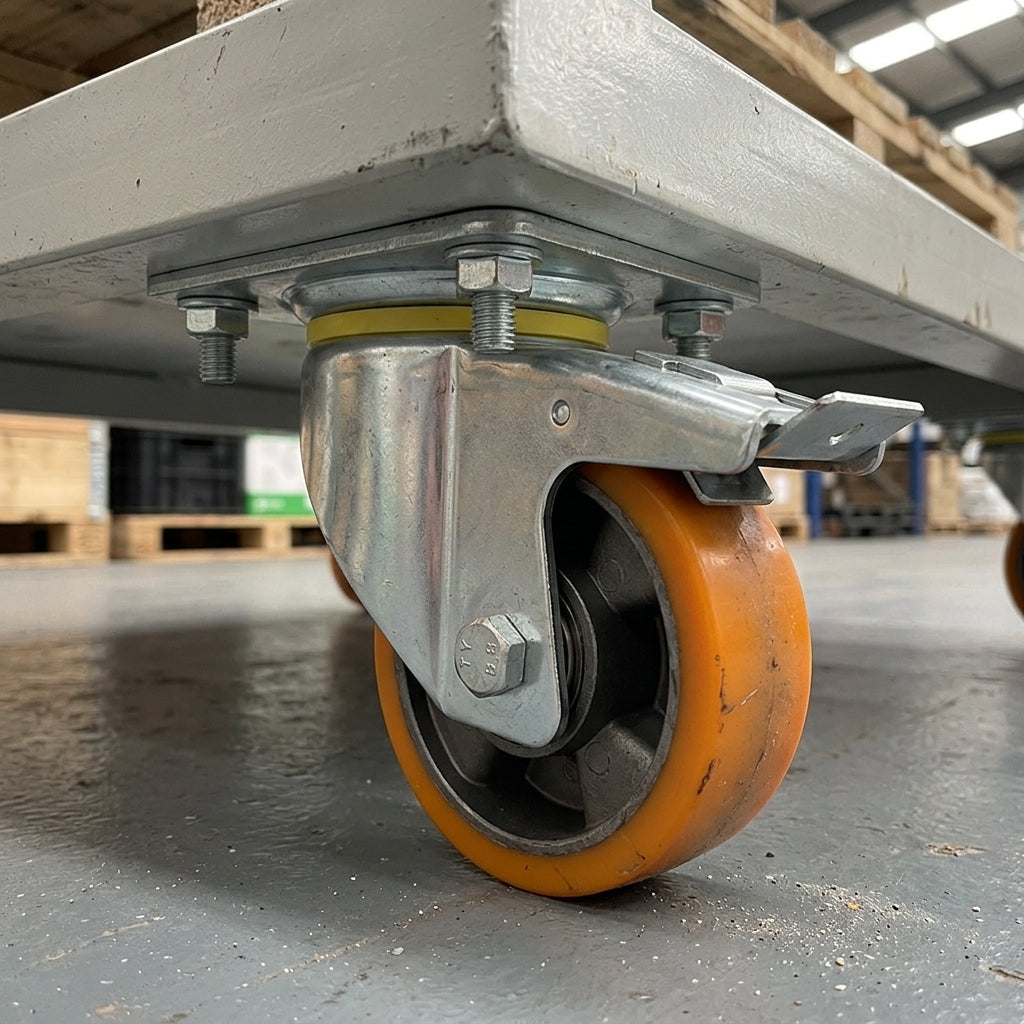

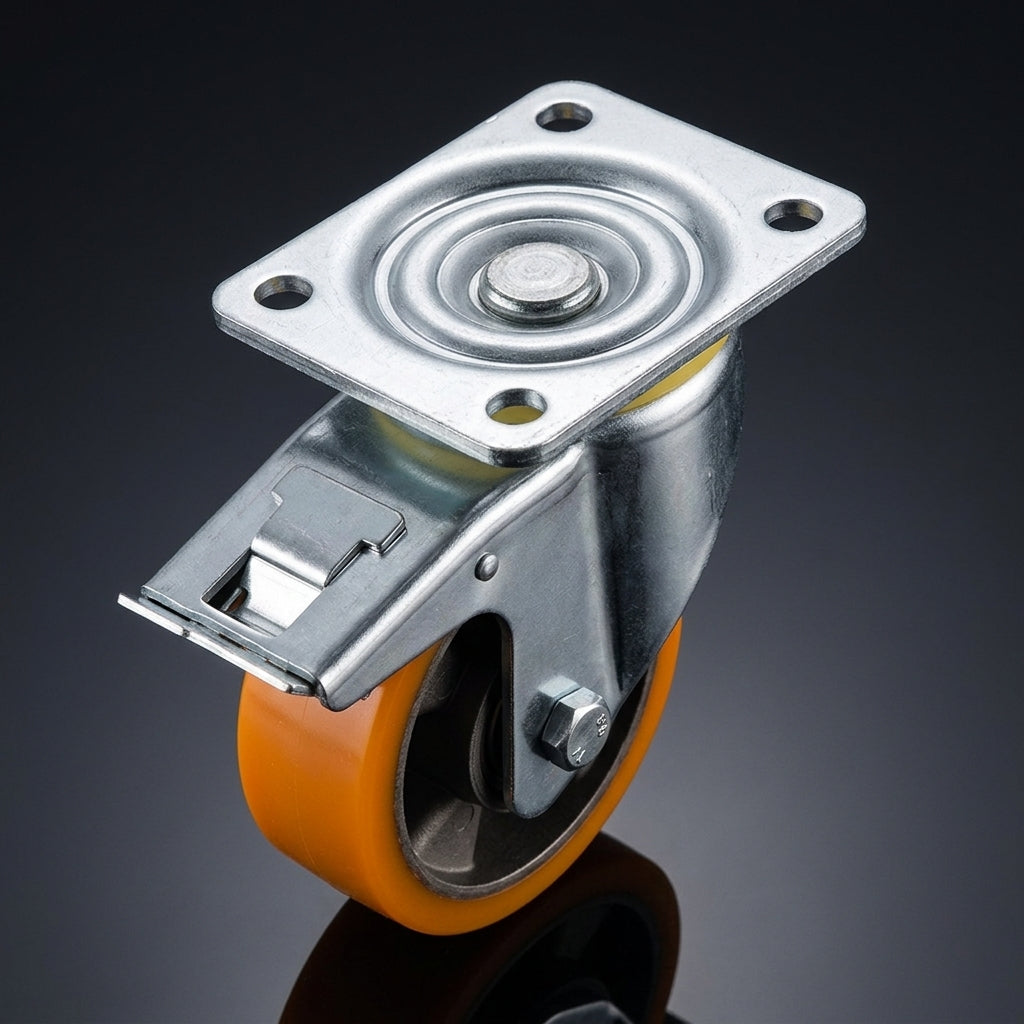

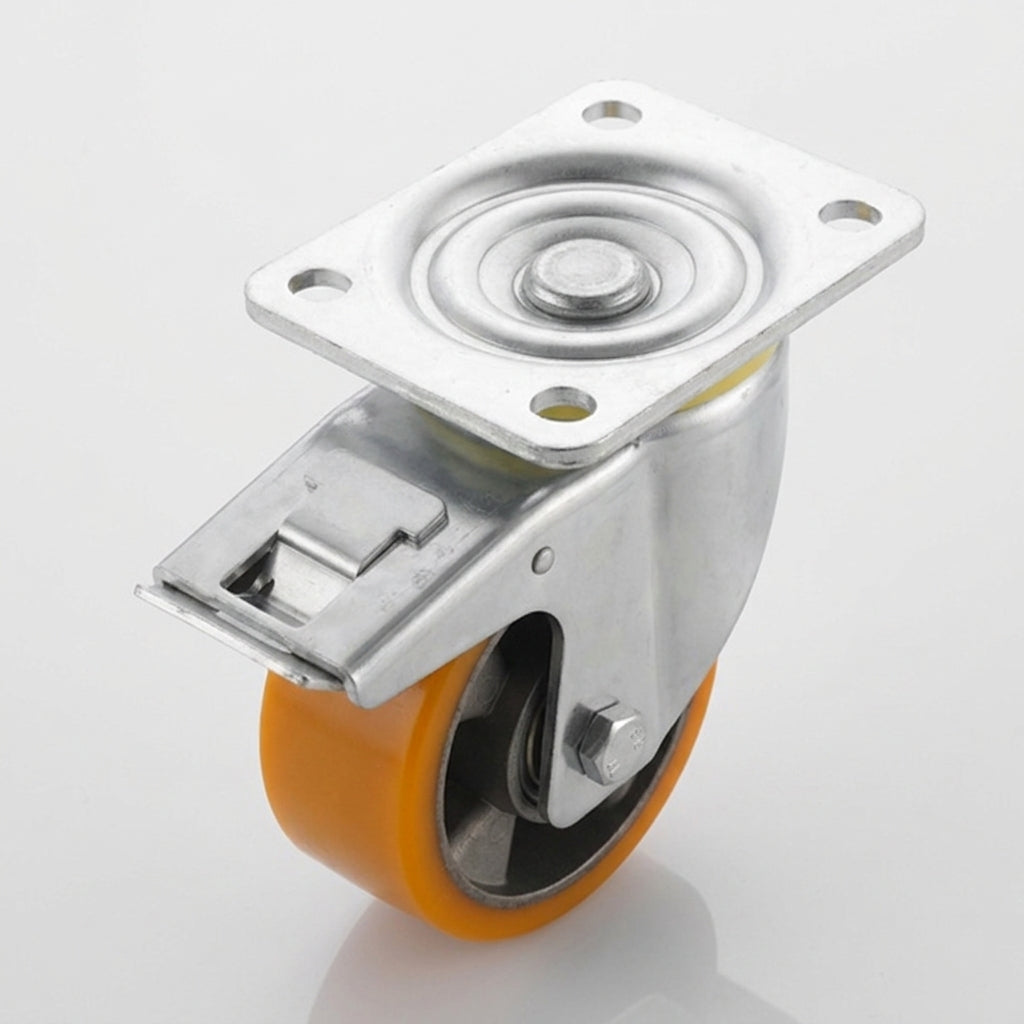

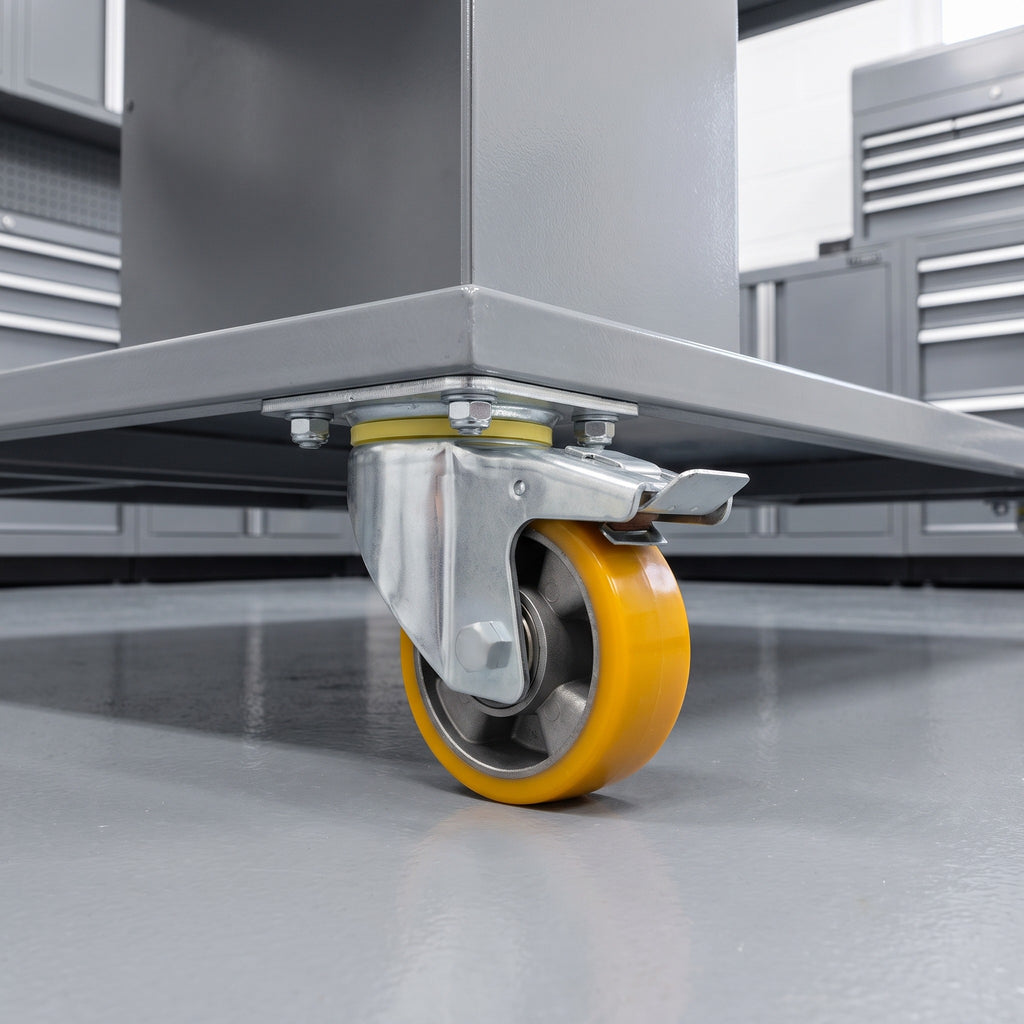

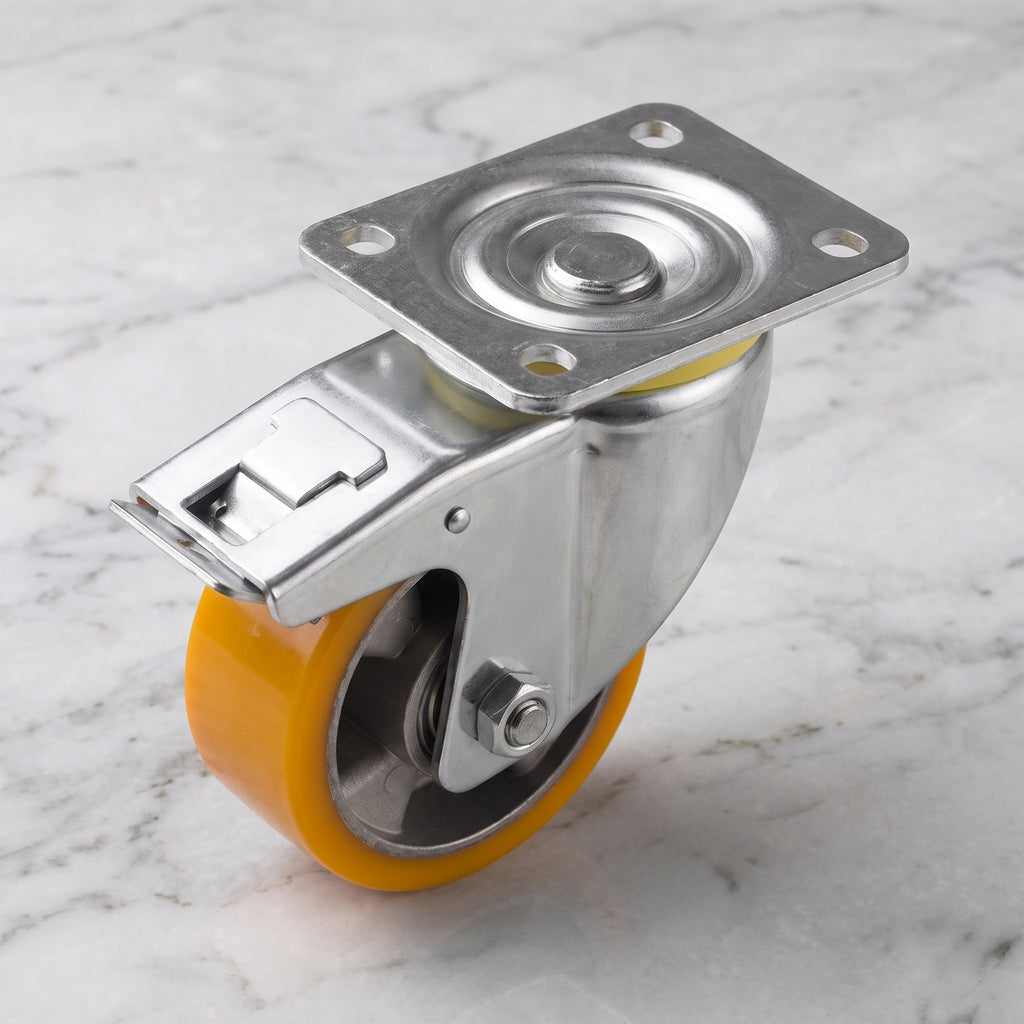

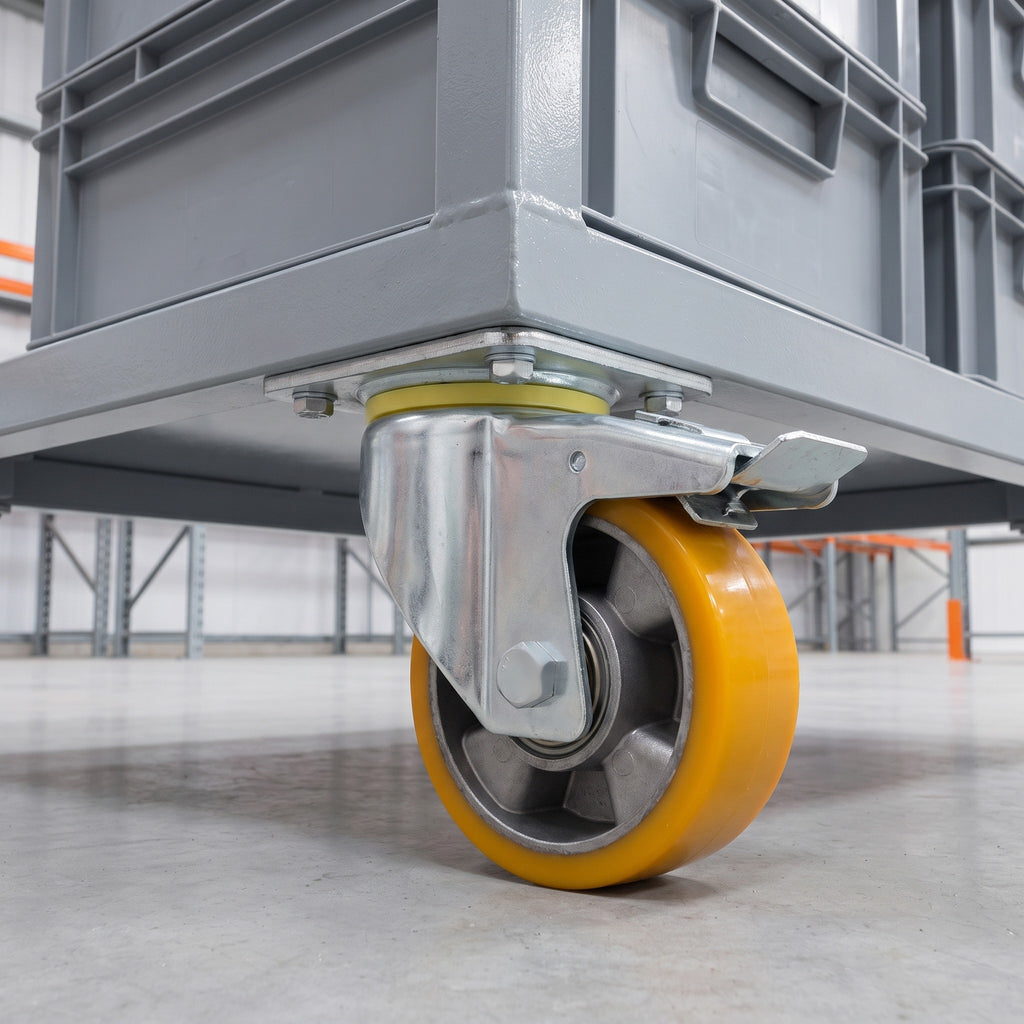

This 100mm braked heavy-duty castor is engineered for environments where controlled movement is crucial. With a robust polyurethane tread and an aluminium wheel core, it ensures durability and smooth operation across various surfaces.

Key Features

• Tread Hardness: 91A – indicates a firm tread suitable for smooth surfaces.
• Load Capacity: 250kg
• Plate Length: 105mm – must match the mounting surface.
• Plate Width: 85mm – must match the mounting surface.
• Plate Hole Centres Width: 80/60mm – must align with existing holes.
• Plate Hole Diameter: 9mm – must fit the mounting bolts.
• Swivel Radius: 116mm
• Total Castor Height: 130mm

Specifications

• Temperature Range: -20°C to +80°C
• Wheel Material: Polyurethane
• Core Material: Aluminium
• Bearing Type: Ball journal bearing

Applications

• Industrial trolleys
• Warehouse equipment
• Heavy-duty carts
• Manufacturing machinery
• Transporting goods on smooth surfaces
