- Load per castor70kg per castor
- Wheel diameter35mm
- Overall height53mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Low Level Top Plate Swivel Castor
- Wheel Diameter
- 35mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Black
- Tread Width
- 27mm
- Bearing Type
- Ball bearing
- Load Capacity
- 70kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 60 x 60mm
- Plate Hole Centres
- 48/38 x 48/38mm
- Plate Hole Diameter
- 6mm
- Swivel Radius
- 68mm
- Total Castor Height
- 53mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Low Level High Load Castors

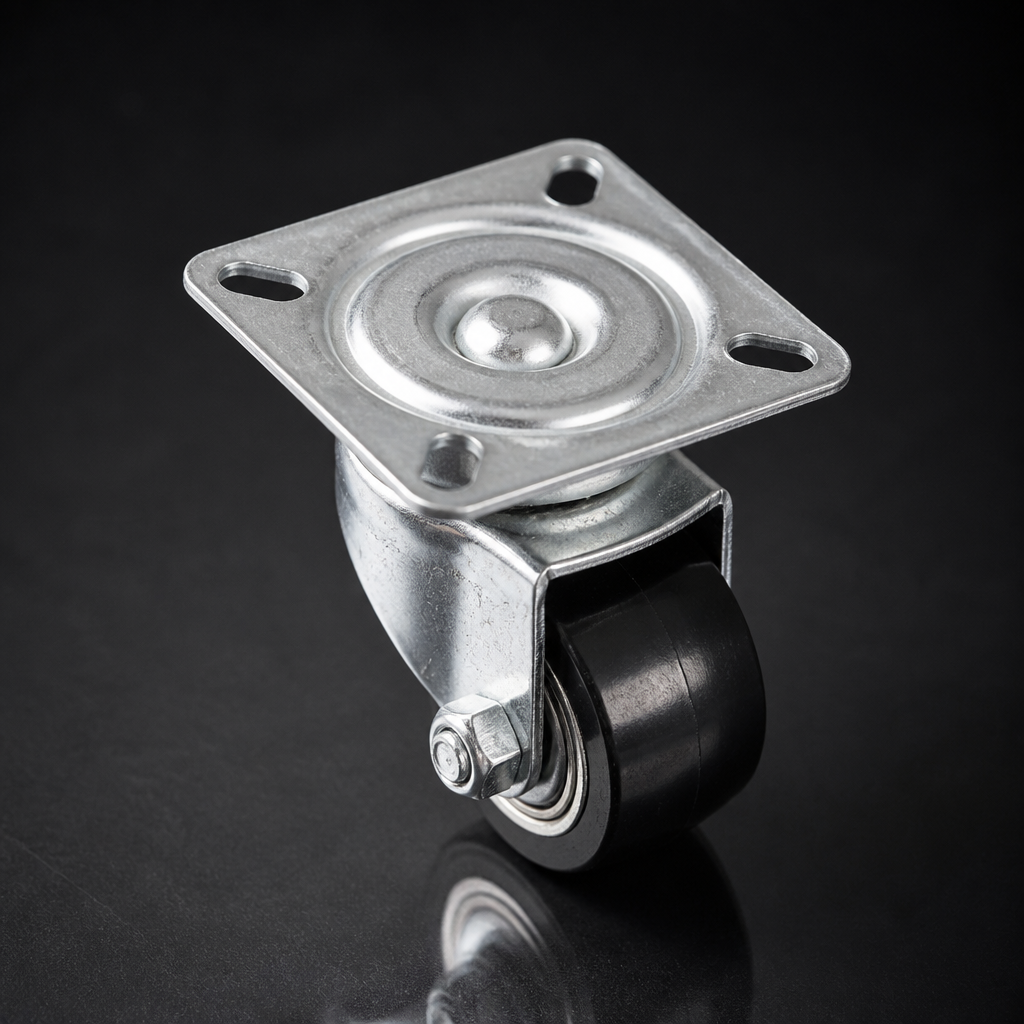

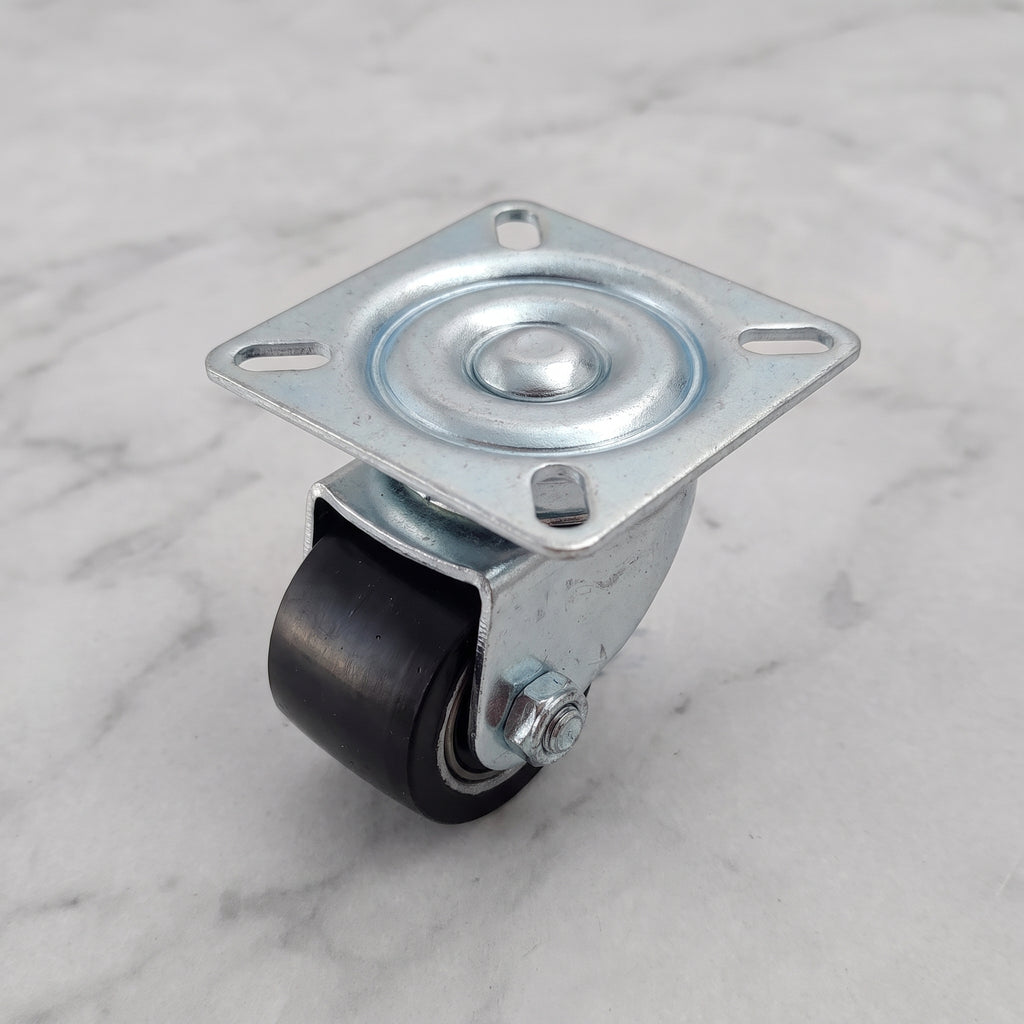

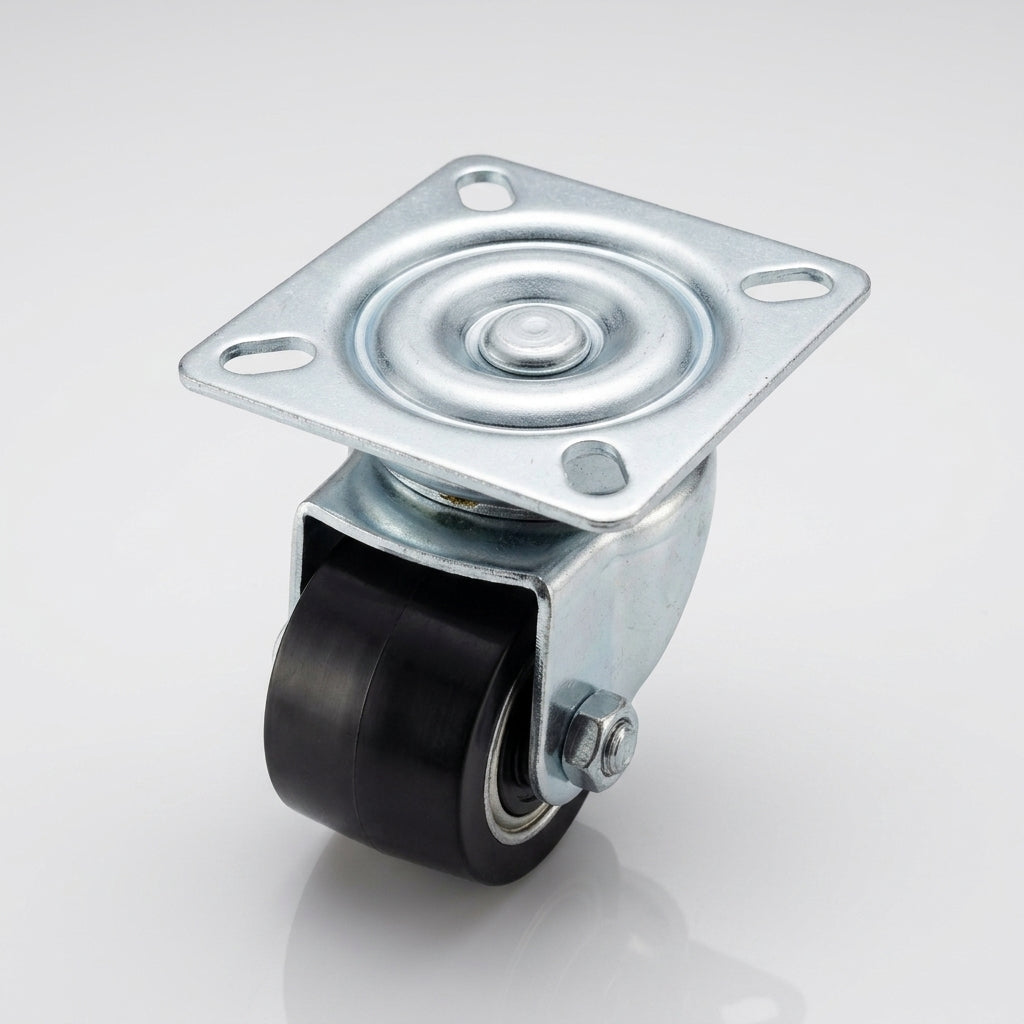

Low, compact and strong for its size. This 35mm low level swivel castor pairs a black polyurethane tread with a cast iron core, carrying up to 70kg per castor while standing only 53mm tall. It fixes with a 60 x 60mm top plate, making it simple to attach to flat surfaces on shop fittings, trolleys and mobile workbenches.
A ball bearing keeps the wheel turning smoothly under load, and the 27mm wide tread gives steady, controlled rolling. The plate has 6mm holes on 48/38mm centres, and the castor has a 68mm swivel radius. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ Low 53mm height for low-clearance equipment.
- ✓ 70kg load capacity per castor from a compact 35mm wheel.
- ✓ Polyurethane on cast iron wheel with a 27mm tread for strength and smooth rolling.
- ✓ Ball bearing for smooth rotation under load.
- ✓ 60 x 60mm top plate with 4 bolt holes for straightforward fitting.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 35mm low level swivel castor suits:
- ✓ Shop fittings: mobility for display units and fixtures.

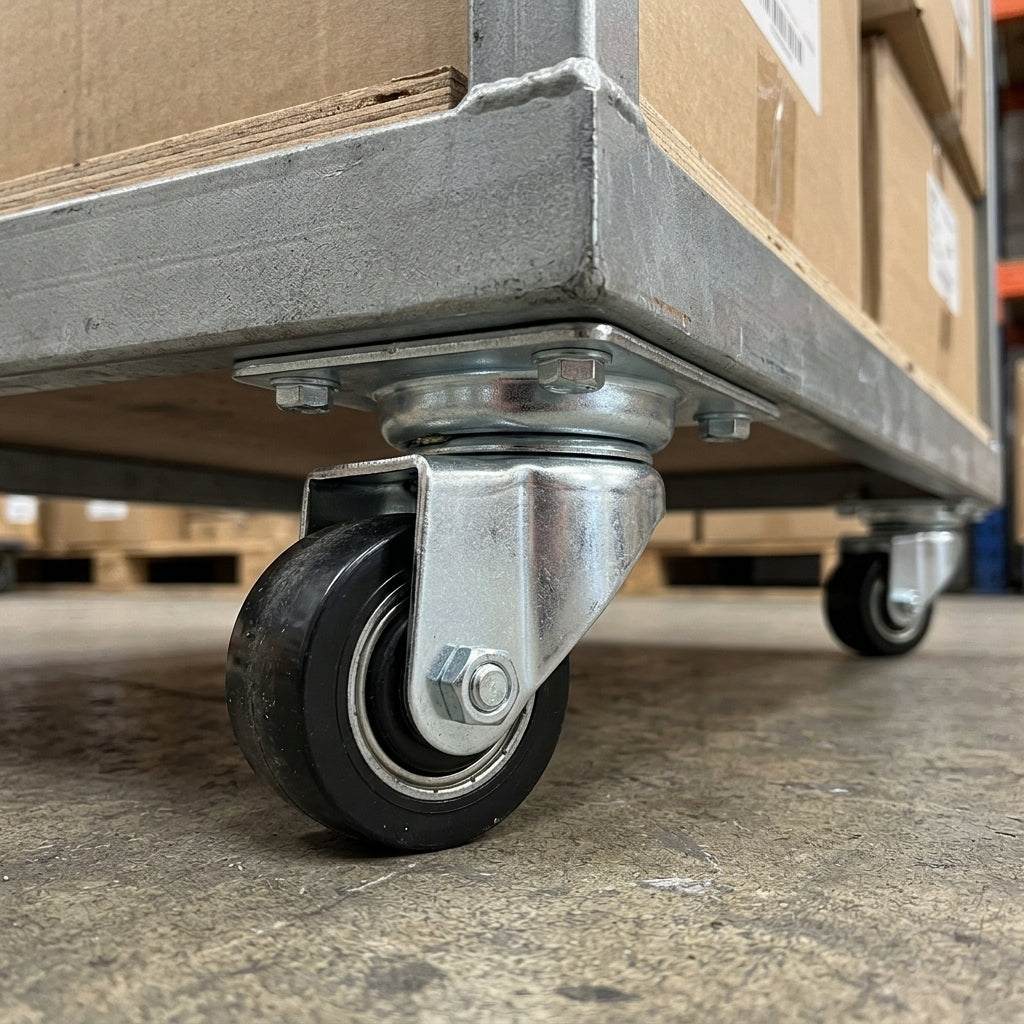

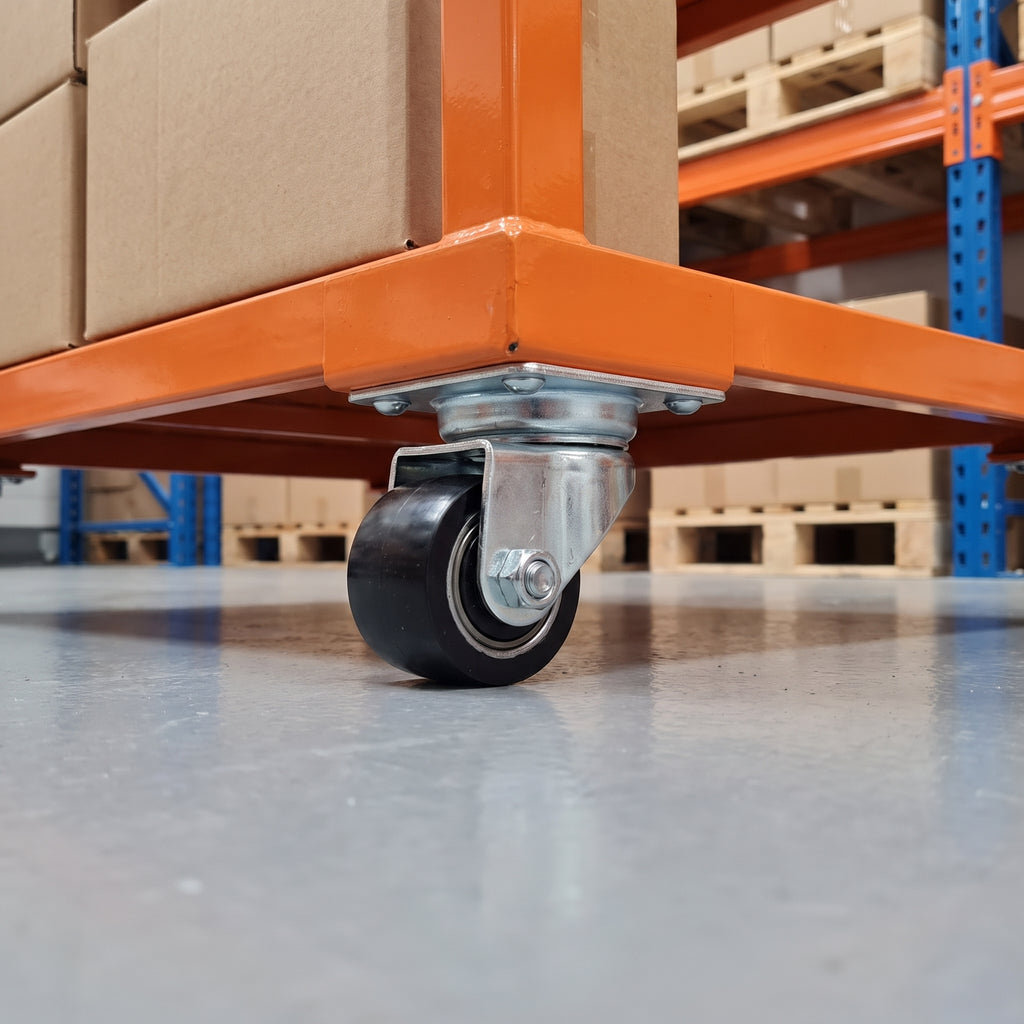

- ✓ Equipment trolleys: smooth and controlled movement.

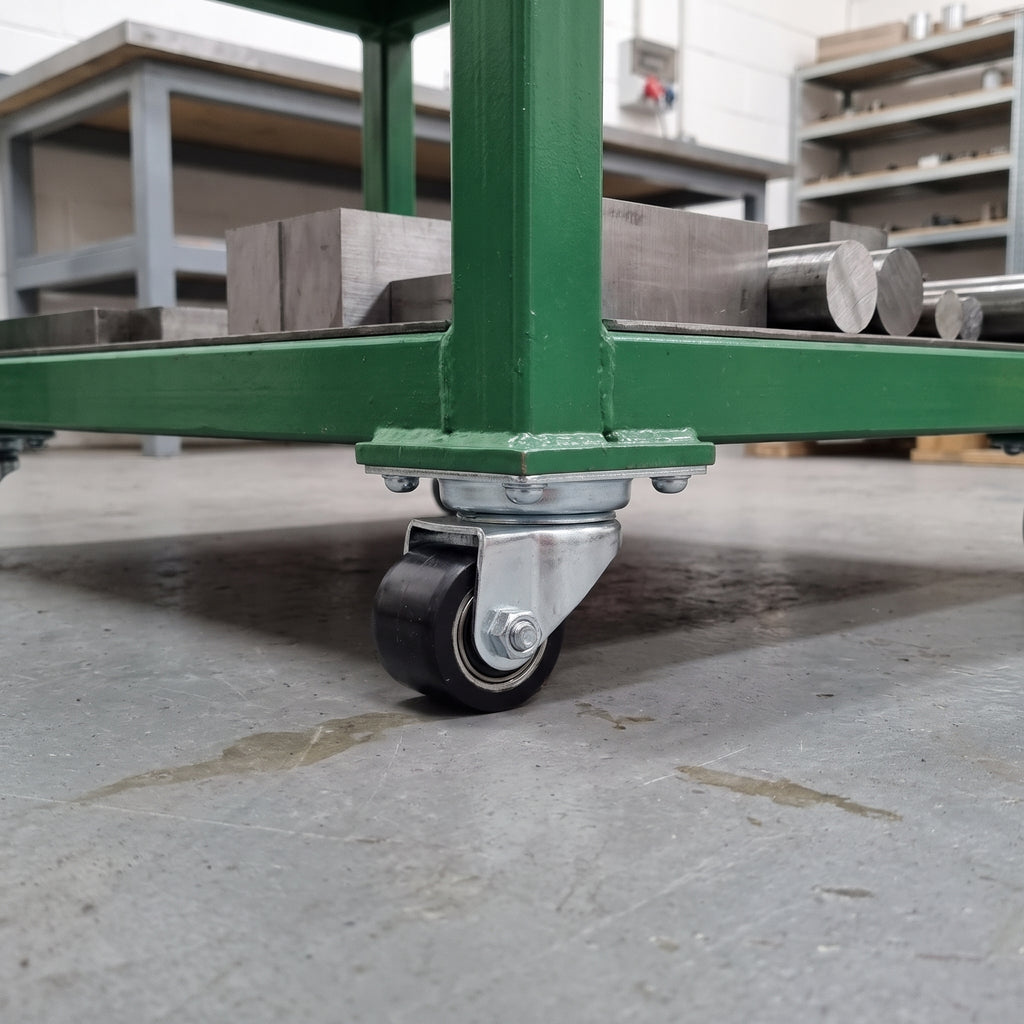

- ✓ Workbenches: mobile workbenches that need repositioning.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 70kg. Add up the castors fitted to your equipment to work out the total load.
How is the castor fitted?
It has a 60 x 60mm top plate with 6mm holes on 48/38mm centres, bolted or screwed to the underside of your equipment.
What is the wheel made of?
A black polyurethane tread on a cast iron centre, 35mm in diameter with a 27mm tread, running on a ball bearing.
How tall is the castor?
Only 53mm overall, from the floor to the top of the plate. Allow the 68mm swivel radius as clear space so it can turn freely.
Does this castor have a brake?
No. This is a free-swivelling castor with no brake.
