Our Clients
- Load per castor70kg per castor
- Wheel diameter35mm
- Overall height53mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Low Level Swivel Braked Top Plate Castor
- Wheel Diameter
- 35mm
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Black
- Tread Width
- 27mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 70kg per castor
- Top Plate Size
- 60 x 60mm
- Bolt Hole Centres
- 48 / 38mm (slotted)
- Bolt Hole Diameter
- 6mm
- Swivel Radius
- 68mm
- Overall Height
- 53mm
- Brake
- Foot Operated Wheel Brake
Will it fit?
- Bolt hole48 / 38mm (slotted)
- Overall height53mm
- Swivel radius68mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

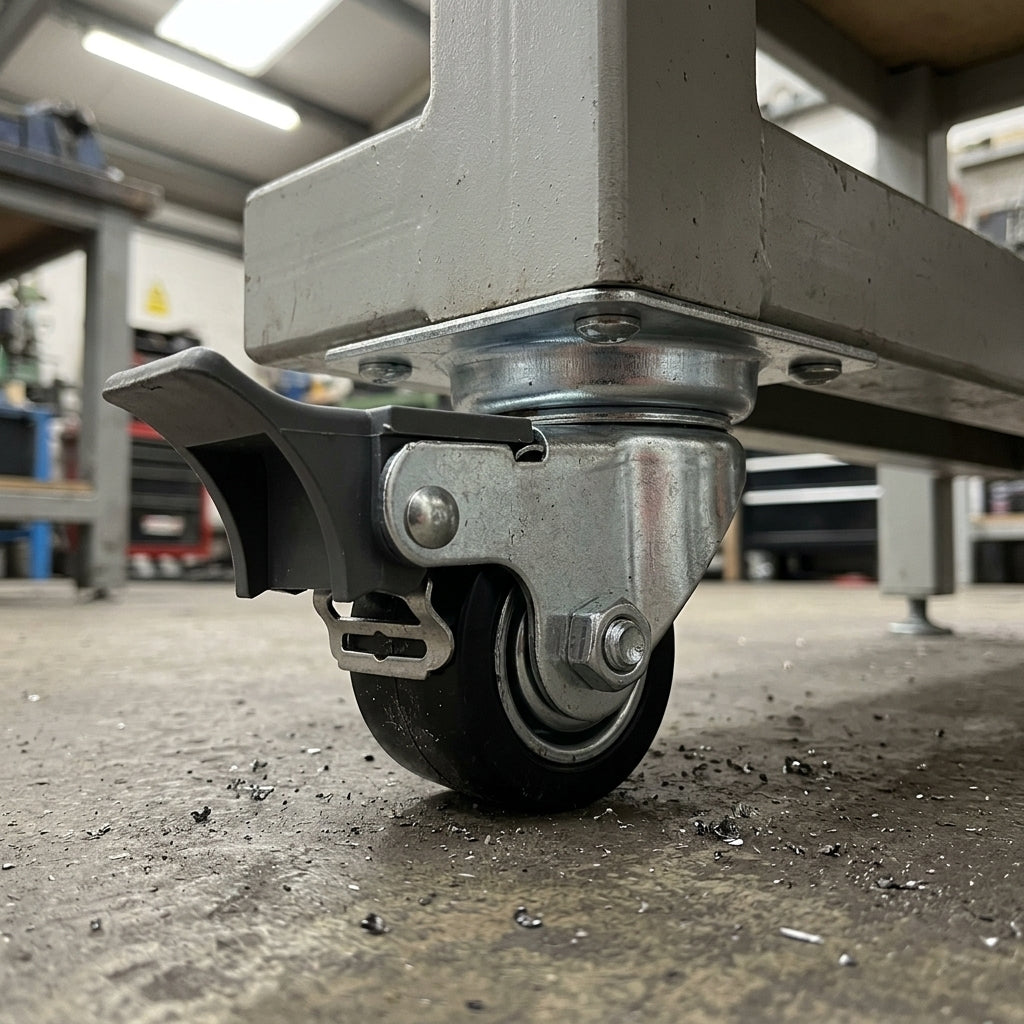

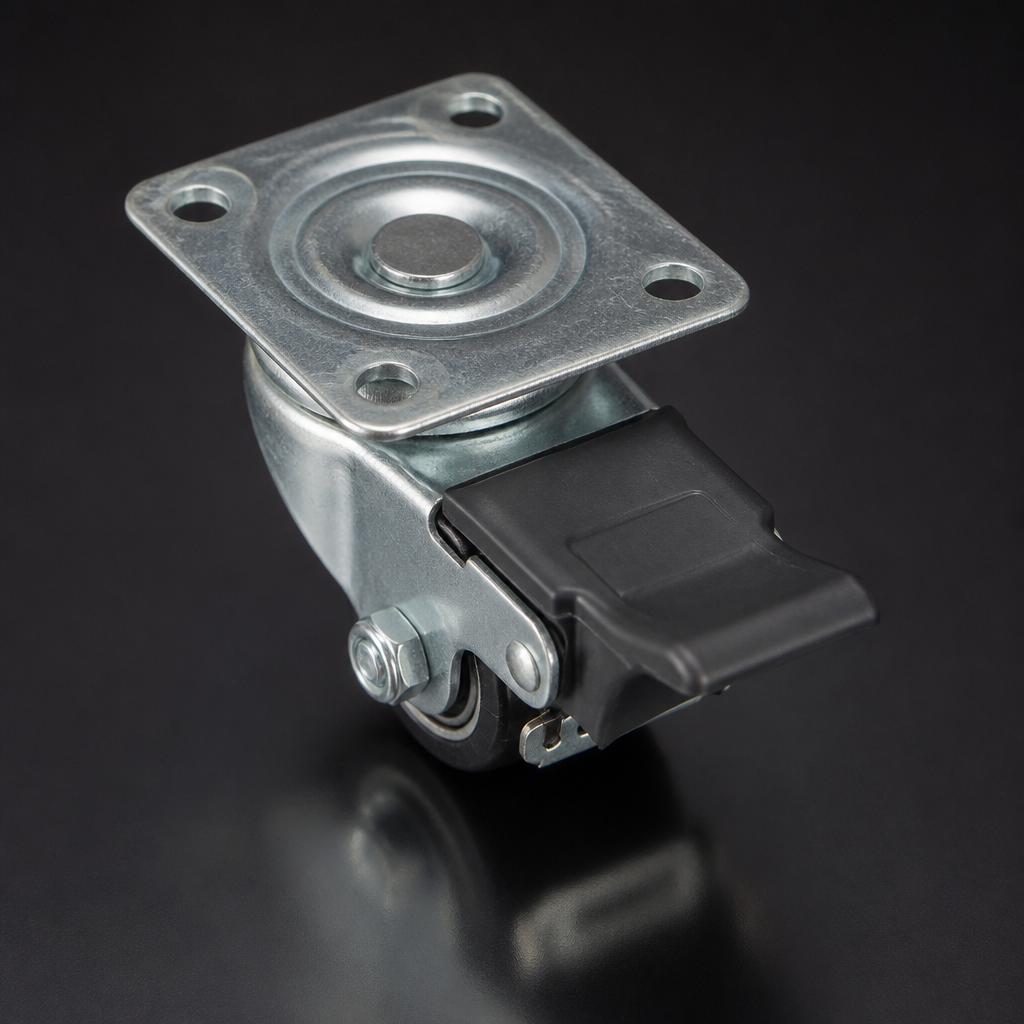

Low Level Braked Top Plate Castor
This very low 35mm braked swivel castor stands just 53mm tall yet carries up to 70kg per castor. A black polyurethane tread on a cast iron centre rolls quietly on a ball bearing, and a foot operated brake holds cabinets, displays and low equipment firmly in place.
The zinc plated pressed steel housing fixes with a 60 x 60mm top plate with four 6mm slotted holes, so it fits neatly under low bases, drawer units and furniture where height is tight. Polyurethane protects floors and keeps noise down.
Why Choose This Castor
- ✓ Very low 53mm overall height
- ✓ Foot operated brake to hold the load in place
- ✓ 70kg load capacity per castor
- ✓ Polyurethane on cast iron wheel: quiet, strong and floor friendly
- ✓ Ball bearing for smooth rolling
- ✓ Compact 60 x 60mm top plate with dual hole centres
Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

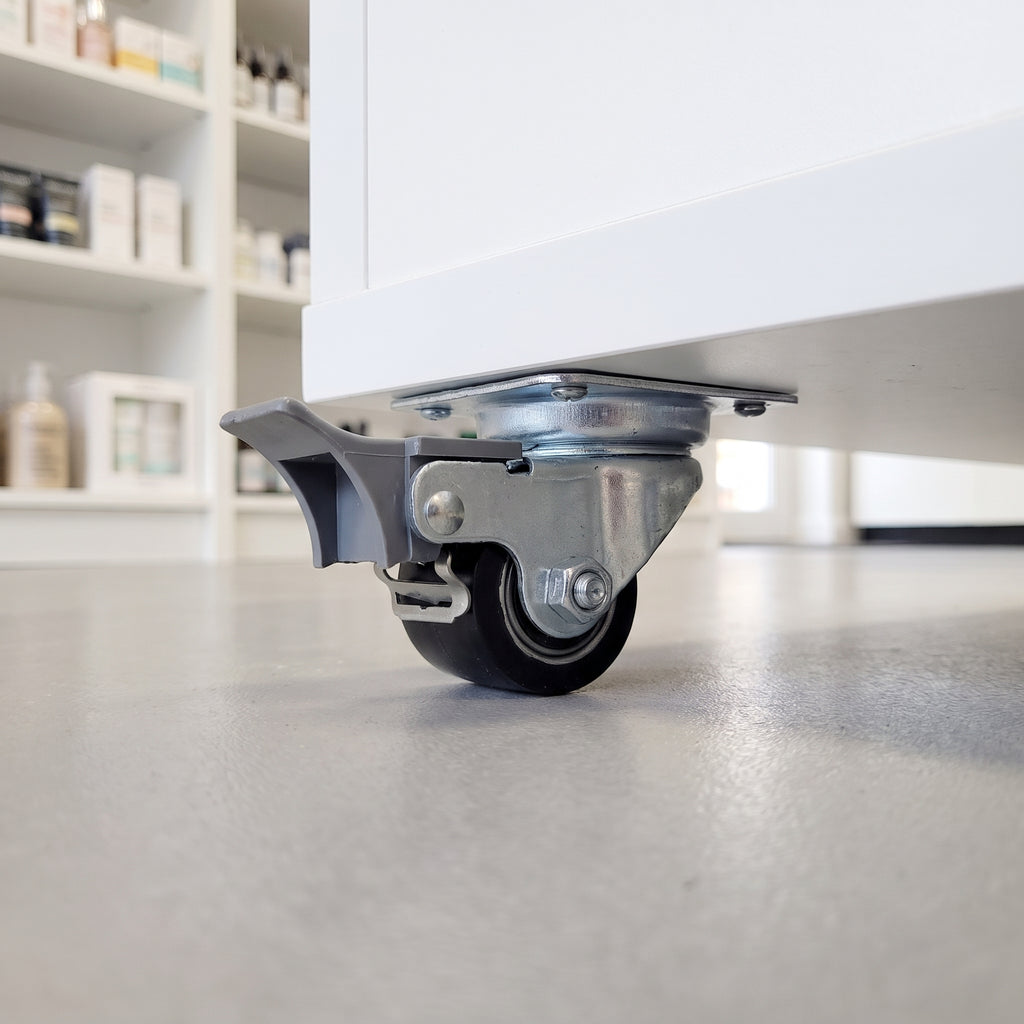

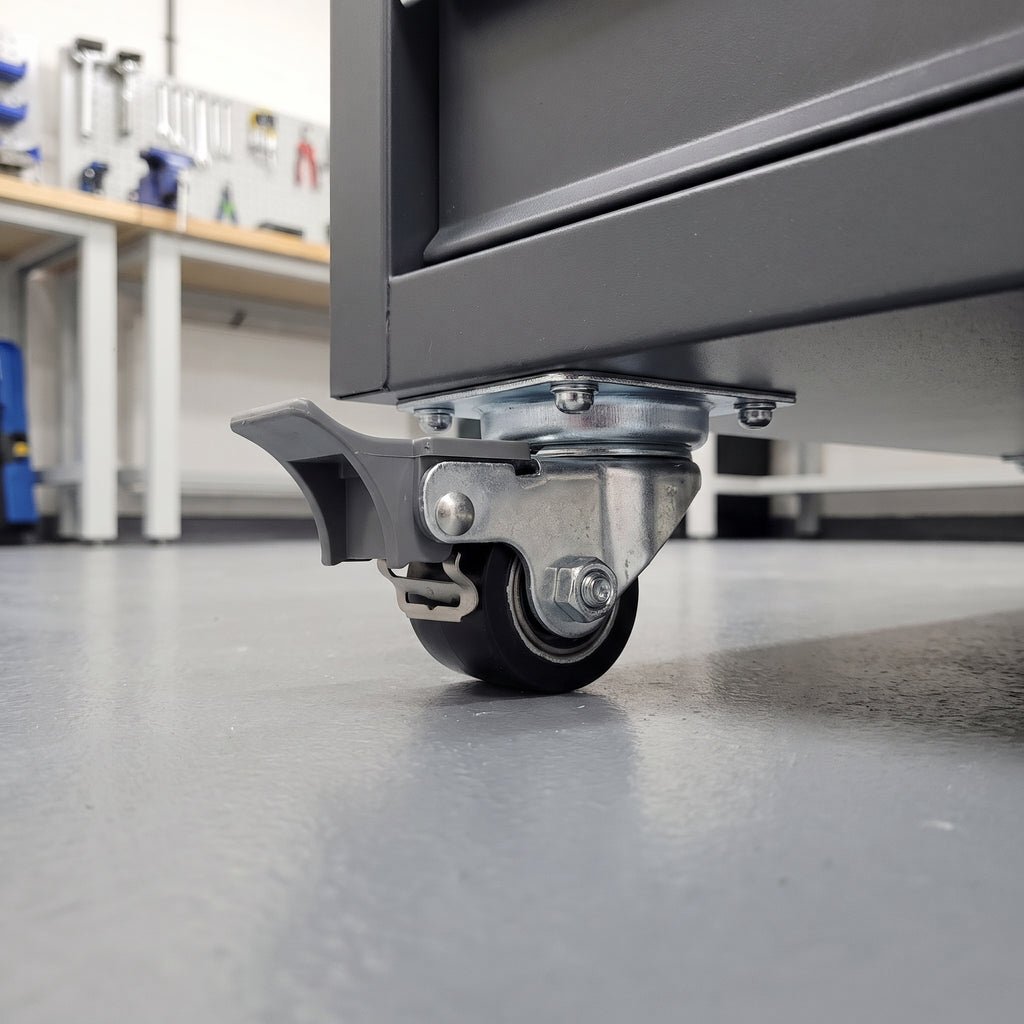

Low cabinets and drawer units, shop displays, plinths, low equipment stands, media units and furniture that must stay close to the floor and lock in place. Best on smooth indoor floors such as vinyl, sealed concrete and laminate.
Frequently Asked Questions
How low is this castor?
The overall height from floor to top plate is just 53mm, ideal where every millimetre counts.
How does the brake work?
Press the pedal down with your foot to lock the wheel. Lift the release tab with your toe to let it roll again.
How much weight can it carry?
Each castor is rated at 70kg. A set of four is best used for loads up to around 210kg, allowing for uneven floors.
What size bolts do I need?
The 60 x 60mm top plate has four 6mm slotted holes on 48 / 38mm centres, so M5 or M6 bolts, or No. 10 wood screws for timber bases, are a good fit.
Will it mark my floor?
The black polyurethane tread is kind to most smooth floors and much quieter than nylon or steel wheels.
