- Load per castor100kg per castor
- Wheel diameter35mm
- Overall height54mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Low Level Swivel Castor
- Fixing
- Single bolt hole
- Bolt Hole Size
- 10mm (for M10 bolt)
- Wheel Diameter
- 35mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Black
- Tread Width
- 28mm
- Bearing Type
- Ball journal
- Load Capacity
- 100kg per castor
- Swivel Radius
- 33mm
- Total Castor Height
- 54mm
Will it fit?
- Bolt hole10mm (for M10 bolt)
- Overall height54mm
- Swivel radius33mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Low Level High Load Castors

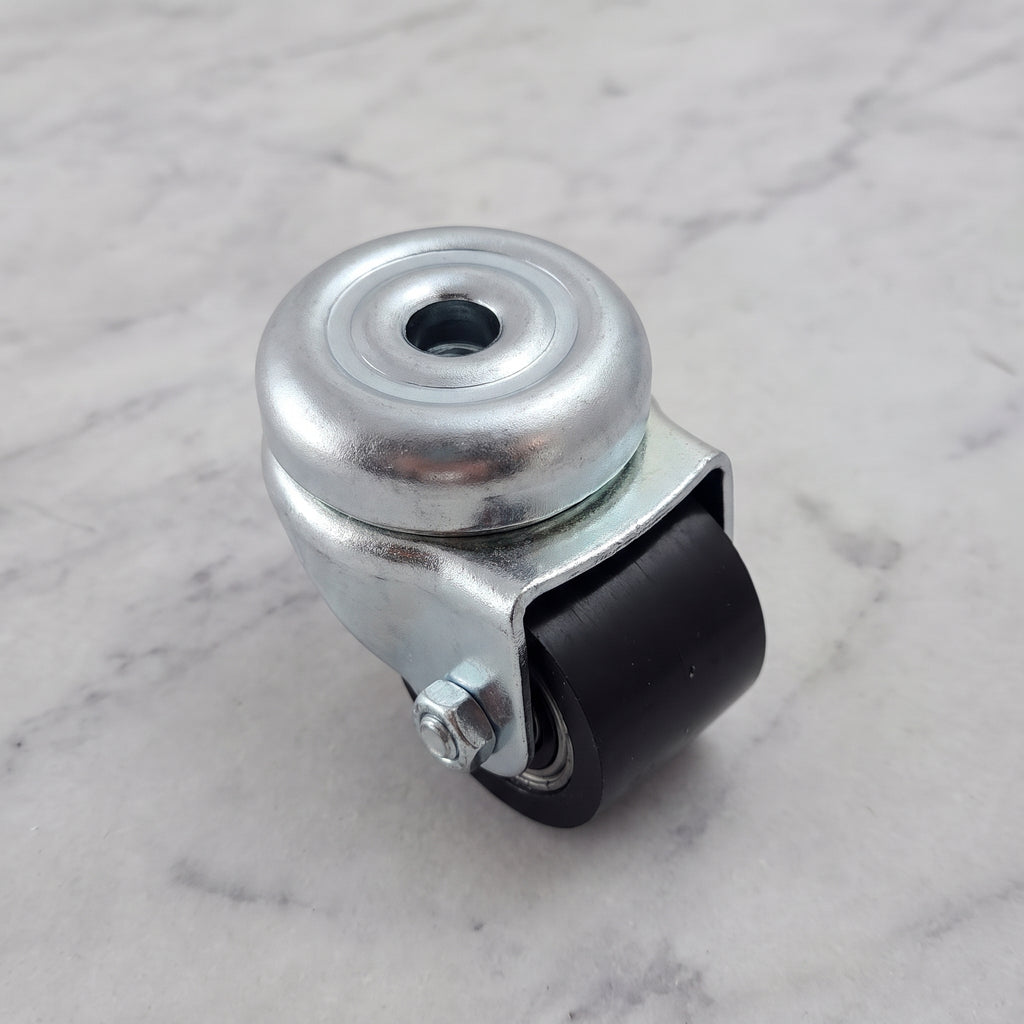

Compact, low and built to carry more than its size suggests. This 35mm low level swivel castor pairs a black polyurethane tread with a cast iron core, carrying up to 100kg per castor while standing only 54mm tall. It fixes through a single 10mm bolt hole, so there is no top plate to fit.
A ball journal bearing gives a smooth swivel action, and the 28mm wide tread spreads the load for steady rolling. With a tight 33mm swivel radius it turns easily in confined spaces, making it a neat choice for low equipment, dollies and heavy carts.
Why Choose This Castor
- ✓ Low 54mm height keeps equipment close to the floor.
- ✓ 100kg load capacity per castor from a compact 35mm wheel.
- ✓ Polyurethane on cast iron wheel with a 28mm tread for strength and smooth rolling.
- ✓ Ball journal bearing for an easy swivel action.
- ✓ Single bolt hole fixing, 10mm (M10), with no top plate needed.
* Load capacity is per castor on a level surface. Check the bolt size suits your equipment before fitting.
Where It Works Best
This 35mm low level bolt hole castor suits:

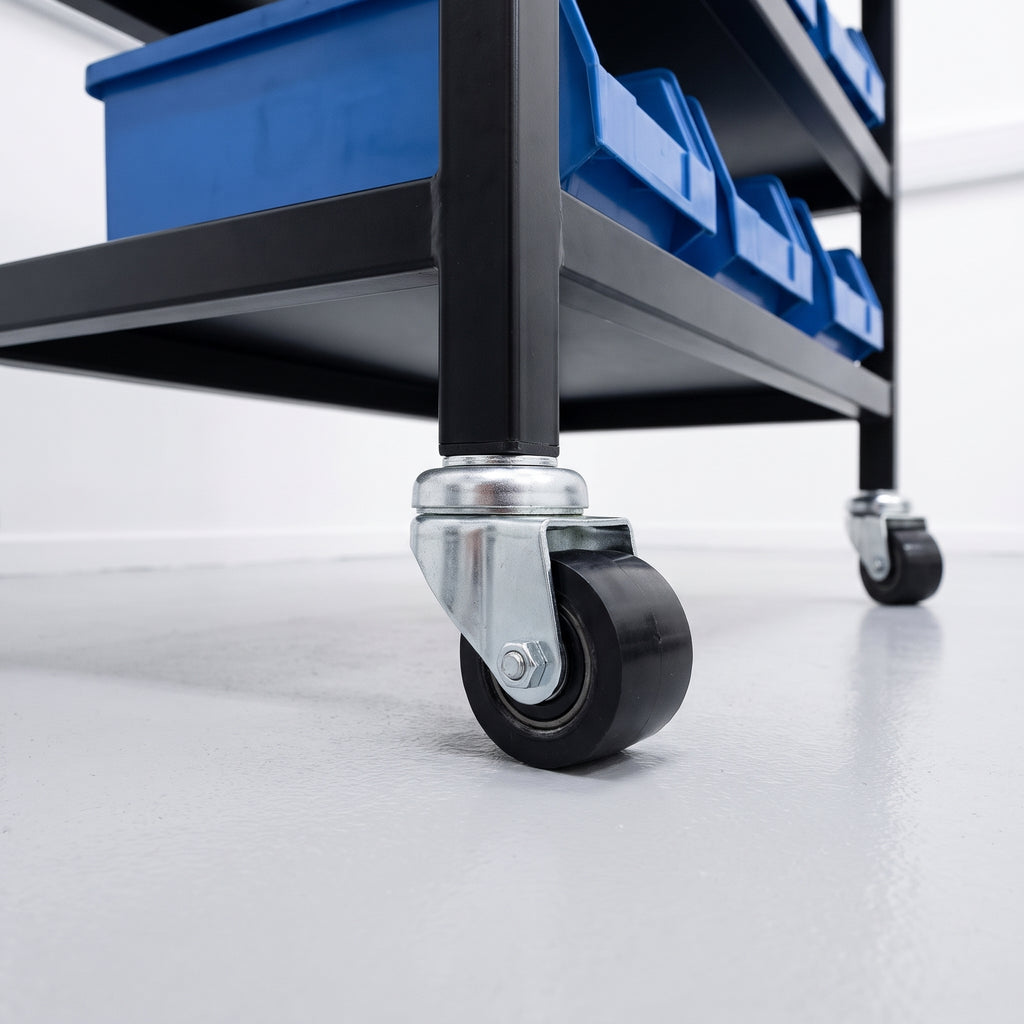

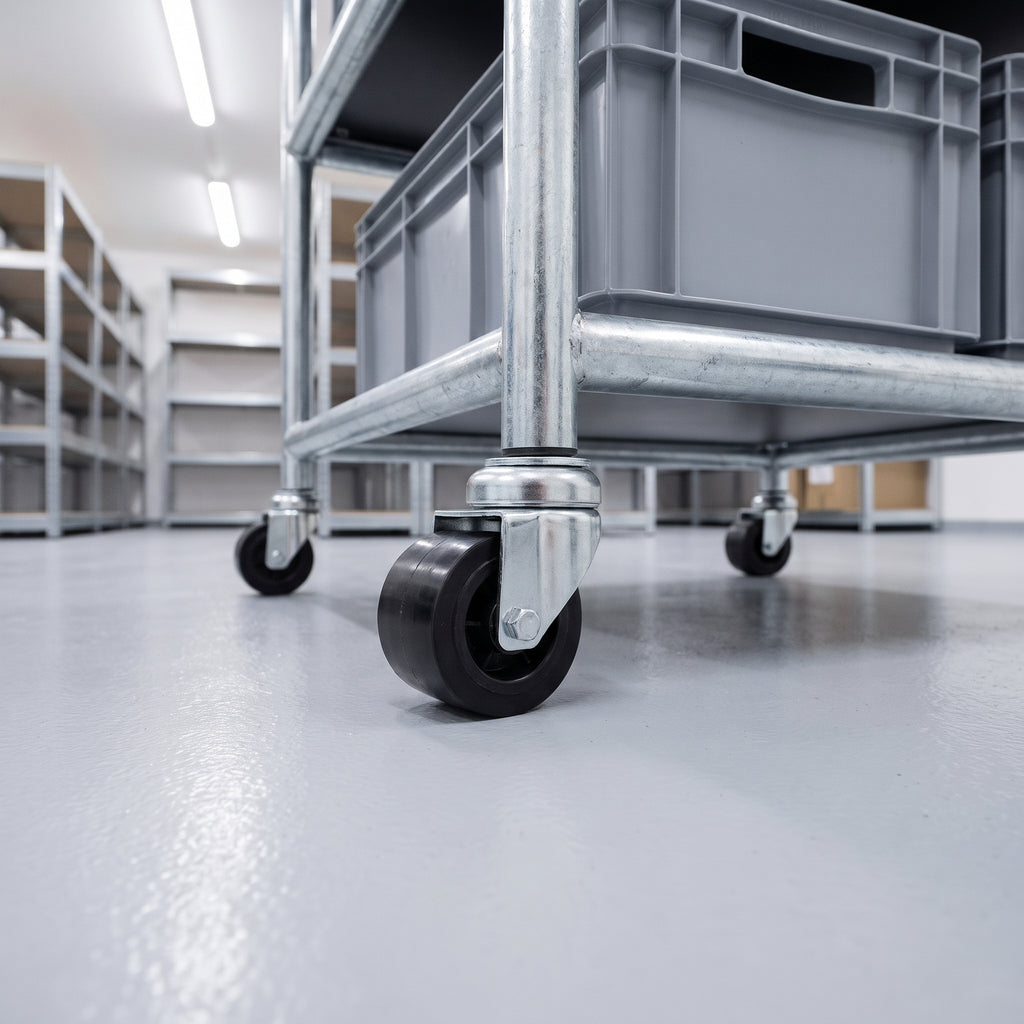

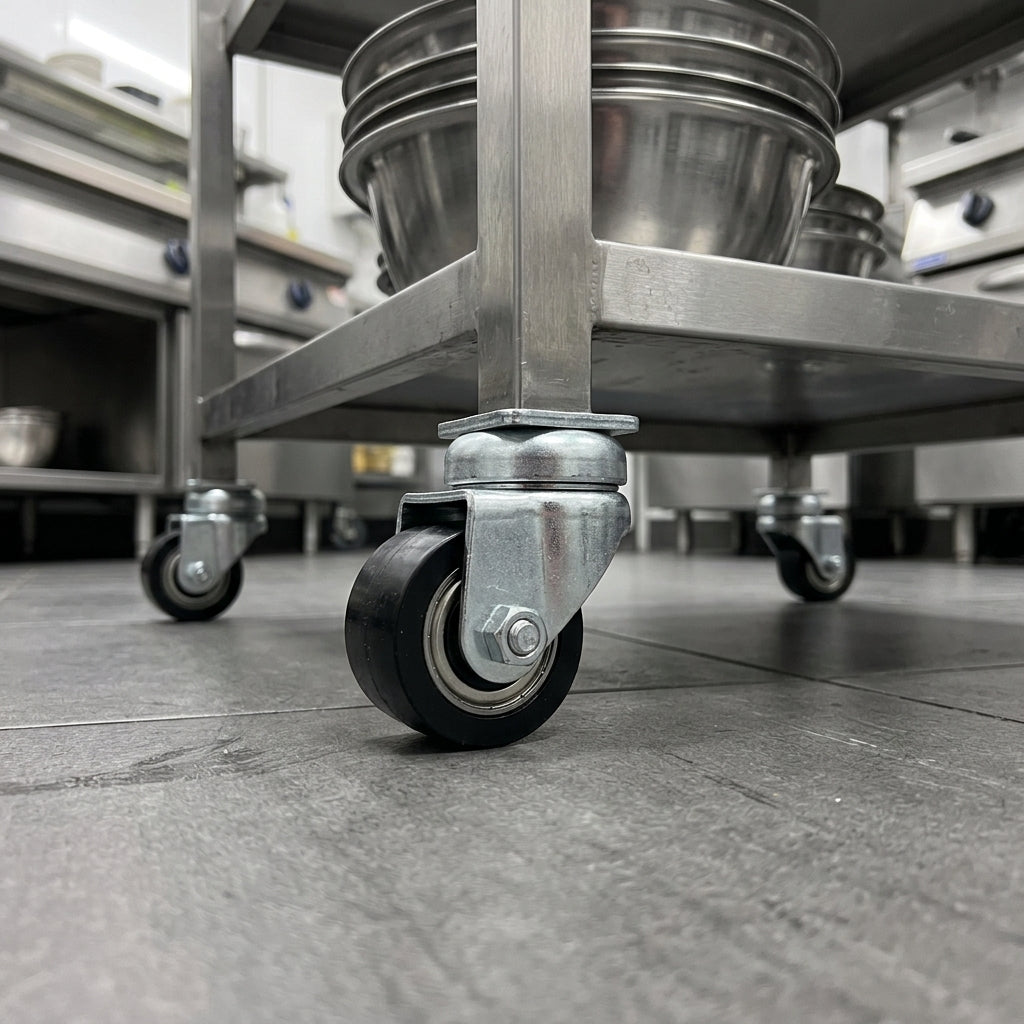

- ✓ Material handling trolleys: carrying heavy loads with ease.
- ✓ Industrial equipment: machinery that needs high load castors.
- ✓ Furniture dollies: moving heavy furniture in confined spaces.
- ✓ Workshop carts: carts that carry substantial weight.
Tube Adaptors Also Available
Fitting this castor to a round or square tube leg? Matching tube adaptors are also available. Choose the size that fits the inside of your tube and buy it together with your castors.
✓ Shop Round Tube Adaptors
✓ Shop Square Tube Adaptors
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 100kg. Add up the castors fitted to your equipment to work out the total load.
How do I fit a bolt hole castor?
Pass an M10 bolt through the 10mm centre hole and secure it with a nut. On tube legs, use a suitable tube adaptor for a neat, secure fit.
What is the wheel made of?
A black polyurethane tread on a cast iron centre, 35mm in diameter with a 28mm tread, running on a ball journal bearing.
How tall is the castor?
Only 54mm overall, from the floor to the top of the fixing. Allow the 33mm swivel radius as clear space so it can turn freely.
Does this castor have a brake?
No. This is a free-swivelling castor with no brake.
* This product does not have free shipping.
