- Load per castor70kg *
- Wheel diameter35mm
- Overall height54mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Braked Bolt Hole Castor
- Wheel Diameter
- 35mm
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Black
- Tread Width
- 27mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 70kg *
- Bolt Hole Size
- 10mm
- Swivel Radius
- 68mm
- Total Castor Height
- 54mm
Will it fit?
- Bolt hole10mm
- Overall height54mm
- Swivel radius68mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Low Level High Load Castors

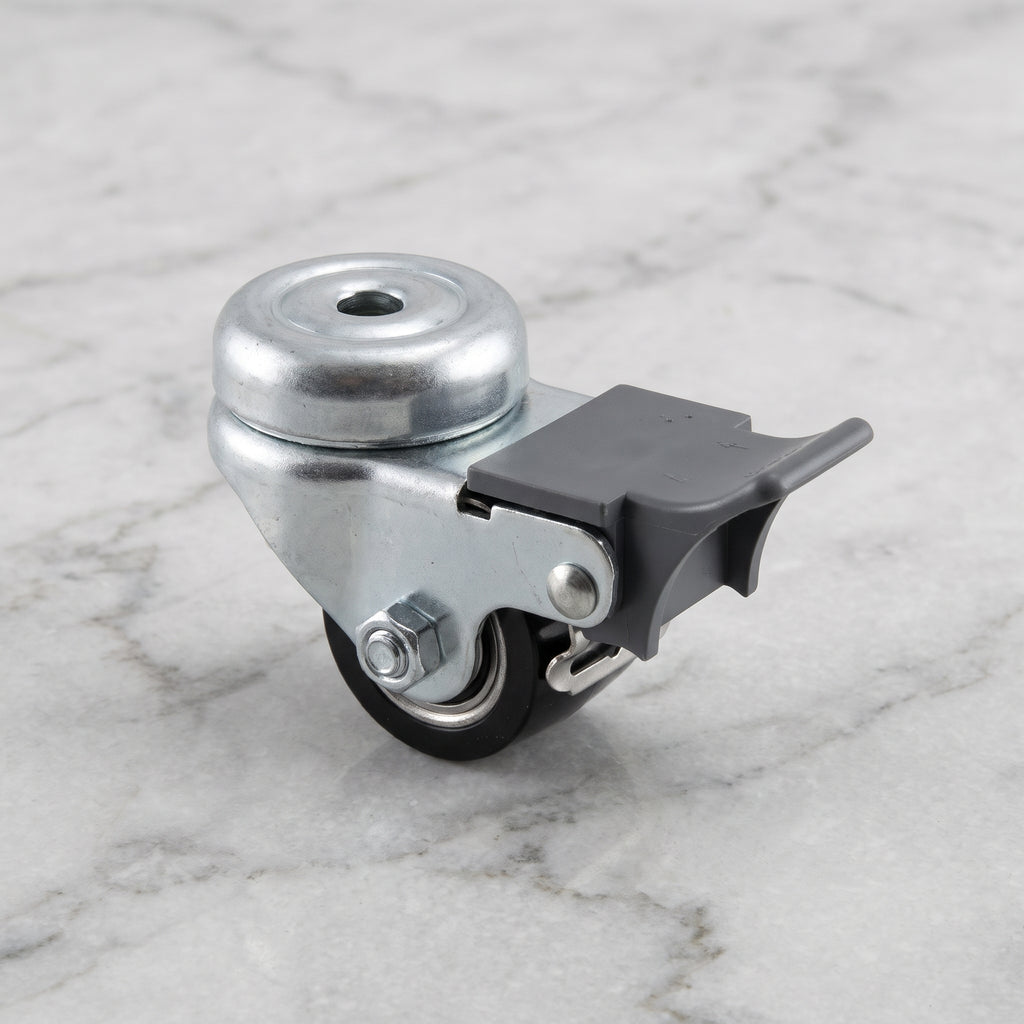

This 35mm low level swivel castor has a built-in brake for applications that need stability and control. Its black polyurethane wheel is mounted on a durable cast iron core, giving a balance of strength and resilience, and it carries up to 70kg per castor.
A ball bearing gives smooth swivelling for easy manoeuvring in confined spaces, and the 10mm bolt hole fitting makes it straightforward to attach to all kinds of equipment. With a total height of just 54mm, its compact design is ideal for shop fitters where space and load capacity matter.
Why Choose This Castor
- ✓ Built-in brake for stability and control when stationary
- ✓ Polyurethane on cast iron wheel, strong and resilient
- ✓ 70kg load capacity per castor
- ✓ Ball bearing for smooth swivelling
- ✓ Low 54mm total height and 68mm swivel radius for tight spaces
- ✓ 10mm bolt hole fitting for simple attachment
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best

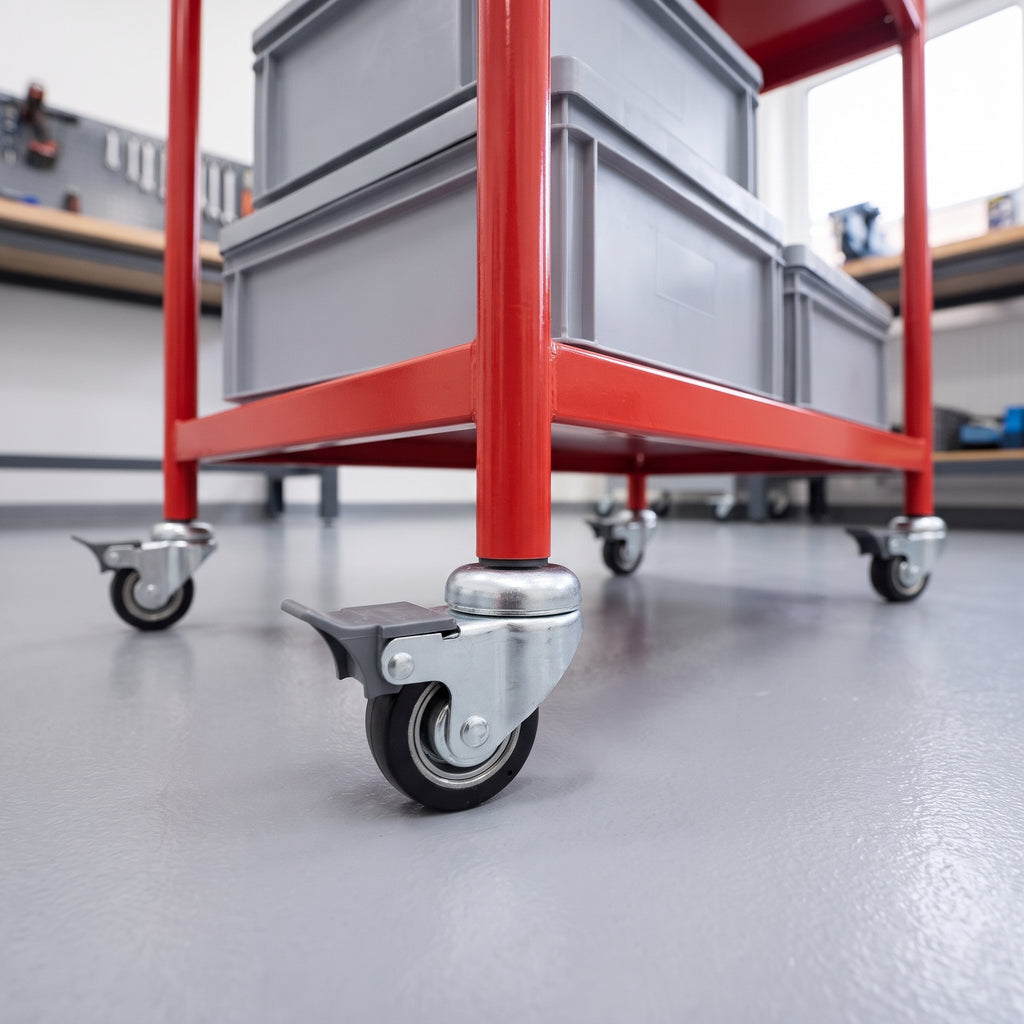

- ✓ Shop fitting equipment: mobility and stability in retail display setups
- ✓ Display units: easy repositioning in commercial environments
- ✓ Retail fixtures: better manoeuvrability for efficient use of space
Fitting to Tube Legs
To fit this bolt hole castor into the open end of a round or square tube leg, use a matching expanding tube adaptor. The adaptor grips inside the tube and its threaded stud passes through the castor's bolt hole. Measure the inside of your tube and browse our tube adaptors to find the right size.
Frequently Asked Questions
What does the brake lock?
Pressing the foot pedal applies the brake to the wheel, so your display or unit stays stable and in place when stationary.
Does this castor swivel?
Yes. It swivels on a ball bearing with a 68mm swivel radius for easy manoeuvring in confined spaces.
How much weight can it carry?
Each castor is rated at 70kg. Add up the rating of all the castors on your unit to find the total capacity.
How is it fitted?
It has a single 10mm bolt hole in the top. Use a bolt that matches the 10mm hole, or a tube adaptor to fit it into a tube leg.
How tall is the castor?
The total castor height is just 54mm, making it a true low level castor.
