- Load per castor1400kg per castor
- Wheel diameter200mm
- Overall height255mm
- WheelPolyurethane on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Fixed Top Plate Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Polyurethane on cast iron centre
- Wheel Colour
- Yellow
- Tread Width
- 80mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 175 x 140mm
- Hole Centres
- 140 x 105mm
- Hole Diameter
- 15mm
- Total Castor Height
- 255mm
- Load Capacity
- 1400kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

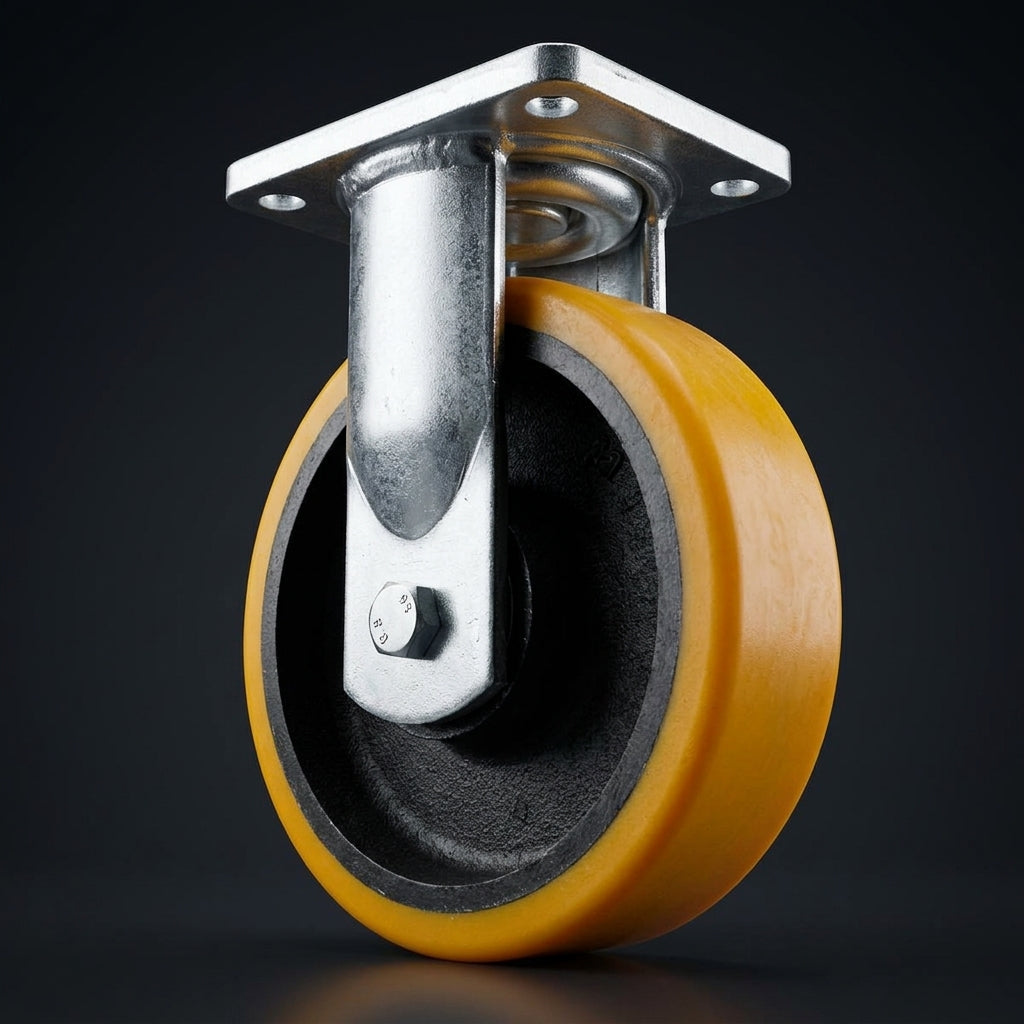

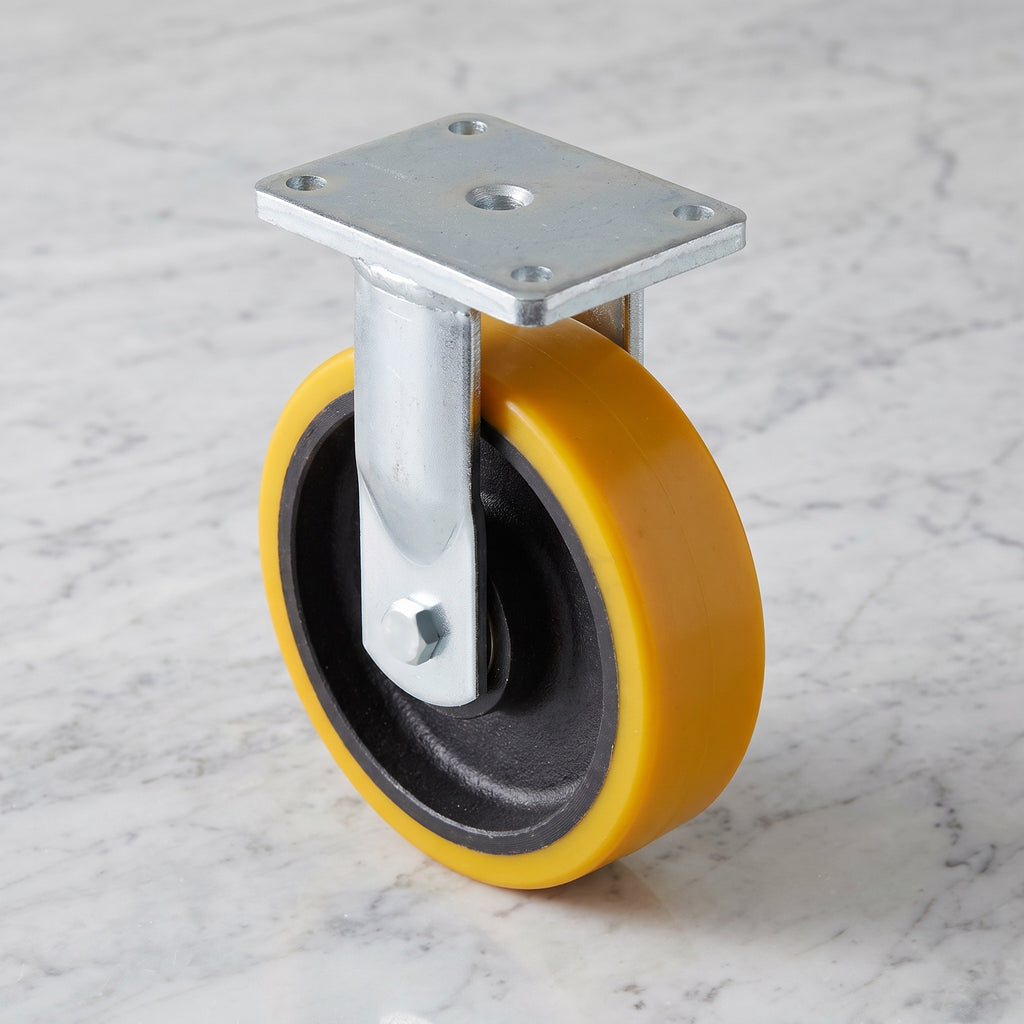

Heavy Duty Fabricated Castors
This 200mm heavy duty fabricated fixed castor is made for demanding environments where heavy loads must move safely and reliably. A wide 80mm yellow polyurethane tread on a cast iron centre resists wear for long service life, indoors and outdoors, and the ball journal bearing gives smooth rolling. A large 175 x 140mm top plate spreads the load for a secure fixing. Rated for 1400kg per castor.
It rolls in a straight line, stands 255mm tall and works from -40°C to +60°C.
Why Choose This Castor
- ✓ 1400kg load capacity per castor for heavy loads.
- ✓ Polyurethane on cast iron wheel 200mm diameter with an 80mm tread and 92 Shore A hardness, ideal for smooth, hard surfaces.
- ✓ Ball journal bearing for efficient rotation with less effort.
- ✓ Heavy duty fabricated construction for industrial use.
- ✓ Fixed (rigid) fork keeps equipment tracking in a straight line.
- ✓ 175 x 140mm top plate with four 15mm holes for a secure attachment.
- ✓ Temperature range from -40°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This heavy duty fabricated fixed castor suits:

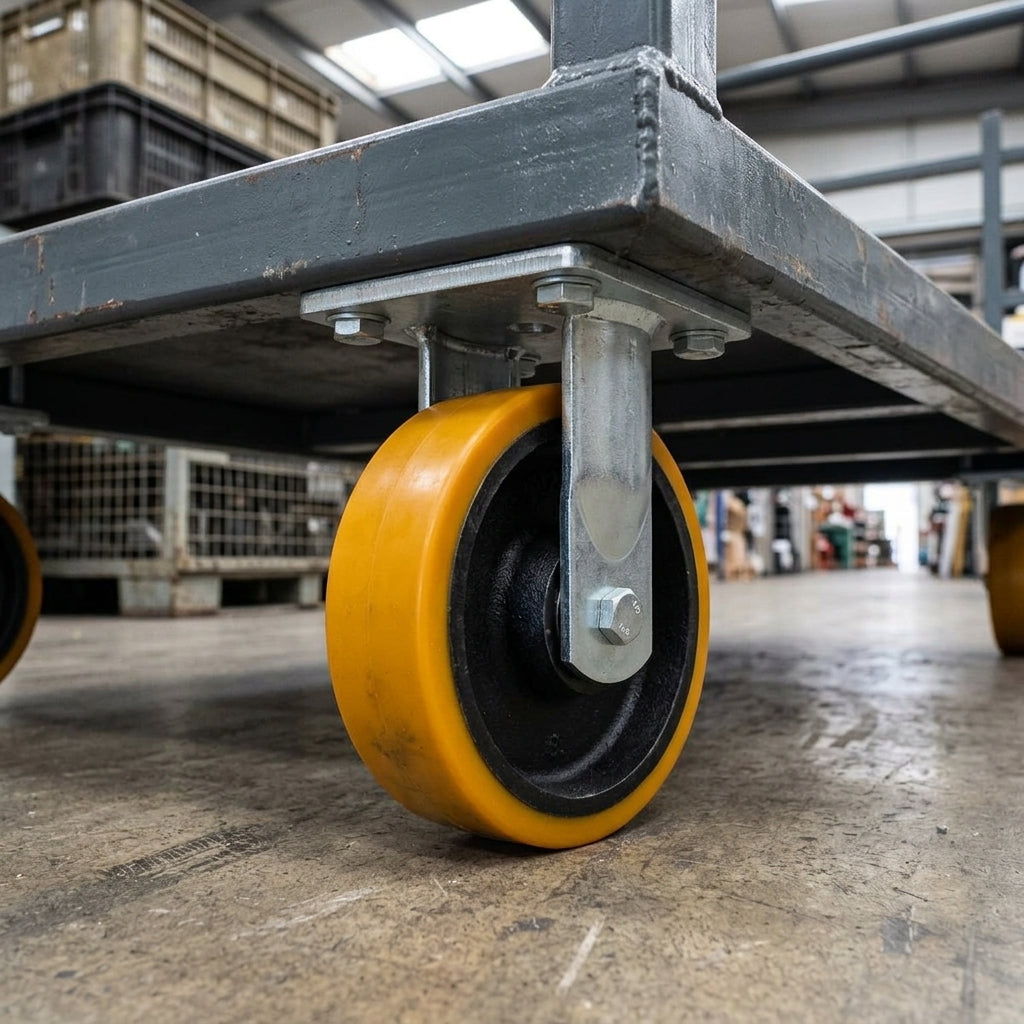

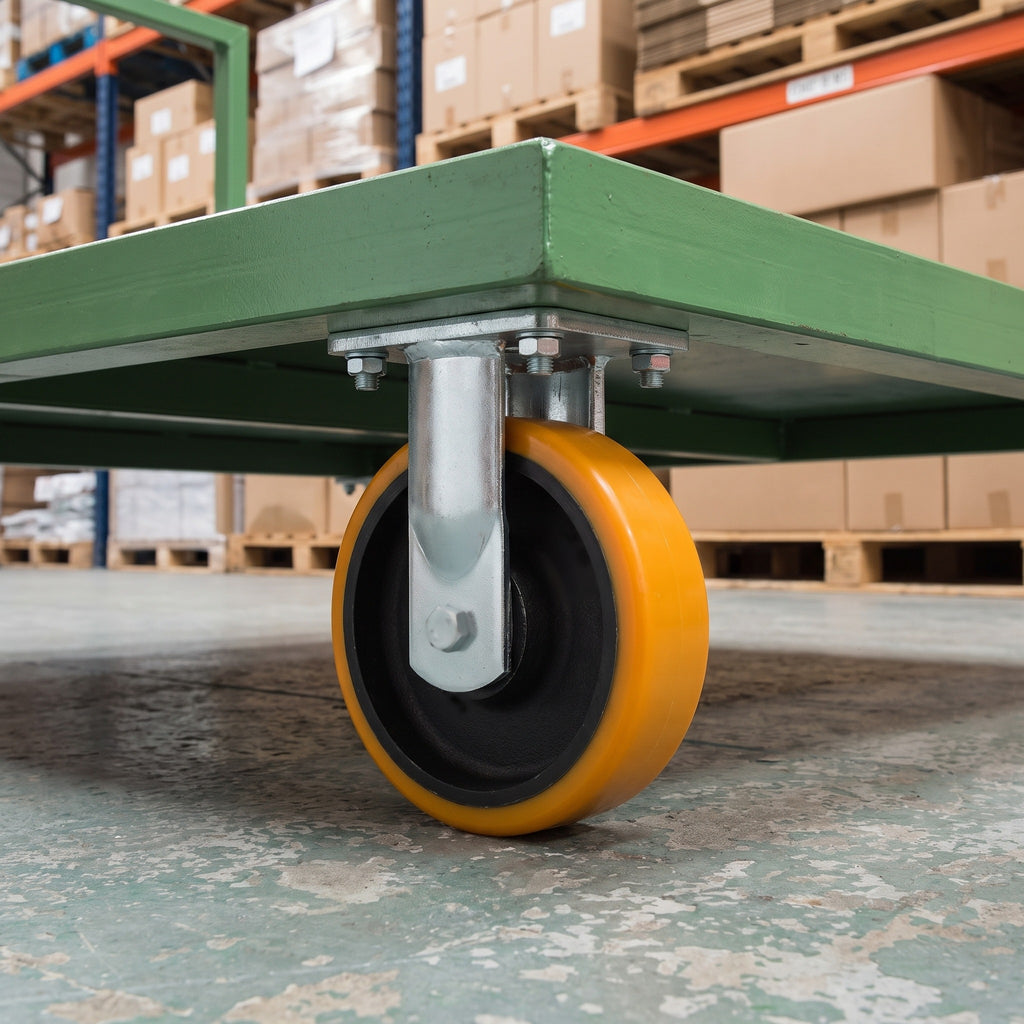

- ✓ Warehousing: moving heavy pallets and equipment.

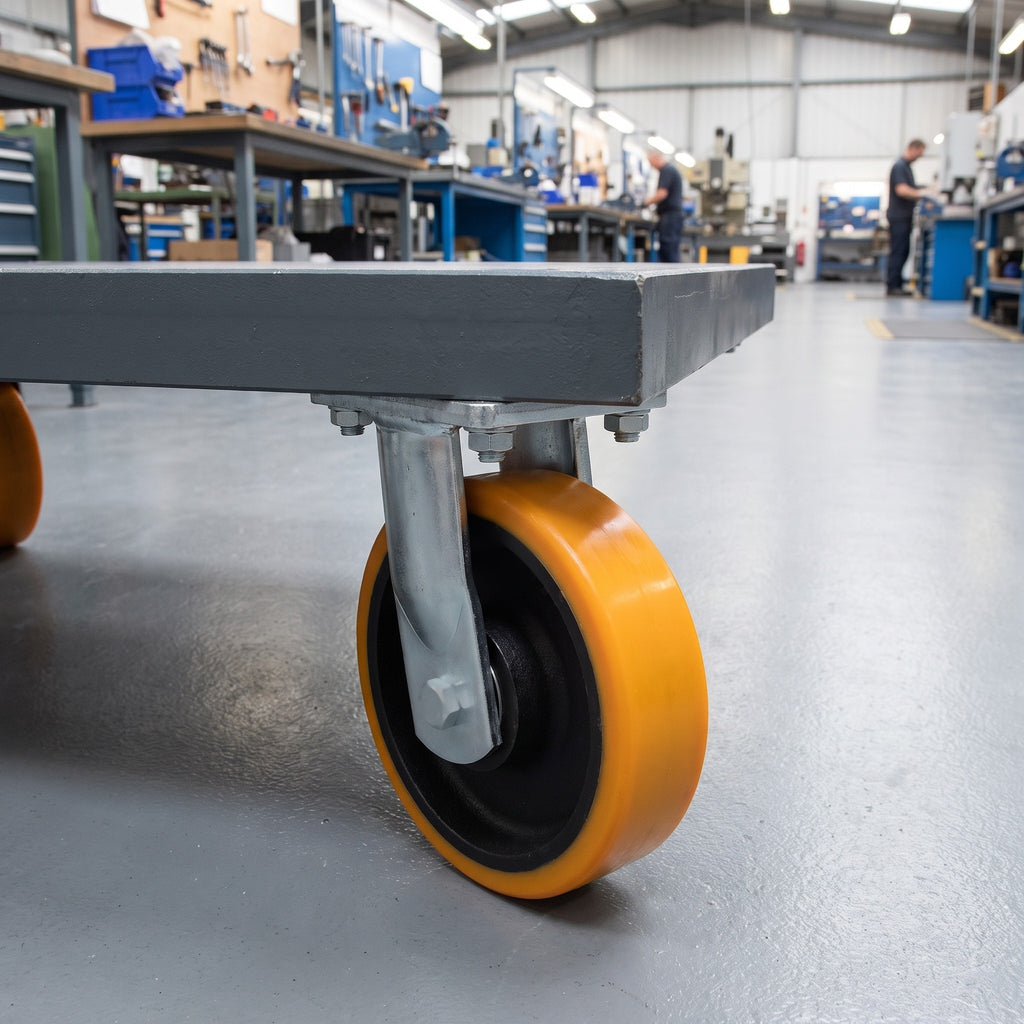

- ✓ Manufacturing: transporting machinery and components.
- ✓ Logistics: trolleys and carts used to distribute goods.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 1400kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 200mm yellow polyurethane tread on a cast iron centre, 80mm wide with 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 175 x 140mm top plate with four 15mm holes on 140 x 105mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
No. This is a fixed (rigid) castor that runs in a straight line. Pair it with swivel castors on the same equipment for easy steering. The total castor height is 255mm.
What temperatures can it work in?
The castor is suitable for use from -40°C to +60°C.
