- Load per castor1400kg per castor
- Wheel diameter200mm
- Overall height255mm
- WheelPolyurethane on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Braked Swivel Top Plate Castor
- Wheel Diameter
- 200mm
- Wheel Material
- Polyurethane on cast iron centre
- Wheel Colour
- Yellow
- Tread Width
- 80mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +60°C
- Brake
- Foot-operated brake locking wheel and swivel head
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 175 x 140mm
- Hole Centres
- 140 x 105mm
- Hole Diameter
- 15mm
- Swivel Radius
- 166mm
- Total Castor Height
- 255mm
- Load Capacity
- 1400kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Heavy Duty Fabricated Castors

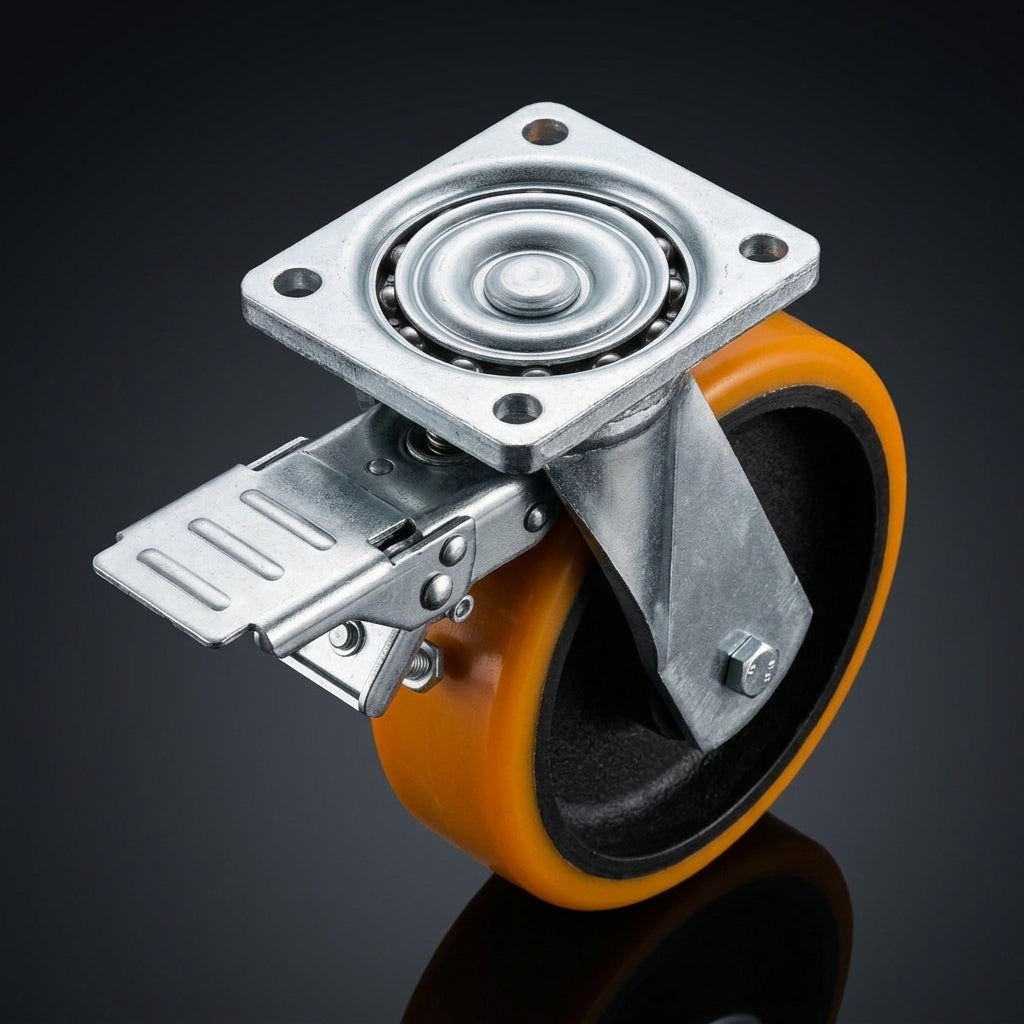

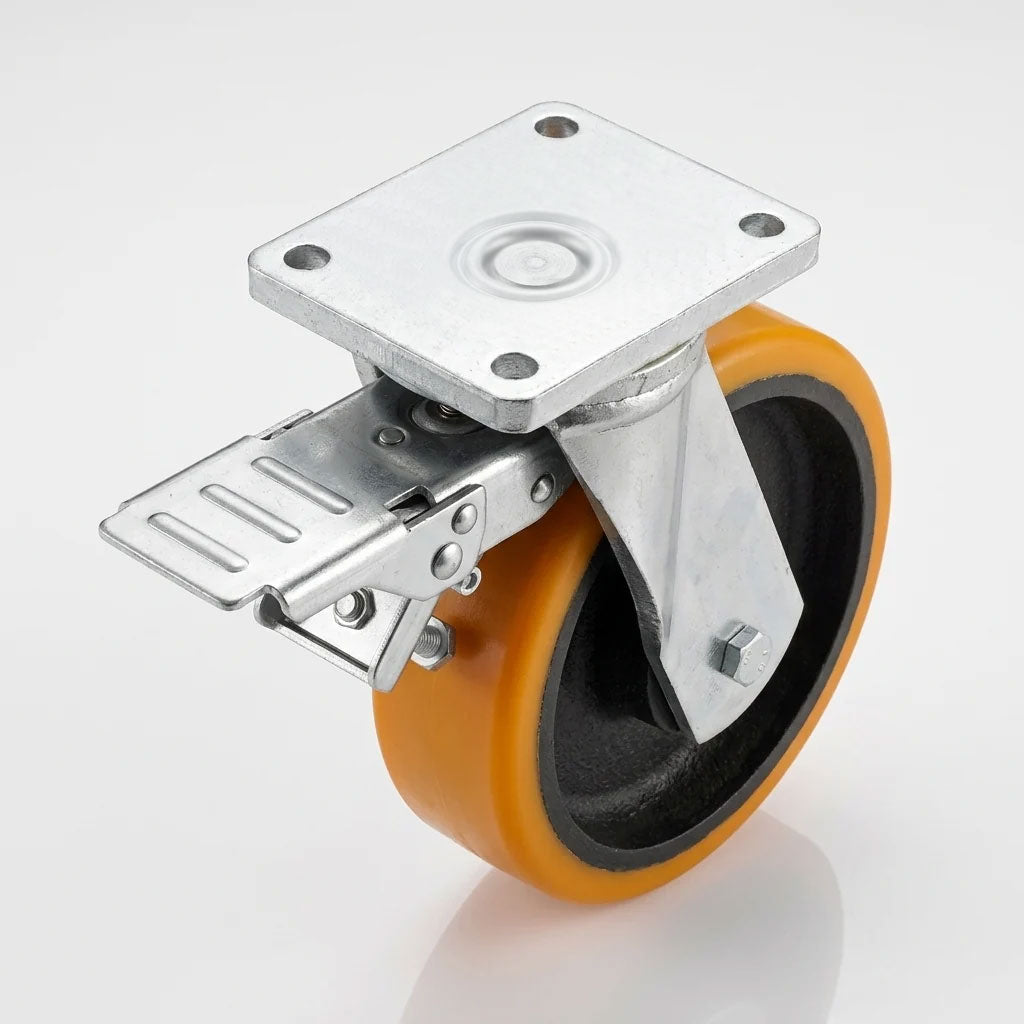

This 200mm heavy duty fabricated braked swivel castor combines a yellow polyurethane tread with a robust cast iron centre for strength and resilience in industrial use. The 92 Shore A (A92) tread suits smooth, hard surfaces, the ball journal bearing gives smooth rotation with low friction, and the foot brake holds equipment securely in position by acting on both the wheel and the swivel head. Rated for 1400kg per castor.
It fixes securely to your equipment with a 175 x 140mm top plate, has a 166mm swivel radius, stands 255mm tall and works from -40°C to +60°C.
Why Choose This Castor
- ✓ 1400kg load capacity per castor for heavy loads.
- ✓ Polyurethane on cast iron wheel 200mm diameter with an 80mm tread and 92 Shore A hardness, ideal for smooth, hard surfaces.
- ✓ Ball journal bearing for efficient rotation with less effort.
- ✓ Heavy duty fabricated construction for industrial use.
- ✓ Swivel head for easy manoeuvring, with a 166mm swivel radius.
- ✓ Foot-operated brake locks the wheel and the swivel head for secure positioning.
- ✓ 175 x 140mm top plate with four 15mm holes for a secure attachment.
- ✓ Temperature range from -40°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty fabricated braked swivel castor suits:

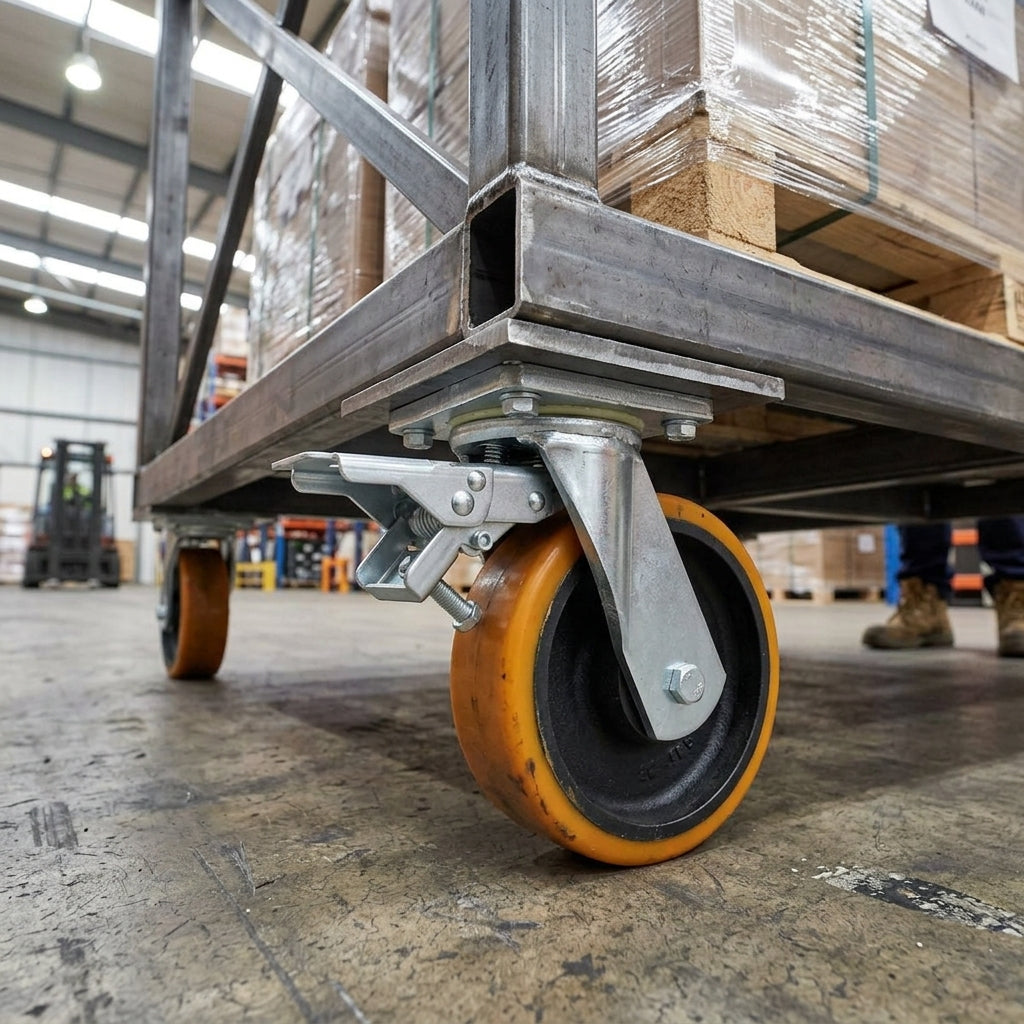

- ✓ Warehouse trolleys: transporting heavy loads efficiently.
- ✓ Industrial carts: carts that need high load capacity and stability.
- ✓ Manufacturing equipment: machinery that needs secure positioning and manoeuvrability.
- ✓ Material handling units: controlled movement and braking.
- ✓ Heavy-duty platforms: robust support and mobility.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 1400kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 200mm yellow polyurethane tread on a cast iron centre, 80mm wide with 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 175 x 140mm top plate with four 15mm holes on 140 x 105mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. The swivel head lets you change direction easily, ideal where direction changes are frequent. The swivel radius is 166mm and the total castor height is 255mm.
What does the brake lock?
The foot-operated brake acts on both the wheel and the swivel head, so the castor neither rolls nor turns when the brake is applied.
What temperatures can it work in?
The castor is suitable for use from -40°C to +60°C.
