Description

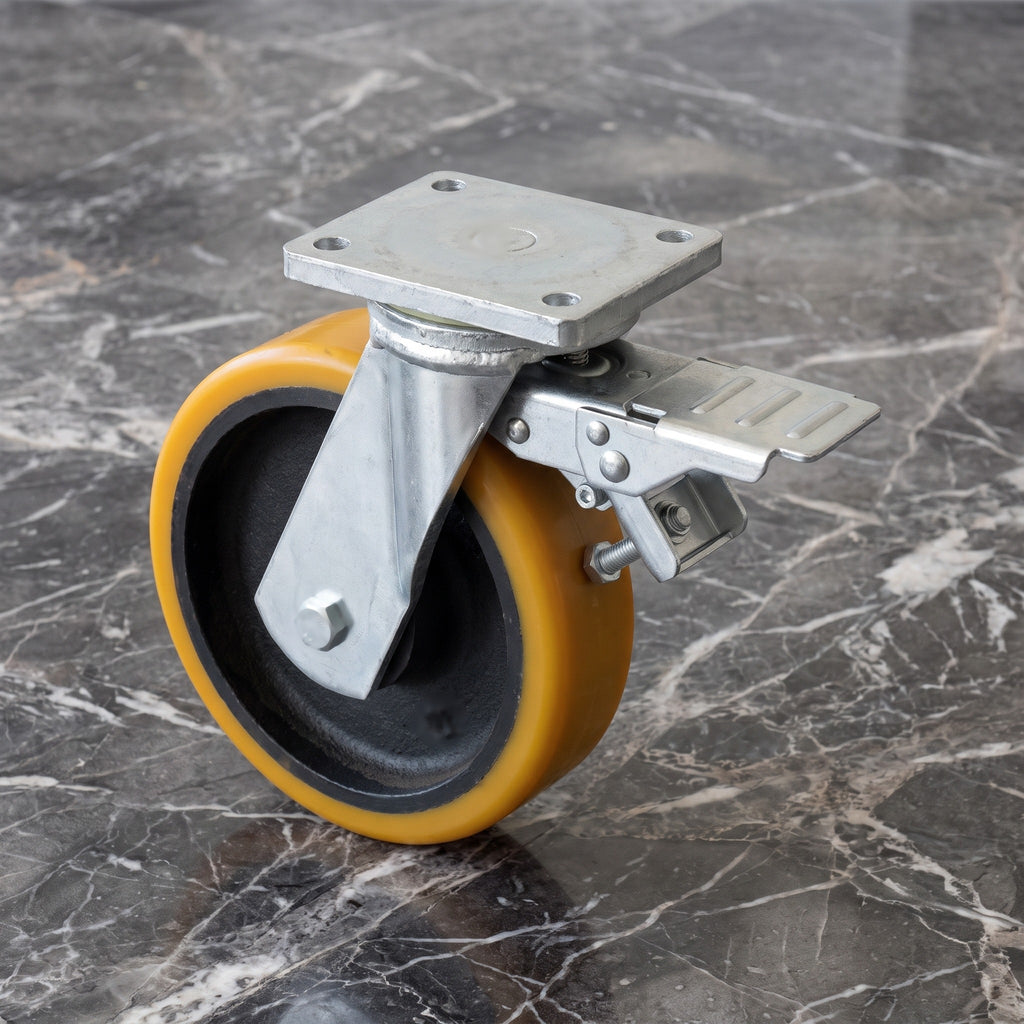

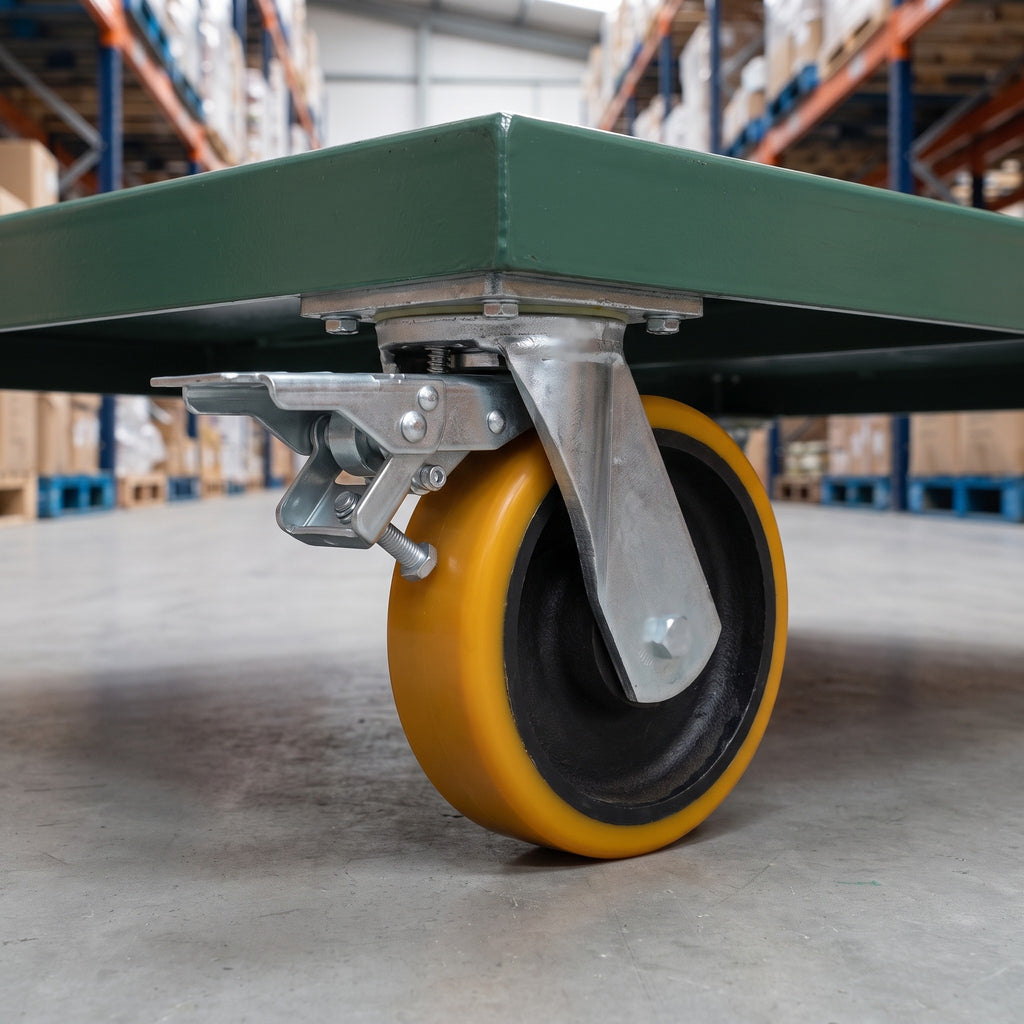

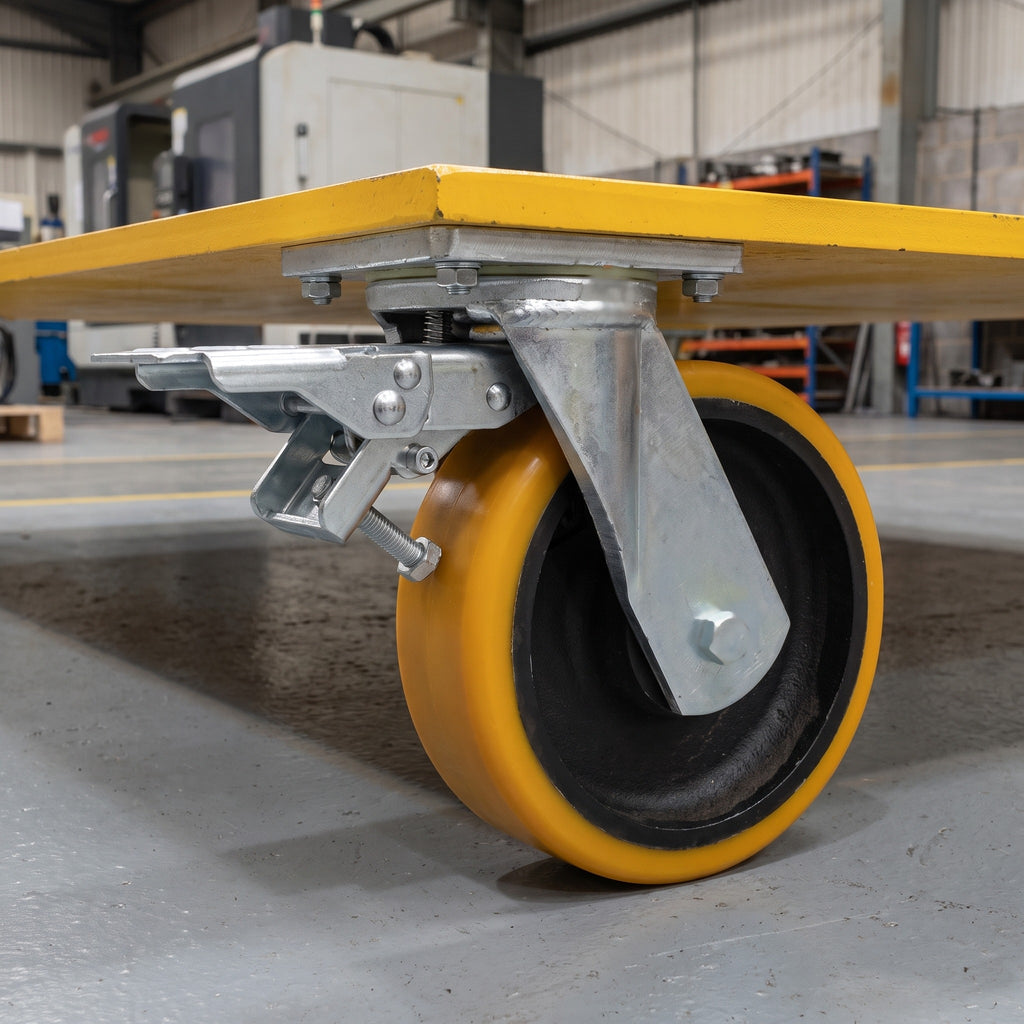

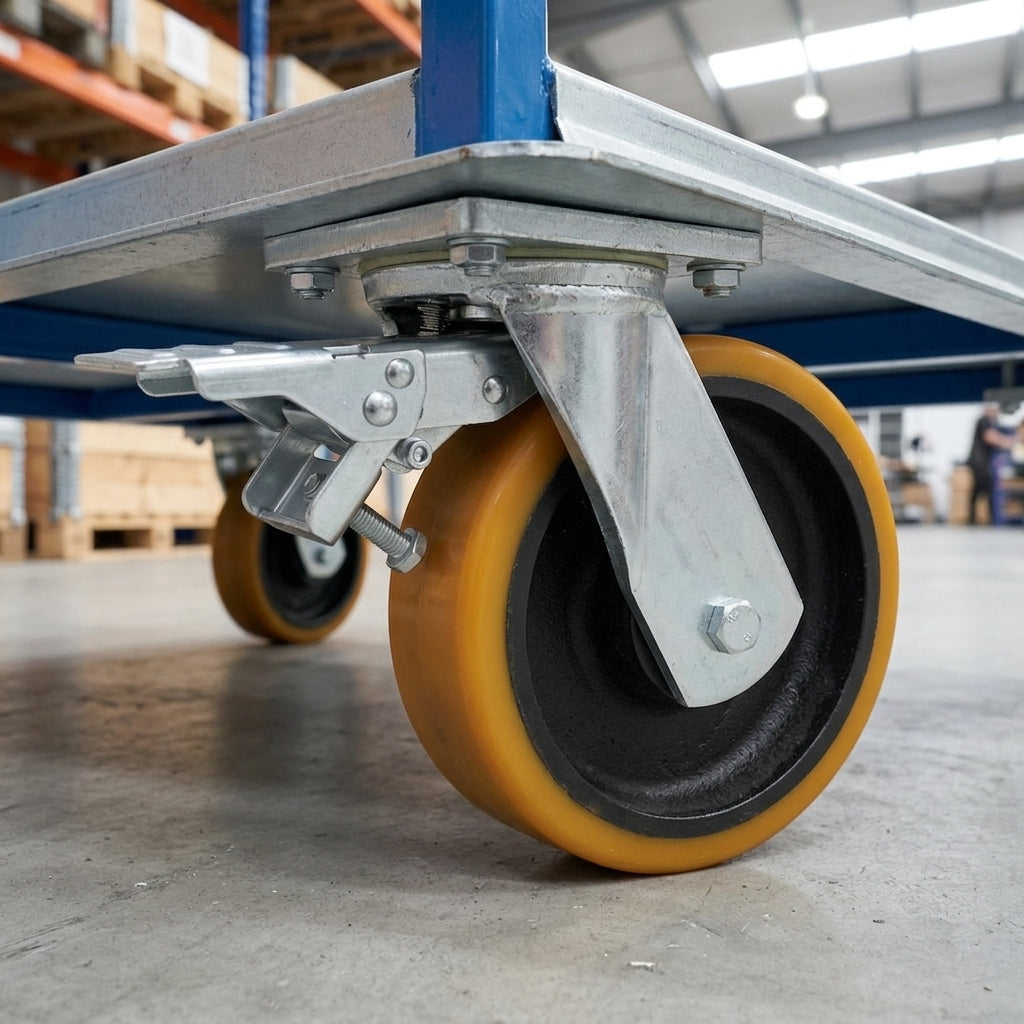

200mm Braked Heavy Duty Castor
This 200mm Braked Heavy Duty Castor combines a robust polyurethane tread on a cast iron wheel, designed for industrial applications that require reliable mobility and secure positioning. Ideal for moving heavy equipment and machinery, this castor is engineered to handle substantial loads with ease, making it perfect for warehousing, manufacturing, and logistics environments.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Load Capacity | 1200 kg |
| Tread Width (mm) | 50 |
| Temperature Range | -40°C to +60°C |
| Hardness of Tread | A92 |
| Max Load Capacity of 4 Castors | 3600 kg |
| Plate Length (mm) | 135 |
| Plate Width (mm) | 110 |
| Plate Hole Centres Length (mm) | 105 |
| Plate Hole Centres Width (mm) | 80/75 |
| Plate Hole Diameter | 10 |
| Swivel Radius | 186 |
| Total Castor Height | 245 |
| Wheel Colour | Yellow |
| Wheel Diameter (mm) | 200 |
| Wheel Material | Polyurethane on Cast Iron |
Applications
This versatile castor is ideal for:
- Warehousing: Efficiently moving heavy pallets and machinery.
- Manufacturing: Transporting heavy tools and components within factories.
- Logistics: Ensuring smooth handling and mobility of goods.
FAQs
1. What is the load capacity of this castor?
The load capacity is 1200 kg per castor, with a maximum of 3600 kg for four castors.
The load capacity is 1200 kg per castor, with a maximum of 3600 kg for four castors.
2. What materials are used in the wheel?
The wheel is made of durable polyurethane on a cast iron core, providing longevity and strength.
The wheel is made of durable polyurethane on a cast iron core, providing longevity and strength.
3. Can this castor be used outdoors?
Yes, it operates effectively in a temperature range of -40°C to +60°C, making it suitable for various environments.
Yes, it operates effectively in a temperature range of -40°C to +60°C, making it suitable for various environments.
4. Is the castor easy to install?
Yes, the castor features a top plate design that simplifies installation on most equipment.
Yes, the castor features a top plate design that simplifies installation on most equipment.
5. Does it have a braking mechanism?
Yes, this castor includes a brake for securing equipment in place when stationary.
Yes, this castor includes a brake for securing equipment in place when stationary.
6. What applications are best suited for this castor?
This castor is perfect for heavy-duty applications in warehousing, manufacturing, and logistics sectors.
This castor is perfect for heavy-duty applications in warehousing, manufacturing, and logistics sectors.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
