- Load per castor900kg per castor
- Wheel diameter160mm
- Overall height205mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Fixed Top Plate Castor
- Wheel Diameter
- 160mm
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 205mm
- Load Capacity
- 900kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Fabricated Castors

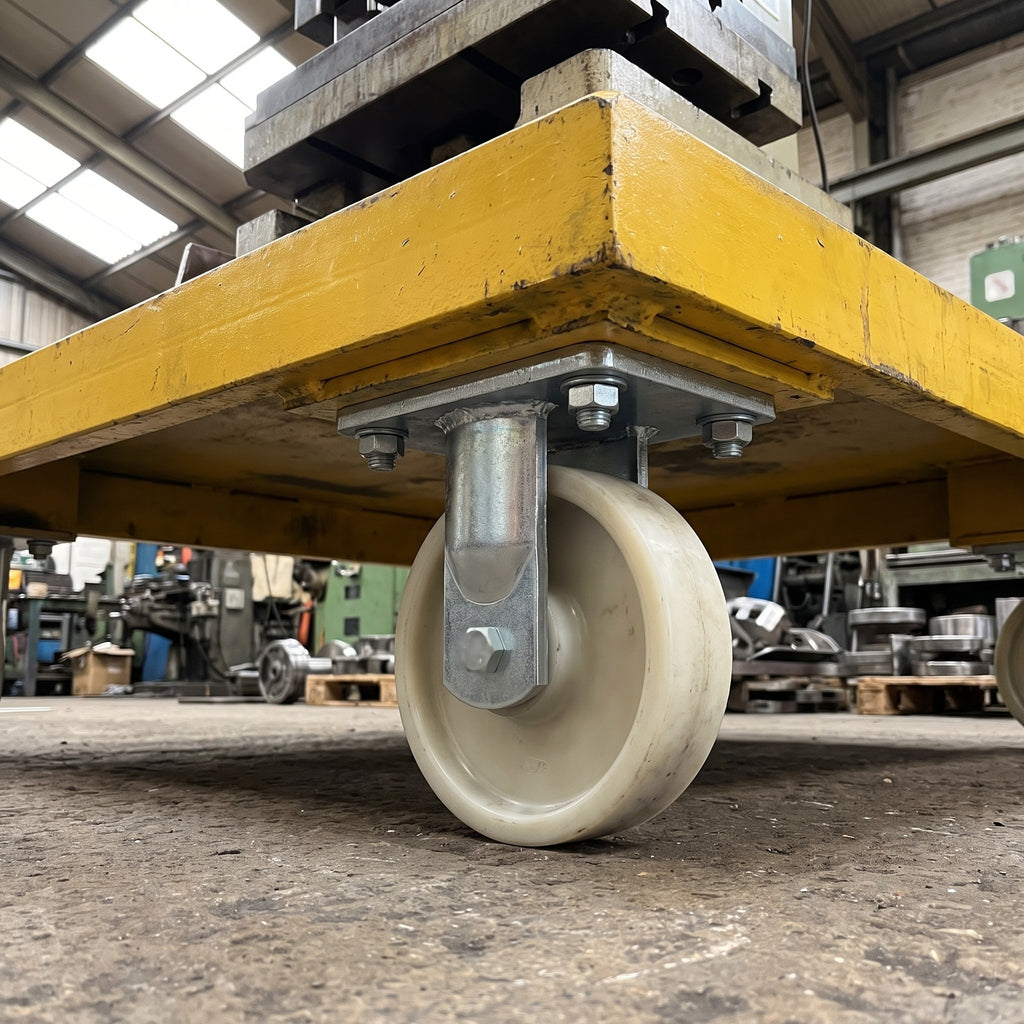

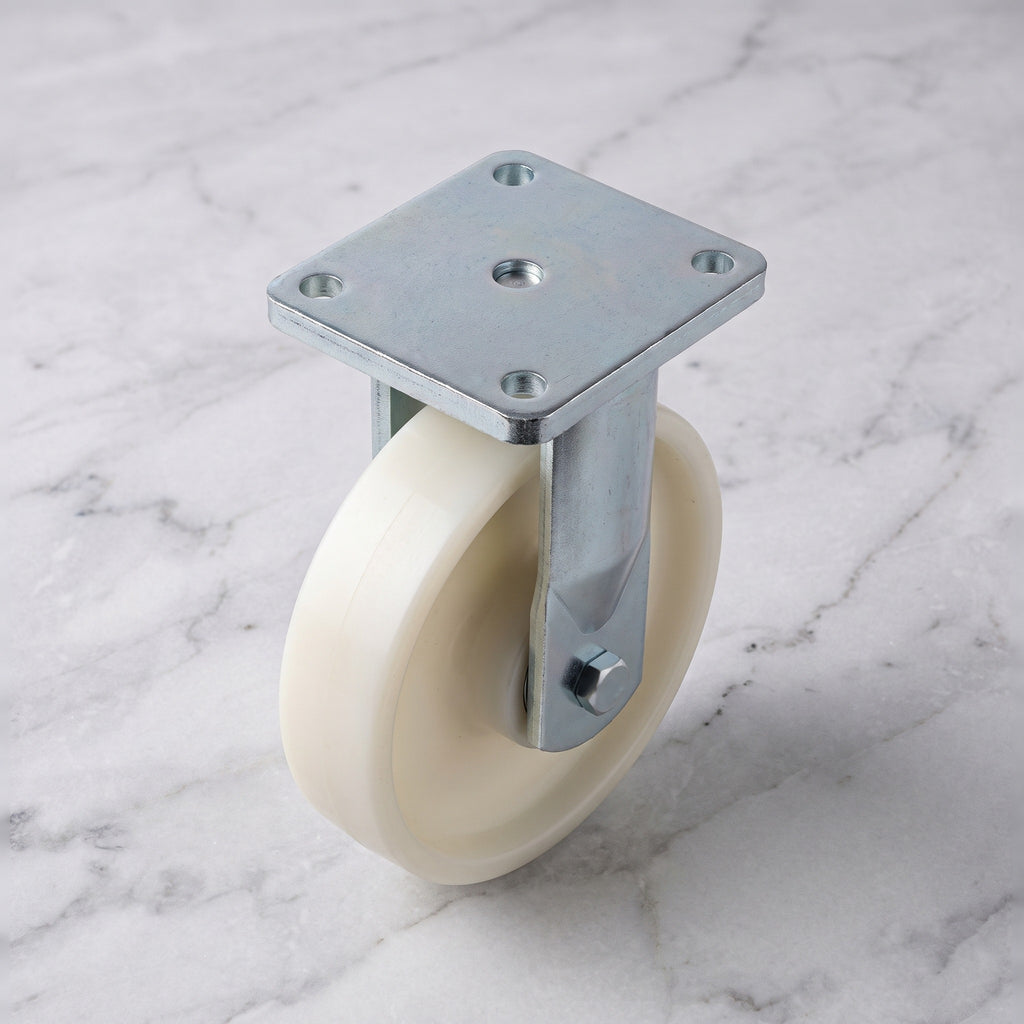

This 160mm heavy duty fabricated fixed castor gives robust support and smooth mobility for moving heavy loads with ease. The white nylon wheel with a 92 Shore A (A92) tread runs on a ball journal bearing for reliable, efficient movement, and the fixed design provides stability and straightforward directionality. Rated for 900kg per castor.
It fixes securely to flat surfaces with a 135 x 110mm top plate, stands 205mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ 900kg load capacity per castor for heavy loads.
- ✓ Nylon wheel 160mm diameter with a 50mm tread and 92 Shore A hardness.
- ✓ Ball journal bearing for smooth, efficient operation.
- ✓ Fixed design for stability and straightforward directionality in movement.
- ✓ Heavy duty fabricated construction for demanding settings.
- ✓ 135 x 110mm top plate with four 10mm holes for a secure attachment to flat surfaces.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and castor height suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed fabricated castor suits:
- ✓ Industrial transport: moving heavy machinery or equipment in industrial settings.

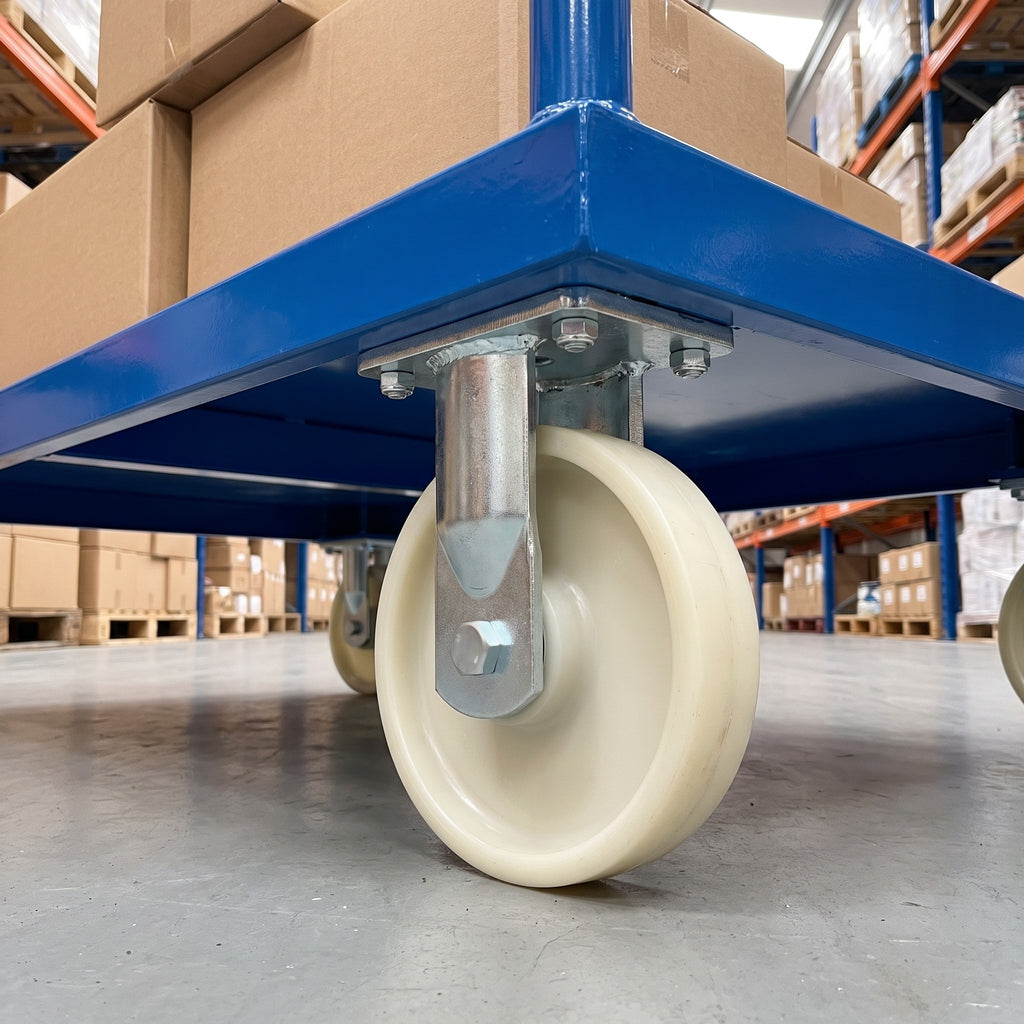

- ✓ Warehouse operations: handling large and heavy loads efficiently.
- ✓ Commercial use: commercial environments where heavy load mobility is required.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that rolls in a straight line only. Pair it with swivel castors on the same trolley for easy steering.
How much weight can this castor carry?
Each castor is rated for 900kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 160mm white nylon wheel with a 50mm tread and 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 135 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 205mm from the floor to the top of the plate.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
