Description

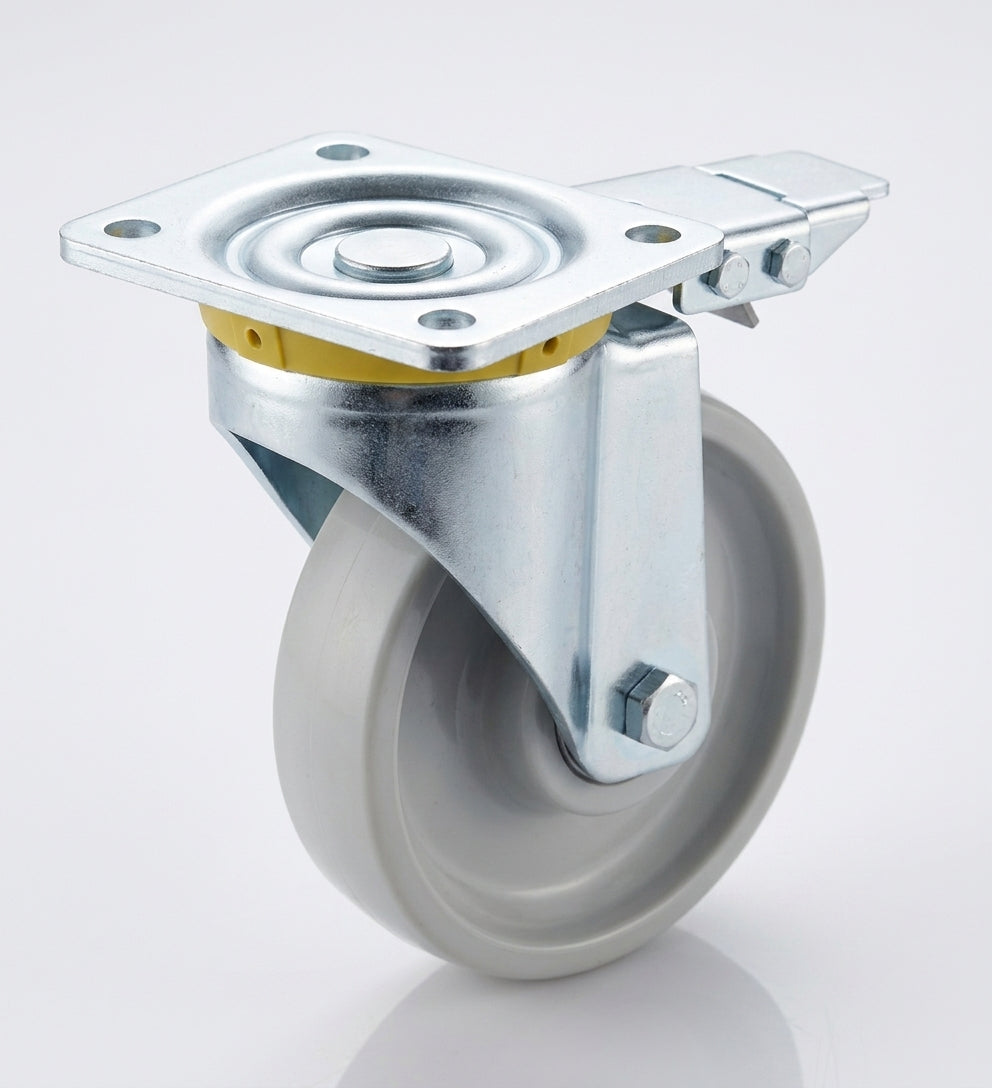

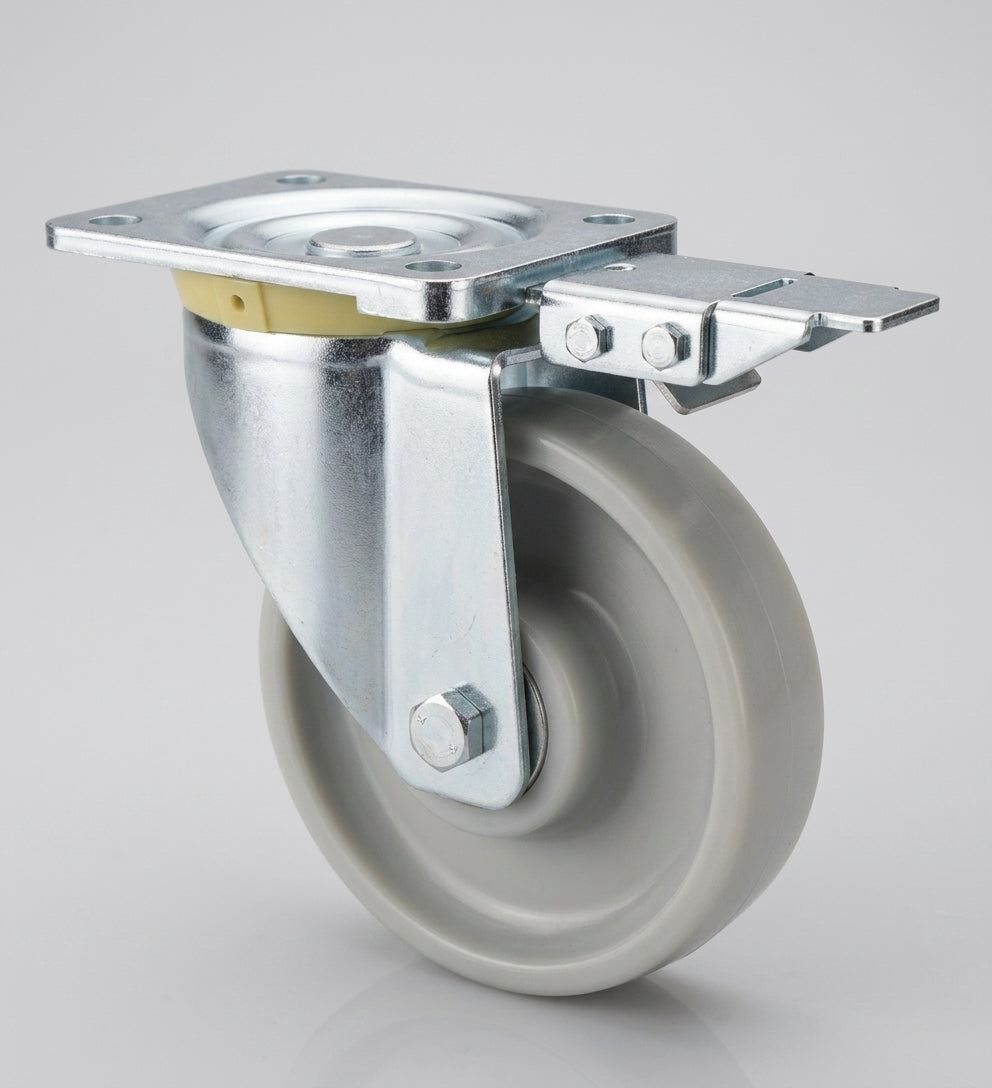

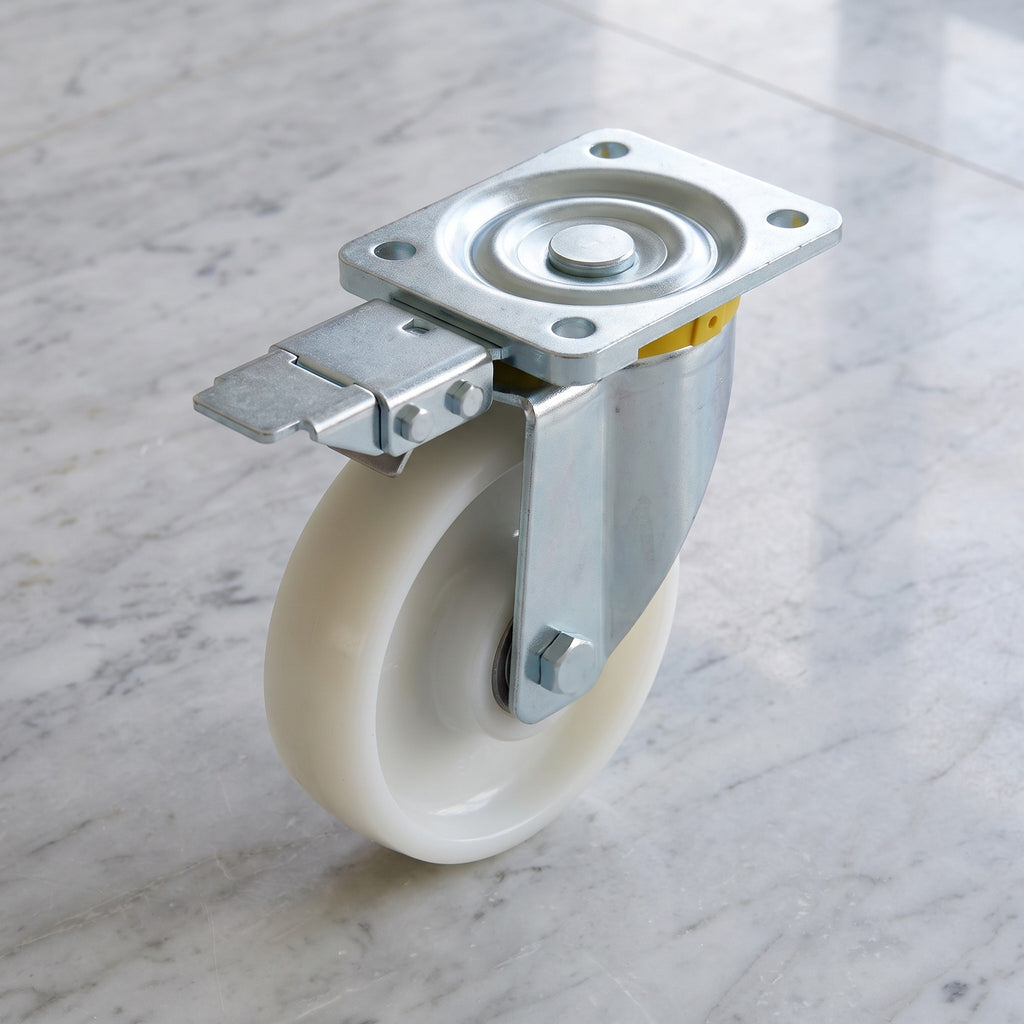

160mm Heavy Duty Directional Lock Castor with Nylon Wheel
The 160mm Heavy Duty Directional Lock Castor with a Nylon Wheel is engineered for demanding applications where controlled mobility and stability are paramount. This versatile swivel castor allows for 360-degree rotation for effortless manoeuvrability while providing the option to lock the wheel direction for straight-line movement. With an impressive load capacity of 700kg per castor, it is ideal for heavy-duty equipment and various industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Ball Bearing |
| Load Capacity | 700 kg |
| Tread Width (mm) | 50 |
| Temperature Range | -40 min to +80 max |
| Hardness of Tread | D75 |
| Max Load Capacity of 4 Castors | 2100 kg |
| Plate Length (mm) | 140 |
| Plate Width (mm) | 110 |
| Plate Hole Centres Length (mm) | 105 |
| Plate Hole Centres Width (mm) | 80/75 |
| Plate Hole Diameter | 10 |
| Swivel Radius | 150 |
| Total Castor Height | 200 |
| Wheel Colour | White |
| Wheel Diameter (mm) | 160 |
| Wheel Material | Nylon |
Applications
This heavy-duty castor is perfect for:
- Industrial Machinery: Ensuring controlled movement for heavy equipment.

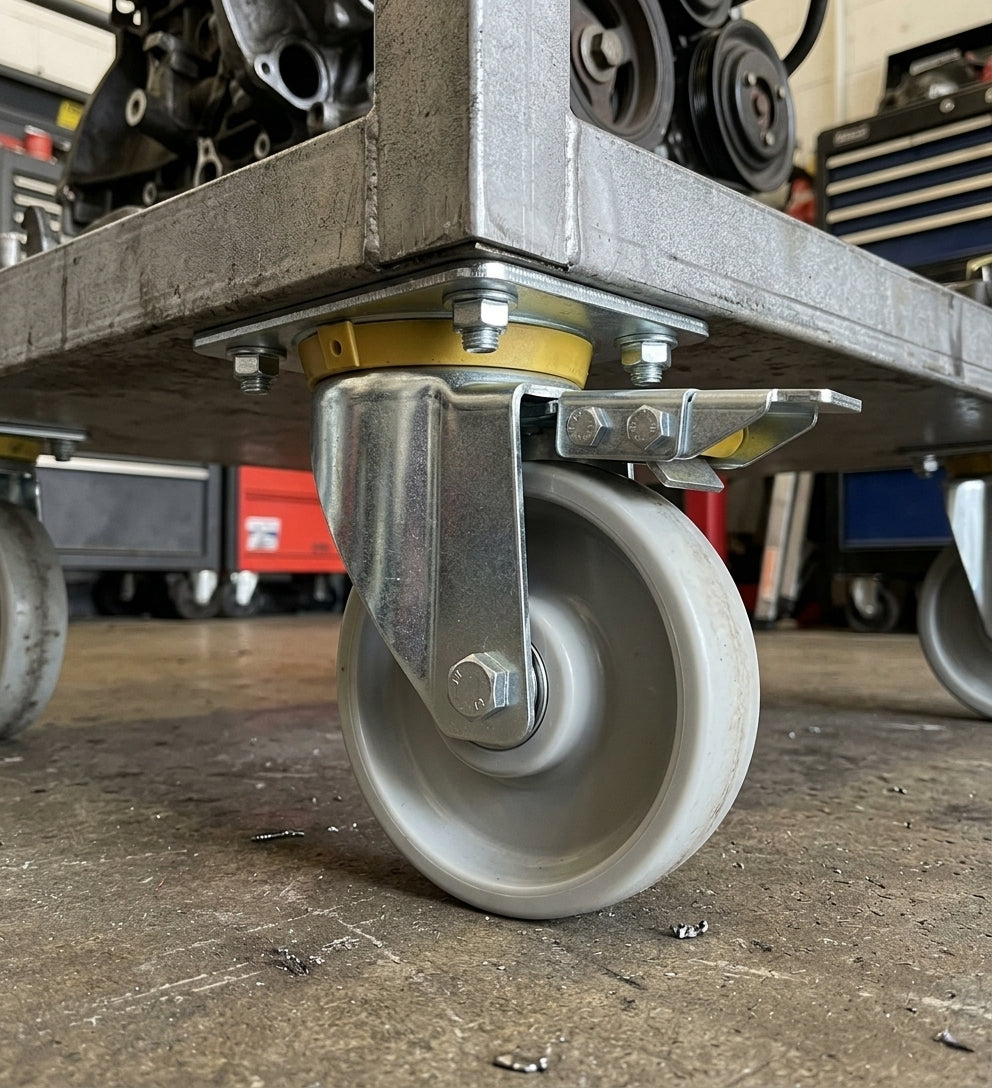

- Transport Trolleys: Providing directional stability with the option to lock for straight-line travel.
- Warehouse Carts: Facilitating the efficient and secure movement of heavy loads.
FAQs
A1: The castor has a load capacity of 700 kg, making it suitable for heavy-duty applications.
A2: Yes, the wheel can rotate 360 degrees for easy manoeuvrability, and the direction can be locked for straight-line movement.
A3: This castor is designed for use in a wide temperature range of -40 to +80°C, suitable for various industrial environments.
A4: The wheel is made from durable nylon, known for its strength and resistance to wear.
A5: The plate dimensions are 140mm x 110mm, which should align with your equipment's mounting points.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
