- Load per castor350kg per castor
- Wheel diameter160mm
- Overall height200mm
- WheelNylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 160mm
- Wheel Type
- Nylon
- Wheel Material
- Nylon
- Wheel Colour
- White
- Tread Width
- 40mm
- Tyre Hardness
- D75
- Bearing Type
- Plain Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 140 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Total Castor Height
- 200mm
- Load Capacity
- 350kg per castor
- Temperature Range
- -40°C to +80°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs

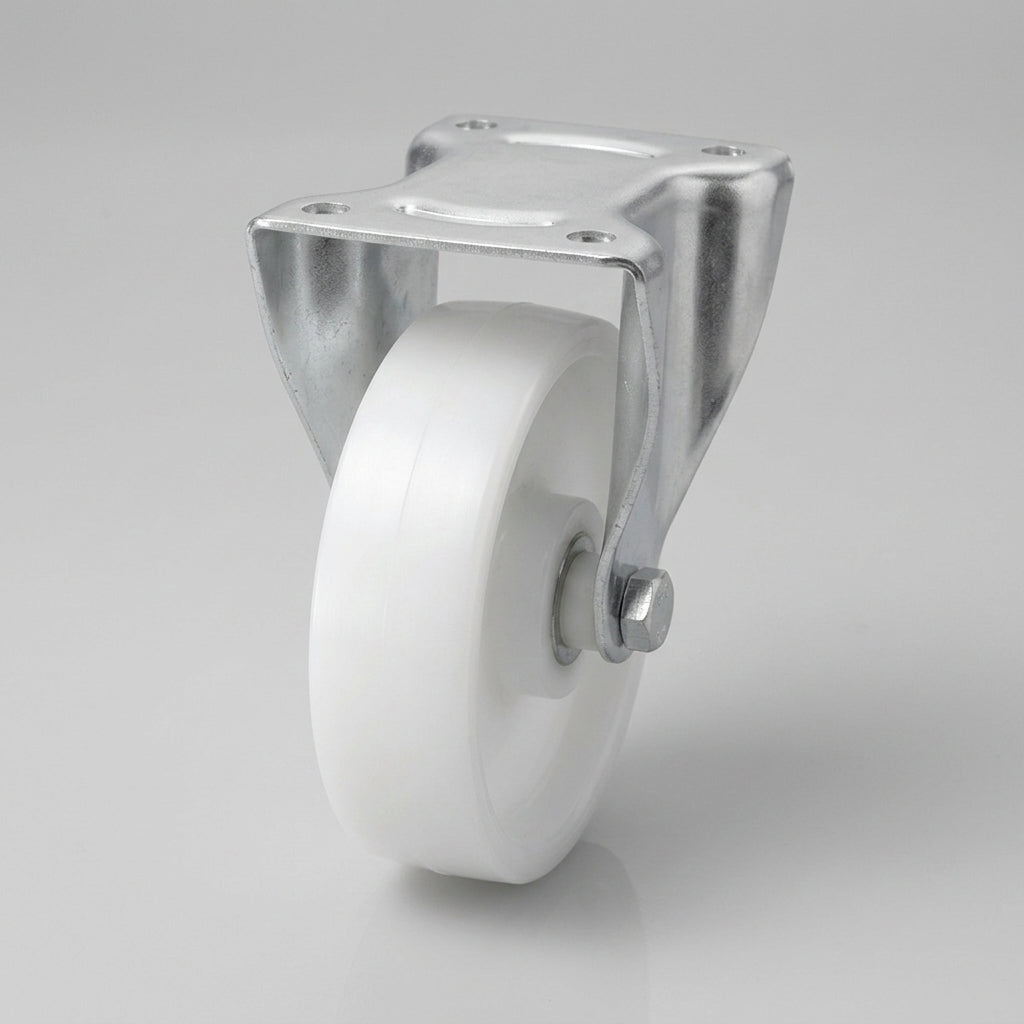

White Nylon Fixed Castors
Made from white nylon, this 160mm fixed castor is built for industrial use where a durable wheel is needed, and supports up to 350kg per castor. The fixed bracket keeps the wheel on a straight path, making it a reliable choice for industrial trolleys, warehouse equipment, manufacturing carts and storage racks.
The solid nylon wheel has a D75 tread hardness for heavy loads on smooth floors, and the plain bearing lets it run directly on the axle. This fixed top plate castor bolts securely to a flat surface with a 140 x 110mm plate, stands 200mm tall and works from -40°C to +80°C.
Why Choose This Castor
- ✓ Fixed bracket keeps the wheel aligned for straight-line travel.
- ✓ White nylon wheel for strength on smooth floors.
- ✓ 350kg load capacity per castor for industrial use.
- ✓ Plain bearing for straightforward movement.
- ✓ 160mm wheel with 40mm tread and D75 tread hardness.
- ✓ 140 x 110mm top plate with four 10mm holes.
- ✓ Wide temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and mounting space suit your mounting area before fitting.

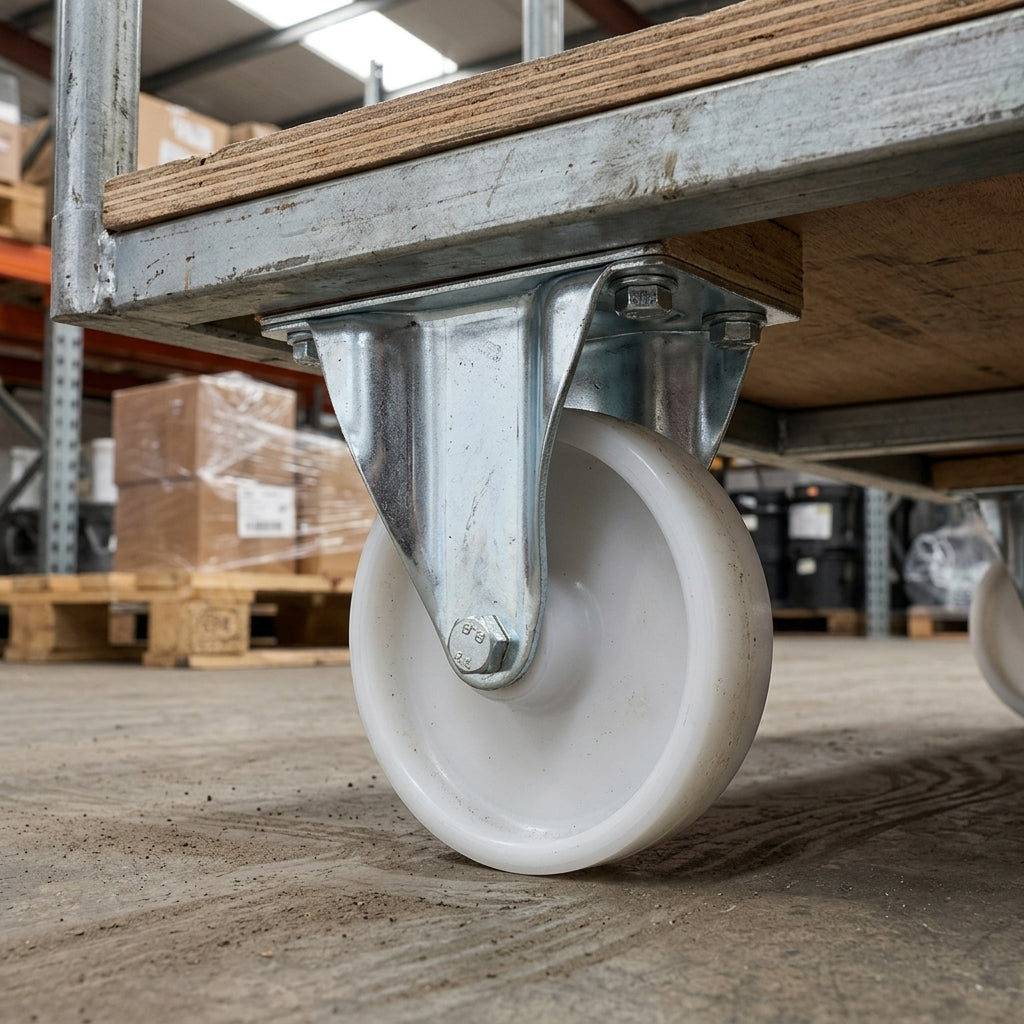

Where It Works Best
This fixed top plate castor suits equipment that needs steady, straight-line movement:
- ✓ Industrial trolleys: supporting and moving heavy loads.
- ✓ Warehouse equipment: efficient movement of machinery.
- ✓ Manufacturing carts: stable mobility in production.
- ✓ Storage racks: easy repositioning of shelving units.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor that only rolls in a straight line. For steering, pair it with swivel castors with the same 160mm white nylon wheel.
How much weight can this castor carry?
Each castor is rated for 350kg.
How is the castor fitted?
It has a 140 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is the castor?
The total castor height is 200mm.
What is the wheel made of?
A solid white nylon wheel, 160mm in diameter and 40mm wide, with D75 hardness, running directly on the axle with a plain bearing.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
