- Load per castor900kg per castor
- Wheel diameter160mm
- WheelCast nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Swivel Top Plate Castor
- Directional Lock
- Yes, locks the swivel head for straight line travel
- Wheel Diameter
- 160mm
- Wheel Material
- Cast nylon
- Wheel Colour
- White
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +80°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Load Capacity
- 900kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Nylon / polypropylene wheel · working temperature -40°C to +80°C
- Very easy to push, even when loaded
- Resists water, oil and many chemicals
- Hard-wearing and easy to wipe clean
- Best on smooth concrete and hard floors
- Noisier than rubber or polyurethane
- Hard tread can mark or damage soft and delicate floors
- Rolls poorly over debris and cables
Details & FAQs
Heavy Duty Fabricated Castors

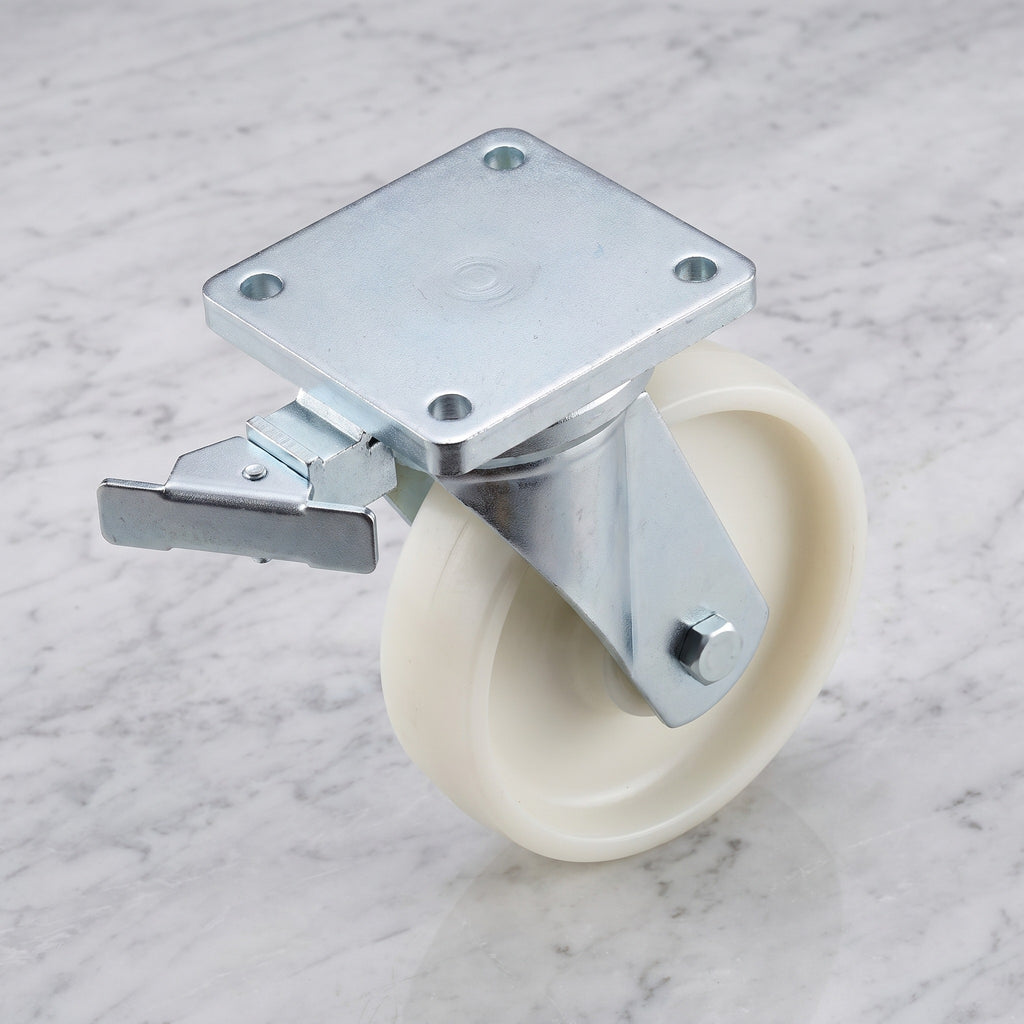

This 160mm heavy duty fabricated castor has a directional lock that keeps a fixed direction of travel when required, for better control and stability in use. The white cast nylon wheel is hard and handles substantial loads, with a 92 Shore A (A92) tread, and the ball journal bearing gives smooth rotation that reduces the effort needed to move equipment. Rated for 900kg per castor.
It fixes securely to flat surfaces with a 135 x 110mm top plate and works from -40°C to +80°C.
Why Choose This Castor
- ✓ 900kg load capacity per castor for substantial loads.
- ✓ Cast nylon wheel 160mm diameter with a 50mm tread and 92 Shore A hardness.
- ✓ Ball journal bearing for smooth rotation and less effort to manoeuvre.
- ✓ Directional lock keeps a fixed direction of travel when required, release it to swivel again.
- ✓ Heavy duty fabricated construction for demanding settings.
- ✓ Swivel head for easy manoeuvring when the lock is off.
- ✓ 135 x 110mm top plate with four 10mm holes for a secure attachment to flat surfaces.
- ✓ Temperature range from -40°C to +80°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This heavy duty directional lock castor suits:
- ✓ Warehouse trolleys: stable, controlled movement for heavy loads.
- ✓ Industrial carts: manoeuvrability and load handling in manufacturing settings.
- ✓ Material handling equipment: transporting goods efficiently in storage facilities.
- ✓ Heavy machinery bases: supporting and guiding machinery with precision.
- ✓ Workshop equipment: moving tools and components in workshops.
Frequently Asked Questions
What does the directional lock do?
It locks the swivel head so the castor keeps a fixed direction of travel when required. Release the lock to let the castor swivel again. It is a direction lock, not a brake, so the wheel still rolls.
How much weight can this castor carry?
Each castor is rated for 900kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 160mm white cast nylon wheel with a 50mm tread and 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?

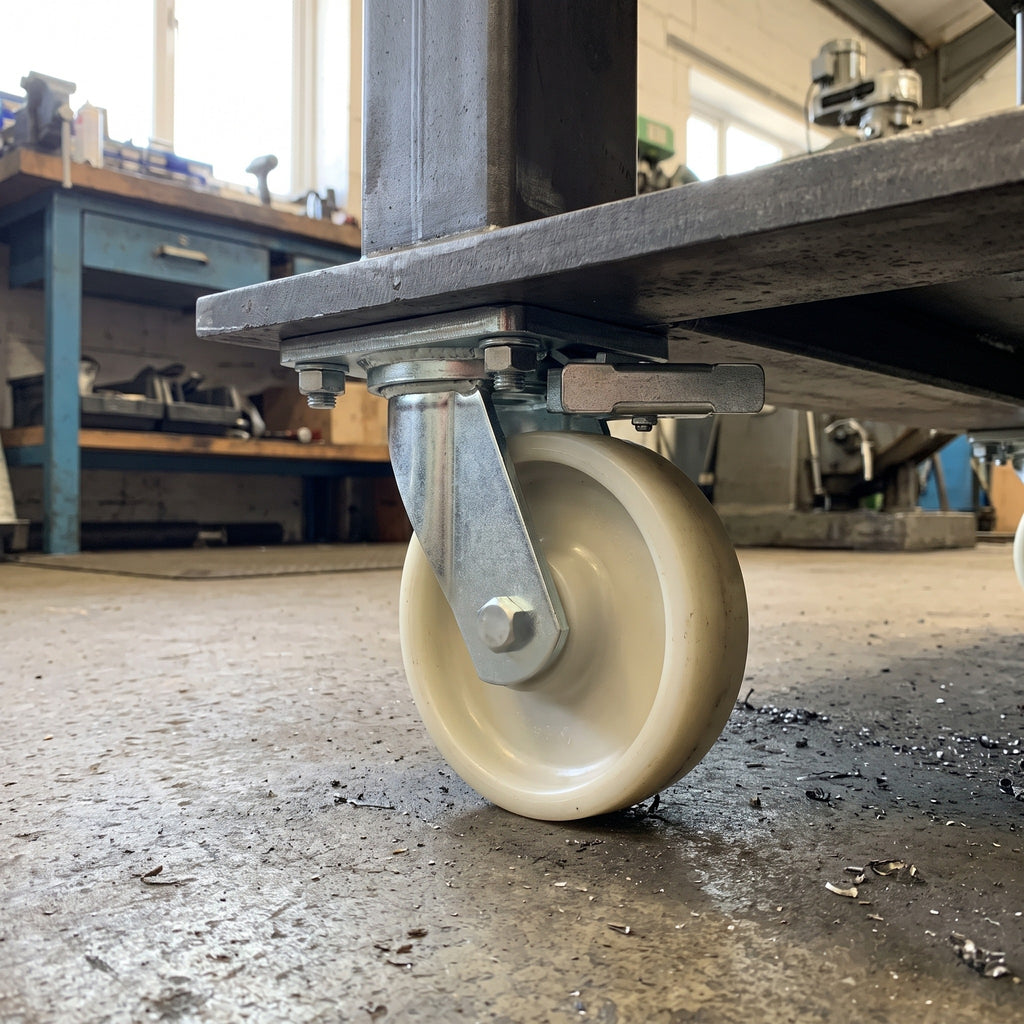

It has a 135 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. It swivels freely when the directional lock is off.
What temperatures can it work in?
The castor is suitable for use from -40°C to +80°C.
