- Load per castor204kg per castor
- Wheel diameter125mm
- Overall height155mm
- WheelErgonomic polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Brake
- Wheel Diameter
- 125mm
- Wheel Material
- Ergonomic polyurethane
- Wheel Colour
- Orange
- Tread Width
- 32mm
- Hardness of Tread
- 87 Shore A
- Brake
- Acts on the wheel
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Swivel Radius
- 123mm
- Total Castor Height
- 155mm
- Load Capacity
- 204kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

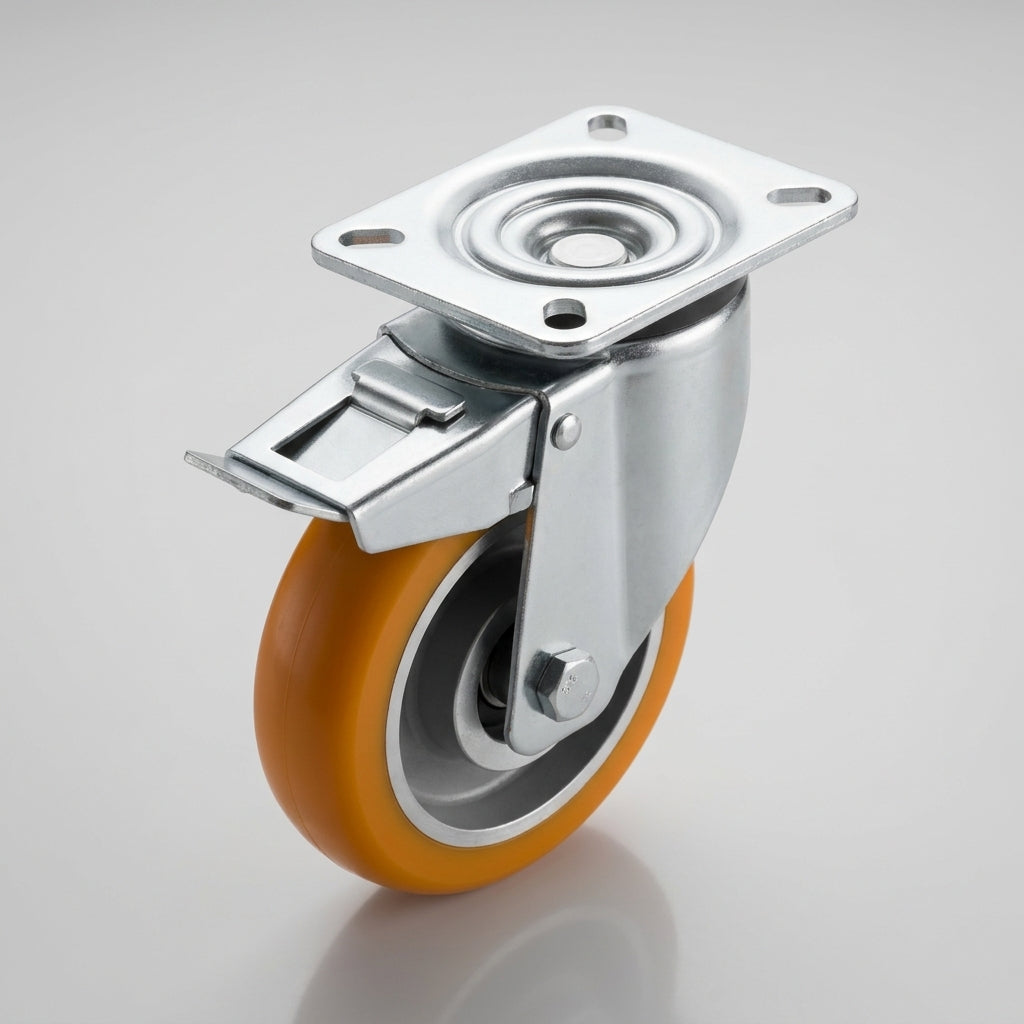

Ergonomic Braked Castors
This 125mm braked swivel castor has a soft ergonomic polyurethane wheel with a tread hardness of 87 Shore A. The softer tread gives a little under load, spreading the contact patch so trolleys are easier to push. It carries 204kg per castor, and the brake acts on the wheel to hold your equipment in place.
It fixes with a 105 x 85mm top plate, making it simple to attach to flat surfaces. The castor has a 123mm swivel radius and stands 155mm tall.
Why Choose This Castor
- ✓ Soft ergonomic polyurethane wheel for easier pushing and starting.
- ✓ 87 Shore A tread that spreads the contact patch under load.
- ✓ Wheel brake to hold the trolley in place.
- ✓ Swivel head for easy turning in tight spaces.
- ✓ 204kg load capacity per castor.
- ✓ 125mm wheel with 32mm tread for steady movement.
- ✓ 105 x 85mm top plate with four 8mm holes.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This ergonomic braked castor suits:
- ✓ Material handling trolleys: smooth movement and stability.
- ✓ Warehouse carts: reliable load-bearing capacity.
- ✓ Industrial equipment: for equipment that needs to be moved easily.
- ✓ Retail display units: easy repositioning and stability.
- ✓ Hospitality carts: smooth and controlled movement.
Frequently Asked Questions
What is an ergonomic polyurethane wheel?
It is a softer grade of polyurethane (87 Shore A) that gives a little under load. This spreads the contact area, so the castor is easier to push and start rolling.
What does the brake lock?
The brake acts on the wheel, stopping it from rolling when the brake pedal is pressed down.
How much weight can this castor carry?
Each castor is rated for 204kg.
How is the castor fitted?

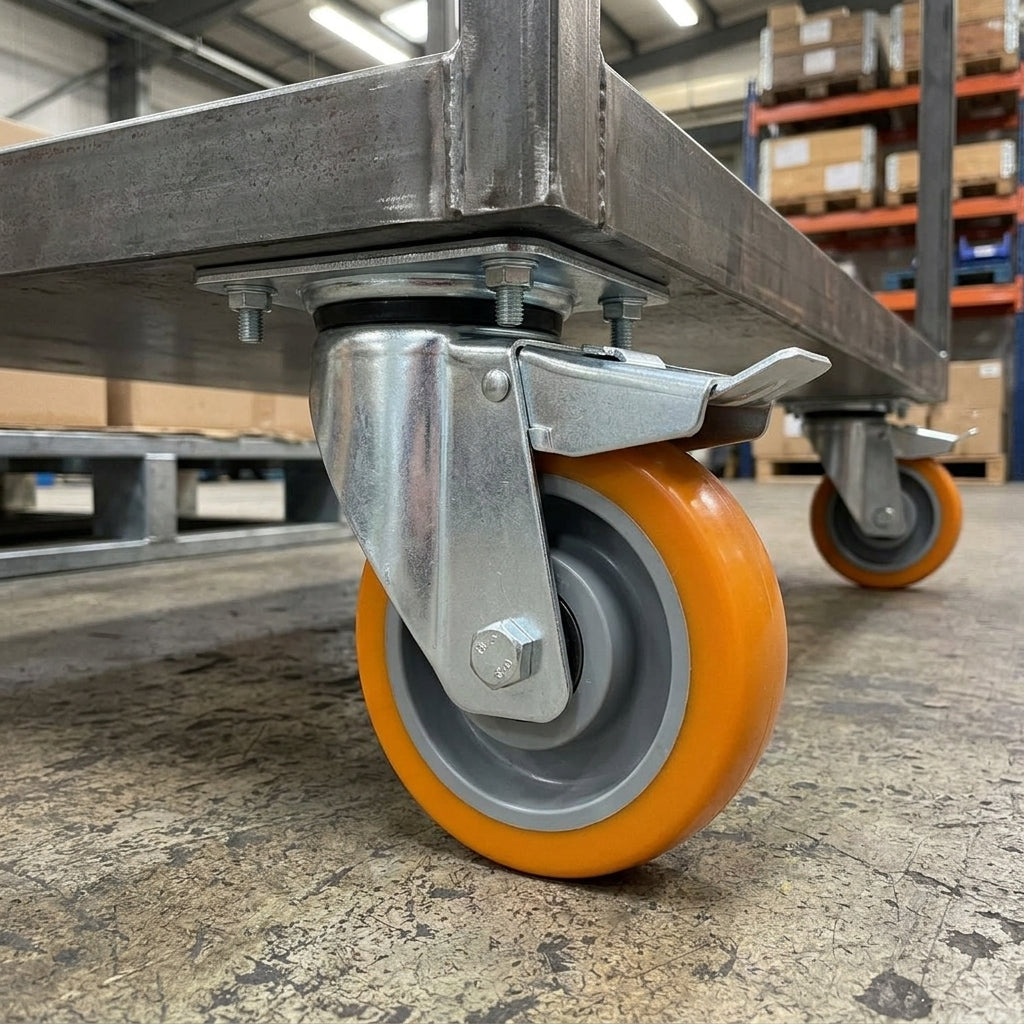

It has a 105 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How much space does it need to swivel?
The swivel radius is 123mm and the total castor height is 155mm.
Where can I use this castor?
It suits material handling trolleys, warehouse carts, industrial equipment, retail display units and hospitality carts.
