- Load per castor204kg per castor
- Wheel diameter125mm
- Overall height155mm
- WheelErgonomic polyurethane
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 125mm
- Wheel Material
- Ergonomic polyurethane
- Wheel Colour
- Orange
- Tread Width
- 32mm
- Hardness of Tread
- 87 Shore A
- Bearing Type
- Ball bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 101 x 85mm
- Hole Centres
- 80/77 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 155mm
- Load Capacity
- 204kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

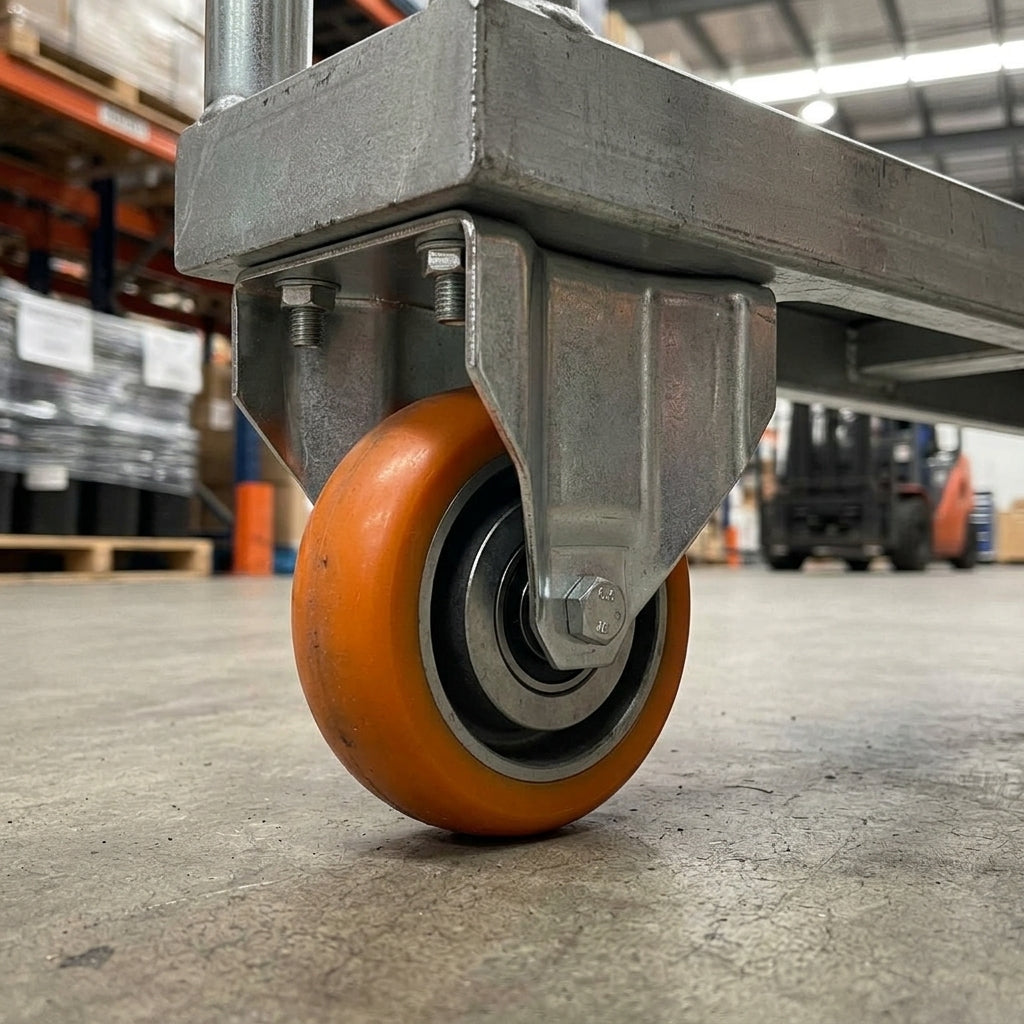

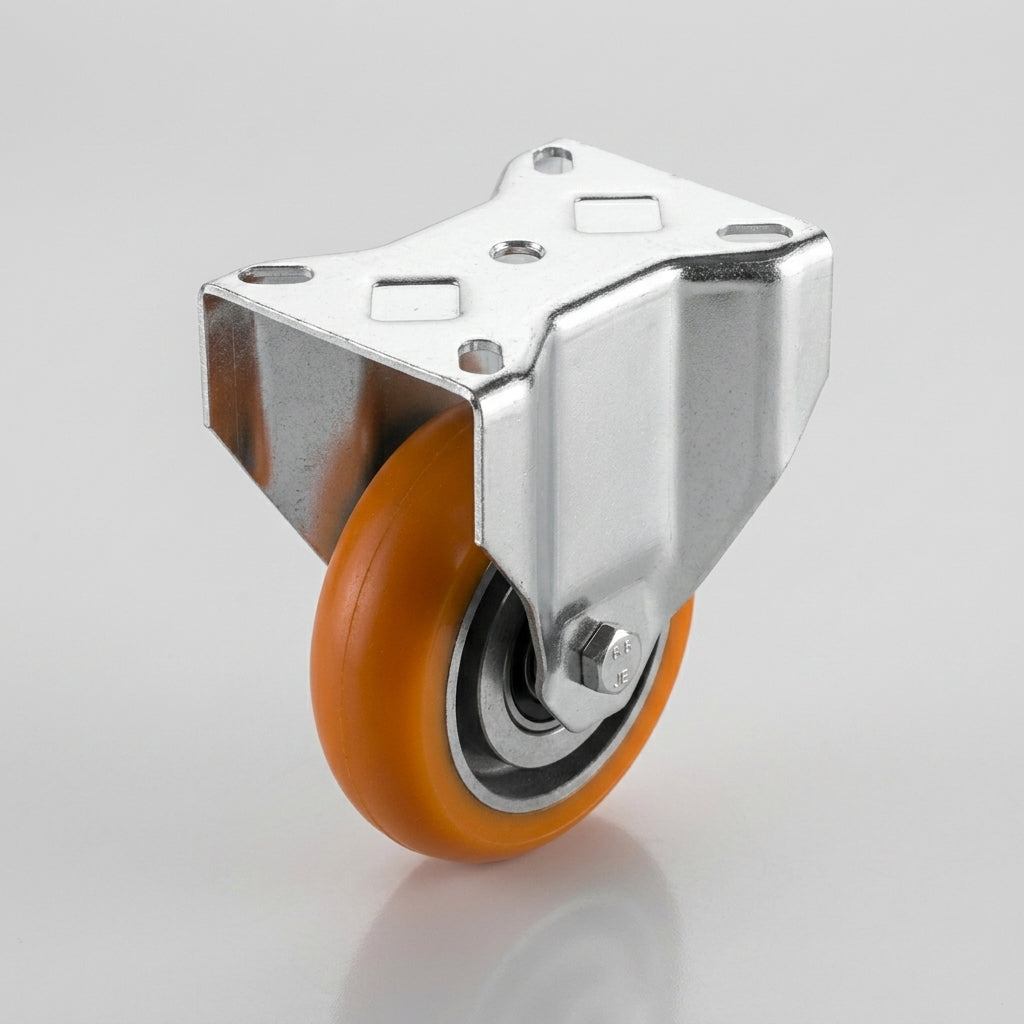

Ergonomic Fixed Castors
This 125mm fixed castor has a soft ergonomic polyurethane wheel with a tread hardness of 87 Shore A. The softer tread gives a little under load, spreading the contact patch for a smoother ride, and the ball bearing keeps rolling easy. It carries 204kg per castor and runs in a straight line, ideal where controlled movement in one direction is needed.
It fixes with a 101 x 85mm top plate, making it simple to attach to flat surfaces. The castor stands 155mm tall.
Why Choose This Castor
- ✓ Soft ergonomic polyurethane wheel for easier pushing and starting.
- ✓ 87 Shore A tread that spreads the contact patch under load.
- ✓ Ball bearing for easy rolling with less friction.
- ✓ Fixed design for straight, stable travel.
- ✓ 204kg load capacity per castor.
- ✓ 125mm wheel with 32mm tread for steady movement.
- ✓ 101 x 85mm top plate with four 8mm holes.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This ergonomic fixed castor suits:
- ✓ Warehouse trolleys: stable movement for transporting goods.
- ✓ Industrial carts: consistent direction for material handling.
- ✓ Furniture dollies: smooth rolling for moving heavy furniture.
- ✓ Display stands: fixed positioning for stability.
Frequently Asked Questions
What is an ergonomic polyurethane wheel?
It is a softer grade of polyurethane (87 Shore A) that gives a little under load. This spreads the contact area, so the castor is easier to push and start rolling.
Does this castor swivel?
No. This is a fixed castor, so the wheel only rolls forwards and backwards. Use it with matching swivel or braked castors for easy steering.
How much weight can this castor carry?
Each castor is rated for 204kg.
How is the castor fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80/77 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is this castor?
The total castor height is 155mm.
Where can I use this castor?
It suits warehouse trolleys, industrial carts, furniture dollies and display stands.
