- Load per castor60kg
- Wheel diameter100mm
- Overall height280mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Gate Castor
- Duty
- Light Duty
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Black
- Load Capacity
- 60kg
- Total Castor Height
- 280mm
- Height to Plate Lower Bolt Hole
- 195mm
- Plate Size
- 100mm x 25mm
- Plate Hole Centres (Length)
- 60mm
- Plate Hole Centres (Width)
- 12.5mm
- Plate Hole Diameter
- 10mm
Will it fit?
- Fixing holeØ 10mm
- Bolt hole195mm
- Overall height280mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

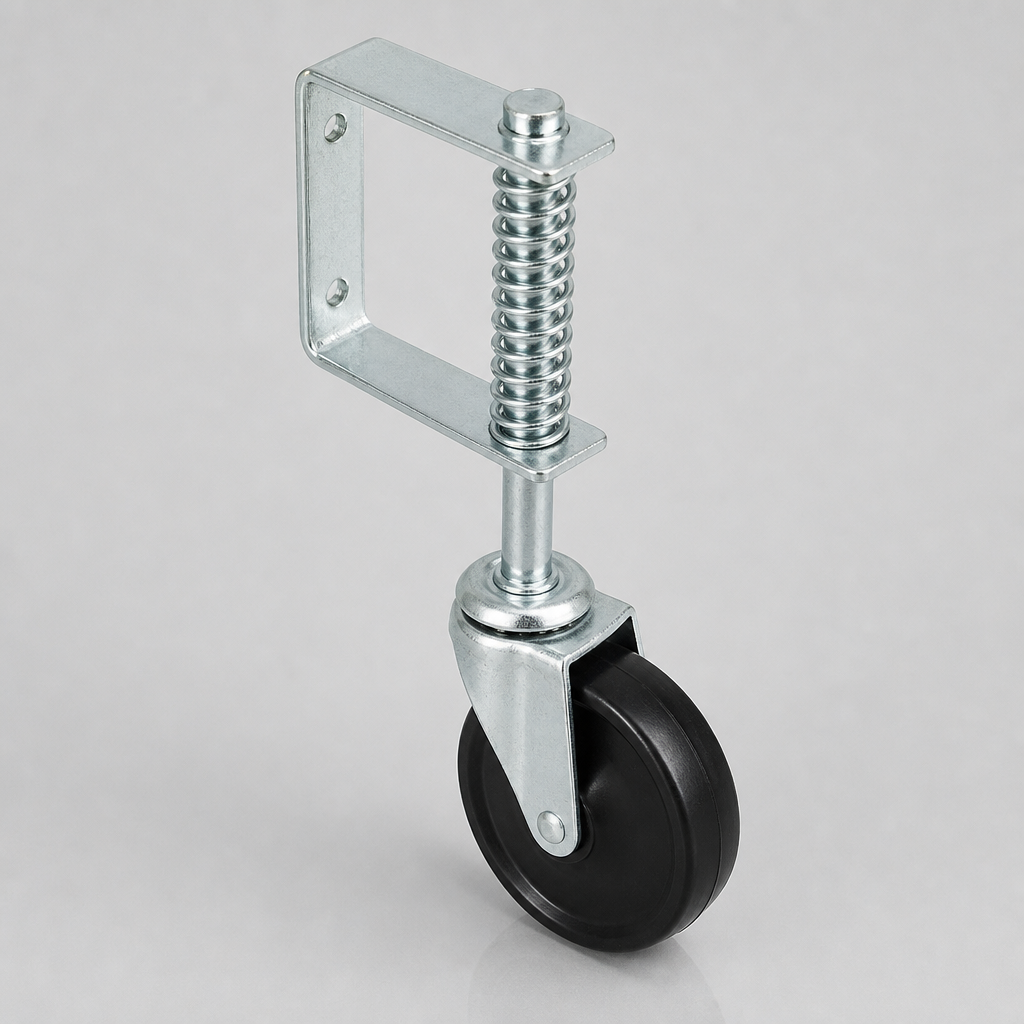

Light Duty Gate Castor

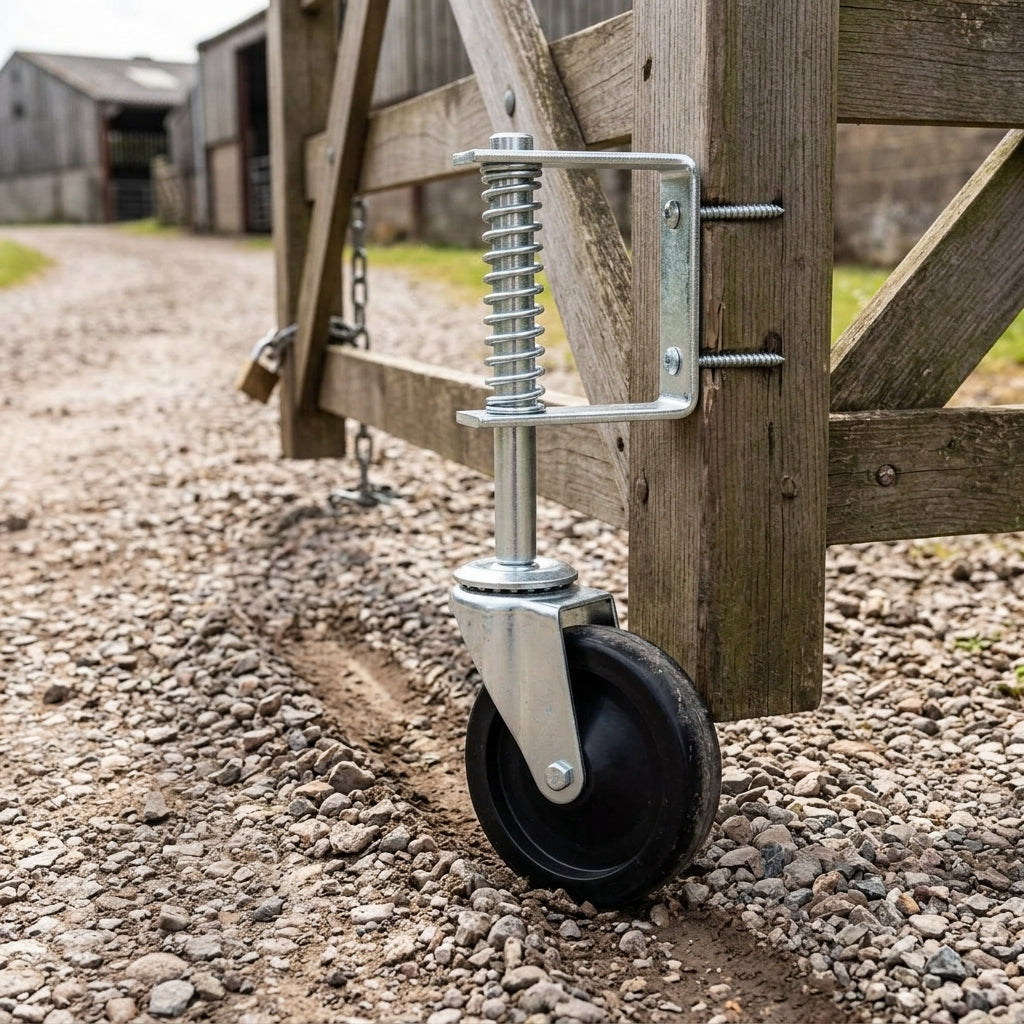

This 100mm swivel gate castor supports and guides a gate while it opens and closes. It bolts to the side of the gate with a 100mm x 25mm bracket plate, and runs on a black rubber wheel with a polypropylene centre rated at 60kg. It takes the weight off the hinges and helps stop a gate from dropping or dragging on the ground.
The wheel swivels freely so it follows the gate's swing, and the rubber tread rolls quietly over paths, paving and driveways. The total castor height is 280mm, with 195mm from the ground to the lower bolt hole, so you can check it suits the gap under your gate before ordering.
Why Choose This Castor
- ✓ Supports and guides gates as they open and close
- ✓ Takes weight off the gate hinges
- ✓ Side-fix bracket plate with two 10mm bolt holes
- ✓ Swivel wheel that follows the gate's swing
- ✓ Black rubber tread for quiet, smooth rolling
- ✓ 60kg load capacity for light duty gates
* Check the plate size and hole centres against your gate before ordering, and measure the gap from the ground to where the plate will be fixed.
Where It Works Best
- ✓ Garden gates: wooden and metal gates that sag or drag.
- ✓ Driveway gates: light gates that need support at the open end.
- ✓ Side and farm gates: light duty gates opened every day.
Frequently Asked Questions
What does a gate castor do?
It supports the free end of a gate and rolls along the ground as the gate opens and closes, taking strain off the hinges and stopping the gate from dragging.
How is it fitted?
The 100mm x 25mm bracket plate bolts to the side of the gate through two 10mm holes set 60mm apart.
How much weight can it carry?
The castor is rated at 60kg, so it suits light duty gates.
How tall is it?
The total castor height is 280mm, and the lower bolt hole sits 195mm above the ground.
What surfaces does it suit?
The black rubber wheel rolls smoothly and quietly over paths, paving and driveways.
