- Load per castor75kg per castor
- Wheel diameter100mm
- Overall height127mm
- WheelRubber on polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor with Directional Brake
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on polypropylene
- Wheel Colour
- Black
- Tread Width
- 30mm
- Tread Hardness
- 85 shore A
- Bearing Type
- Ball journal
- Load Capacity
- 75kg per castor
- Max Load Capacity of 4 Castors
- 225kg
- Brake
- Directional brake
- Fixing
- 4 bolt hole top plate
- Plate Length
- 100mm
- Plate Width
- 85mm
- Plate Hole Centres (Width)
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Will it fit?
- Top plate100mm × 85mm
- Fixing holeØ 8mm
- Overall height127mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Top Plate Castors

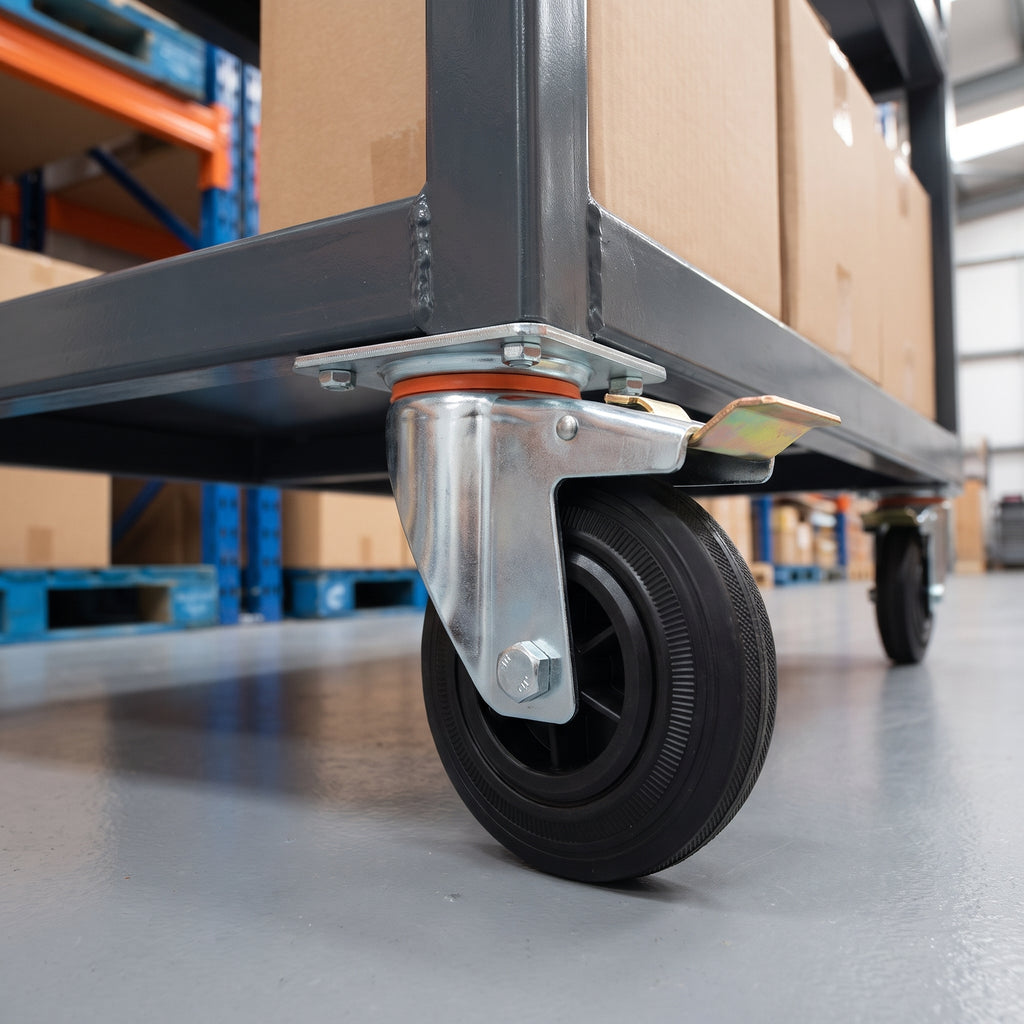

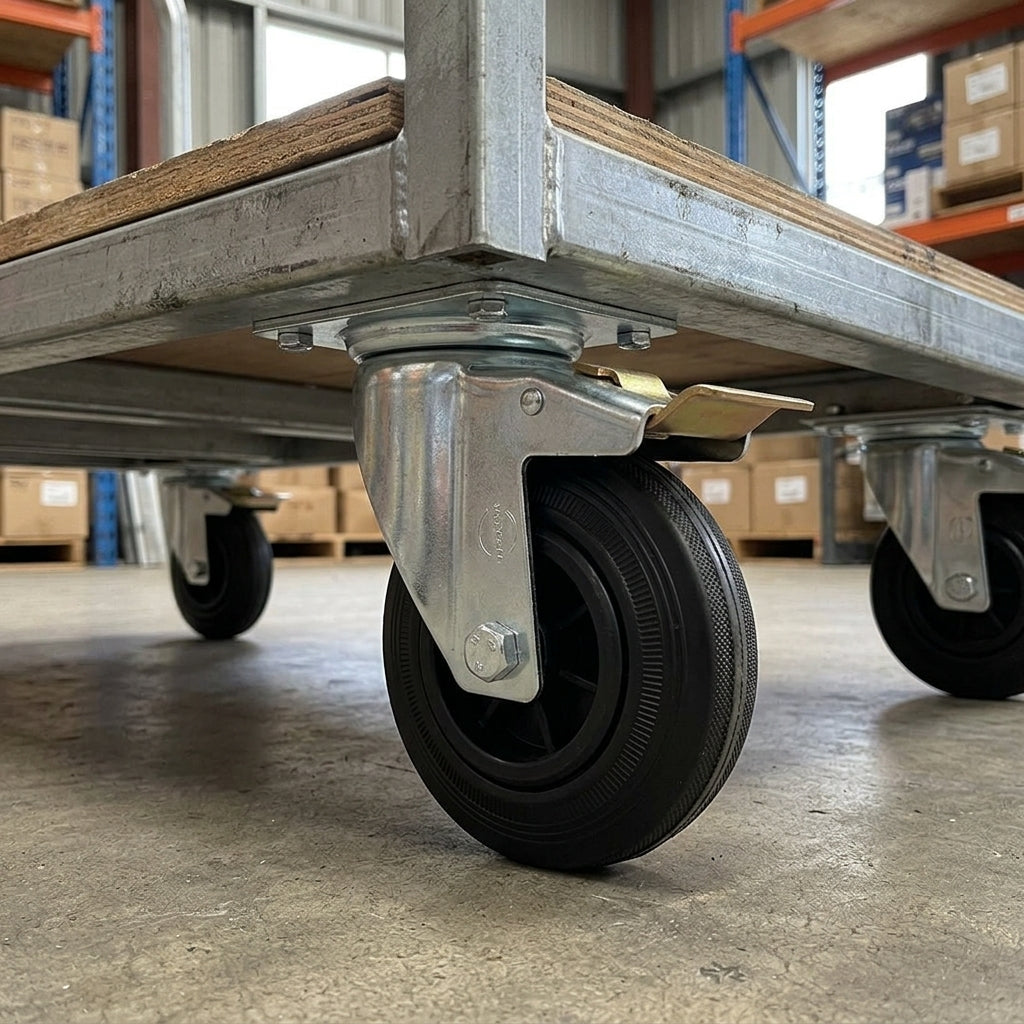

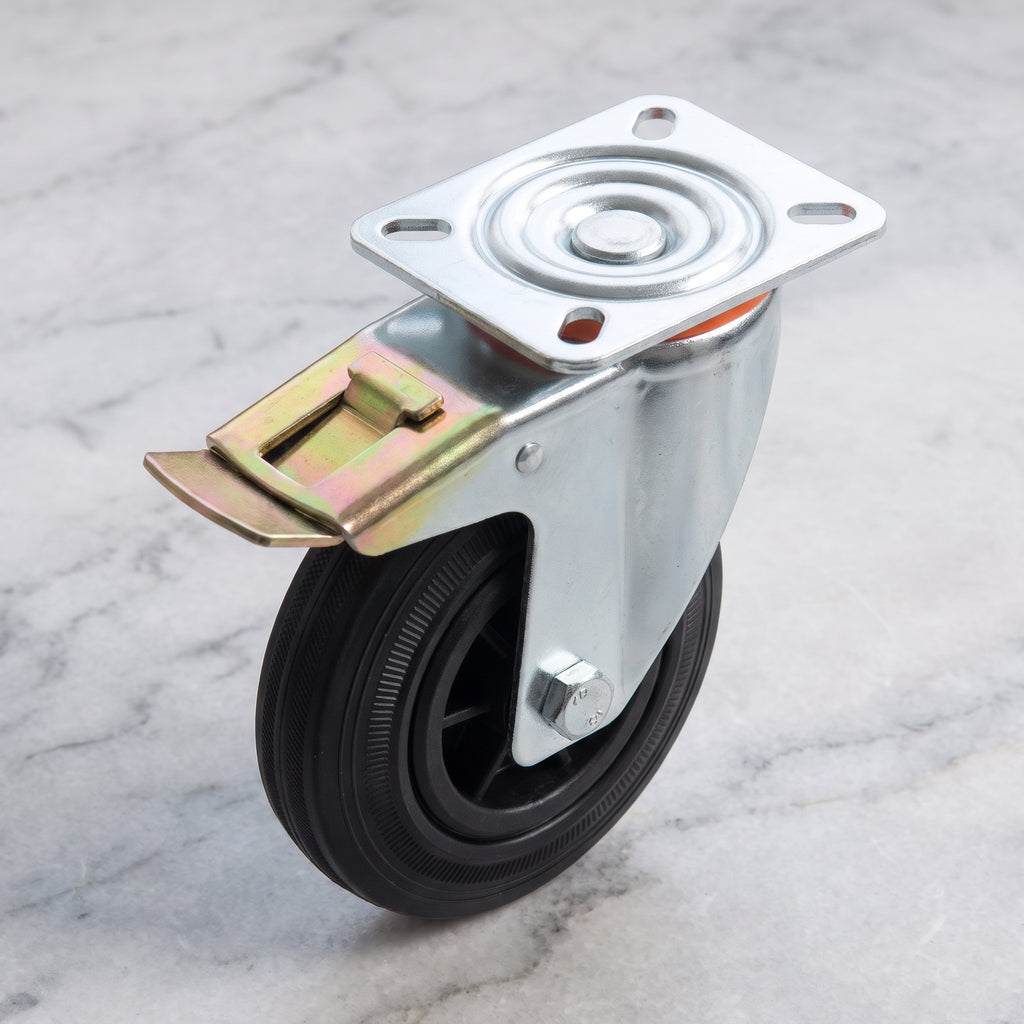

Move trolleys, carts and furniture easily, then hold them steady with the brake. This 100mm pressed steel swivel castor has a black rubber tyre on a polypropylene centre and a directional brake for control and stability when your equipment is stationary. It runs on a ball journal bearing for smooth, easy rolling, and each castor is rated for 75kg.
It fits with a 100 x 85mm top plate with 8mm bolt holes on 60/80mm centres, and stands 127mm tall. The 30mm rubber tread, with a hardness of 85 shore A, gives a good balance of grip and wear resistance and helps reduce floor damage. Check the plate size, hole centres and height against your equipment before ordering.
Why Choose This Castor
- ✓ Directional brake holds your equipment steady when it is stationary.
- ✓ Swivel design easy manoeuvring and repositioning in tight spaces.
- ✓ Rubber on polypropylene wheel a durable black rubber tyre that helps reduce floor damage.
- ✓ Ball journal bearing smooth rotation and ease of movement.
- ✓ 100 x 85mm top plate 8mm bolt holes on 60/80mm centres for flexible mounting.
- ✓ 75kg load capacity per castor, up to 225kg for a set of four.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and 127mm height suit your equipment before fitting.
Where It Works Best
This swivel castor with directional brake suits:
- ✓ Industrial equipment: trolleys and carts in warehouses.
- ✓ Office furniture: desks and furniture that need easy repositioning.
- ✓ Retail displays: mobile display units that are moved often.
- ✓ Maintenance equipment: moving tools and equipment within workshops.
Frequently Asked Questions
What does the brake do?
The directional brake is applied with the pedal on the castor and holds your equipment steady when it is stationary.
How much weight can this castor carry?
Each castor is rated for 75kg, and a set of four can carry up to 225kg.
What is the wheel made of?
A black rubber tyre on a polypropylene centre, 100mm in diameter with a 30mm tread and a hardness of 85 shore A.
What size is the top plate?
The top plate is 100 x 85mm with 8mm bolt holes on 60/80mm centres.
How tall is the castor?
The total castor height is 127mm.
What bearing does it use?
A ball journal bearing, for smooth rotation and ease of movement.
* This product does not have free shipping.
