- Load per castor450kg per castor
- Wheel diameter100mm
- Overall height145mm
- WheelPolyurethane on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fabricated Swivel Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on cast iron centre
- Wheel Colour
- Yellow
- Tread Width
- 50mm
- Hardness of Tread
- 92 Shore A (A92)
- Bearing Type
- Ball journal bearing
- Temperature Range
- -40°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 135 x 110mm
- Hole Centres
- 105 x 80/75mm
- Hole Diameter
- 10mm
- Swivel Radius
- 92mm
- Total Castor Height
- 145mm
- Load Capacity
- 450kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

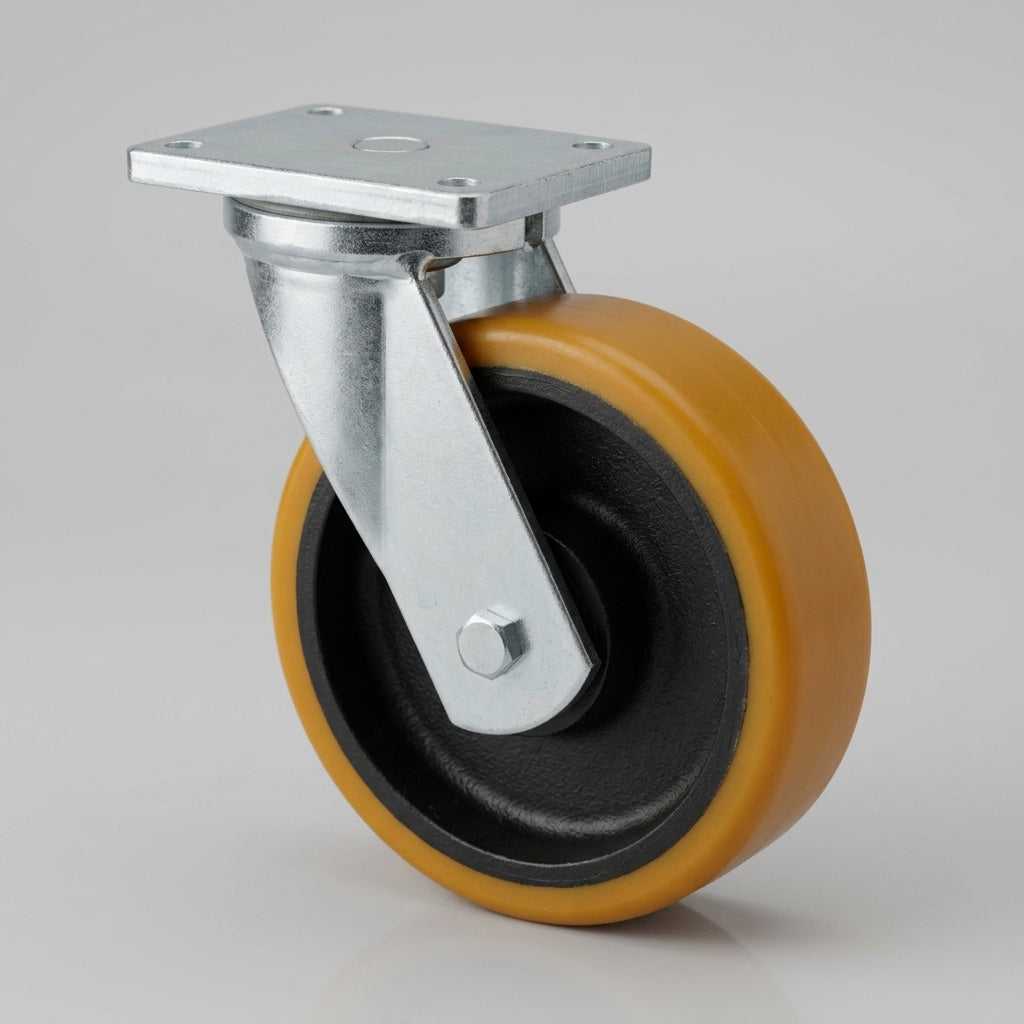

Heavy Duty Fabricated Castors
This 100mm heavy duty fabricated swivel castor is engineered for industrial use, with a yellow polyurethane tread on a cast iron centre. The 92 Shore A (A92) tread gives a balance between resilience and performance on smooth, hard surfaces, and the ball journal bearing gives smooth rotation and ease of movement. Rated for 450kg per castor.
It fixes securely to your equipment with a 135 x 110mm top plate, has a 92mm swivel radius, stands 145mm tall and works from -40°C to +60°C.
Why Choose This Castor
- ✓ 450kg load capacity per castor for substantial weights.
- ✓ Polyurethane on cast iron wheel 100mm diameter with a 50mm tread and 92 Shore A hardness, ideal for smooth, hard surfaces.
- ✓ Ball journal bearing for smooth rotation and ease of movement.
- ✓ Heavy duty fabricated construction for industrial use.
- ✓ Swivel head for easy manoeuvring, with a compact 92mm swivel radius.
- ✓ 135 x 110mm top plate with four 10mm holes for a secure attachment.
- ✓ Temperature range from -40°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and swivel clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty fabricated swivel castor suits:

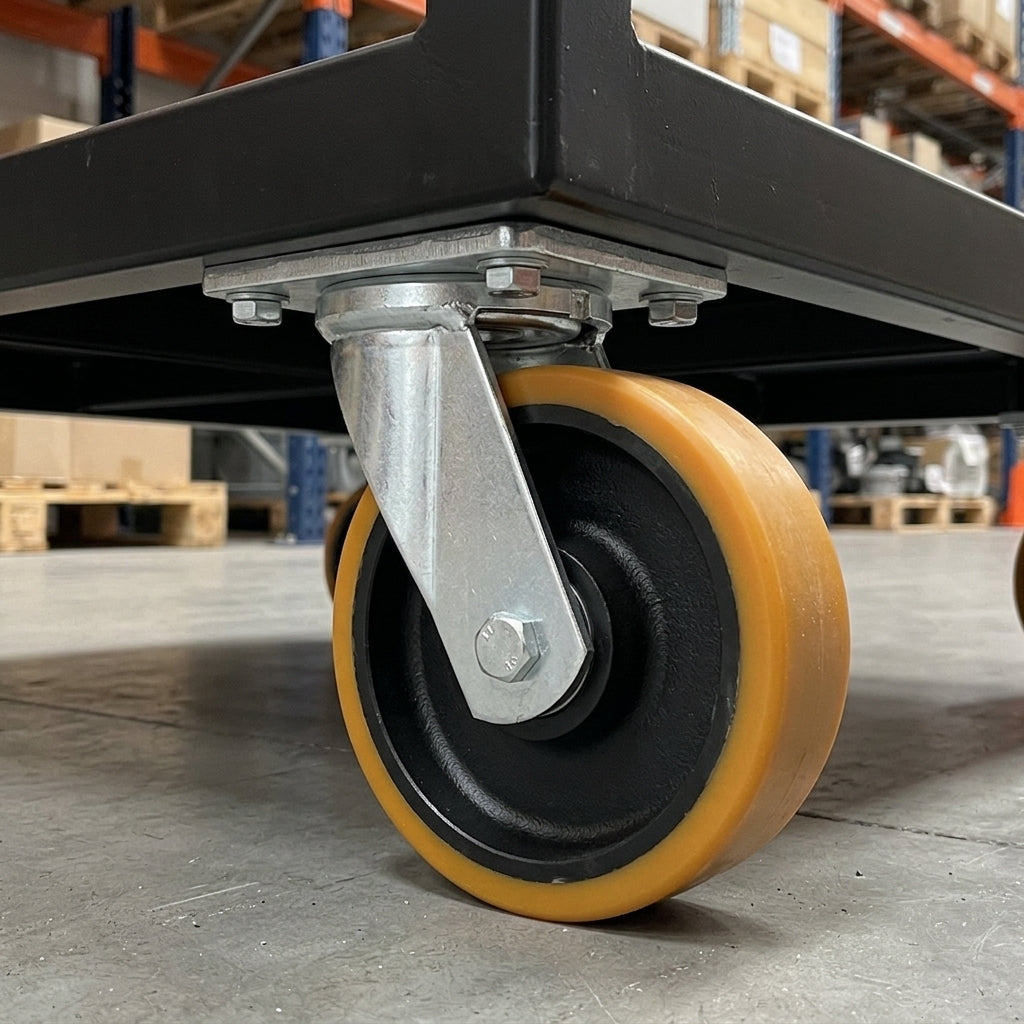

- ✓ Warehouse trolleys: transporting heavy loads smoothly across flat surfaces.
- ✓ Industrial carts: handling substantial weights in manufacturing settings.
- ✓ Factory equipment: machinery that needs mobility and stability.
- ✓ Material handling units: environments where heavy duty performance is necessary.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 450kg. Add up the castors under your equipment to work out the total load.
What is the wheel made of?
A 100mm yellow polyurethane tread on a cast iron centre, 50mm wide with 92 Shore A hardness, running on a ball journal bearing.
How is the castor fitted?
It has a 135 x 110mm top plate with four 10mm holes on 105 x 80/75mm hole centres, bolted flat to the underside of your trolley, cart or machine.
Does this castor swivel?
Yes. The swivel head lets you change direction easily, ideal where direction changes are frequent. The swivel radius is 92mm and the total castor height is 145mm.
What temperatures can it work in?
The castor is suitable for use from -40°C to +60°C.
