- Load per castor300kg per castor
- Wheel diameter100mm
- Overall height130mm
- WheelPolyurethane on cast iron centre
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Heavy Duty Fixed Top Plate Castor
- Brake
- None
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on cast iron centre
- Wheel Colour
- Yellow
- Tread Width
- 40mm
- Hardness of Tread
- 91 Shore A
- Bearing Type
- Ball bearing
- Temperature Range
- -40°C to +60°C
- Fixing
- Top plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80/60mm
- Hole Diameter
- 9mm
- Total Castor Height
- 130mm
- Load Capacity
- 300kg per castor
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

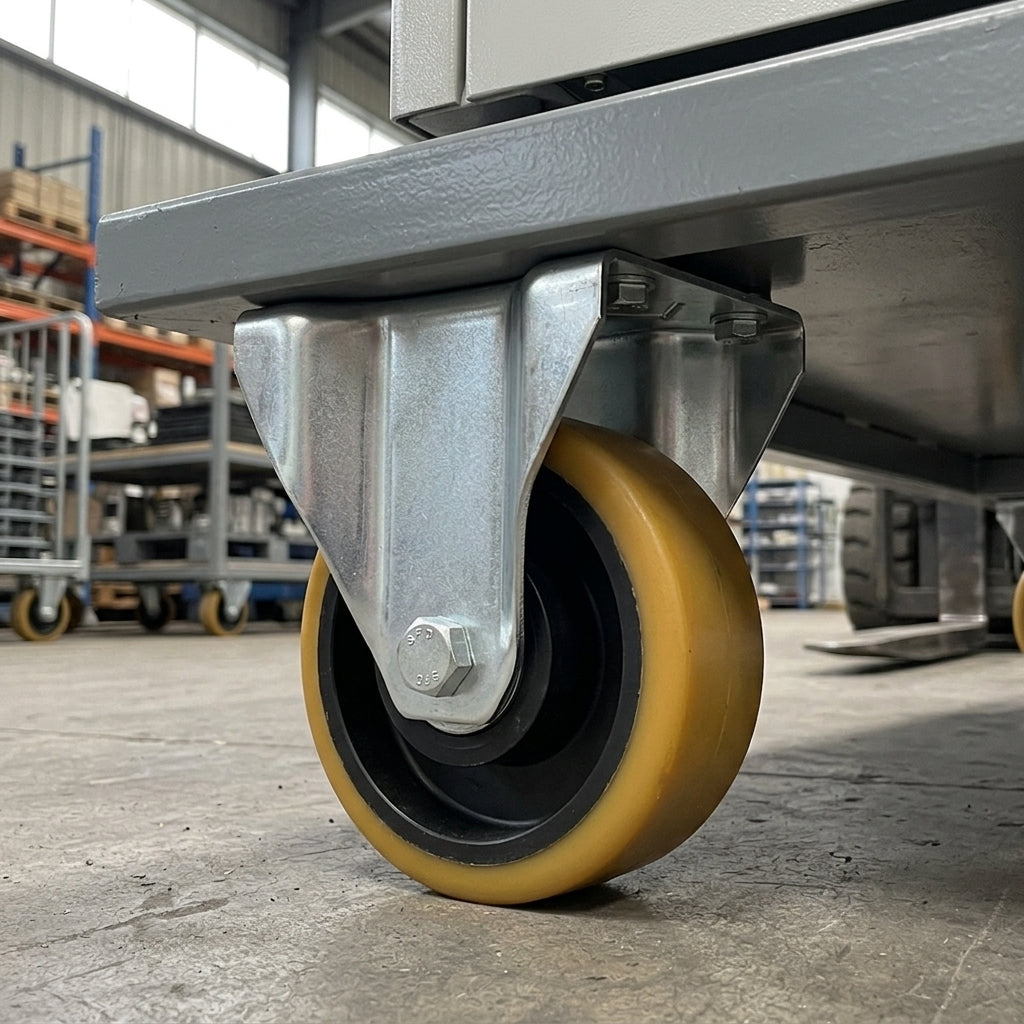

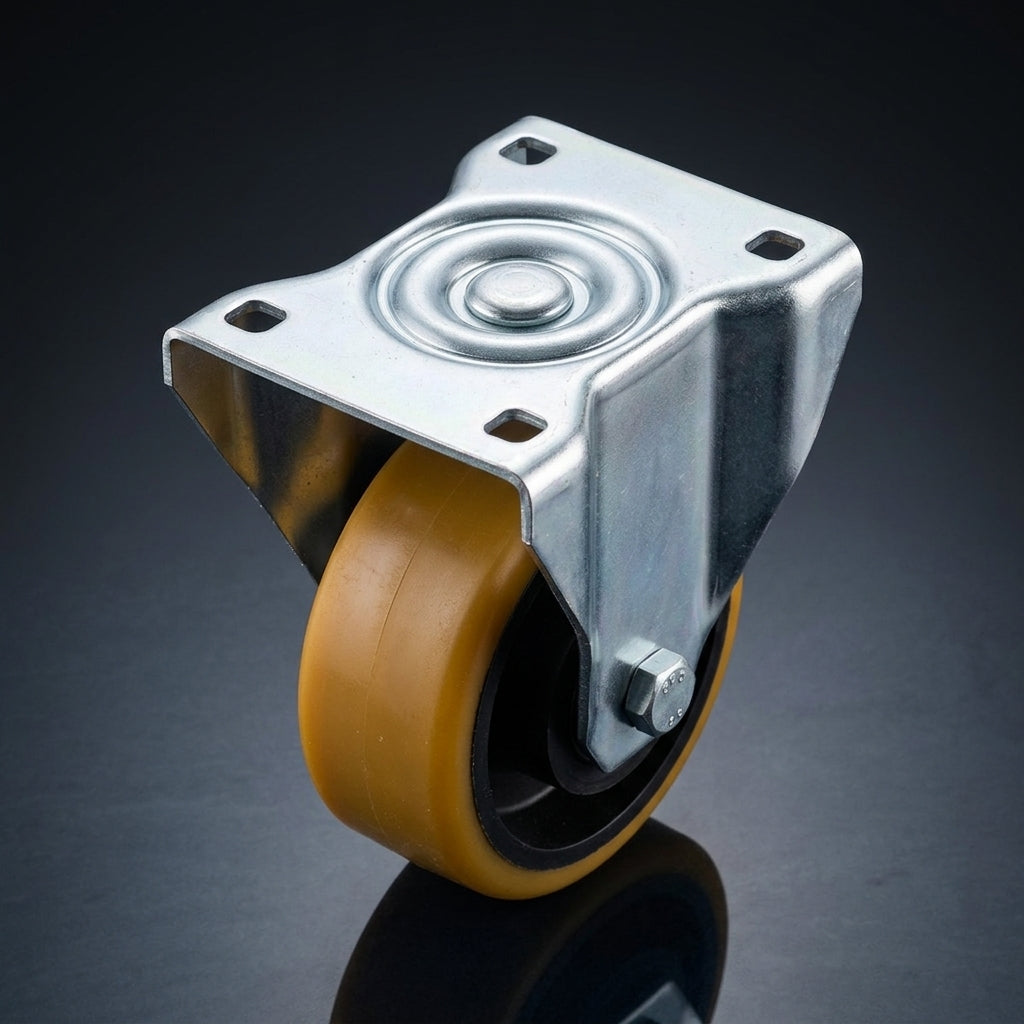

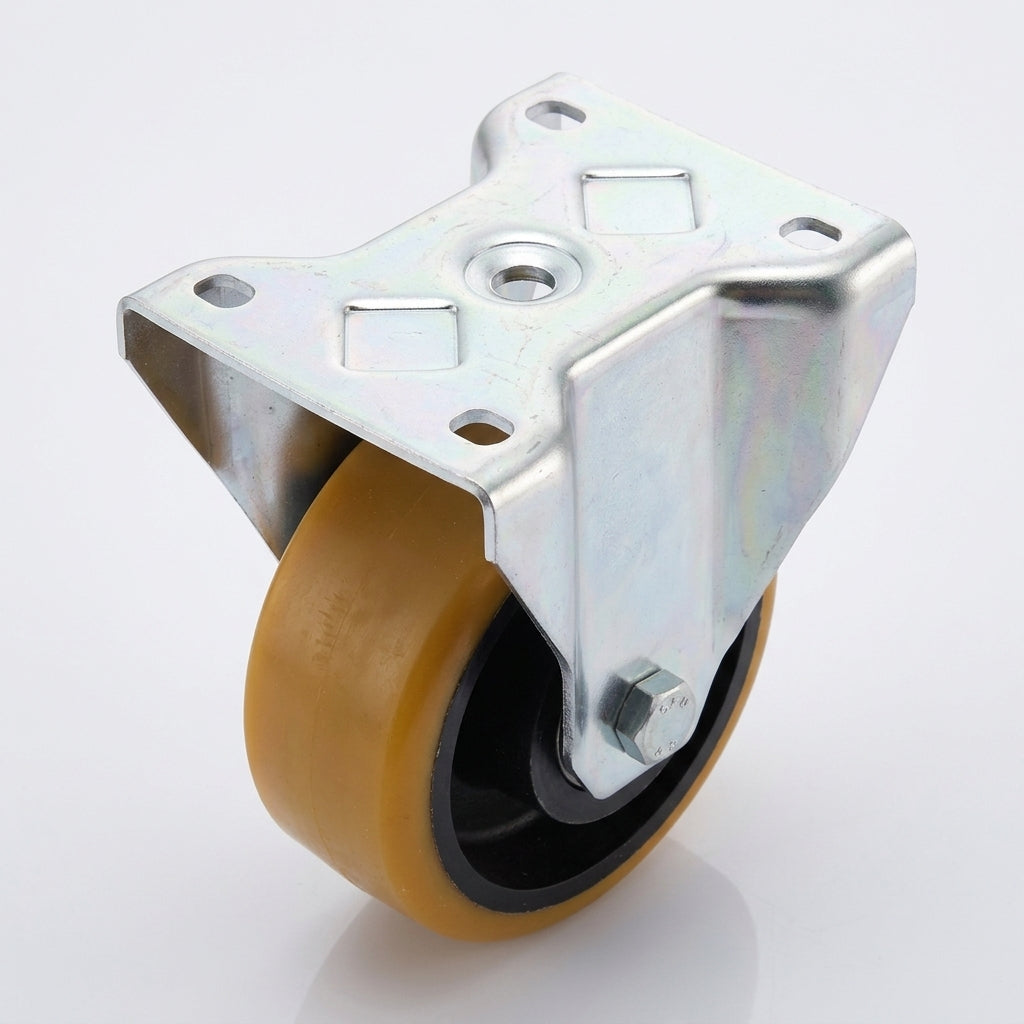

Heavy Duty Top Plate Castors
This 100mm heavy duty fixed castor has a yellow polyurethane wheel on a cast iron centre, made for industrial use and rated for 300kg per castor. The 91 Shore A tread gives firm surface contact on smooth, hard surfaces, and the ball bearing gives smooth rotation with less friction.
It fixes securely to flat surfaces with a 105 x 85mm top plate, stands 130mm tall and works from -40°C to +60°C.
Why Choose This Castor
- ✓ 300kg load capacity per castor for heavy industrial loads.
- ✓ Polyurethane on cast iron wheel with a 40mm tread and 91 Shore A hardness.
- ✓ Ball bearing for smooth rotation and reduced friction.
- ✓ Fixed bracket for straight, steady tracking.
- ✓ 105 x 85mm top plate with four 9mm holes for a secure, stable fixing.
- ✓ Temperature range from -40°C to +60°C.
* Load capacity is per castor on a smooth, level floor. Check that the plate size, hole centres and clearance suit your mounting area before fitting.
Where It Works Best
This heavy duty fixed top plate castor suits:
- ✓ Warehouse trolleys: stable movement for transporting goods.
- ✓ Industrial machinery: supporting and moving heavy equipment.
- ✓ Factory equipment: machinery that needs fixed directional movement.
- ✓ Material handling carts: controlled movement in production lines.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor, so the wheel stays in line for straight, steady travel. Pair it with swivel castors to steer your equipment.
How much weight can this castor carry?
Each castor is rated for 300kg. Add up the castors under your equipment to work out the total load.
How is the castor fitted?
It has a 105 x 85mm top plate with four 9mm holes on 80/60mm hole centres, bolted flat to the underside of your trolley, cart or machine.
How tall is the castor?
The total castor height is 130mm.
What is the wheel made of?
A 100mm yellow polyurethane tread on a cast iron centre, 40mm wide with 91 Shore A hardness, running on a ball bearing.
What floors is it suited to?
The polyurethane tread is firm and made for smooth, hard surfaces.
What temperatures can it work in?
The castor is suitable for use from -40°C to +60°C.
