- Load per castor600kg per castor
- Wheel diameter100mm (twin)
- Overall height140mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Swivel Gantry Castor
- Wheel Diameter
- 100mm (twin)
- Wheel Material
- Polyurethane on Cast Iron
- Wheel Colour
- Brown
- Tread Width
- 2 x 40mm
- Bearing Type
- Ball Bearing
- Load Capacity
- 600kg per castor
- Top Plate Size
- 135 x 110mm
- Bolt Hole Centres
- 105 x 80mm
- Bolt Hole Diameter
- 12mm
- Overall Height
- 140mm
- Housing
- Fabricated Welded Steel
Will it fit?
- Bolt hole105 x 80mm
- Overall height140mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

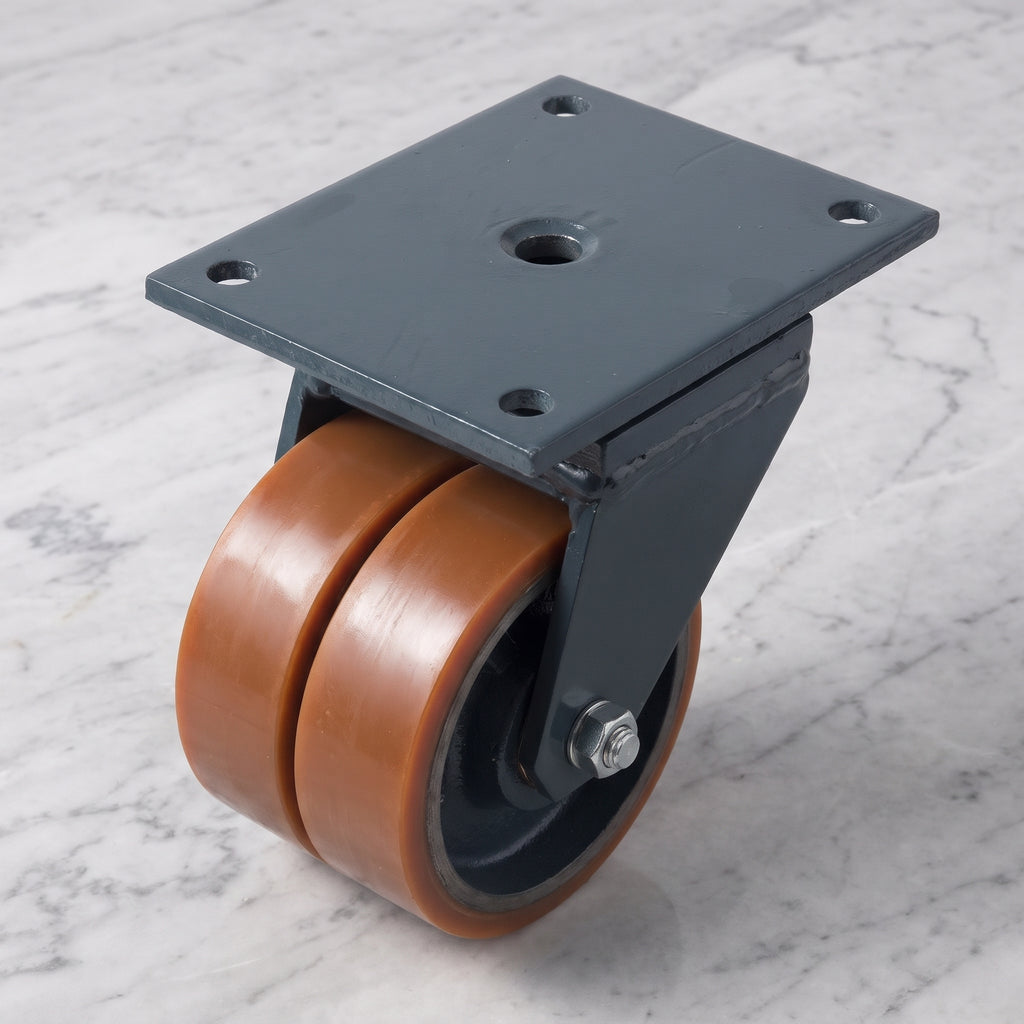

Heavy Duty Twin Wheel Gantry Castor
This 100mm twin wheel swivel gantry castor carries up to 600kg per castor on two brown polyurethane on cast iron wheels side by side. A heavy fabricated, welded steel housing and ball bearing swivel head make it built for gantries, machine bases and heavy industrial trolleys.
The twin wheels spread the load across two 40mm treads, so the castor turns more easily under weight and is kinder to floors than a single wheel. A strong 135 x 110mm top plate with four 12mm holes bolts flat under the frame, and the overall height is 140mm.
Why Choose This Castor
- ✓ 600kg load capacity per castor
- ✓ Twin wheels for easier steering and better load spread
- ✓ Polyurethane on cast iron wheels: tough, quiet and floor friendly
- ✓ Heavy fabricated, welded steel housing
- ✓ Ball bearing swivel head for smooth turning
- ✓ Strong 135 x 110mm top plate with 12mm holes
Load capacity is per castor. For a set of four, allow for uneven floors by planning on three castors carrying the load.
Where It Works Best

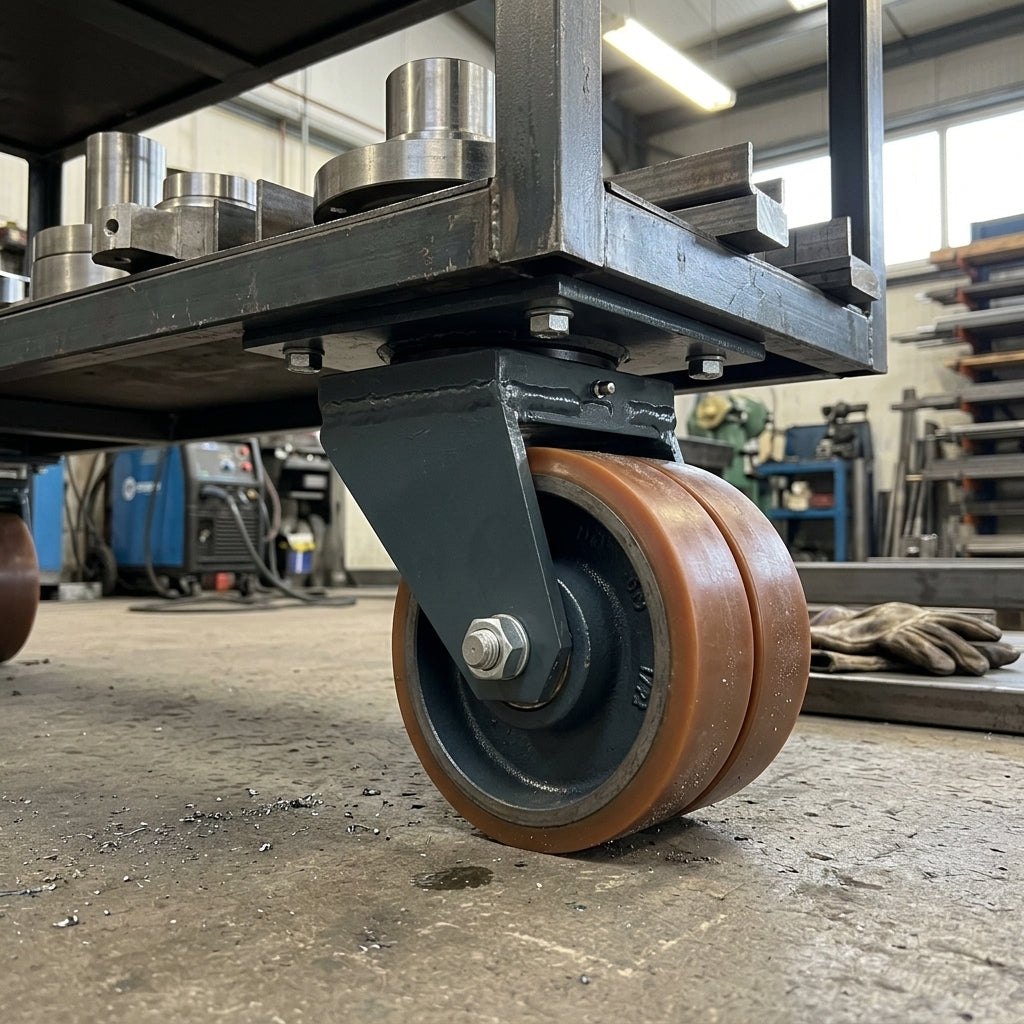

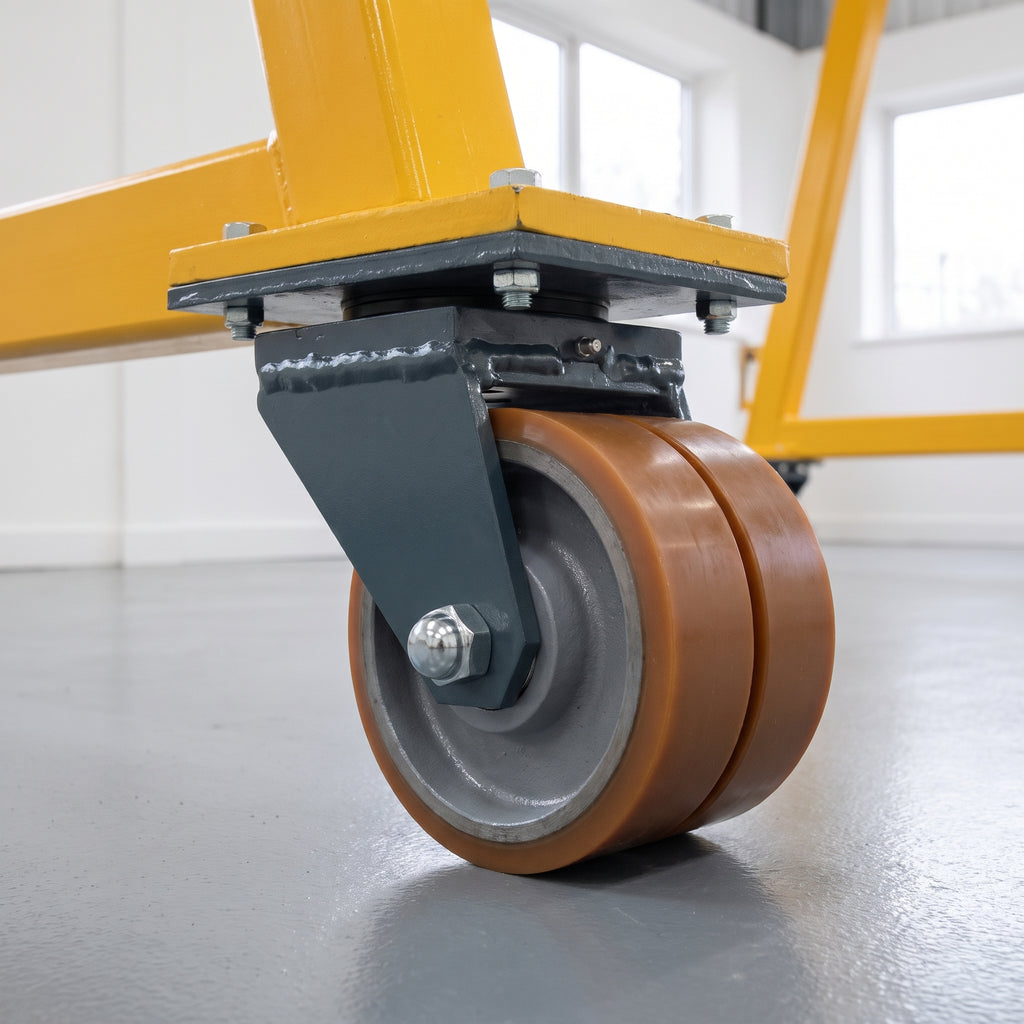

Mobile gantry cranes, heavy machine bases, die and mould trolleys, engineering and fabrication trolleys, industrial platforms and heavy equipment that is moved by hand. Best on smooth hard floors such as sealed concrete and epoxy.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated at 600kg. A set of four is best used for loads up to around 1800kg, allowing for uneven floors.
Why choose twin wheels?
Two wheels share the load, spread it over a wider footprint and turn more easily under heavy weight than a single wide wheel.
What size bolts do I need?
The 135 x 110mm top plate has four 12mm holes on 105 x 80mm centres, so M10 or M12 bolts with nuts and washers are the right fit.
Will it mark my floor?
The brown polyurethane treads are non-marking on most smooth floors and much quieter than steel or nylon wheels.
How tall is the castor once fitted?
The overall height from floor to top plate is 140mm.
