- Load per castor900kg per castor
- Wheel diameter100mm
- Overall height147mm
- WheelPolyurethane on cast iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Twin Wheel Fixed Gantry Castor, Top Plate
- Housing
- Fabricated steel
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on cast iron
- Wheel Colour
- Orange
- Tread Width
- 50mm
- Bearing Type
- Ball bearing
- Load Capacity
- 900kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Size
- 135 x 110mm
- Plate Hole Centres
- 105 x 75mm
- Plate Hole Diameter
- 12mm
- Total Castor Height
- 147mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Gantry Castors (Twin Wheel / Fabricated)

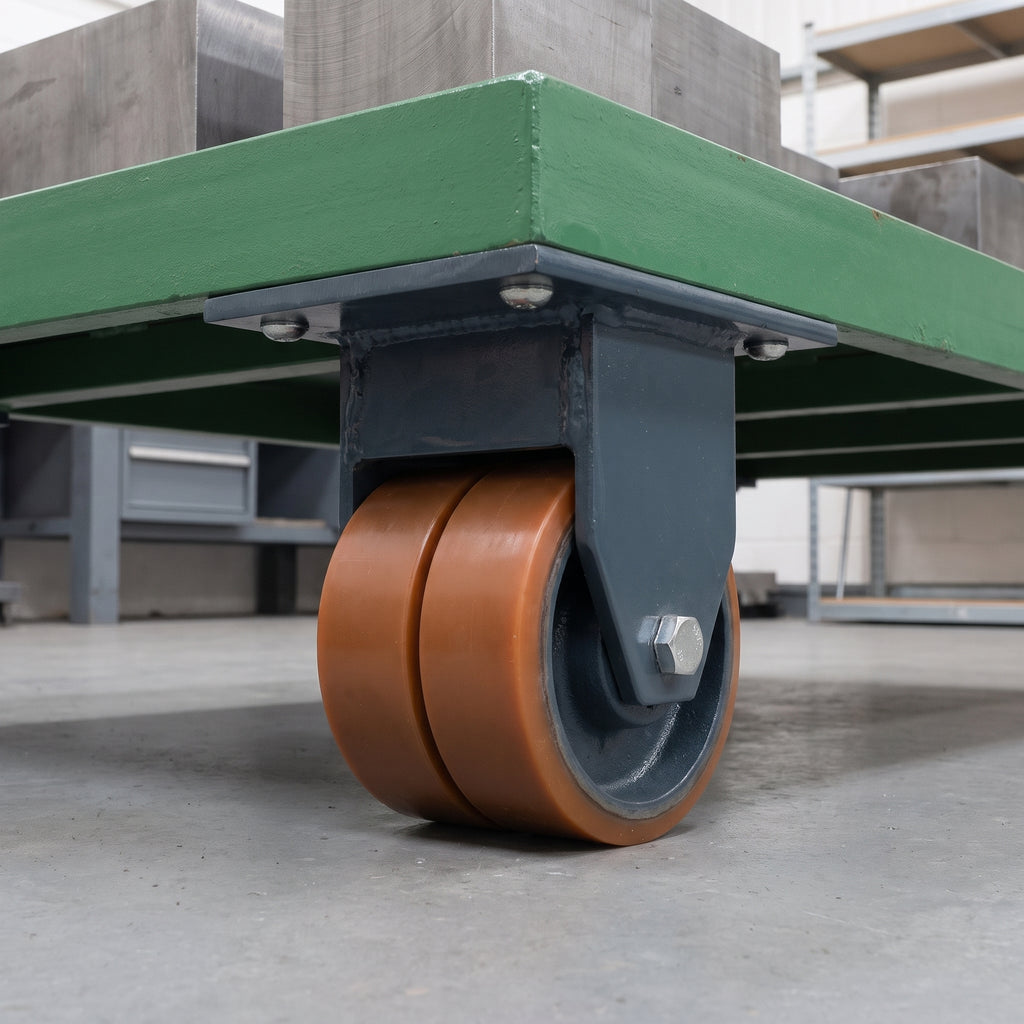

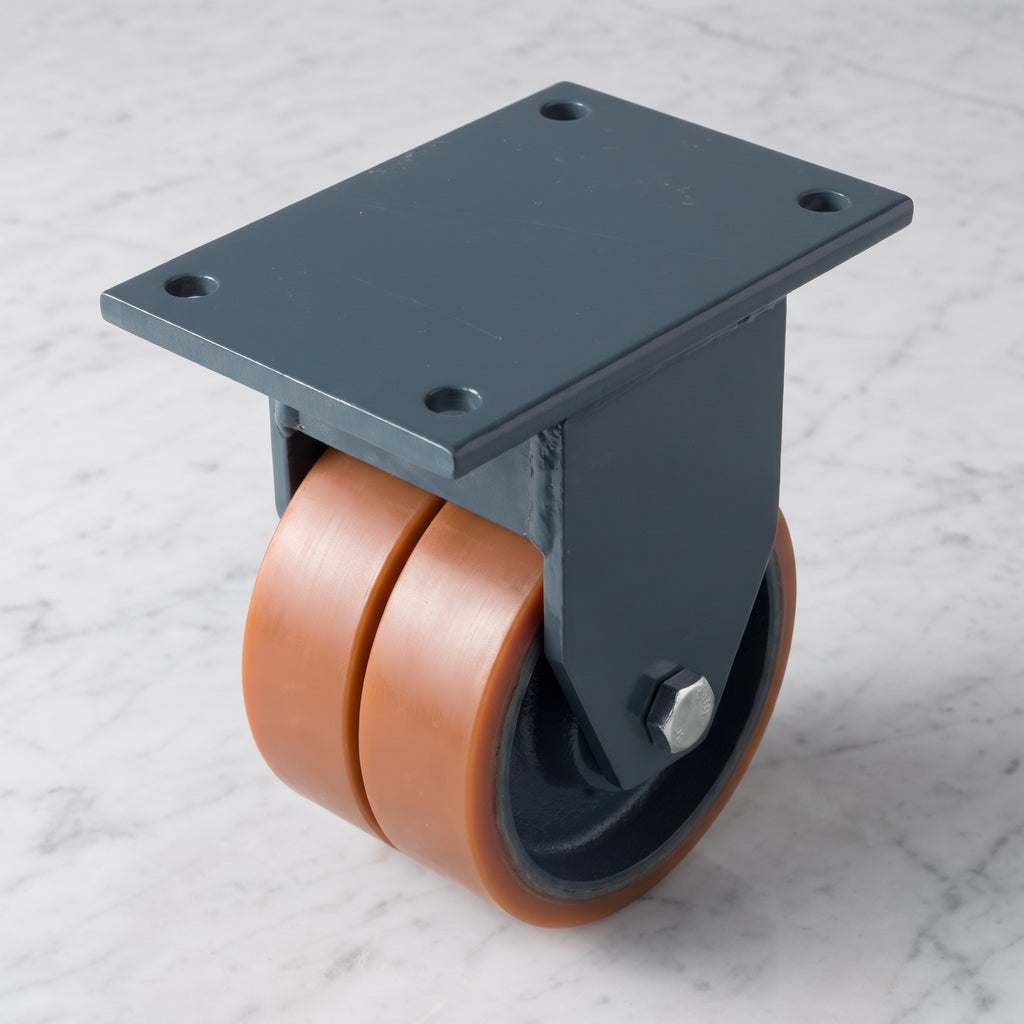

Built for the heaviest jobs on the shop floor. This 100mm fixed gantry castor runs on twin orange polyurethane wheels with cast iron centres in a heavy fabricated steel bracket, carrying up to 900kg per castor. Its fixed design keeps a steady, straight direction of travel, ideal for warehouse trolleys, industrial carts and factory equipment.
The hard polyurethane treads suit smooth, hard floors and give a total tread width of 50mm, while ball bearings reduce friction for easy rolling. The castor fixes with a 135 x 110mm top plate with 12mm holes on 105 x 75mm centres and stands 147mm tall. Pair it with matching swivel castors for steering. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ 900kg load capacity per castor for heavy-duty equipment.
- ✓ Twin polyurethane on cast iron wheels with a 50mm total tread to spread the load.
- ✓ Fixed fabricated steel bracket for straight, stable tracking under heavy loads.
- ✓ Ball bearings for smooth rotation with less effort.
- ✓ 135 x 110mm top plate for a secure fixing to flat surfaces.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 100mm twin wheel gantry castor suits:
- ✓ Warehouse trolleys: moving heavy loads in straight lines.
- ✓ Industrial carts: stable, directional movement.
- ✓ Factory equipment: machinery that needs fixed directional support.
Frequently Asked Questions
Does this castor swivel?
No. This is a fixed castor, so it keeps a straight line of travel. Fit it with matching swivel castors when you need to steer.
How much weight can this castor carry?
Each castor is rated for 900kg. Add up the castors fitted to your equipment to work out the total load.
Why twin wheels?

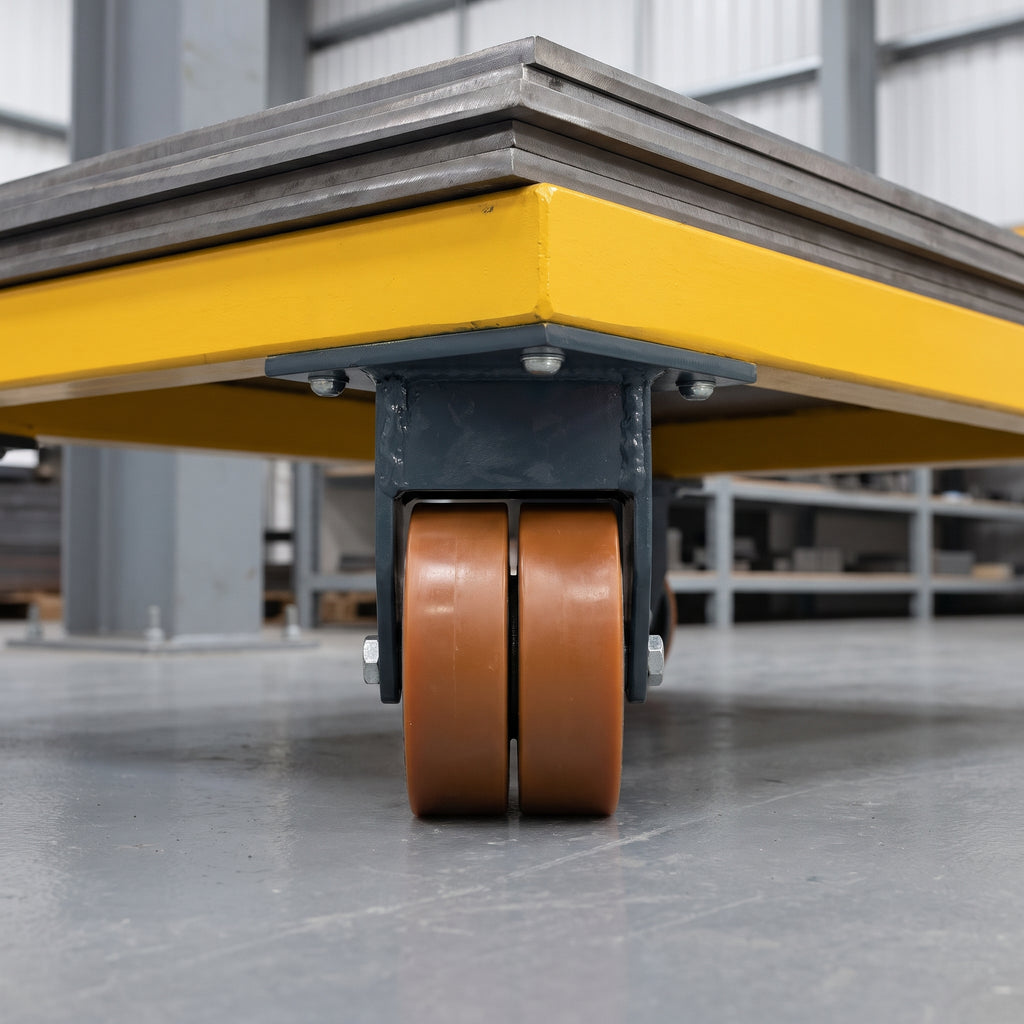

Two wheels side by side share the load, so the castor carries more weight and rolls more steadily than a single wheel of the same size.
How is the castor fitted?

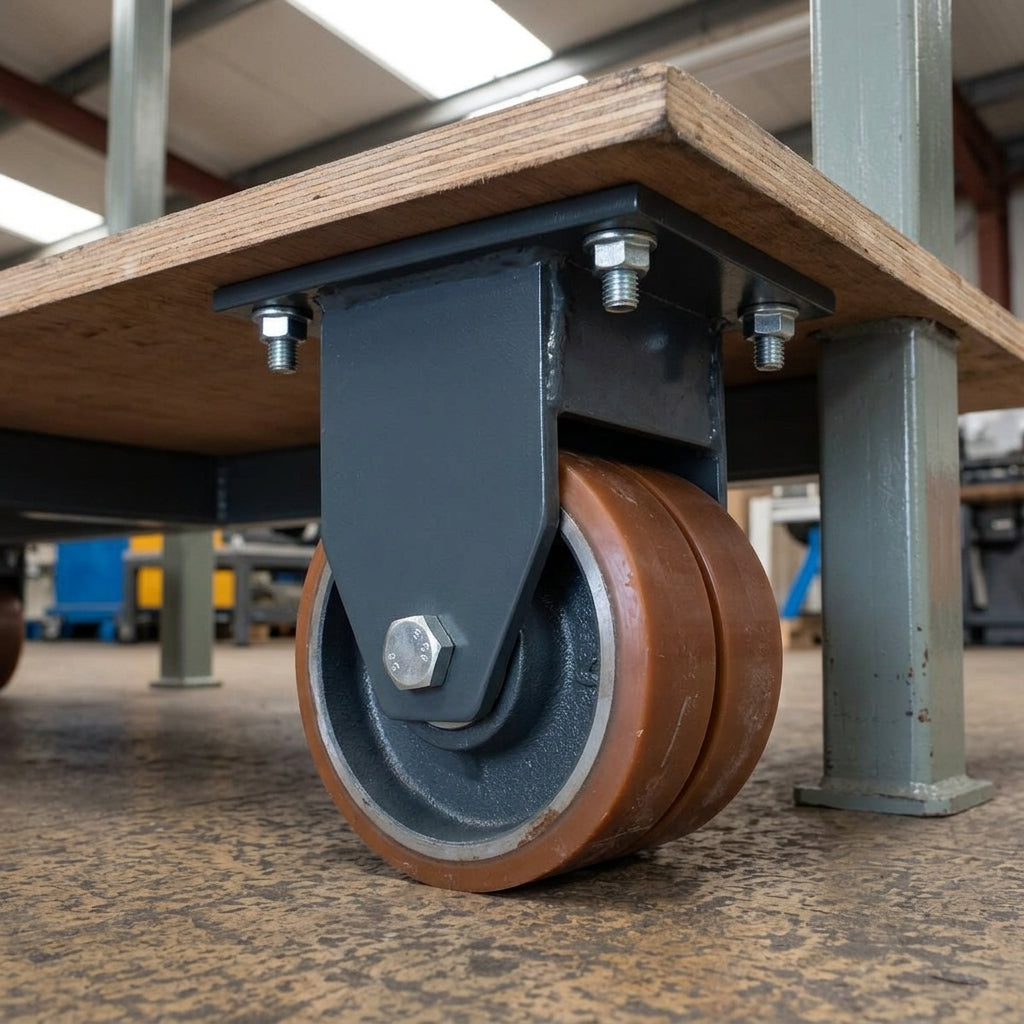

It has a 135 x 110mm top plate with four 12mm holes on 105 x 75mm centres, bolted to the underside of your equipment.
What are the wheels made of?
Orange polyurethane treads bonded to cast iron centres, running on ball bearings. The hard tread suits smooth, hard floors.
How tall is the castor?
The castor is 147mm tall overall, from the floor to the top of the plate.
