- Load per castor110kg per castor
- Wheel diameter100mm
- Overall height127mm
- WheelPolyurethane on nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Swivel Castor with Directional Brake
- Housing
- Pressed steel
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on nylon
- Wheel Colour
- Red
- Tread Width
- 30mm
- Hardness of Tread
- 85 shore A
- Bearing Type
- Ball journal
- Brake
- Directional brake
- Load Capacity
- 110kg per castor
- Max Load Capacity of 4 Castors
- 330kg
- Fixing
- 4 bolt hole top plate
- Plate Size
- 100 x 85mm
- Plate Hole Centres
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Light Duty Thermoplastic Castors

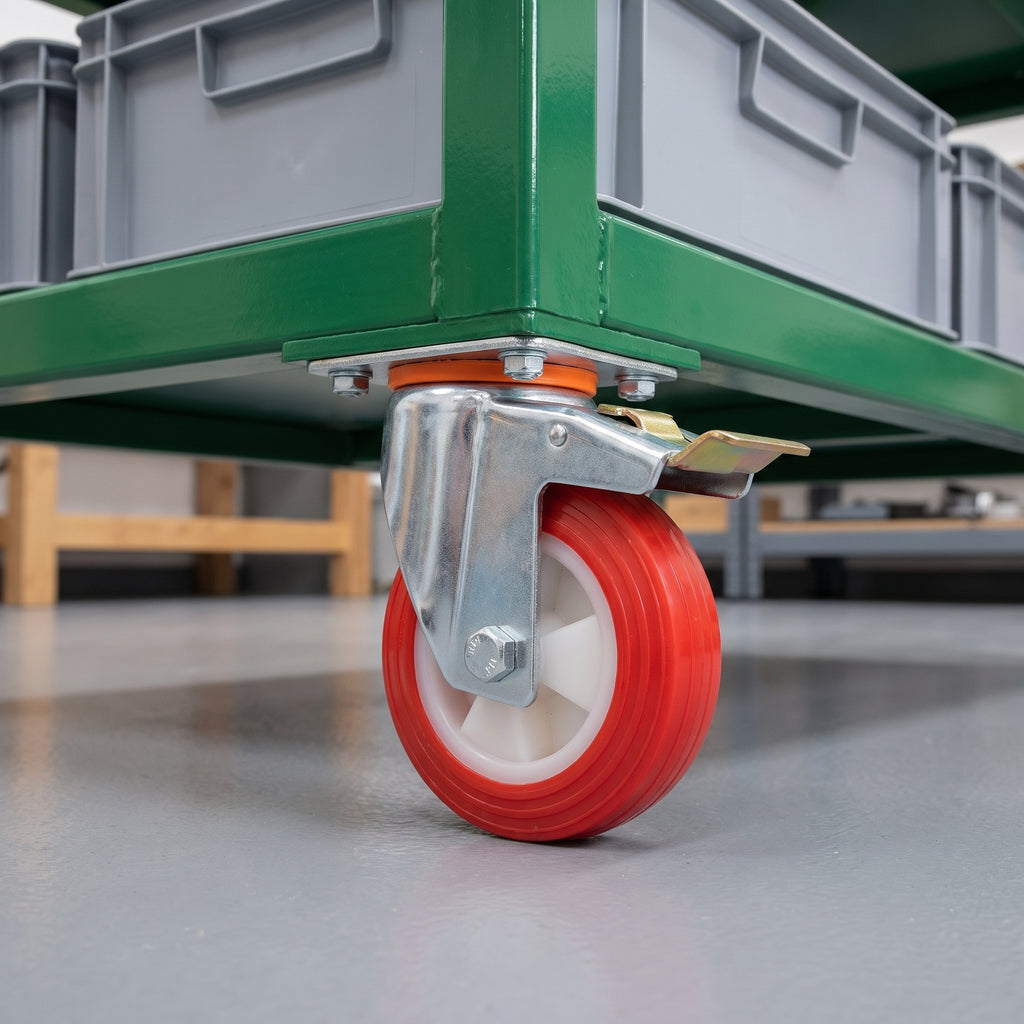

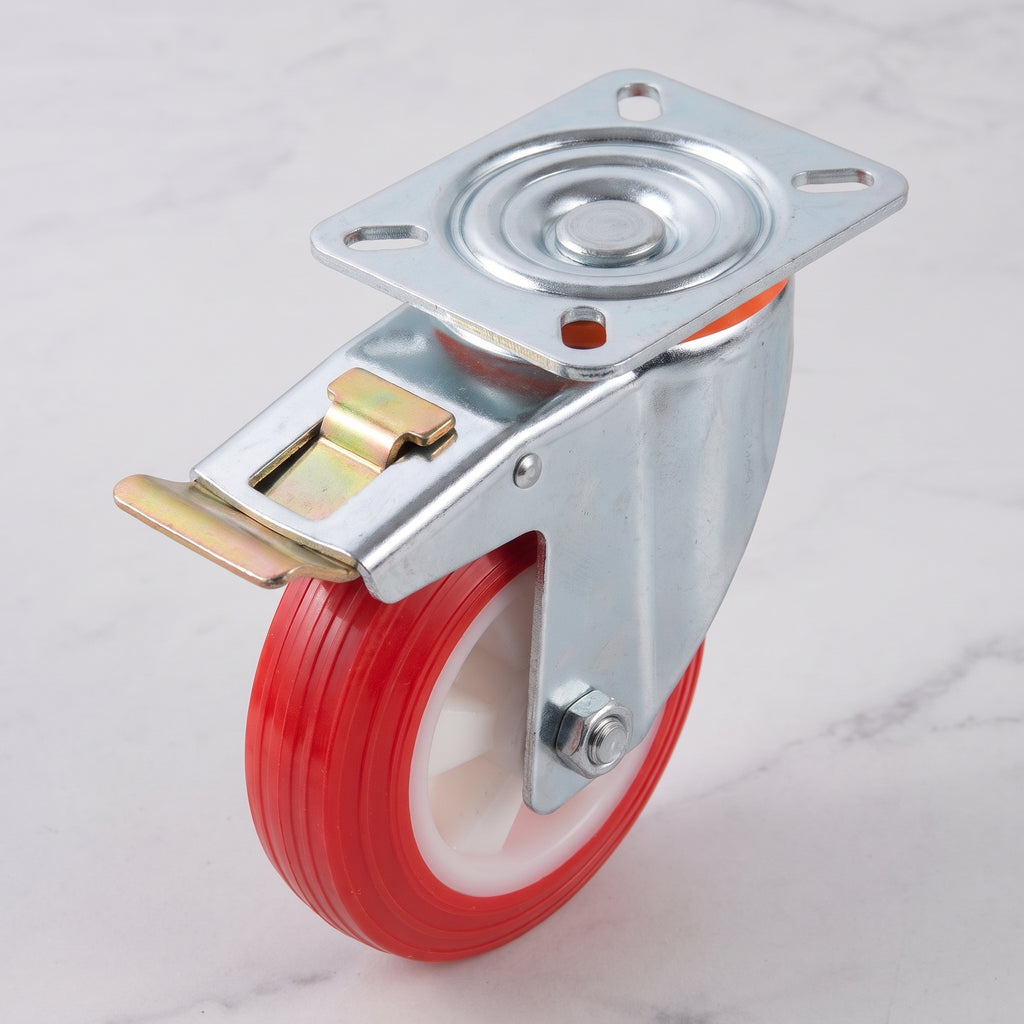

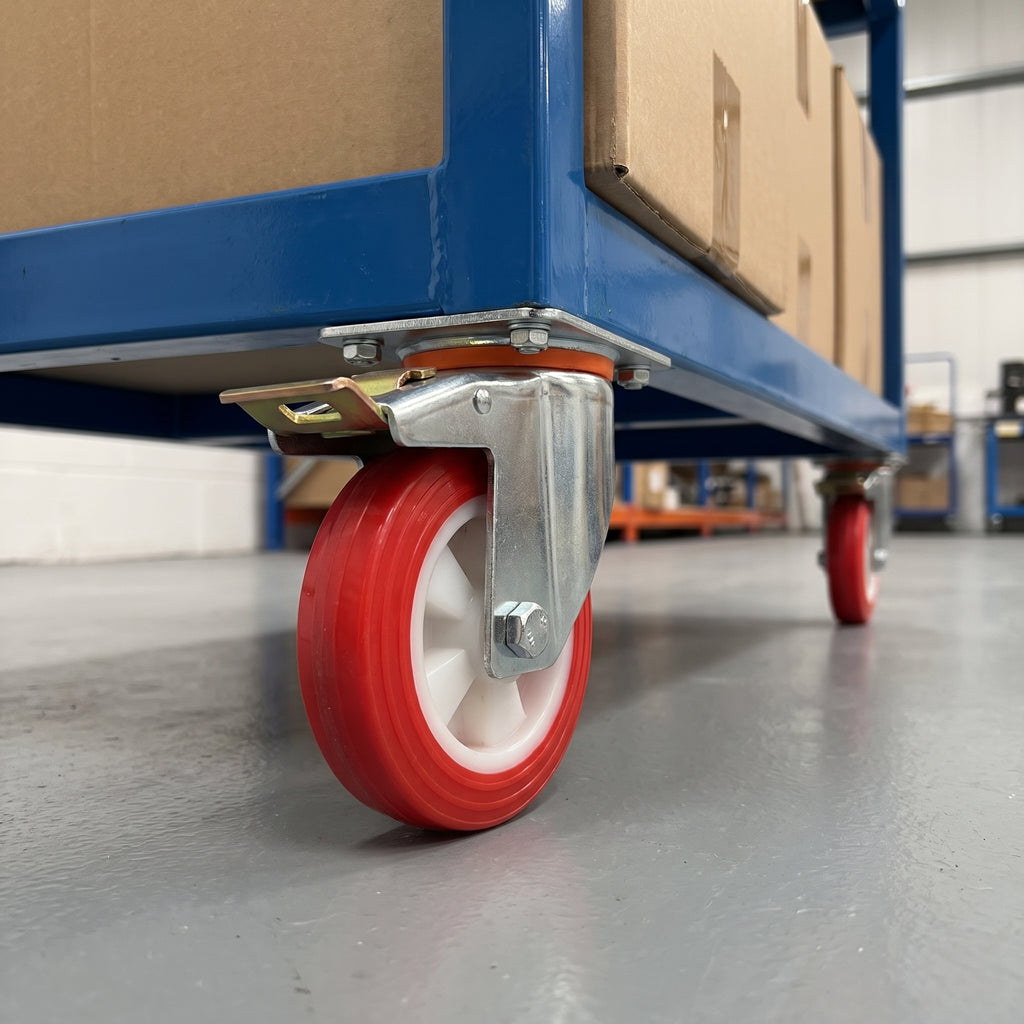

Move goods smoothly and keep them exactly where you park them. This 100mm pressed steel swivel castor pairs a red polyurethane tread on a nylon centre with a directional brake, giving easy steering and secure positioning for trolleys, shelving units and mobile displays. The ball journal bearing keeps the wheel turning smoothly, and each castor is rated for 110kg.
The 85 shore A polyurethane tread resists wear and rolls smoothly over warehouse, factory and shop floors. The castor fixes to your equipment with a 100 x 85mm top plate with 8mm holes on 60/80mm centres, and stands 127mm tall overall. Check the plate size and hole centres against your equipment before ordering.
Why Choose This Castor
- ✓ Directional brake secures your equipment and stops unwanted movement.
- ✓ Swivel castor easy steering and flexible positioning.
- ✓ Red polyurethane wheel 100mm polyurethane on nylon wheel with a 30mm tread.
- ✓ 85 shore A tread durable and resistant to wear.
- ✓ Ball journal bearing for smooth rotation with less friction.
- ✓ 110kg load capacity per castor, up to 330kg for a set of 4.
* Load capacity is per castor on a level surface. Check that the plate size and hole centres suit your equipment before fitting.
Where It Works Best
This 100mm braked swivel castor suits:
- ✓ Warehouse equipment: shelving units and trolleys for moving goods.
- ✓ Industrial machinery: machines that need mobility and stability.
- ✓ Retail displays: mobile display units for flexible store layouts.
- ✓ Furniture: office or home furniture that needs to move.
Frequently Asked Questions
What does the brake lock?
The directional brake is applied with the foot pedal to secure the castor in place and prevent unwanted movement.
How much weight can this castor carry?
Each castor is rated for 110kg, and a set of 4 castors can carry up to 330kg.
How is the castor fitted?
It has a 100 x 85mm top plate with 8mm holes on 60/80mm centres, bolted to the underside of your equipment.
What is the wheel made of?
A 100mm red polyurethane tread (85 shore A) on a nylon centre with a 30mm tread width, running on a ball journal bearing.
How tall is the castor?
The castor is 127mm tall overall, from the floor to the top of the plate.
