- Load per castor110kg *
- Wheel diameter100mm
- Overall height127mm
- WheelPolyurethane on Nylon
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Polyurethane on Nylon
- Wheel Colour
- Red
- Tread Width
- 30mm
- Hardness of Tread
- 85 shore A
- Bearing Type
- Ball Journal
- Load Capacity
- 110kg *
- Plate Length
- 100mm
- Plate Width
- 85mm
- Plate Hole Centres Width
- 60/80mm
- Plate Hole Diameter
- 10mm
- Total Castor Height
- 127mm
Will it fit?
- Top plate100mm × 85mm
- Fixing holeØ 10mm
- Overall height127mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs
Light Duty Top Plate Castors

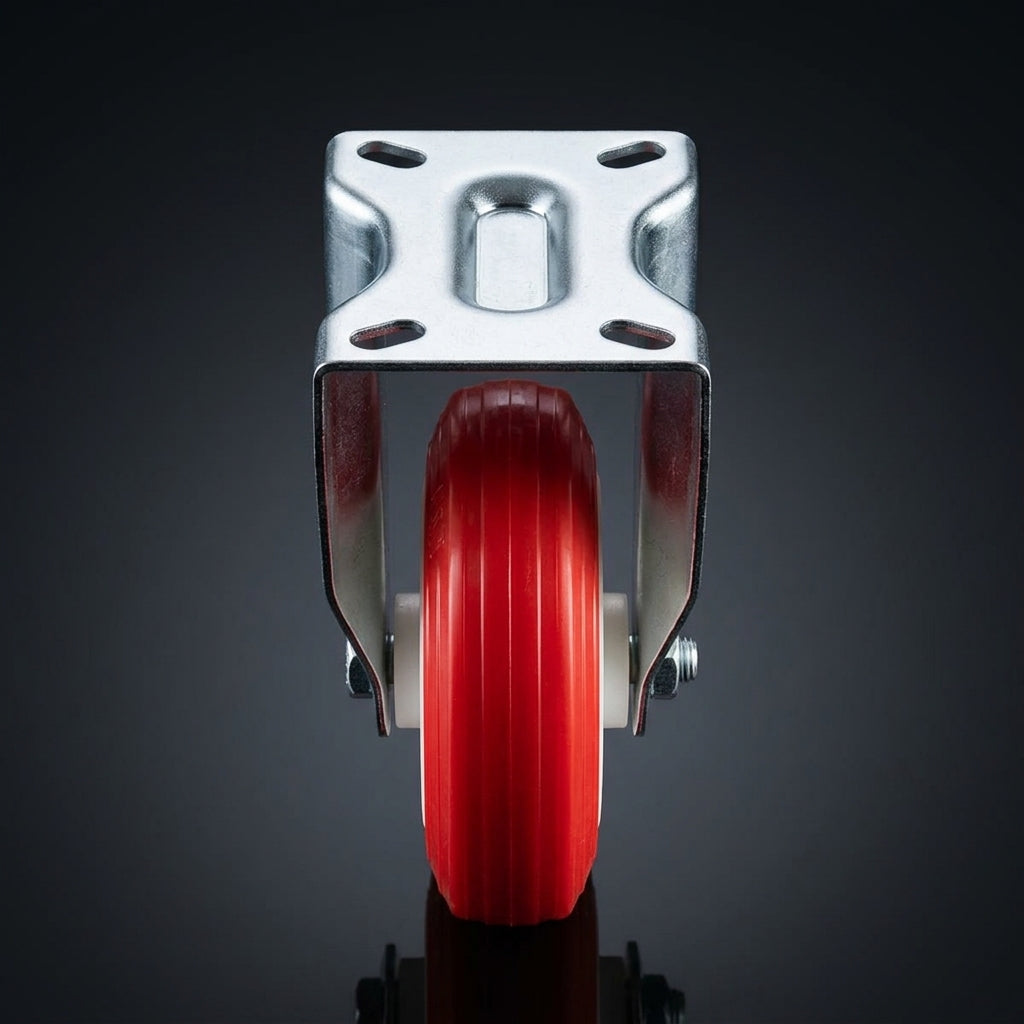

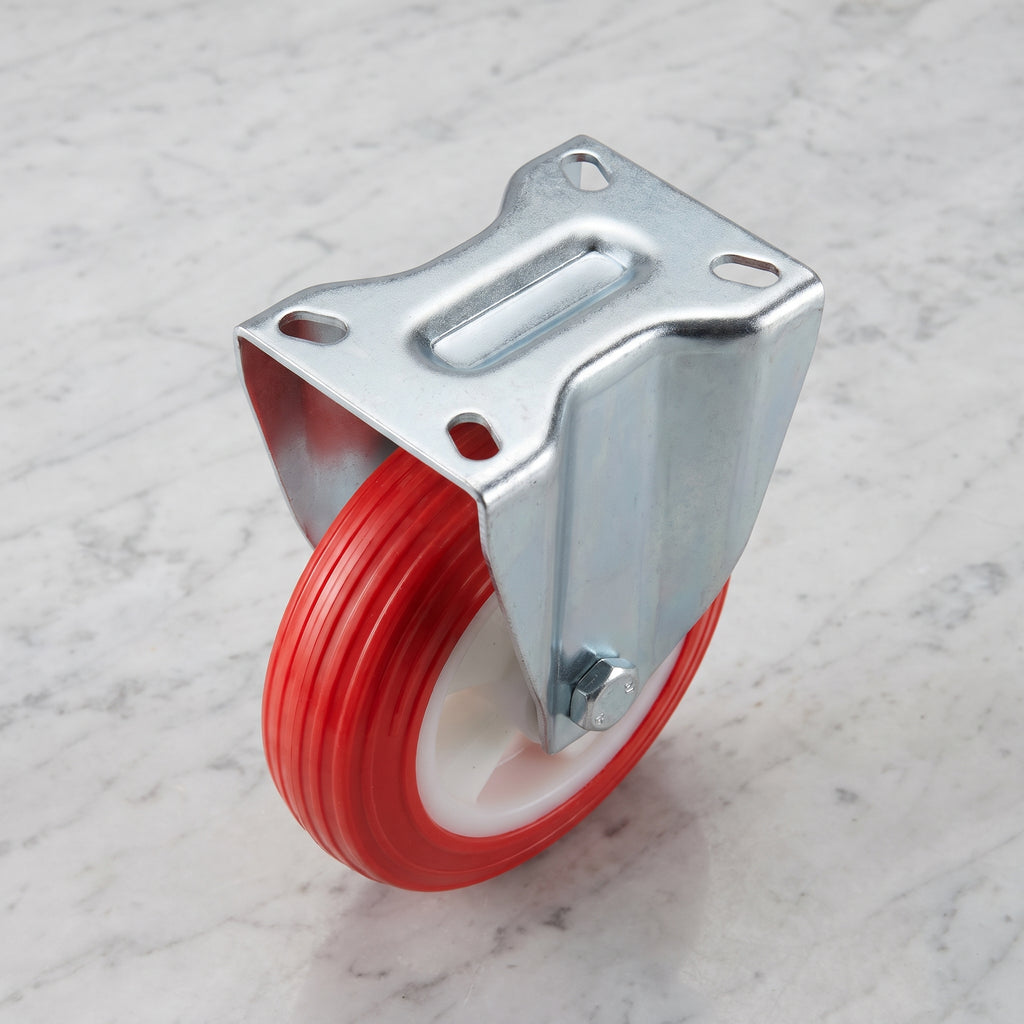

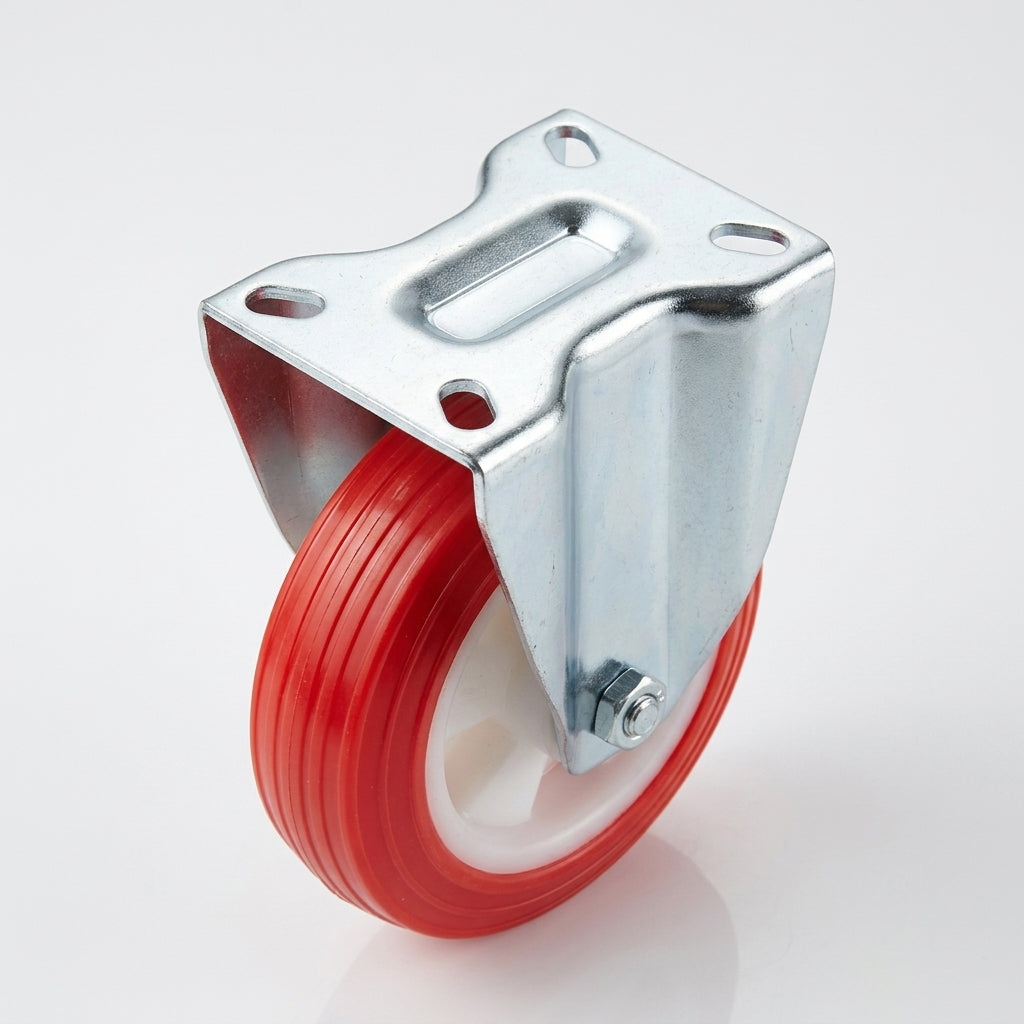

This 100mm pressed steel fixed castor with a red polyurethane on nylon wheel gives trolleys, carts and mobile units stable, straight-line movement. The fixed top plate castor carries up to 110kg per castor, and its polyurethane tread reduces friction and wear on floors while rolling smoothly in warehouses, workshops and retail spaces.
With a 100 x 85mm top plate, a ball journal bearing, a 30mm tread of 85 shore A hardness and a total height of 127mm, this rigid castor is easy to fit and suits warehouse trolleys, retail display units, mobile workstations and furniture. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Fixed design for stability while manoeuvring loads
- ✓ Red polyurethane on nylon wheel that reduces friction and wear on floors
- ✓ 110kg load capacity per castor for industrial and commercial use
- ✓ 85 shore A tread for a firm grip with smooth operation
- ✓ Ball journal bearing for smooth rotation
- ✓ 100 x 85mm top plate with 60/80mm hole centres for flexible fitting
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best

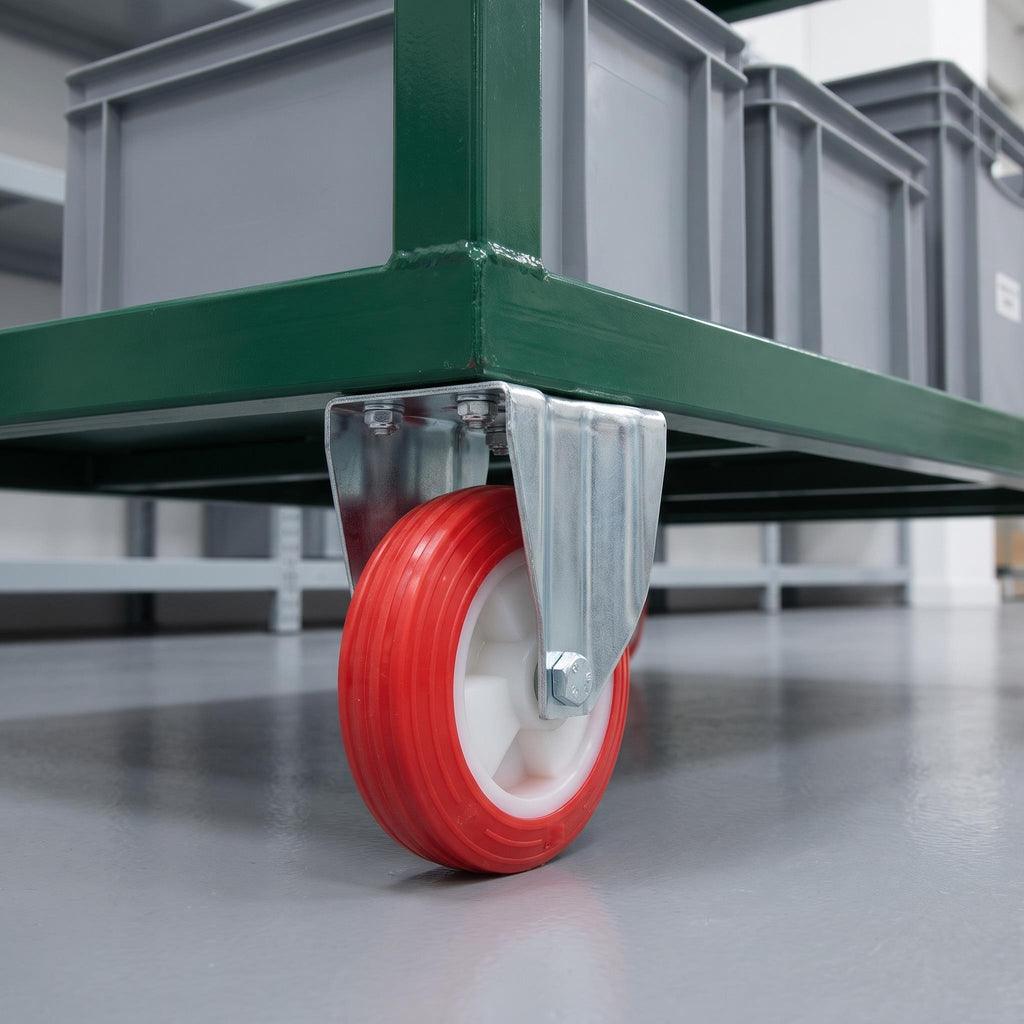

- ✓ Warehouse equipment: trolleys and carts for transporting goods
- ✓ Retail displays: moving display units and merchandise around the store
- ✓ Workshop tools: mobile workstations and tool storage
- ✓ Furniture mobility: moving heavy furniture in commercial and residential settings
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed (rigid) castor that rolls in a straight line. Use it with swivel castors at the other end of your trolley for easy steering.
How much weight can it carry?
Each castor is rated at 110kg. Add up the rating of all the castors on your trolley to find the total capacity.
Will the wheel damage my floor?
The polyurethane tread on a nylon centre is designed to reduce friction and wear on floors.
How is the castor fitted?
It has a 100 x 85mm top plate with 10mm holes on 60/80mm hole centres, which you bolt to the underside of your trolley or unit.
How tall is the castor?
The total castor height is 127mm.
