- Load per castor75kg per castor
- Wheel diameter100mm
- Overall height127mm
- WheelRubber on pressed steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Swivel Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on pressed steel
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Tread Hardness
- 85 shore A
- Bearing Type
- Ball journal
- Load Capacity
- 75kg per castor
- Fixing
- 4 bolt hole top plate
- Plate Length
- 100mm
- Plate Width
- 85mm
- Plate Hole Centres (Width)
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Will it fit?
- Top plate100mm × 85mm
- Fixing holeØ 8mm
- Overall height127mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs
Light Duty Top Plate Castors

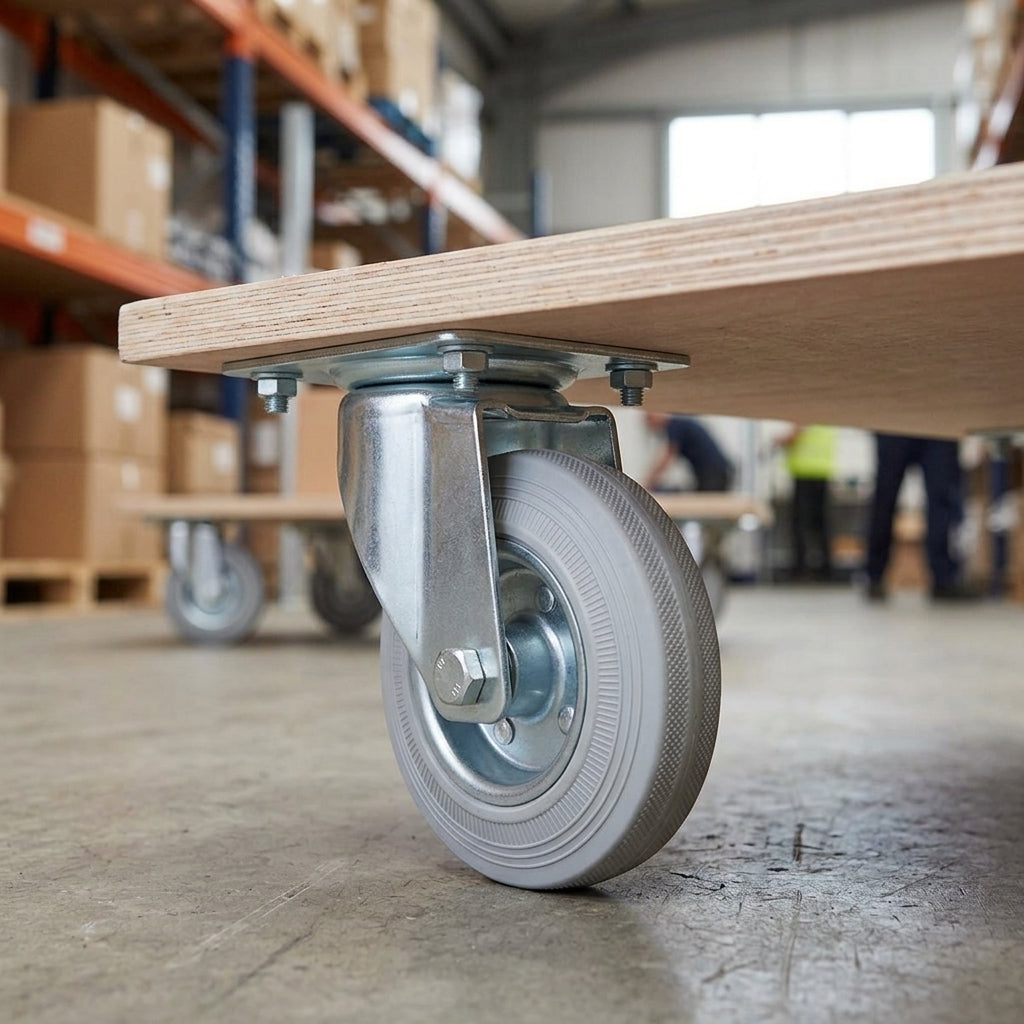

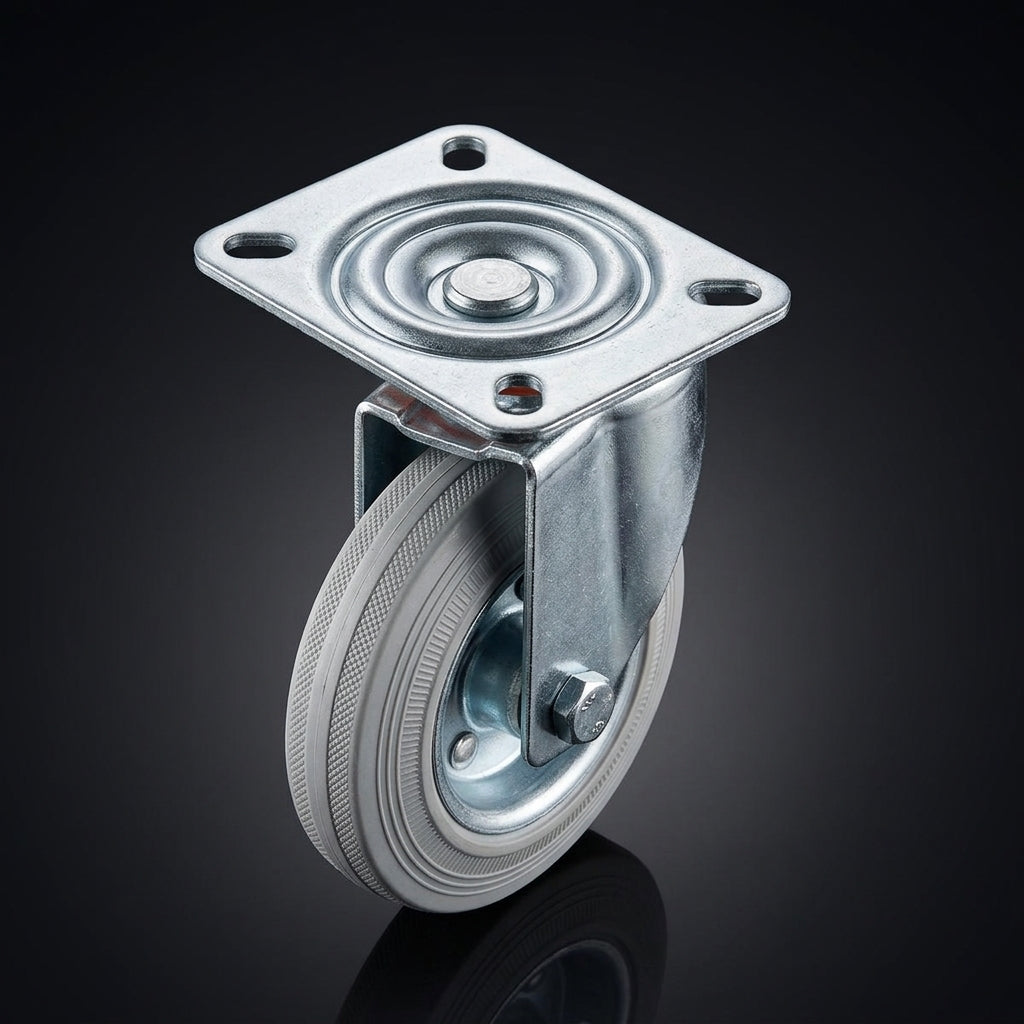

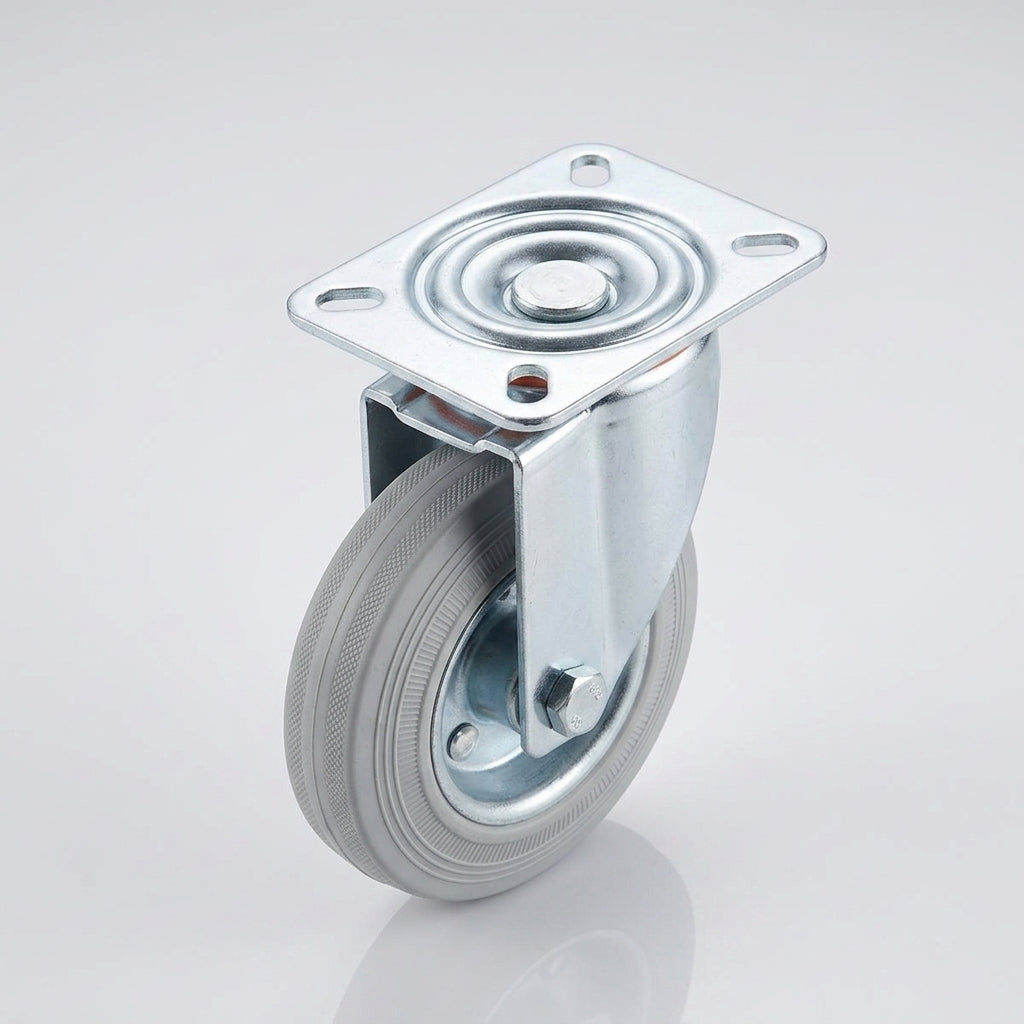

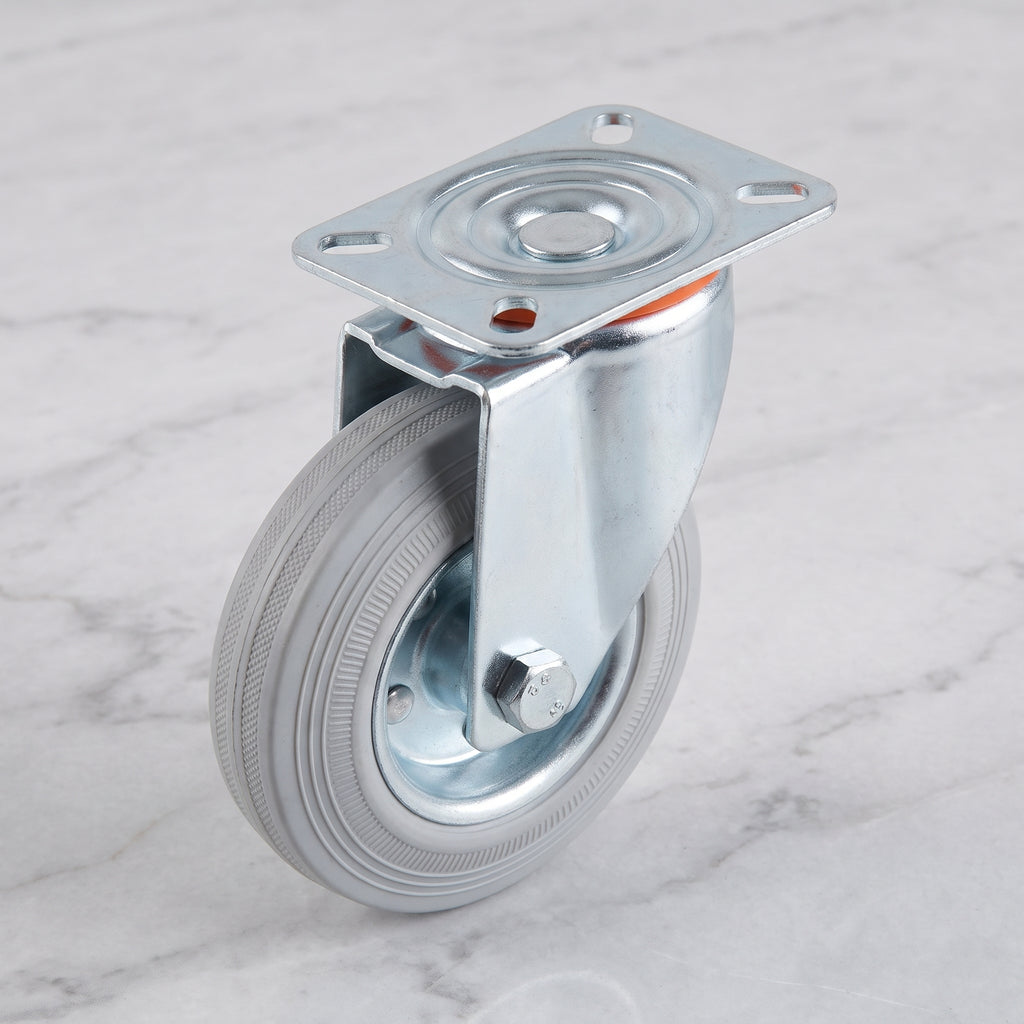

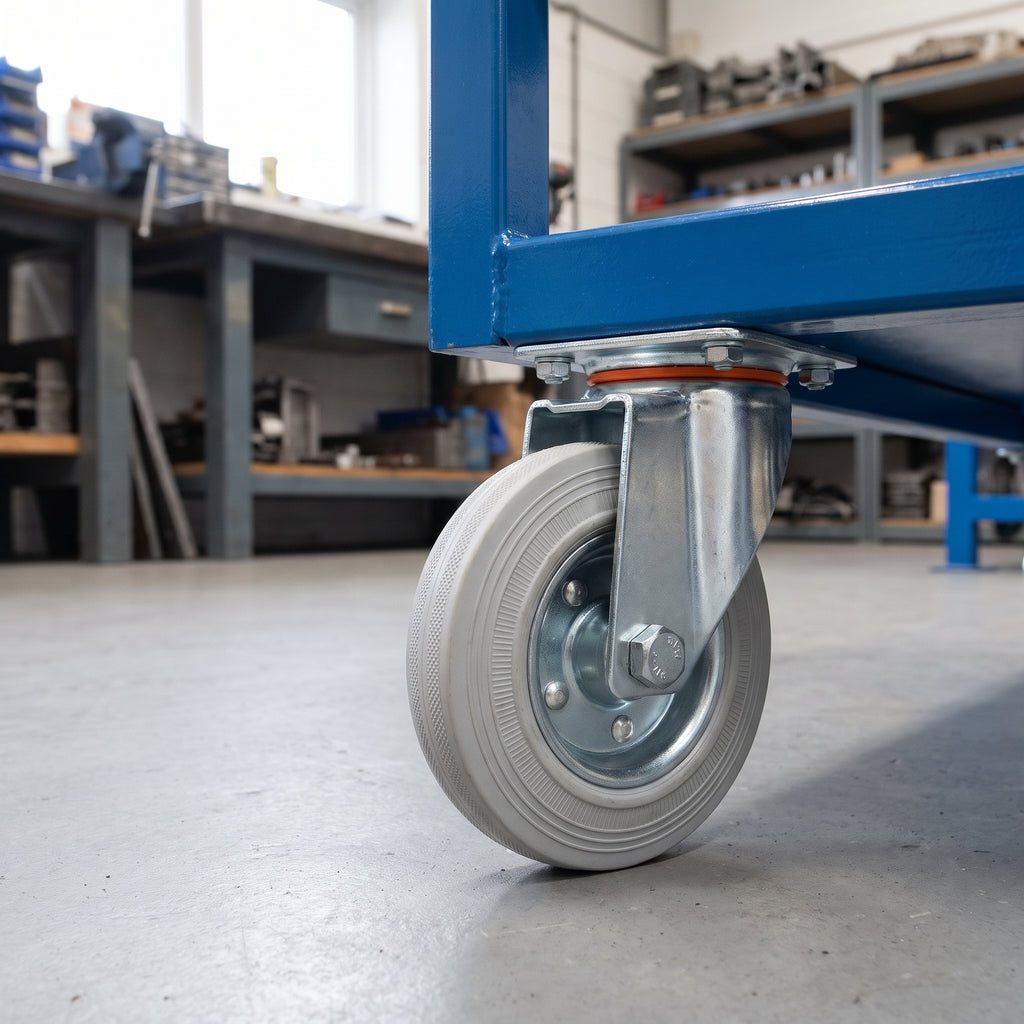

Move furniture, trolleys and carts smoothly in any direction. This 100mm pressed steel swivel castor has a grey rubber tyre on a strong pressed steel centre, giving grip and a smooth ride while the robust pressed steel bracket adds durability and stability. It runs on a ball journal bearing for easy rolling, and each castor is rated for 75kg.
It fits with a 100 x 85mm top plate with 8mm bolt holes on 60/80mm centres, and stands 127mm tall. The 30mm grey rubber tread, with a hardness of 85 shore A, balances grip and wear resistance on a wide range of floors. Check the plate size, hole centres and height against your equipment before ordering.
Why Choose This Castor
- ✓ Swivel design easy steering and repositioning in tight spaces.
- ✓ Grey rubber on pressed steel wheel a grey rubber tyre on a strong steel centre for grip and a smooth ride.
- ✓ Pressed steel construction a robust bracket for durability and stability.
- ✓ Ball journal bearing smooth rotation with reduced effort.
- ✓ 100 x 85mm top plate 8mm bolt holes on 60/80mm centres for flexible mounting.
- ✓ 75kg load capacity per castor for light duty applications.
* Load capacity is per castor on a level surface. Check that the plate size, hole centres and 127mm height suit your equipment before fitting.
Where It Works Best
This swivel castor suits:
- ✓ Furniture moving: office and home furniture that needs easy relocation.
- ✓ Material handling: carts and trolleys in warehouses and factories.
- ✓ Retail displays: display stands and merchandise units.
- ✓ Workshop equipment: tool carts and mobile workstations.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 75kg. Add up the castors fitted to your equipment to work out the total load.
What is the wheel made of?
A grey rubber tyre on a pressed steel centre, 100mm in diameter with a 30mm tread and a hardness of 85 shore A.
What size is the top plate?
The top plate is 100 x 85mm with 8mm bolt holes on 60/80mm centres.
How tall is the castor?
The total castor height is 127mm.
Does this castor swivel?
Yes. The swivel head lets you steer and reposition your equipment easily. Pair it with fixed castors for straight-line tracking.
What bearing does it use?
A ball journal bearing, for smooth rotation and easy rolling.
* This product does not have free shipping.
