- Load per castor75kg *
- Wheel diameter100mm
- Overall height127mm
- WheelRubber on Pressed Steel
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Material
- Rubber on Pressed Steel
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Hardness of Tread
- 85 shore A
- Bearing Type
- Ball Journal
- Load Capacity
- 75kg *
- Max Load Capacity of 4 Castors
- 220kg
- Plate Length
- 100mm
- Plate Width
- 85mm
- Plate Hole Centres Width
- 60/80mm
- Plate Hole Diameter
- 8mm
- Total Castor Height
- 127mm
Will it fit?
- Top plate100mm × 85mm
- Fixing holeØ 8mm
- Overall height127mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

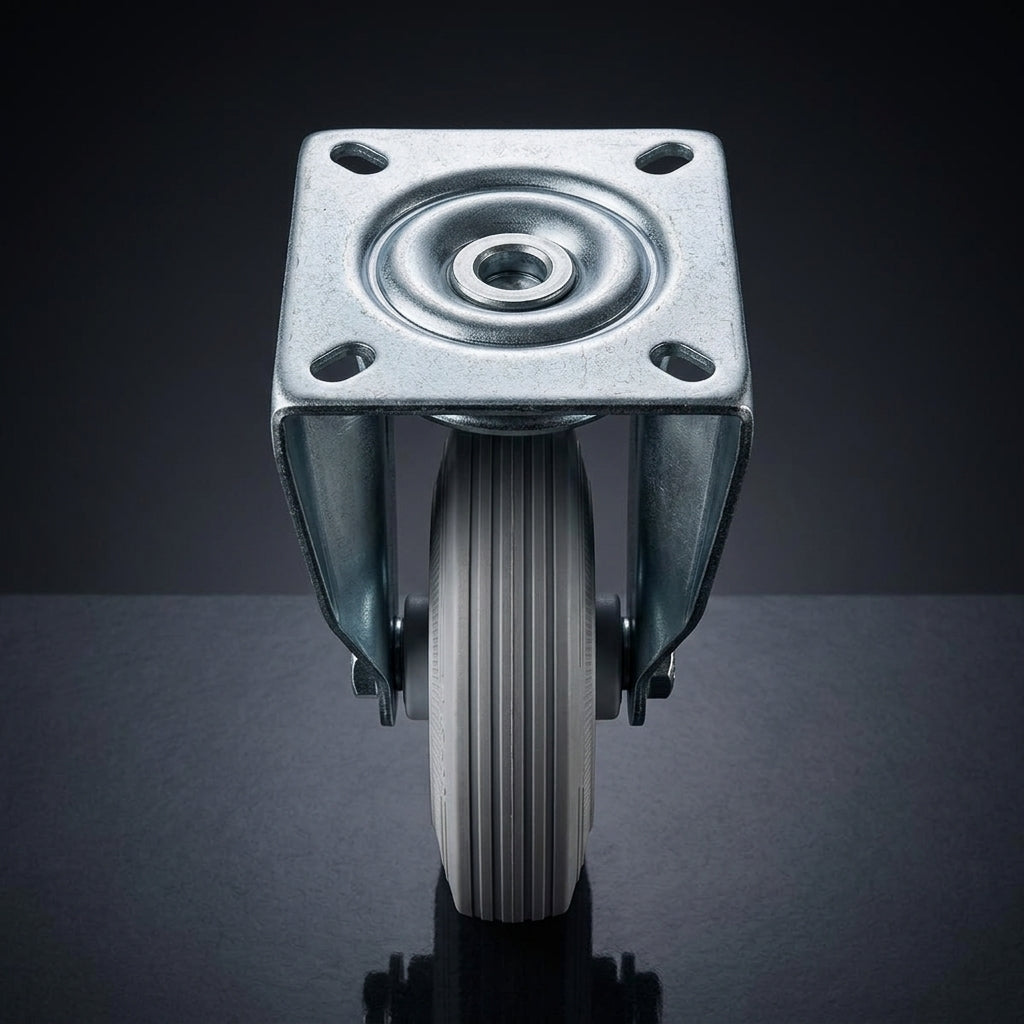

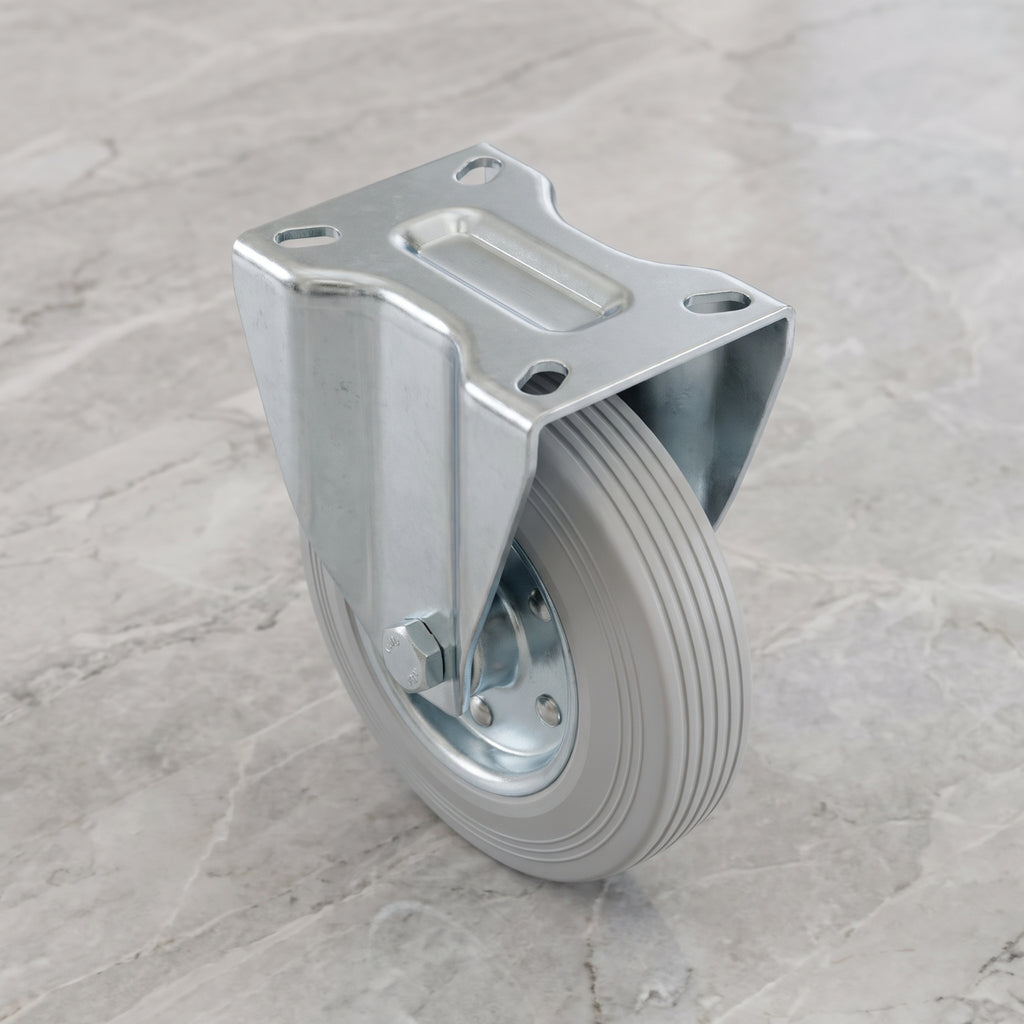

Light Duty Top Plate Castors
This 100mm pressed steel fixed castor with a grey rubber wheel is a dependable choice for trolleys, carts and mobile shelving that need to run straight and steady. The fixed top plate castor carries up to 75kg per castor, and its grey rubber tyre on a pressed steel centre helps protect floors while rolling smoothly across concrete, tile and other surfaces.
With a 100 x 85mm top plate, a ball journal bearing, a 30mm tread of 85 shore A hardness and a total height of 127mm, this rigid castor is easy to fit and ideal for warehouses, workshops, retail spaces and commercial furniture moving. Pair it with matching swivel castors for easy steering.
Why Choose This Castor
- ✓ Fixed design for straightforward, stable movement in straight lines
- ✓ Grey rubber on pressed steel wheel for a balance of strength and floor protection
- ✓ 75kg load capacity per castor, 220kg for a set of 4
- ✓ 85 shore A tread that stands up to regular use
- ✓ Ball journal bearing for smooth rolling
- ✓ 100 x 85mm top plate with 60/80mm hole centres for flexible fitting
* Load capacity is per castor. For safe use, choose castors whose combined rating comfortably exceeds the weight of your equipment and its load.
Where It Works Best
- ✓ Industrial equipment: moving machinery and tools in factories
- ✓ Transport carts: carts for moving goods in retail settings
- ✓ Warehouse racking systems: mobile shelving units that need stability and easy movement
- ✓ Furniture moving: relocating heavy furniture in commercial spaces
Frequently Asked Questions
Does this castor swivel?
No. It is a fixed (rigid) castor that rolls in a straight line. Use it with swivel castors at the other end of your trolley for easy steering.
How much weight can it carry?
Each castor is rated at 75kg, and a set of 4 castors has a maximum load capacity of 220kg.
Will the wheel mark my floor?
The grey rubber tyre is designed to minimise floor damage while rolling smoothly on surfaces such as concrete and tile.
How is the castor fitted?
It has a 100 x 85mm top plate with 8mm holes on 60/80mm hole centres, which you bolt to the underside of your trolley or unit.
How tall is the castor?
The total castor height is 127mm.
