- Load per castor70kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelElectrically conductive rubber
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Type
- Anti-static rubber tyre
- Wheel Material
- Electrically conductive rubber
- Wheel Colour
- Black
- Tread Width
- 22mm
- Hardness of Tread
- A80
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 101 x 85mm
- Hole Centres
- 80 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 70kg per castor
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -20°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

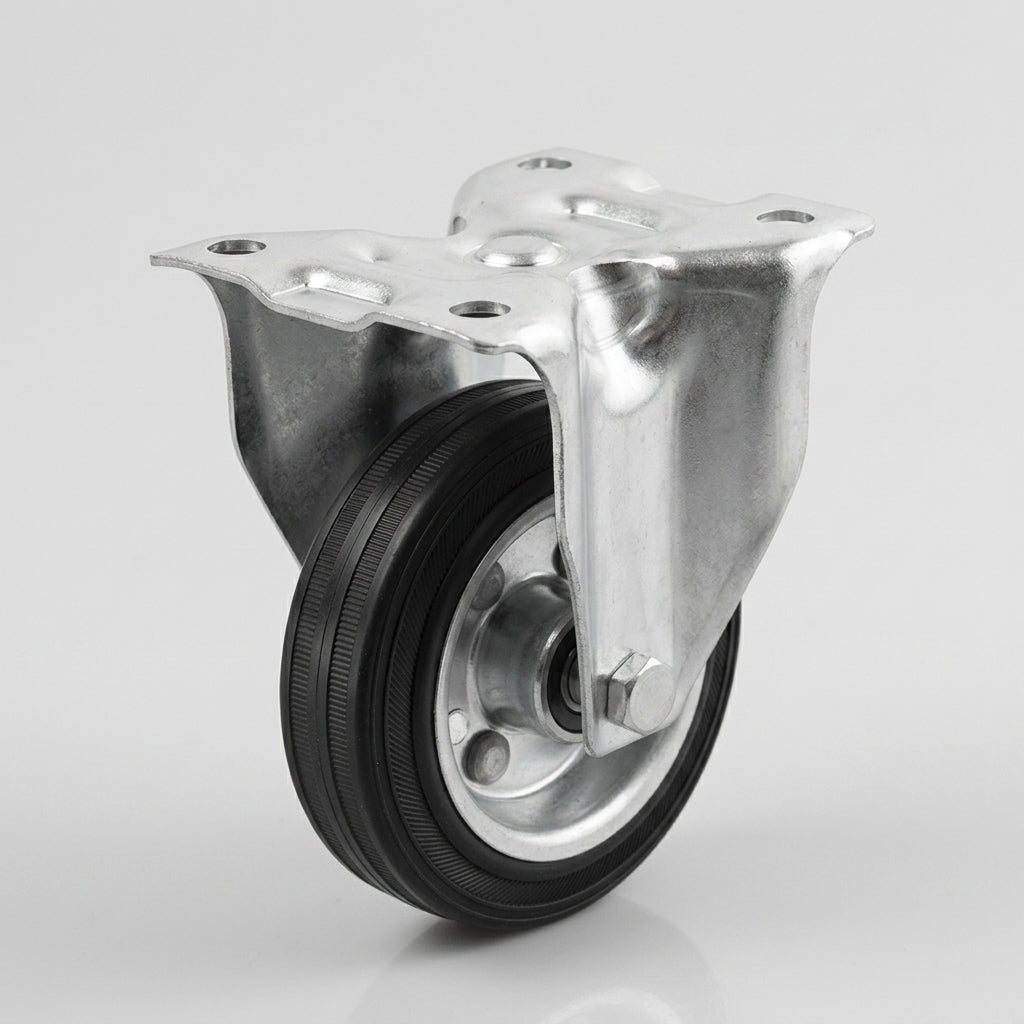

Anti-Static Fixed Castors
Fitted with a 100mm wheel made from electrically conductive rubber, this fixed castor helps stop static building up on your trolley or equipment. It has a load capacity of 70kg per castor and rolls in a straight line, which makes steering steady when paired with swivel castors. It suits electronics manufacturing, laboratory equipment and clean rooms.
The A80 rubber tread gives a good balance of grip and durability, and the roller bearing keeps movement smooth. This top plate castor fixes with a 101 x 85mm plate, stands 128mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ Anti-static rubber wheel that helps dissipate static charge.
- ✓ Fixed design for straight, stable travel.
- ✓ Black rubber tread with A80 hardness for grip and durability.
- ✓ 70kg load capacity per castor.
- ✓ Roller bearing for smooth rolling.
- ✓ 100mm wheel with 22mm tread for steady movement.
- ✓ 101 x 85mm top plate with four 8mm holes.
* Load capacity is per castor on a smooth, level floor. For static control to work, the floor should also be conductive. Check that the plate size and hole centres suit your mounting area before fitting.
Where It Works Best
This anti-static fixed castor suits areas where static needs to be controlled:
- ✓ Electronics manufacturing: used where static discharge must be controlled.
- ✓ Laboratory equipment: fitted to trolleys and carts carrying sensitive materials.
- ✓ Clean rooms: used in areas that need anti-static properties.
Frequently Asked Questions
What does anti-static mean?
The wheel is made from electrically conductive rubber, so static charge can pass through it to the floor instead of building up on your trolley or equipment.
Does this castor swivel?
No. This is a fixed castor, so the wheel only rolls forwards and backwards. Use it with matching swivel or braked castors for easy steering.
How much weight can this castor carry?
Each castor is rated for 70kg.
How is the castor fitted?
It has a 101 x 85mm top plate with four 8mm holes on 80 x 60mm hole centres, bolted flat to the underside of your trolley, cart or equipment.
How tall is this castor?
The total castor height is 128mm.
What temperatures can this castor handle?
The castor is suitable for use from -20°C to +60°C.
