- Load per castor100kg per castor
- Wheel diameter100mm
- Overall height128mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Fixed Top Plate Castor
- Wheel Diameter
- 100mm
- Wheel Type
- Thermoplastic Rubber (TPR)
- Wheel Material
- Rubber on Polypropylene
- Wheel Colour
- Grey
- Tread Width
- 30mm
- Tyre Hardness
- 88 Shore A
- Bearing Type
- Roller Bearing
- Fixing
- Top Plate, 4 bolt holes
- Plate Size
- 105 x 85mm
- Hole Centres
- 80 x 60mm
- Hole Diameter
- 8mm
- Total Castor Height
- 128mm
- Load Capacity
- 100kg per castor
- Temperature Range
- -20°C to +60°C
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Thermoplastic / elastic tread · working temperature -20°C to +60°C
- Soft, quiet and smooth rolling
- Gentle on wood, laminate, vinyl and tiles
- Good shock absorption
- Not for high heat or very heavy loads
Details & FAQs

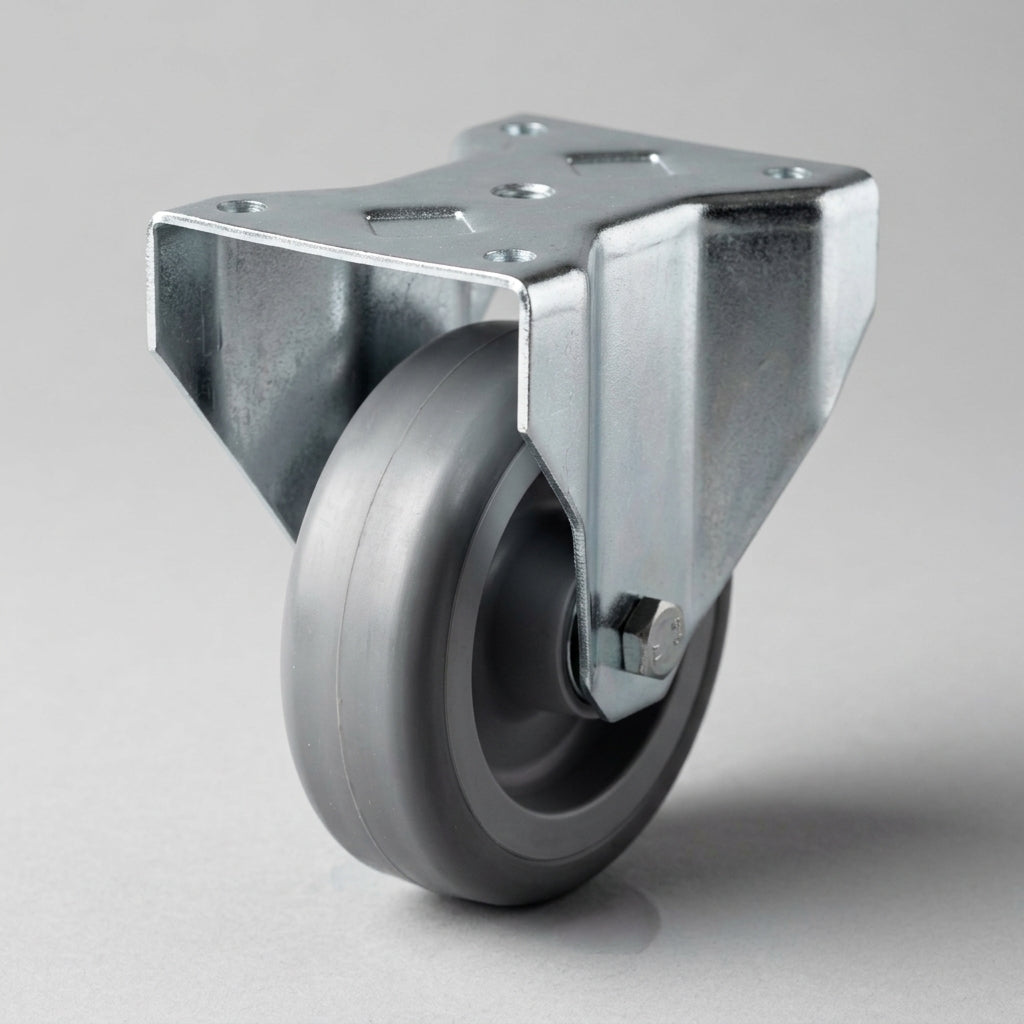

Grey TPR Fixed Castors
Featuring a thermoplastic rubber (TPR) wheel, this 100mm fixed castor is built to maintain a straight path, making it ideal where directional stability is crucial. With a load capacity of 100kg per castor, it suits warehouse trolleys, factory carts and retail display units.
The tread hardness of 88 Shore A gives a balance between grip and wear resistance. The wheel has a rubber tread on a polypropylene core and runs on a roller bearing for smooth movement, while the top plate gives secure attachment to flat surfaces. The castor mounts with a 105 x 85mm top plate, stands 128mm tall and works from -20°C to +60°C.
Why Choose This Castor
- ✓ Fixed bracket maintains a straight path where directional stability is crucial.
- ✓ Grey TPR wheel with 88 Shore A tread hardness for a balance between grip and wear resistance.
- ✓ 100kg load capacity per castor for a wide range of handling needs.
- ✓ Roller bearing for smooth movement.
- ✓ Rubber tread on a polypropylene core offers a reliable solution for various handling needs.
- ✓ 105 x 85mm top plate with four 8mm holes for secure attachment to flat surfaces.
* Load capacity is per castor on a smooth, level floor. Check that the plate size and hole centres match your mounting area before fitting.
Where It Works Best
This fixed top plate castor suits equipment that needs to run straight and stable:

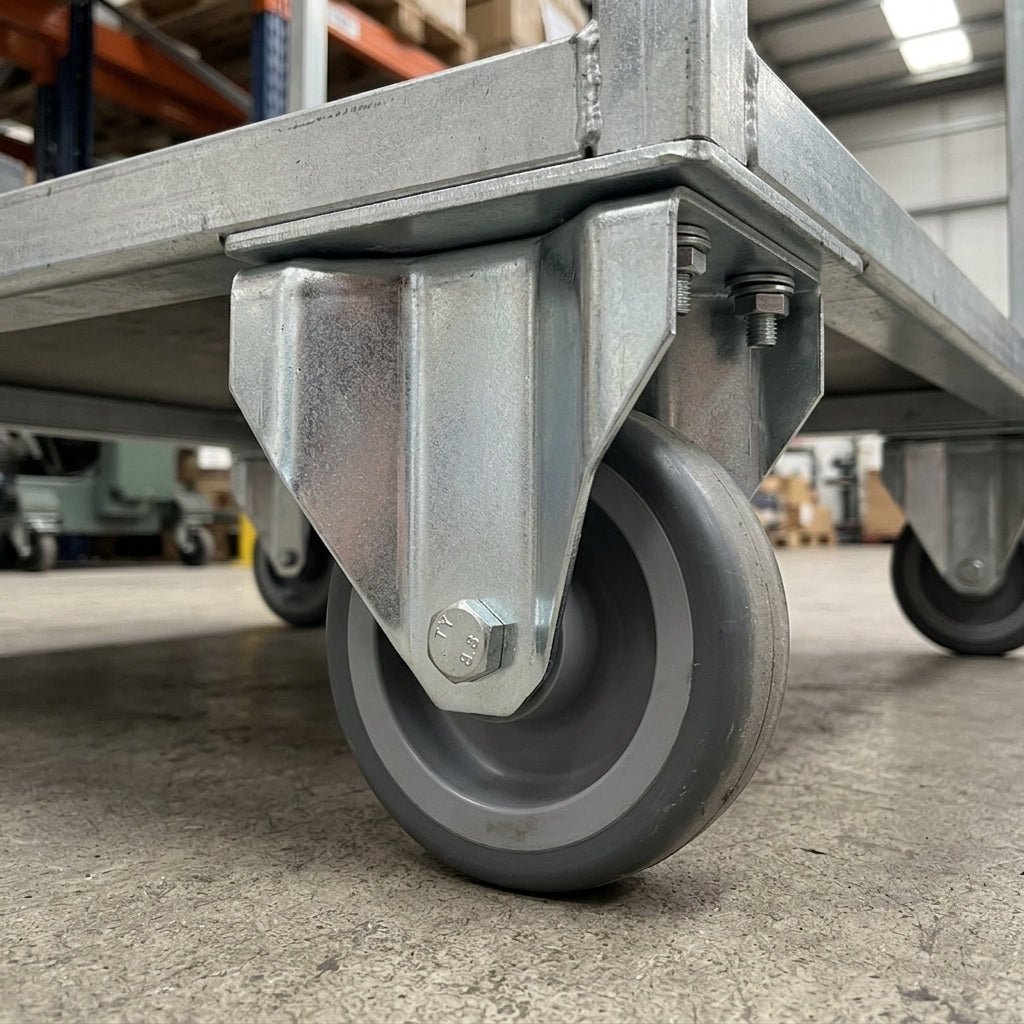

- ✓ Warehouse trolleys: transporting goods with directional stability.
- ✓ Factory carts: reliable movement along controlled paths.
- ✓ Retail display units: stable positioning and movement.
Frequently Asked Questions
How much weight can this castor carry?
Each castor is rated for 100kg.
Does this castor swivel?
No. This is a fixed castor that keeps a single direction of travel. Pair it with swivel castors at the other end of a trolley so it can still be steered.
How is the castor fitted?
It has a 105 x 85mm top plate with four 8mm holes on 80 x 60mm hole centres, bolted flat to the underside of your trolley, cart or cabinet.
How tall is the castor?
The total castor height is 128mm.
What is the wheel made of?
A 100mm grey thermoplastic rubber (TPR) tread on a polypropylene core, 30mm wide with 88 Shore A hardness, running on a roller bearing.
What temperatures can it work in?
The castor is suitable for use from -20°C to +60°C.
