Description

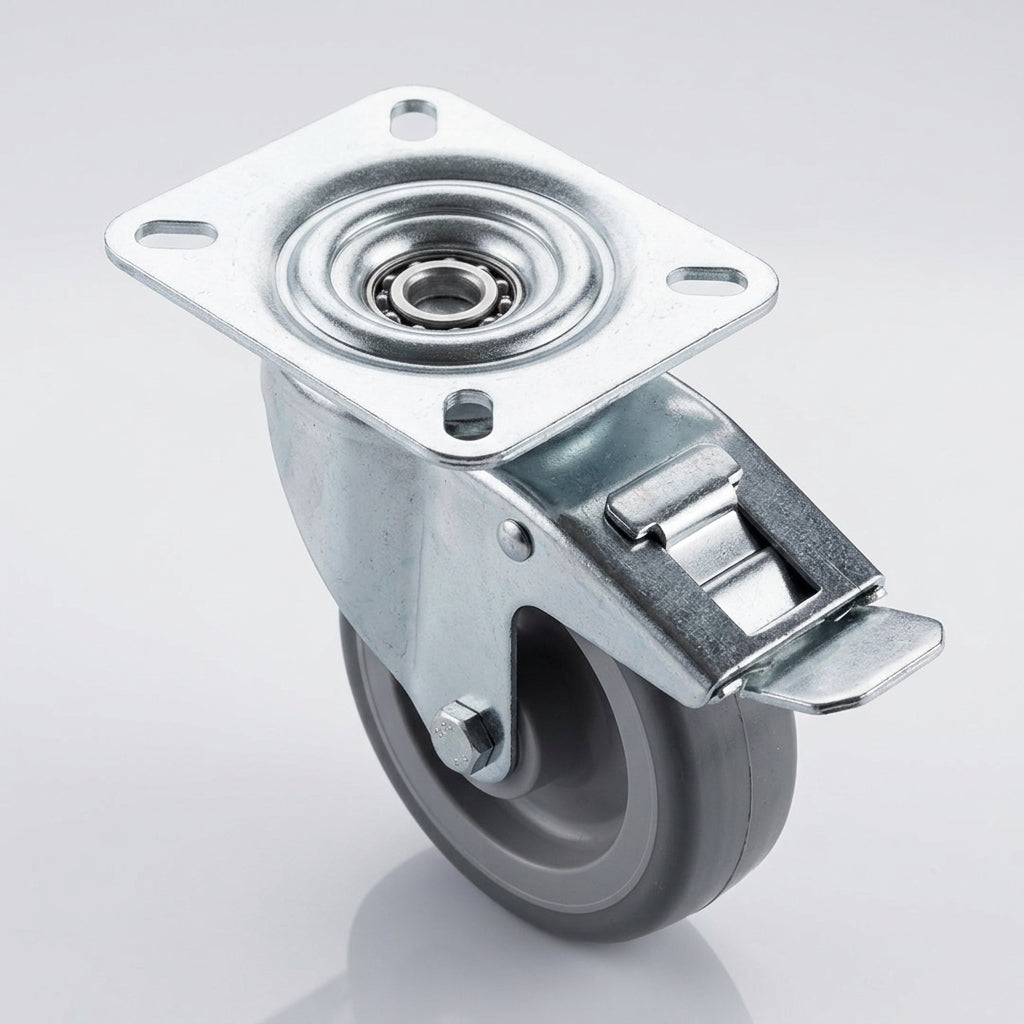

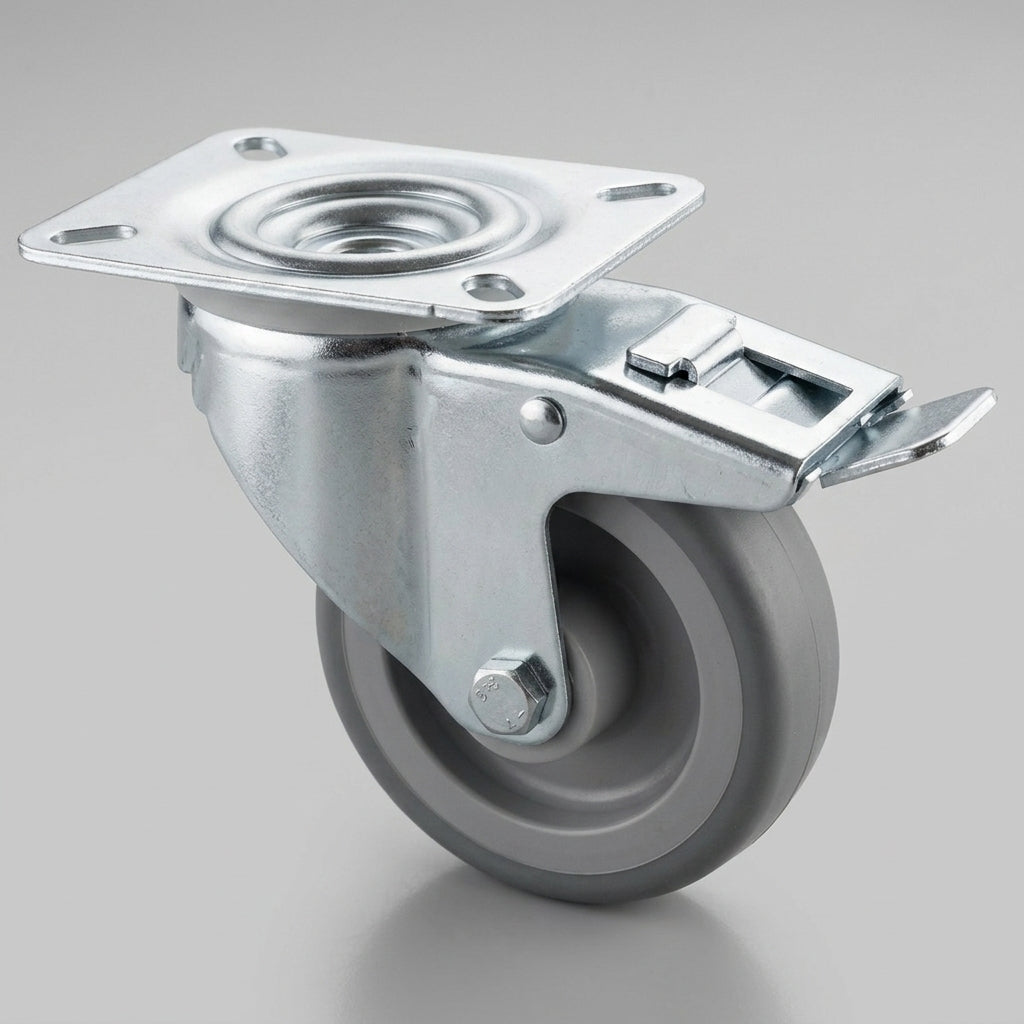

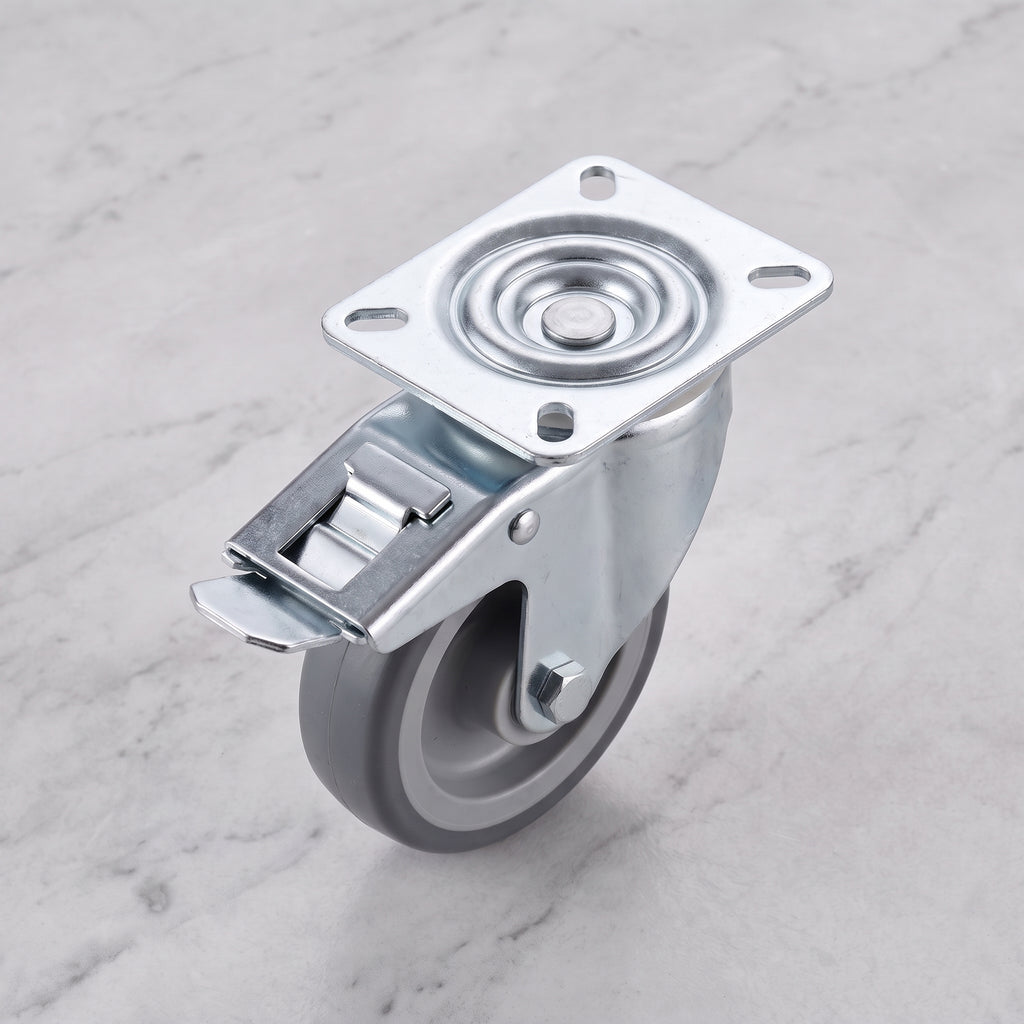

100mm Braked Castor with TPR Wheel
This high-performance braked castor features a durable 100mm TPR (thermoplastic rubber) wheel, designed for optimal grip and wear resistance. With a robust load capacity of 100kg, this castor is ideal for a variety of applications, ensuring smooth and controlled movement in handling equipment, trolleys, and carts.
Technical Specifications
| Specification | Details |
|---|---|
| Castor Type | Top Plate Castors |
| Bearing Type | Roller |
| Load Capacity | 100 kg |
| Tread Width (mm) | 30 |
| Temperature Range | -20 min to +60 max |
| Hardness of Tread | 88 shore A |
| Max Load Capacity of 4 Castors | 300 kg |
| Plate Length (mm) | 105 |
| Plate Width (mm) | 85 |
| Plate Hole Centres Length (mm) | 80 |
| Plate Hole Centres Width (mm) | 60 |
| Plate Hole Diameter | 8 |
| Swivel Radius | 118 |
| Total Castor Height | 128 |
| Wheel Colour | Grey |
| Wheel Diameter (mm) | 100 |
| Wheel Material | Rubber on Polypropylene |
Applications

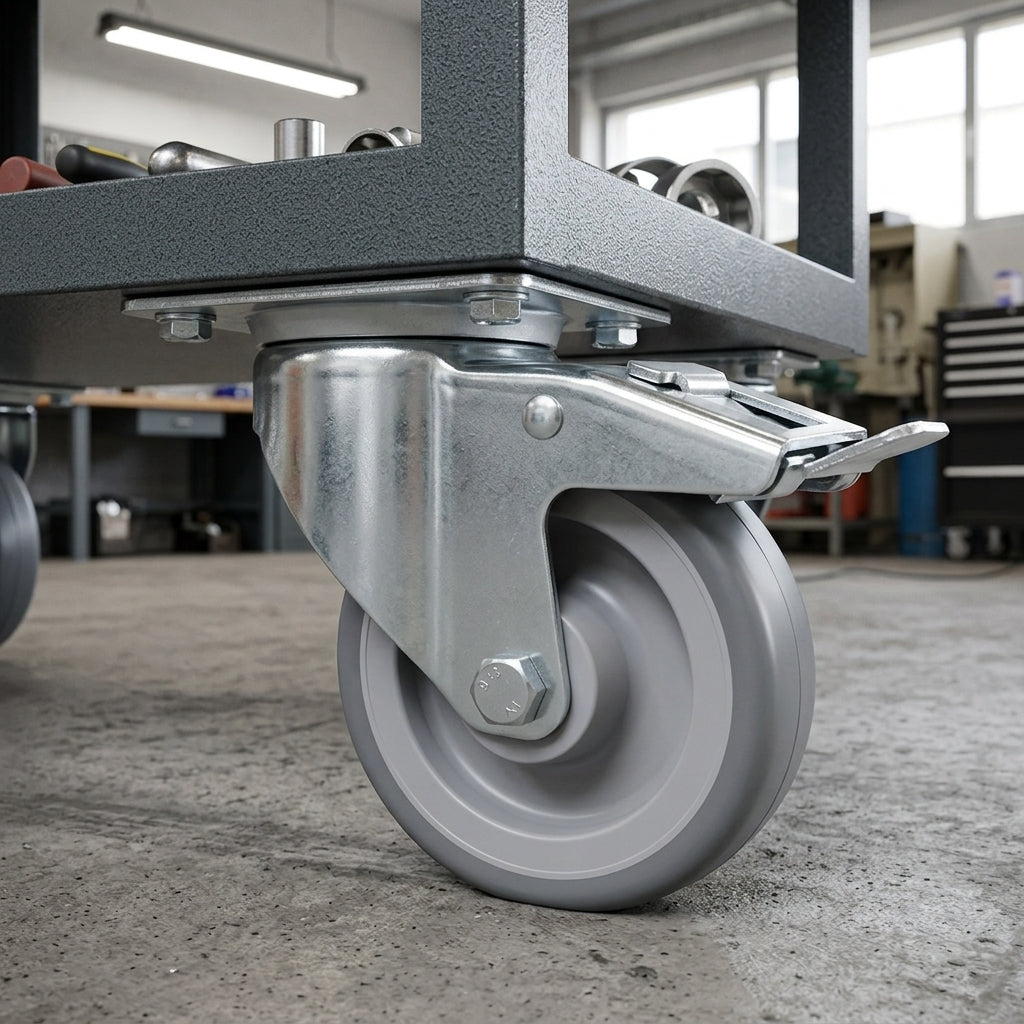

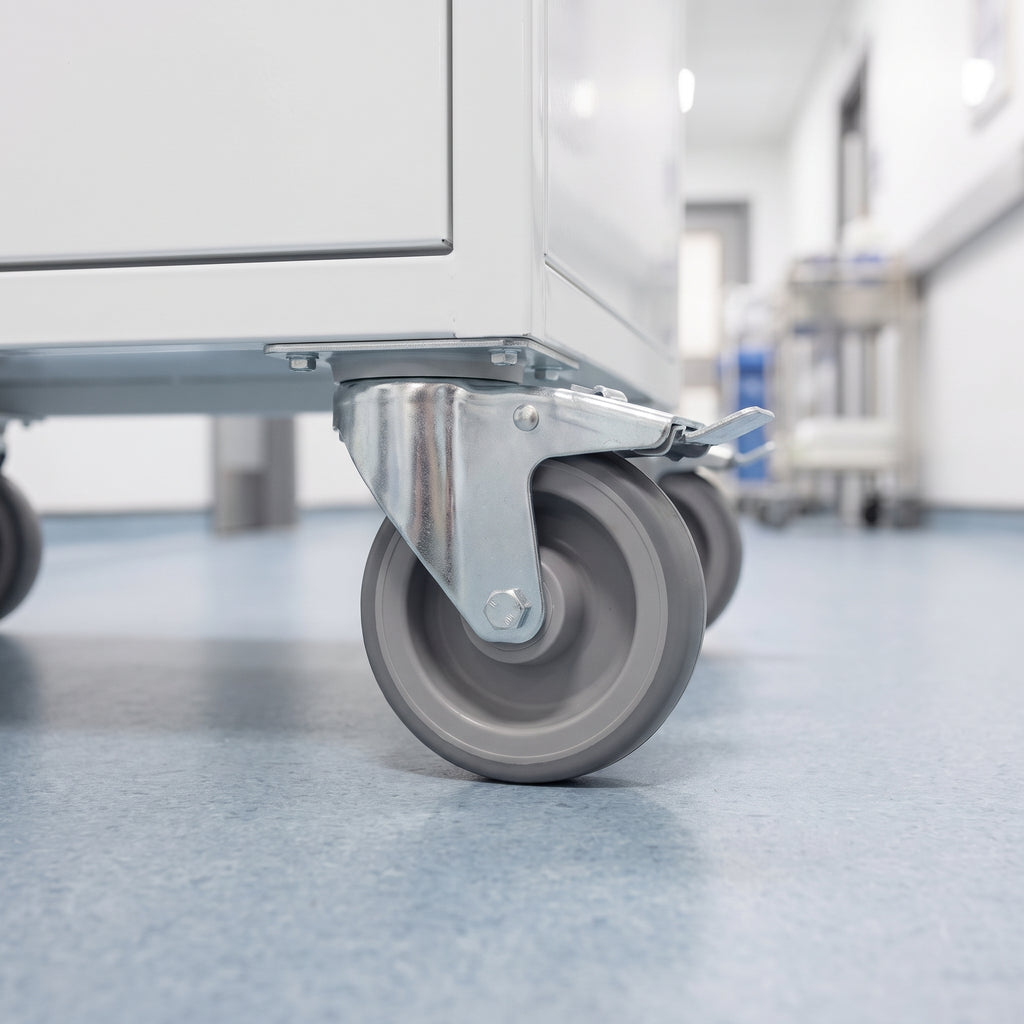

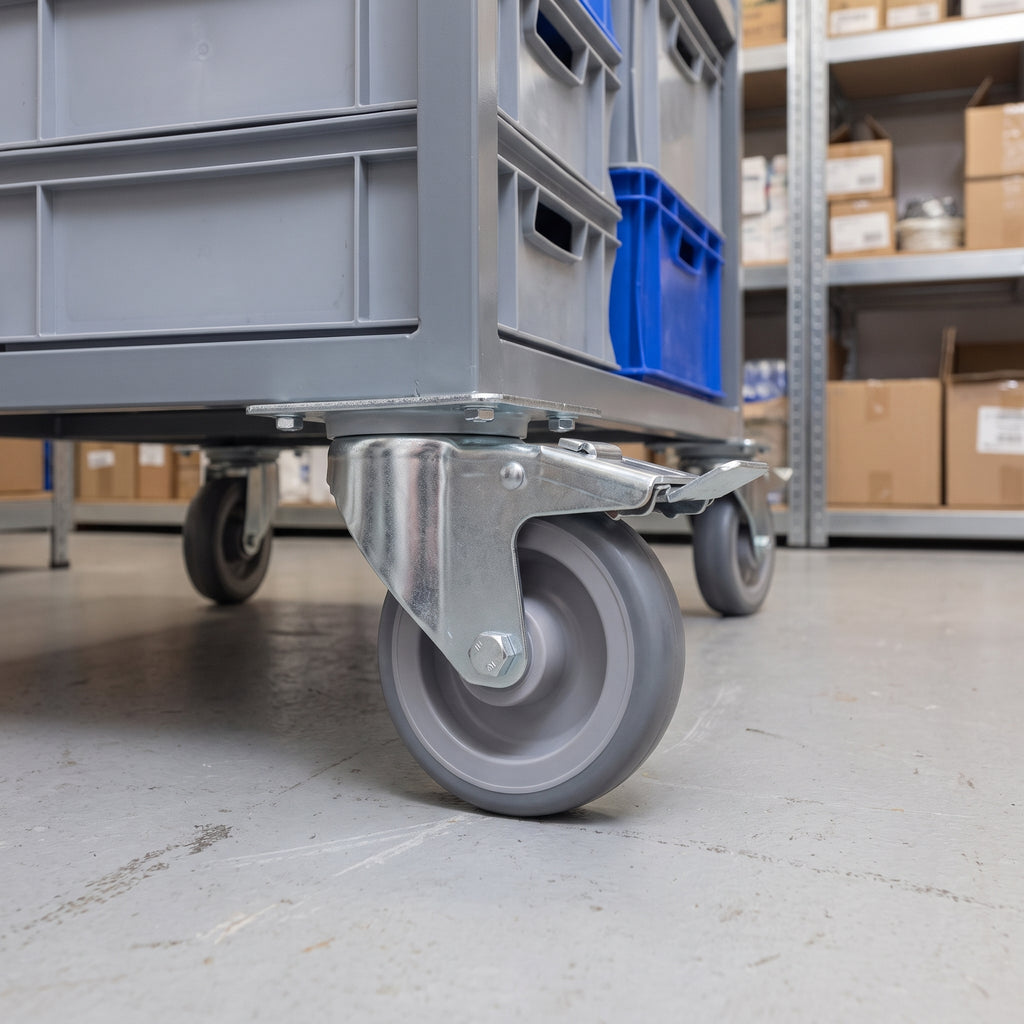

- Trolleys: Ideal for smooth and controlled movement in warehouses and workshops.
- Carts: Perfectly suited for carts requiring easy manoeuvrability and secure positioning.
- Handling Equipment: Excellent for equipment that demands stable and controlled movement.
Frequently Asked Questions
1. What is the load capacity of this castor?
The load capacity of this braked castor is 100kg.
2. What material is the wheel made from?
The wheel is constructed from thermoplastic rubber on a polypropylene core.
3. Can this castor be used outdoors?
Yes, it can operate within a temperature range of -20°C to +60°C, making it suitable for various environments.
4. How does the brake mechanism work?
The brake acts on both the wheel and the swivel head, allowing for controlled movement and secure positioning.
5. What are the dimensions of the plate?
The plate measures 105mm in length and 85mm in width.
6. Is this castor suitable for heavy-duty applications?
Yes, with a load capacity of 100kg, it is suitable for various heavy-duty applications.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
