- Load per castor150 kg
- Wheel diameter80 mm
- Overall height108 mm
- WheelRubber on Polypropylene
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Roller
- Load Capacity
- 150 kg
- Tread Width
- 36 mm
- Temperature Range
- -40°C to +60°C
- Max Load Capacity of 4 Castors
- 450 kg
- Plate Length
- 99 mm
- Plate Width
- 85 mm
- Plate Hole Centres Length
- 80 mm
- Plate Hole Centres Width
- 60 mm
- Plate Hole Diameter
- 8 mm
- Total Castor Height
- 108 mm
- Wheel Colour
- Blue
- Wheel Diameter
- 80 mm
- Wheel Material
- Rubber on Polypropylene
Will it fit?
- Top plate99 mm × 85 mm
- Hole centres80 mm × 60 mm
- Fixing holeØ 8 mm
- Overall height108 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Rubber tread · working temperature -40°C to +60°C
- Cushions the load and soaks up vibration
- Quiet on most surfaces
- Copes with uneven floors, thresholds and outdoor use
- Good grip on smooth floors
- Takes more effort to push than nylon under heavy loads
- Oils and solvents shorten tyre life
Details & FAQs

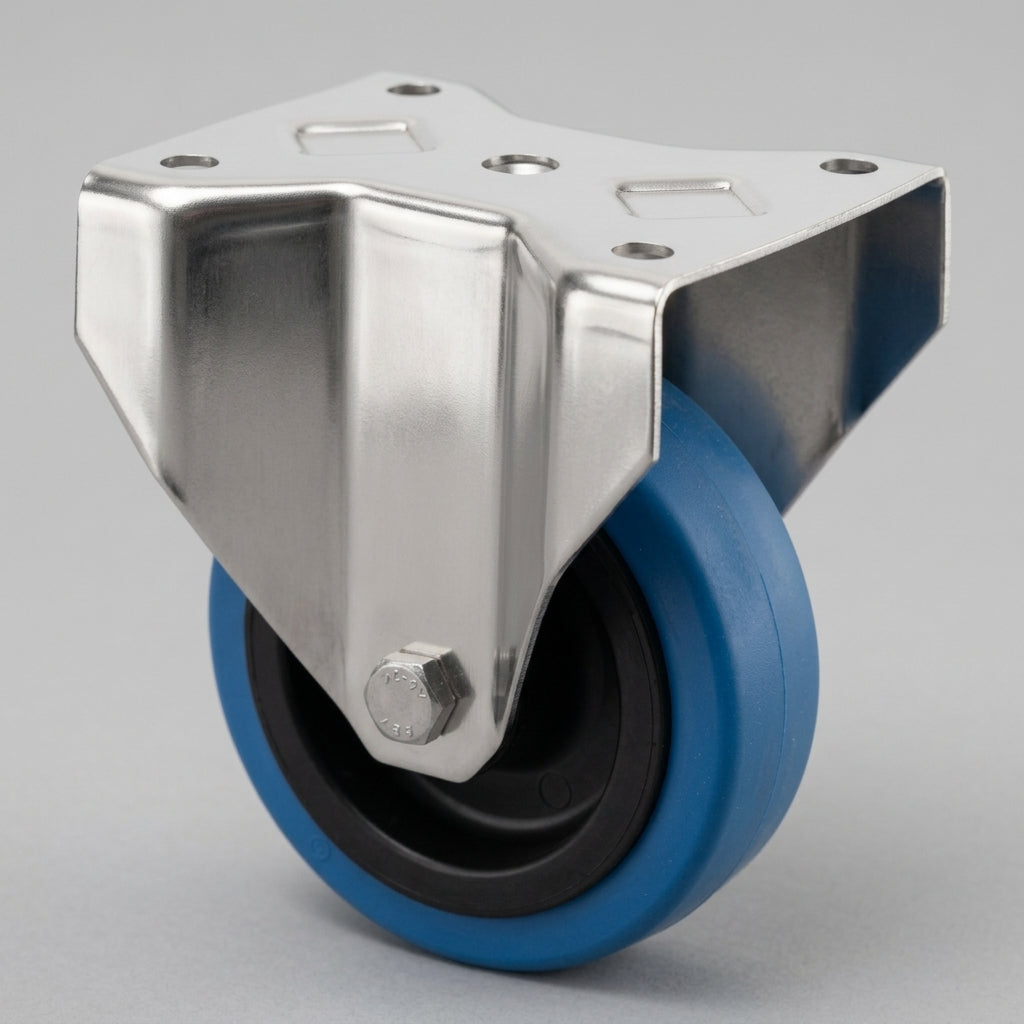

Discover the ultimate solution for mobility with our Fixed Stainless Steel Castors featuring an 80mm Blue Rubber Wheel. Engineered for heavy-duty applications, these castors are perfect for a variety of equipment, including industrial carts, office furniture, and medical equipment. With a dynamic load capacity of 150kg, they ensure smooth and reliable movement across diverse surfaces.
Applications

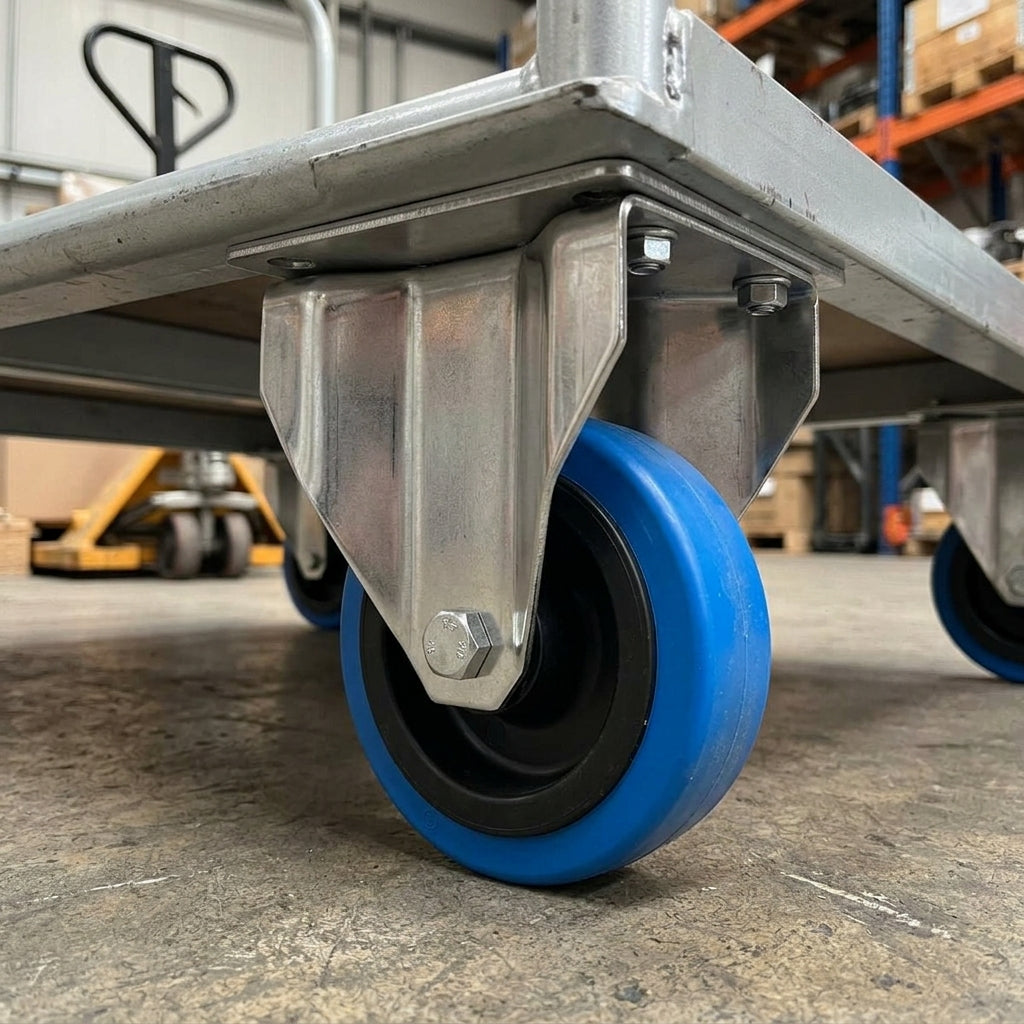

- Industrial Carts: Perfect for transporting goods in warehouses and manufacturing facilities.
- Office Furniture: Commonly used in office chairs and desks for enhanced mobility.
- Medical Equipment: Ideal for hospital trolleys and equipment requiring easy movement in clinical settings.
- Retail Displays: Excellent for movable display units in retail environments, improving product visibility.
FAQs
Q: What is the load capacity of these castors?
A: These fixed castors have a load capacity of 150kg, making them suitable for heavy-duty applications.
Q: Can these castors be used outdoors?
A: Yes, the stainless steel construction ensures resistance to corrosion, making them ideal for both indoor and outdoor use.
Q: What is the diameter of the wheels?
A: The wheels have a diameter of 80mm, providing a balance of manoeuvrability and stability.
Q: Are these castors suitable for cold environments?
A: Yes, they operate effectively within a temperature range of -40°C to +60°C.
Q: What materials are the wheels made from?
A: The wheels are made from rubber on polypropylene, offering excellent grip and shock absorption.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
