- Load per castor1200 kg
- Wheel diameter200 mm
- Overall height245 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 1200 kg
- Tread Width
- 50 mm
- Temperature Range
- -40 to +60 °C
- Hardness of Tread
- A92
- Max Load Capacity of 4 Castors
- 3600 kg
- Plate Length
- 135 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Total Castor Height
- 245 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 200 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate135 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height245 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40 to +60 °C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

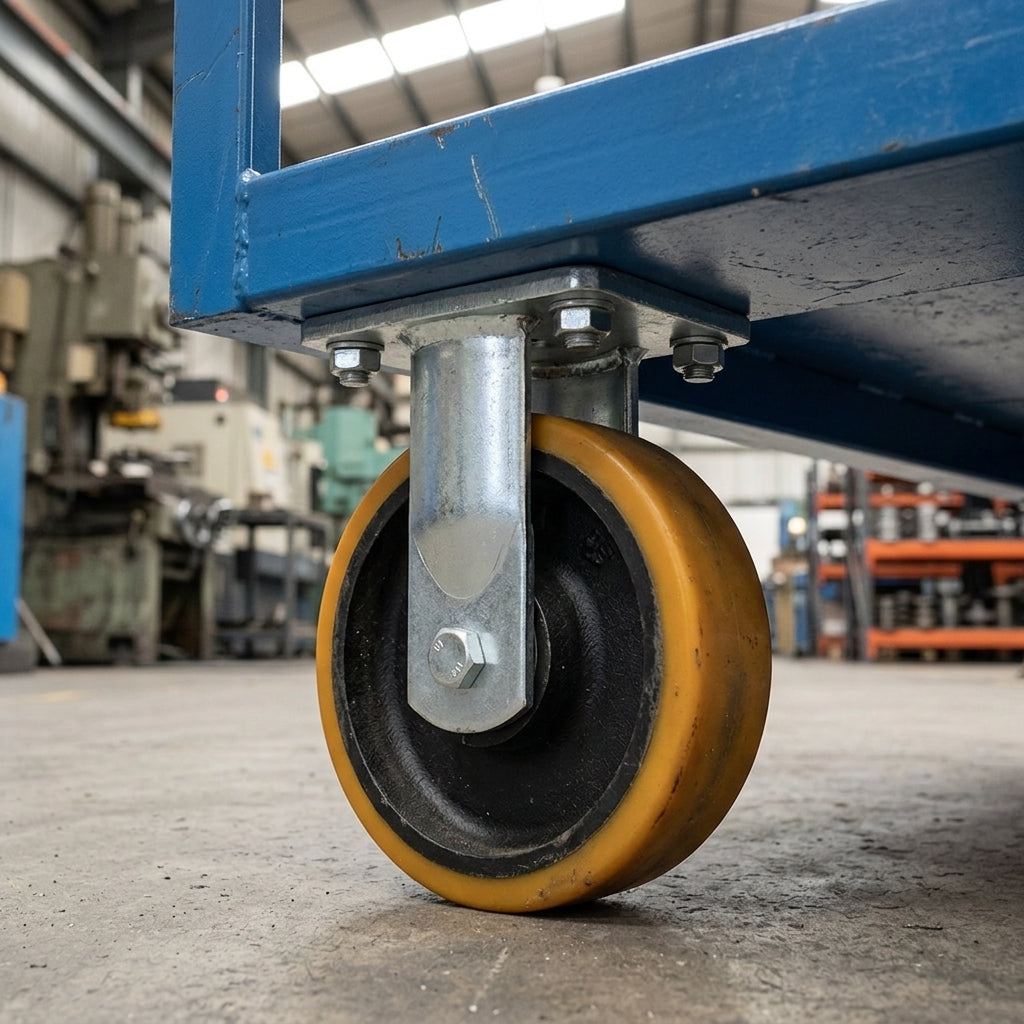

The 200mm Fixed Heavy Duty Castor is engineered for demanding industrial applications, featuring a robust polyurethane tread on a durable cast iron core. This castor is perfect for transporting heavy loads in warehouses, manufacturing plants, and various industrial environments, ensuring longevity and reliable performance even under challenging conditions.
Applications
- Warehousing: Facilitates the easy movement of heavy goods across storage facilities.
- Manufacturing: Supports the transportation of machinery and components in production settings.
- Industrial Transport: Ideal for use in trolleys and carts transporting substantial loads.
Frequently Asked Questions (FAQs)
- What is the load capacity of this castor? The load capacity is 1200 kg per castor.
- What materials are used in the construction of this castor? It features a polyurethane tread on a cast iron core.
- What is the temperature range for this castor? It operates effectively between -40 to +60 degrees Celsius.
- Can this castor be used in outdoor environments? Yes, it is suitable for various environmental conditions.
- What is the diameter of the wheel? The wheel diameter is 200 mm.
- Is this castor suitable for heavy machinery? Absolutely, it is designed to support heavy equipment and materials.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
