- Load per castor860 kg
- Wheel diameter160 mm
- Overall height205 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 860 kg
- Tread Width
- 60 mm
- Temperature Range
- -40°C to +60°C
- Hardness of Tread
- A92
- Max Load Capacity of 4 Castors
- 2580 kg
- Plate Length
- 135 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 157 mm
- Total Castor Height
- 205 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 160 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate135 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height205 mm
- Swivel radius157 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

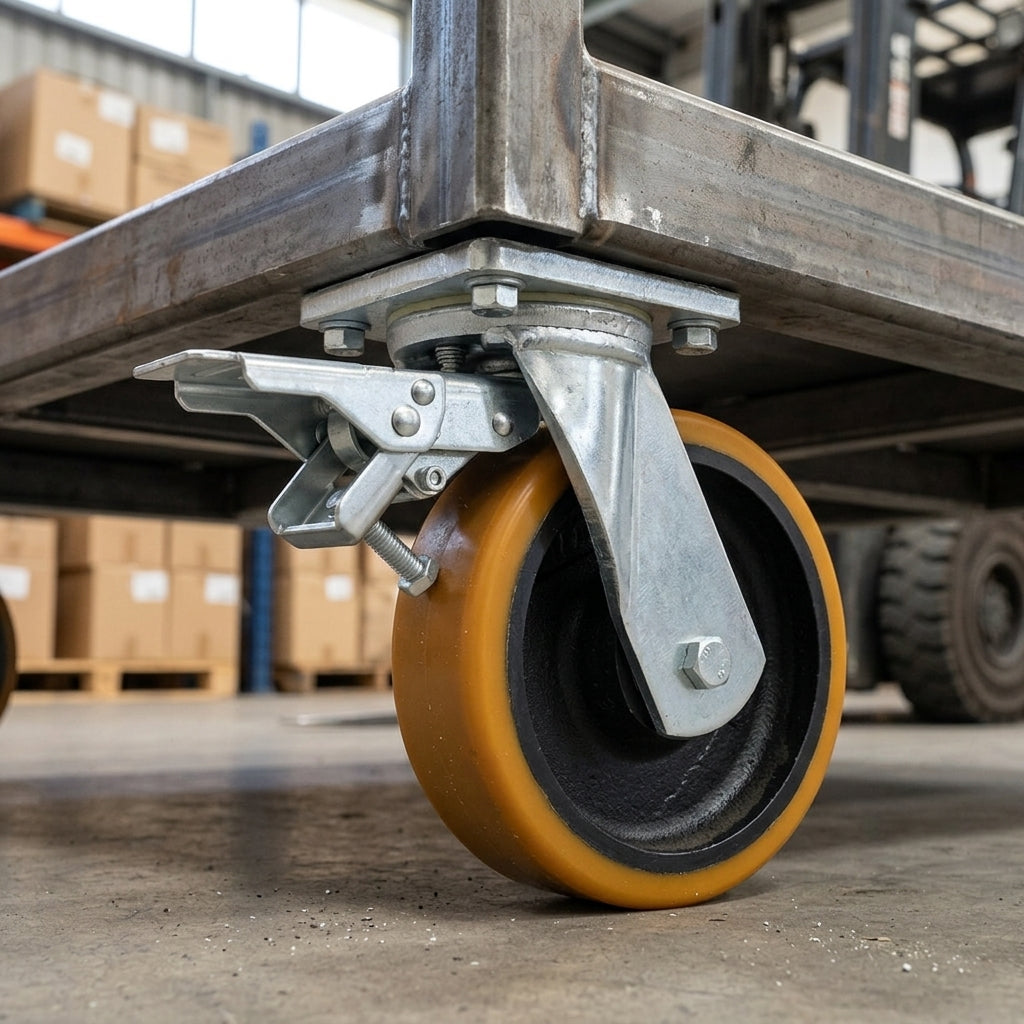

The 160mm Braked Heavy Duty Castor, featuring a robust polyurethane wheel mounted on a durable cast iron base, is engineered for industrial applications where heavy loads need to be moved safely and efficiently. With its impressive load capacity of 860kg per castor, this product is ideal for environments that demand both strength and stability.
Applications
This heavy-duty castor is perfect for:
- Industrial facilities, moving heavy equipment and machinery.
- Warehouses, ideal for pallet trucks and heavy-duty trolleys.
- Manufacturing plants, suitable for transporting large components and materials.
FAQs
1. What is the load capacity of this castor?
Each castor can handle a load of up to 860 kg.
2. What materials are used in the construction?
The wheel is made of polyurethane mounted on a cast iron base for durability.
3. Can this castor be used in outdoor environments?
Yes, it operates effectively in temperatures ranging from -40°C to +60°C.
4. Is the castor suitable for uneven surfaces?
The ball bearing system ensures smooth movement, making it effective on uneven surfaces.
5. How does the braked function work?
The braked feature locks the wheel in place, providing stability when stationary.
6. What is the swivel radius of this castor?
The swivel radius is 157 mm, allowing for easy maneuverability.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
