- Load per castor700 kg
- Wheel diameter160 mm
- Overall height200 mm
- WheelPolyurethane on Cast Iron
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 700 kg
- Tread Width
- 50 mm
- Temperature Range
- -40 min to +60 max
- Hardness of Tread
- 92 shore A
- Max Load Capacity of 4 Castors
- 2100 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 150 mm
- Total Castor Height
- 200 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 160 mm
- Wheel Material
- Polyurethane on Cast Iron
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height200 mm
- Swivel radius150 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -40 min to +60 max
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

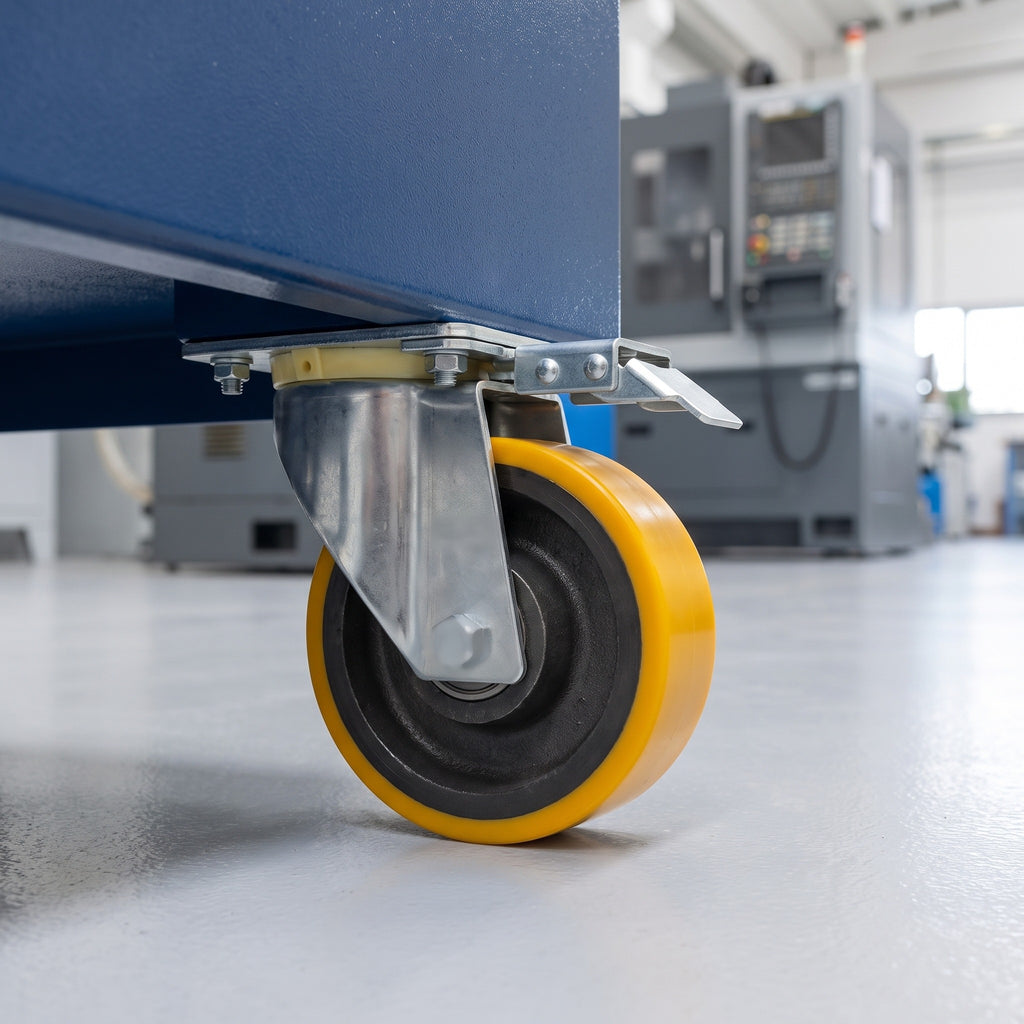

This robust 160mm Directional Lock Heavy Duty Castor, featuring a durable polyurethane wheel on a cast iron base, is designed for demanding industrial applications. With a load capacity of 700kg, this castor provides exceptional mobility and control, making it ideal for transporting heavy equipment in warehouses, manufacturing facilities, and other industrial environments.
Applications
This heavy-duty castor is perfect for:
- Industrial Equipment: Facilitates the movement of heavy machinery.
- Warehousing: Ideal for transporting large goods efficiently.
- Manufacturing: Supports material handling in production areas.
Frequently Asked Questions
- What is the load capacity of this castor? 700 kg, making it suitable for heavy-duty applications.
- What material is the wheel made of? The wheel is made of polyurethane on a cast iron base for durability and smooth performance.
- Can this castor be used outdoors? Yes, it can operate in temperatures ranging from -40 to +60 degrees Celsius.
- What is the swivel radius of this castor? The swivel radius is 150mm, allowing for tight turns and improved handling.
- Is this castor suitable for industrial environments? Absolutely, it is designed specifically for industrial applications.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
