- Load per castor500 kg
- Wheel diameter125 mm
- Overall height164 mm
- WheelPolyurethane on Aluminium
- Secure checkout
- 14-day returns on unused items
- UK-based castor advice
Specifications
- Castor Type
- Top Plate Castors
- Bearing Type
- Ball Bearing
- Load Capacity
- 500 kg
- Tread Width
- 50 mm
- Temperature Range
- -20°C to +60°C
- Hardness of Tread
- A92
- Max Load Capacity of 4 Castors
- 1500 kg
- Plate Length
- 140 mm
- Plate Width
- 110 mm
- Plate Hole Centres Length
- 105 mm
- Plate Hole Centres Width
- 80/75 mm
- Plate Hole Diameter
- 10 mm
- Swivel Radius
- 118 mm
- Total Castor Height
- 164 mm
- Wheel Colour
- Yellow
- Wheel Diameter
- 125 mm
- Wheel Material
- Polyurethane on Aluminium
Will it fit?
- Top plate140 mm × 110 mm
- Hole centres105 mm × 80/75 mm
- Fixing holeØ 10 mm
- Overall height164 mm
- Swivel radius118 mm
Replacing an old castor? Measure between the centres of two fixing holes along the long edge, then across the short edge, and compare with the hole centres above. Allow the swivel radius as clear space around each castor so it can turn freely.
Load check
How we work it out: on a real floor one castor is often carrying little or nothing, so we share the weight across one fewer castor than you fit (with 3 castors, across all 3). Tick the box to add a 30% margin for rough use.
Floors & use
Polyurethane tread · working temperature -20°C to +60°C
- Rolls quietly and smoothly
- Kind to most finished floors
- Hard-wearing, carries a high load for its size
- Ideal on concrete, epoxy, vinyl and tiles
- Not intended for very hot areas
- Less cushioning than rubber over rough ground
Details & FAQs

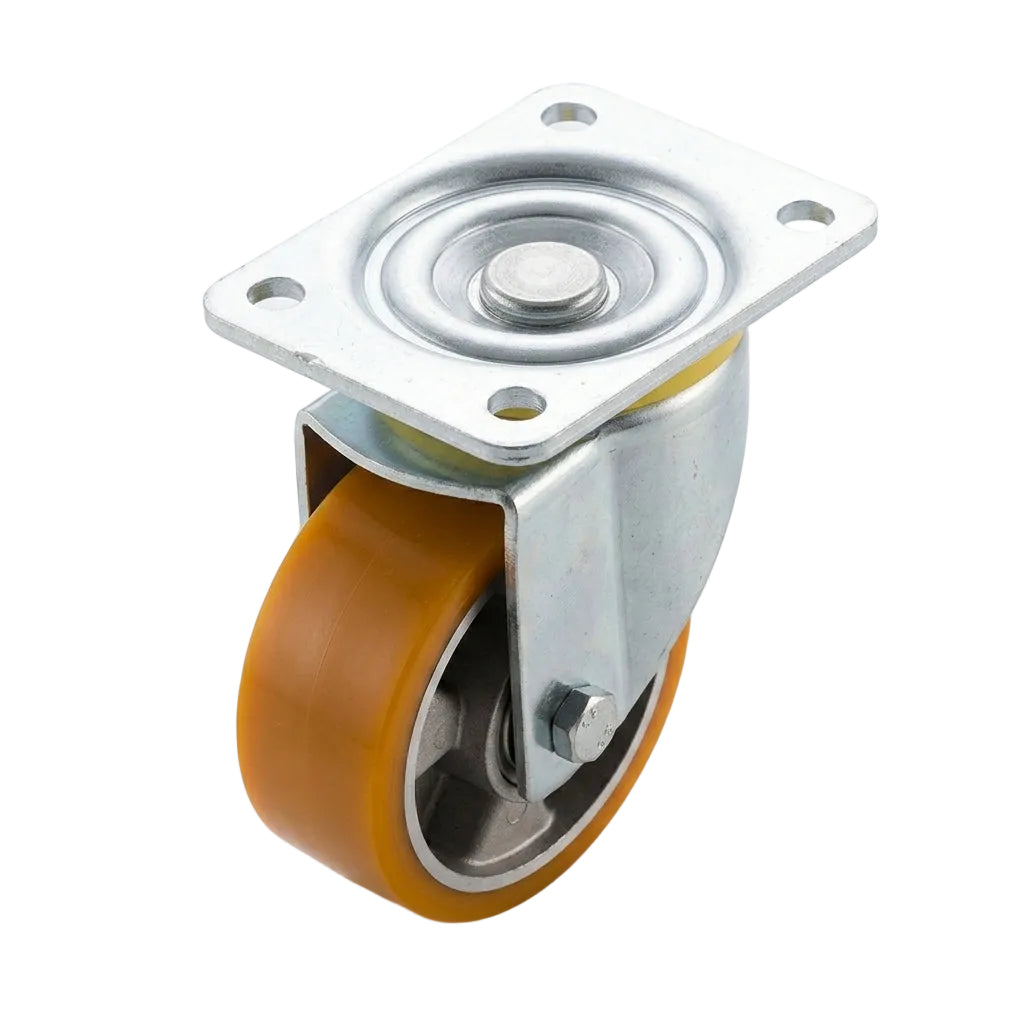

This robust 125mm swivel castor features a durable polyurethane tread mounted on a lightweight aluminium core, designed specifically for industrial applications. With a remarkable load capacity of up to 500kg, this castor ensures smooth mobility across various surfaces, making it ideal for material handling trolleys, industrial equipment, and warehouse carts.
Applications
- Material Handling Trolleys: Enhances mobility and support for transporting goods.
- Industrial Equipment: Ideal for machinery requiring heavy-duty support and movement.
- Warehouse Carts: Facilitates easy movement of loaded carts in storage facilities.
- Manufacturing Units: Perfect for equipment that needs frequent repositioning.
- Workshops: Supports workbenches and tool cabinets for improved mobility.
FAQs
- What is the load capacity of this castor? The castor can support up to 500 kg.
- What surfaces is this castor suitable for? It is designed for smooth surfaces, thanks to its firm polyurethane tread.
- Can this castor be used outdoors? Yes, it operates effectively within a temperature range of -20°C to +60°C.
- What type of bearing does this castor use? It features a ball bearing for smooth rotation.
- Is this castor easy to install? Yes, the top plate mounting allows for secure and straightforward installation.
- What is the swivel radius of this castor? The swivel radius is 118 mm, enabling easy maneuverability.
Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
