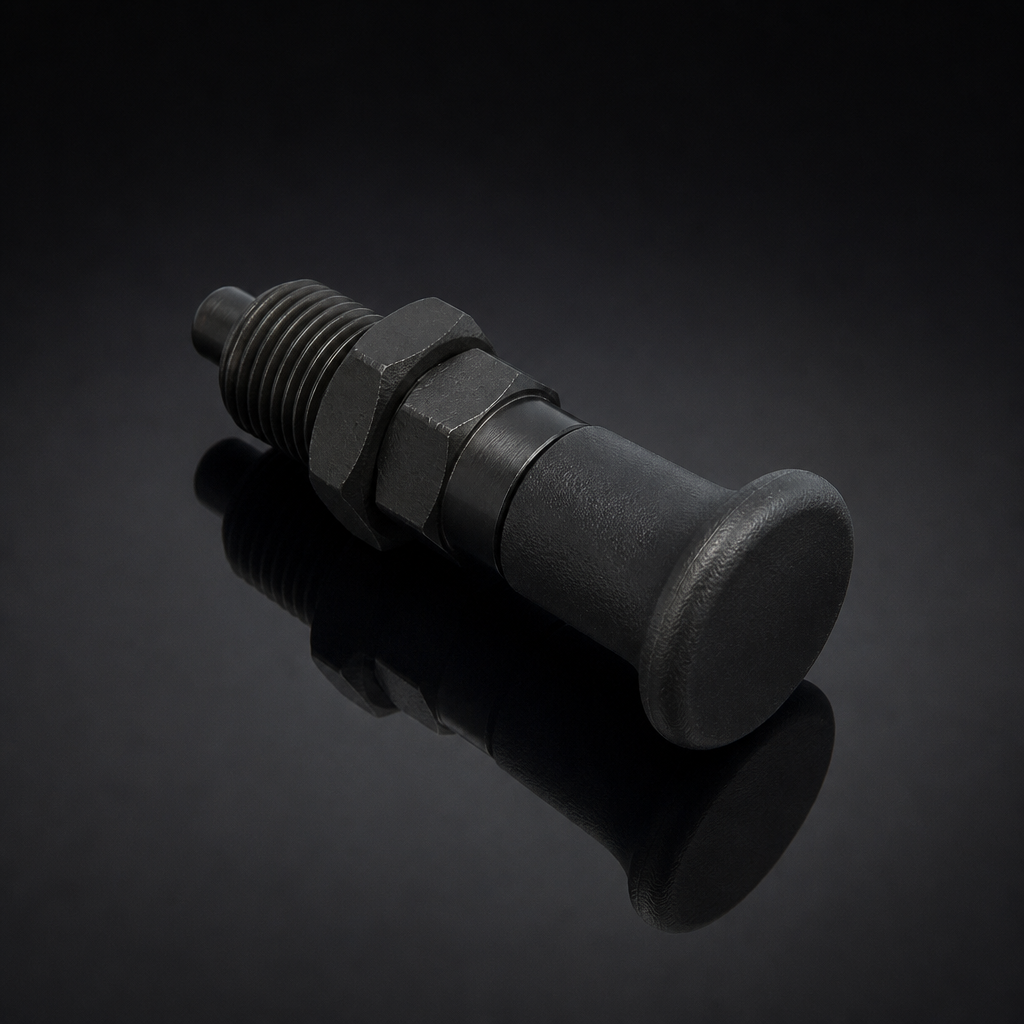

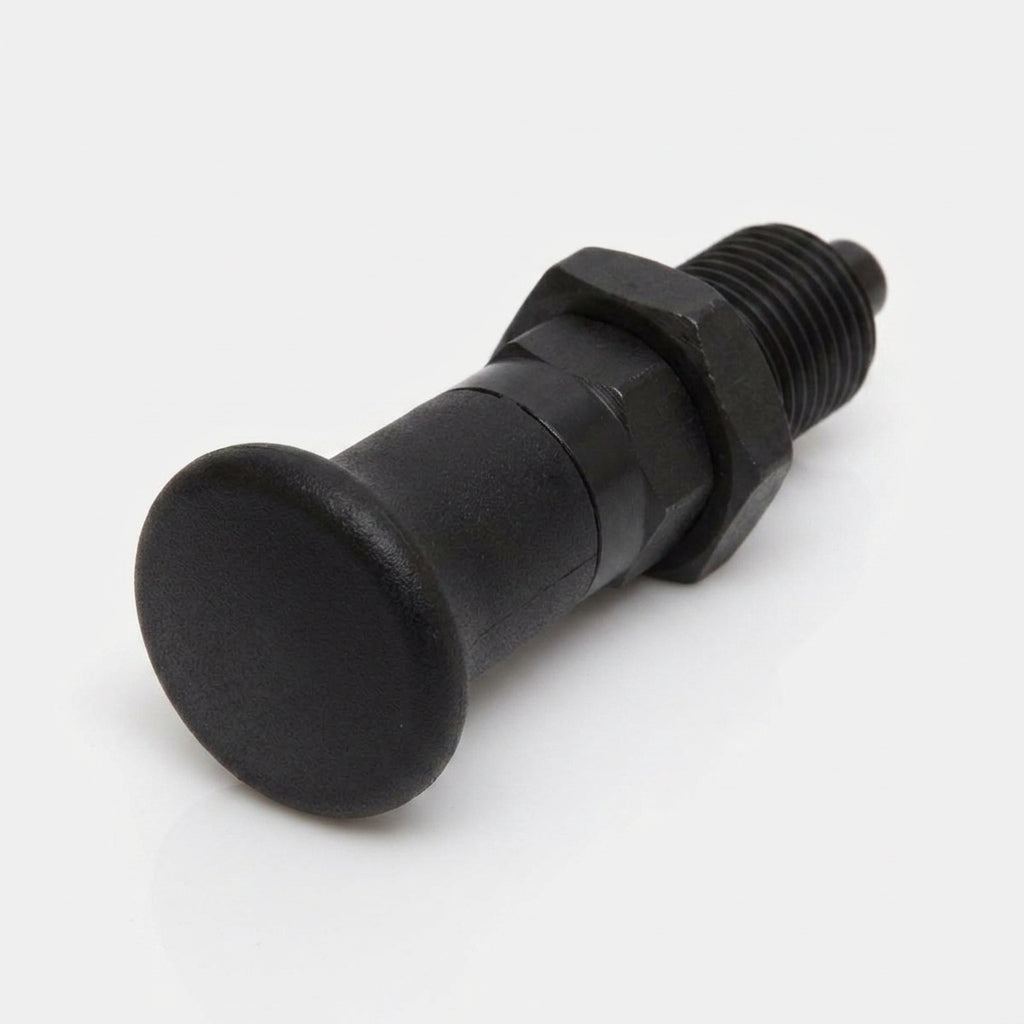

Spring Loaded Index Plunger - M16 Thread, 76mm Height

Spring Loaded Index Plunger for secure locking and positioning.

This index plunger features a spring-loaded mechanism designed for applications requiring precise positioning and secure locking. With an overall height of 76mm and an M16 thread, it is suitable for a range of equipment and machinery. The black handle provides a comfortable grip for manual operation.

Key Features

• Thread Size (D1): M16 – must match the receiving thread for proper installation.
• Overall Plunger Height: 76mm
• Plunger Height: 7mm
• Base Nut Height: 8mm
• Base To Thread Height: 26mm
• Handle Diameter: 31mm
• Colour: Black

Specifications

• Thread Size: M16
• Overall Height: 76mm
• Handle Diameter: 31mm
• Plunger Height: 7mm

Applications

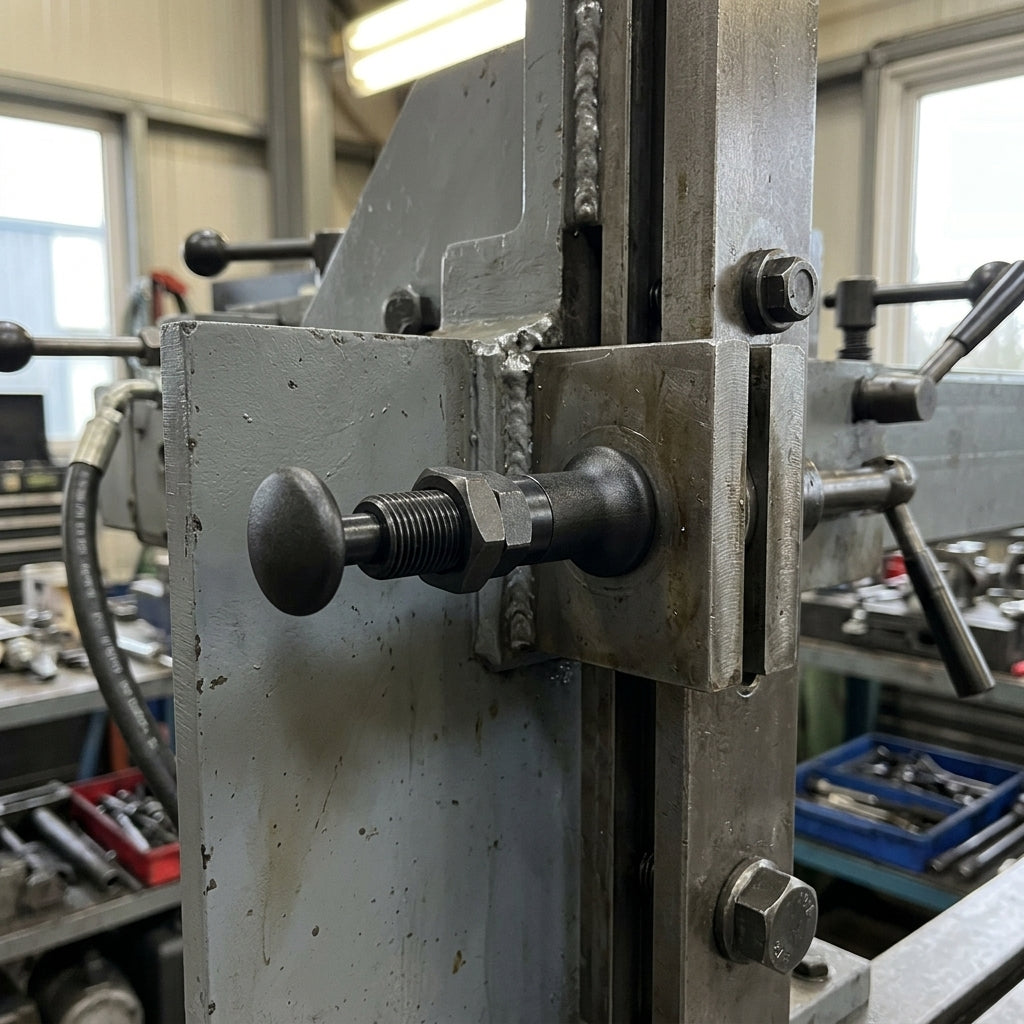

• Machinery: Used for precise positioning and locking in industrial machinery.
• Equipment Assembly: Applied in equipment that requires frequent adjustments and secure locking.
• Tooling: Ideal for jigs and fixtures requiring quick engagement and disengagement.
